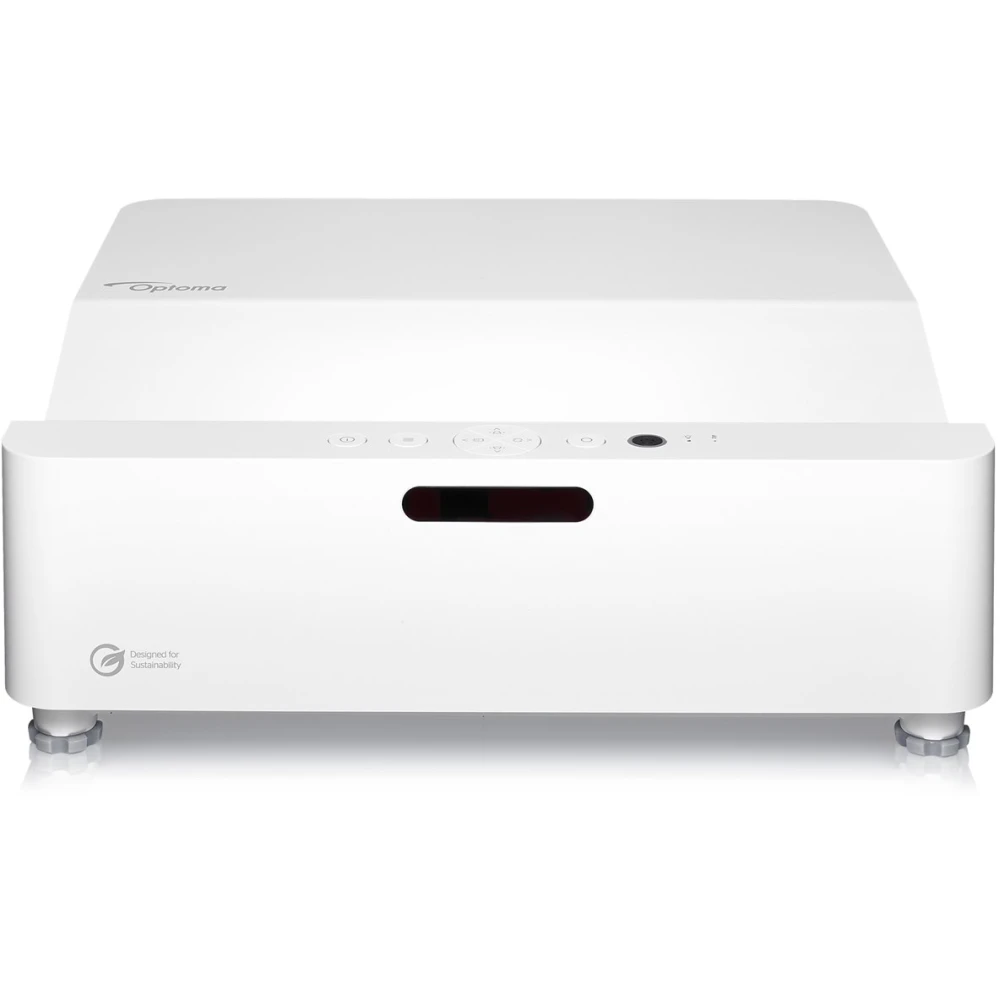

Optoma AZH430UST Full HD Laser Ultra Short Throw Projector
$3,999 $3,199
Save $800. Ends 31st December
Specifications
- 1080p 1920 x 1080 16:9
- 4000 ANSI Lumens
- 2,000,000:1 Contrast
- 3.9kg Weight
- 27db (eco) Fan Noise
- 3 Year/20,000hr Warranty
- 3 Year/20,000hr Laser Warranty
- Est. Laser Life up to 30,000hrs
Key Features
- Long Life Laser Lightsource
- Horizontal & Vertical Keystone
- Short Throw
- 2x HDMI Connection
- Powerful 15W Speaker
- 360° Installation
- Portrait Projection
- 3D Capable(3D glasses required)
- IP6X Dust Resistant Optical Engine
Optoma AZH430UST Throw Distance Chart
Throw Ratio: 0.25:1| Image Size | Installation Distance (from screen to projector chassis) |
|---|---|
| 80" (16:9) 1770x1000mm | Approx 0.16m |
| 92" (16:9) 2030x1140mm | Approx 0.24m |
| 100" (16:9) 2214x1245mm | Approx 0.30m |
| 120" (16:9) 2657x1494mm | Approx 0.40m |
| 130" (16:9) 2877x1618mm | Approx 0.45m |
Optoma AZH430UST 1080P Ultra Short Throw Laser Projector
The AZH430UST is built for bright meeting rooms with a 4000 ANSI lumen brightness level for lights on meetings. At its heart it is powered by a long life laser light source with a life up to 30,000 hours. This is perfect for heavy usage scenarios and saves you worrying about usage hours lamps and downtime. With dual HDMI inputs the AZH430UST is easy to connect to and even has a USB power port for powering smart dongles and wireless adapters.
Optional Accessories
- Bright FHD 1080p DuraCore laser projector – 4,000 lumens and IP6X certified
- Small form factor & short throw lens for easy installation – 360-degree and portrait projection
- DuraCore laser technology – 30,000 hours maintenance-free laser light source
- Built with the environment in mind – The latest laser technology and higher power conversion efficiency
Ultra Short Throw
Equipped with an ultra short throw lens the AZH430UST can produce a huge 100” image from just 30cm distance to the screen or wall. This allows for a super easy installation where they could be simply placed on a desk or cabinet at the front of the room or even installed on a wall mount. The UST design eliminates the chance of casting a shadow on screen when there is a presenter at the front of the room.
Crafted for Excellence: Business and Education Solutions
Ultra Short Throw (UST) provides unmatched advantages in confined spaces. UST's ability to display large, clear images when situated near the screen eliminates shadow interferences during presentations in huddle rooms and classrooms.
Brighter Performance
With the high lumens brightness, it is definitely the best choice in medium-sized spaces. Lights on viewing, vibrant in all conditions.
Full HD 1080p
1080p resolution gives you sharp and detailed images from HD content without downscaling or compression.
*4K inputs compatible
4K & HDR Compatible
High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.
Integrated speaker
Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.
Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for uneven walls or where projector placement is awkward and needs to be installed at an angle.
Compact and Reliable
Designed with simplicity in mind, Optoma dedicates to minimizing the product size and optimizing the component to be compact yet reliable enough for daily use.
Replace the thermal module with the heatsink. The latest phosphor wheel is optimized from 54mm to 47mm compared to the previous-gen. Remove the LVPS and replace it with an power adapter, which is easily to be repaired and replaced.
Dual HDMI inputs
With dual HDMI inputs, you can connect to different devices such as your set-top box, laptop, PC, Blu-ray player or media streamer easily by assigning them to different ports. There is no need for continuous plug or unplugging when switching devices, making presentation and display hassle-free. You can even turn it into a smart projector by connecting an HDMI dongle like Google Chromecast™, Amazon Fire TV, Apple TV™ or Roku® st
Device Control by HDMI CEC Link
When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link feature. This lets one device or multiple devices in a group power on/off simultaneously.
Optoma Management Suite™
A value-added solution, OMS provides IT administrators and technicians with an array of options to support daily operations, such as real-time monitoring of product performance so potential issues can be diagnosed and solved before they turn into failures. Additionally, users can broadcast or schedule alerts and messages across displays and remotely program and schedule device operating hours, reducing energy consumption and lowering operating costs.*
*OMS is an ever-evolving platform with features and functions being added over time. For the latest feature set please check with your local sales representative or check our website.
Optoma DURACORE Made for Environmental Sustainability
Designed with environmental friendliness in mind, Optoma is dedicated to providing eco-friendly, cost-effective, and reliable products, that bring better experiences to people all around the world. With the future-proofed laser technology, our products are energy-saving, mercury-free, and more economical.
IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Eco-friendly laser light source
With the latest laser technology and higher power conversion efficiency, the product saves up to 47% of power consumption compared with a lamp-based projector at similar capacity
Mercury Free
High power consumption and mercury pollution in traditional lamp-based projectors are gradually replaced with more reliable, mercury-free, and eco-friendly lamp-free laser projectors.
Maintenance Free & Economical
Laser projectors are durable with up to 30,000 hrs. life span (eco) and 24/7 operation, which save cost on the lamp replacements, and has a long-term lifespan for any professional applications.
Designed with sustainability in mind - Optoma Green Badge
Optoma is a forerunner in green product design. Optoma’s SSI products take things a step further with sustainability incorporated into all aspects of a product, including design, production, packaging, and logistics.
Optoma Green Badge represents Optoma’s commitment to sustainability. Our primary ways of lowering the environmental impact of our products are centered on four areas.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Amazing colour
Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
360 projection*
Images can be projected over a 360° range* along the projector’s horizontal axis.
*For more information please refer to the user manual
Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Quick start-up and shutdown
This projector features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.
Low Noise: Quieter than a Whisper
Less than 30 dB in ECO mode.
| 360 Operation | Yes |
|---|---|
| Display Technology | DLP |
| Native Resolution | 1080p Full HD (1920×1080) |
| Brightness | 4,000 Lumens |
| Contrast | 2,000,000:1 |
| Aspect Ratio | 16:9 Native, 16:10 & 4:3 Compatible |
| Keystone Correction | ±5° Vertical, ±5° Horizontal |
| Displayable Colors | 1073.4 million colors (10 bit) |
| Horizontal Scan Rate | 15 – 140Khz |
| Vertical Scan Rate | 24 – 120Hz |
| Uniformity | 75% |
| Projection Screen Size | 80-130inch |
| Light Source | Laser |
| Light Source Life | 30,000 hours (Eco mode) |
| Throw Ratio | 0.253:1 |
| Projection Distance | 0.17 – 0.45 m |
| Zoom | None |
| Focal Length | -3.7mm |
| I/O Connectors | Inputs 2 x HDMI 2.0, 1 x 3D sync Outputs 1 x USB-A power 1.5A, 1 x Audio 3.5mm Control 1 x RS232, 1 x RJ45 |
| Noise Level | 34 dB / 27 dB (eco) |
| Computer Compatibility | UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| 3D compatibilty | Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D) |
| IP Rating | IP6X |
| OSD/ Display Languages | 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
| 24/7 Operation | Yes |
| 360-operation | Yes |
| Operating Temperature | 0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m |
| Speaker (Watts) | 15W |
| LAN - Control | Yes |
| LAN | Yes |
| Power Supply | DC input 19V via a 180W power adapter (AC input 100~240V, 50/60 Hz to DC 19V) |
| Power Consumption | 0.5W (standby) 140W (min) 200W (max) |
| Dimensions (W x D x H) (mm) | 327 x 327 x 109.6mm |
| Weight (Kg) | Gross weight 6.0 kg, Net weight 3.9 kg |
Remote Control
Power Adapter
Rear Panel
