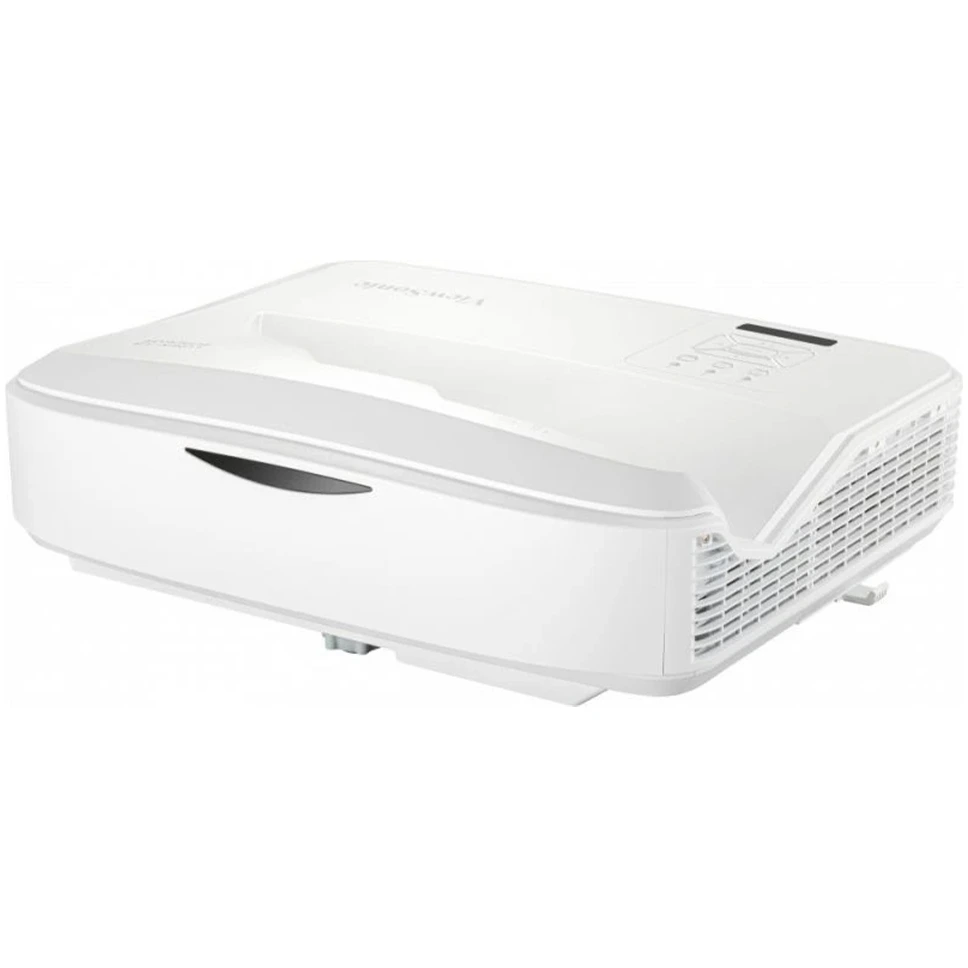

Viewsonic LS832WU Ultra Short Throw Projector

viewsonic ls832wu



australian stock
insured delivery
1080p resolution delivery


  • WUXGA 1920 x 1200 16:10
  • 5000 ANSI Lumens
  • 3,000,000:1 Contrast
  • 5.8kg Weight
  • 34/28db Fan Noise (eco)
  • 3 Year Warranty
  • 3 Years/10,000hrs Laser Warranty
  • Est. Laser Life up to 30,000hrs

Key Features

  • 2x HDMI Connections
  • Horizontal & Vertical Keystone
  • Powerful 10W Speaker
  • Up to huge 170" Projection Size
  • IP5X Dust Resistant Optical Engine

Viewsonic LS832WU Throw Distance Chart

Throw Ratio: 0.253:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
(from screen to projector chassis)
94" (16:10) 2025x1265mm Approx. 0.26m
110" (16:10) 2370x1480mm Approx. 0.33m
120" (16:10) 2585x1615mm Approx. 0.39m
130" (16:10) 2800x1750mm Approx. 0.44m
140" (16:10) 3015x1885mm Approx. 0.50m
150" (16:10) 3230x2020mm Approx. 0.55m

Viewsonic LS832WU 5,000 ANSI Lumens WUXGA Ultra Short Throw Laser Installation Projector

The Viewsonic LS832WU is built for large image projector with a powerful 5000 ANSI lumen brightness and incredible optics. Many ultra short throw projectors max out at 100” or up to 120” image sizes the LS832WU is not just capable of huge image projection with it’s brightness but has the optics to focus a clear image up to 170 inches that’s 3.7metres wide by 2.3metres high. Not only is that huge image possible but it can produce it from just 66centimetres distance to the chassis. The laser light source is built to last with a life span up to 30,000 hours. For extra reliability the optical engine is sealed with an IP5X rating protecting it from dust.

  • 0.25 ultra short throw for space-saving installation
  • 2nd generation Laser Phosphor technology with up to a 30,000-hour lifespan
  • 5,000 ANSI Lumens offering bright images in any environment
  • Up to 170" ultra-large screen with lower cost-per-inch
  • H/V keystone and 4 corner adjustment for enhanced installation flexibility
  • Comprehensive LAN control providing efficient device management


The LS832WU is part of ViewSonic’s Luminous Superior series, a lamp-free high brightness projector lineup designed for both commercial and educational spaces. This advanced 5,000 ANSI Lumens WUXGA ultra short throw laser projector is a go-to digital signage solution for public and commercial applications, such as museums, storefronts, shopping malls, and airports. The LS832WU's 0.25 ultra short throw ratio allows for a 100” screen from only 28 cm away, and the screen size can be further expanded up to 170”, offering a lower cost-per-inch compared to other types of commercial displays. Adopting the 2nd generation Laser Phosphor technology, it produces consistent high brightness for up to 30,000 hours lifespan. With H/V keystone and 4 corner image adjustment, the LS832WU also offers flexible installation options. Complete with comprehensive LAN control, it enables centralized management of multiple devices and is compatible with Crestron, AMX, Extron, and PJ Link AV control systems.

No Shadows, No Blinding Lights

Designed to provide installation flexibility even in reduced spaces, the LS832WU’s 0.25 ultra short throw ratio enables a 100” screen projection from only 28 cm away, offering immersive visuals without shadow casting or blinding lights for all commercial and public display applications.

0.25 Ultra Short Throw

LS832WU Ultra short throw

Ultra-large Screen with Lower Cost-per-inch

This easy-to-install projector allows for an image size of up to 170”, offering a lower cost-per-inch compared to other types of commercial displays.

Up to 170”

LS832WU low cost per inch

Bright, Durable, Eco-friendly

The LS832WU uses 2nd generation laser phosphor technology, offering up to a 30,000 hours lifespan, improved brightness, better heat resistance and instant power on/off in a more compact format. The projector's eco-friendly, lamp-free design eliminates toxic mercury lightbulbs and the hassle of frequent lamp replacement, ensuring consistent image quality during extended commercial display applications.

2nd Generation Laser Phosphor Technology

LS832WU long life laser

Bright Images in All Lighting Conditions

The LS832WU’s 5,000 ANSI Lumens and 3,000,000:1 contrast ratio ensure bright and vibrant visuals in all light conditions, even under ambient lighting, making it perfectly suited for digital display applications in public and commercial spaces such as in museums, airports, or shopping malls.

5,000 ANSI Lumens

LS832WU Brightness

Get Perfectly-shaped Images Effortlessly

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

H/V Keystone & 4 Corner Adjustment

LS832WU 4 Corner Adjustment

Easy and Cost-effective Installation

The LS832WU is 41% lighter in weight and 47% smaller in size compared to its predecessor, greatly reducing the cost of transportation and increasing the ease of installation.

Lighter Weight & Compact Size

LS832WU smaller Compact

Centralized Device Management

The LS832WU is compatible with Crestron, AMX, PJ Link, and Extron systems, allowing for centralized device management for better operational efficiency.

Comprehensive LAN Control

LS832WU LAN Control

Non-stop 24/7 Operation

With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.

LS832WU 24/7 Operation

Enhanced Dust Resistance

Maintain crystal-clear image quality and product longevity with an advanced IP5X sealed design that prevents dust from entering and affecting internal components.


LS832WU IP5X Dust resistant

Present the Best with Vibrant Colors

Impress any audience with ViewSonic’s exclusive color technology, elevating your presentation with a true-to-life color experience.

LS832WU Vibrant Colour

Seamless Display from External Devices

Prevent display formatting issues with dual HDMI 2.0b/HDCP 2.2 ports and support for 4K UHD and HDR/HLG content from external devices. Enjoy total peace of mind knowing that your content will be displayed error-free.

Dual HDMI 2.0b


A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop.
Learn more:

*The latest projector software update can be found in the download section at the bottom of the page when available.

LS832WU Software Update

Power Wireless HDMI Dongle

The LS832WU’s built-in 5V/1.5A USB output can conveniently deliver power to a Wireless HDMI Dongle, eliminating the need for separate power adapters when streaming multimedia content.

USB Type A Power Supply

LS832WU USB Power
Projection System: 0.67" WUXGA
Native Resolution: 1920x1200
Brightness: 5000 (ANSI Lumens)
Contrast Ratio: 3,000,000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000
Lens: F=2.44, f=3.70mm
Projection Offset: 133%±3%
Throw Ratio: 0.253
Optical Zoom: Fixed
Digital Zoom: 0.8x-2.0x
Image Size: 80"- 170"
Throw Distance: 0.17-0.66m (100"@0.28m)
Keystone: H:+/-10° , V:+/-10°
Audible Noise (Normal): 34dB
Audible Noise (Eco): 28dB
Input Lag: 33.2ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K- 91KHz
Vertical Scan Rate: 24- 85Hz
(HDMI 2.0/ HDCP 1.4/2.2)
Audio-in (3.5mm): 1
Microphone in: 1
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 10W x1
USB Type A (Power): 1 (5V/1.5A)
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type B (Services): 1
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 328W
Standby: 0.5W
Operating Temperature: 5~40℃
Carton: Brown
Net Weight: 5.8kg
Gross Weight: 8.1kg
Dimensions (WxDxH) with Adjustment Foot: 382x318x132mm
Packing Dimensions: 518x420x313mm
OSD Language: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian, Finnish, Greek, T Chinese, S Chinese, Japanese, Korean, Russian, Hungarian Czech, Arabic, Thai, Turkish, Farsi, Vietnam, Indonesian, Romania, Slovakian (27 language)
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
Standard Accessory
Power Cord: 1
Remote Control: 1
QSG: Yes
Warranty Card: Yes (CN Only)

What's in the Box
remote control
Remote Control
power cord
Power Cord

Rear Panel

LS832WU rear panel
