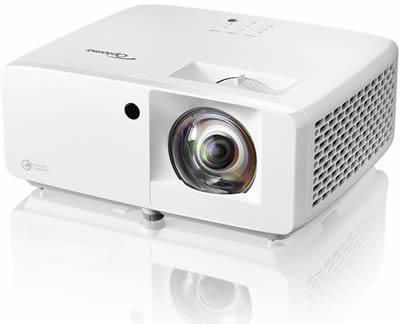

Optoma AZH460ST Full HD Laser Short Throw Projector

optoma AZH460ST projector
Delivery

$2,699 $2,299

COMING SOON

Found a better deal? Request a price match here!


3yr warranty
australian stock
laser projector
1080p resolution

Specifications

  • 1080p 1920 x 1080 16:9
  • 4000 ANSI Lumens
  • 2,000,000:1 Contrast
  • 3.0kg Weight
  • 27db (eco) Fan Noise
  • 3 Year/20,000hr Warranty
  • 3 Year/20,000hr Laser Warranty
  • Est. Laser Life up to 30,000hrs

Key Features

  • Long Life Laser Lightsource
  • Horizontal & Vertical Keystone
  • Short Throw
  • 2x HDMI Connection
  • Powerful 15W Speaker
  • 360° Installation
  • Portrait Projection
  • 3D Capable(3D glasses required)
  • IP6X Dust Resistant Optical Engine

Optoma AZH460ST Throw Distance Chart

Throw Ratio: 0.496:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
92" (16:9) 2030x1140mm Approx. 1.0m
100" (16:9) 2214x1245mm Approx. 1.1m
110" (16:9) 2435x1370mm Approx. 1.2m
120" (16:9) 2657x1494mm Approx. 1.3m
135" (16:9) 2990x1681mm Approx. 1.5m
150" (16:9) 3320x1867mm Approx. 1.6m

Optoma AZH460ST 1080P Short Throw Laser Projector

The Optoma AZH460ST offers a super short throw lens for maximum image size with the ability to project a massive 3 metre wide image from a mere 1.5metre distance. With a long life laser light source the AZH460ST is perfect even in heavy use environments and with an IP6X dust resistant optical engine is built to last. It produces a bright image with a 4000 ANSI lumen brightness level and has a contrast level of 2,000,000:1 for deep black levels and shading. The AZH460ST is a versatile unit able to work in a meeting room, and art gallery or a golf simulator with ease.


Optional Accessories


  • Bright FHD 1080p DuraCore laser projector - 4,000 lumens and IP6X certified
  • Small form factor & short throw lens for easy installation - 360-degree and portrait projection
  • DuraCore laser technology - 30,000 hours maintenance-free laser light source
  • Built with the environment in mind - Long laser life span, incorporating Post consumer recycled material
duracore laser

Short Throw

With a short throw lens, you can project an impressive 100” image from just over a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.

4K & HDR Compatible

High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.

AZH460ST short throw

Optoma DURACORE Made for Environmental Sustainability

Designed with environmental friendliness in mind, Optoma is dedicated to providing eco-friendly, cost-effective, and reliable products, that bring better experiences to people all around the world. With the future-proofed laser technology, our products are energy-saving, mercury-free, and more economical.

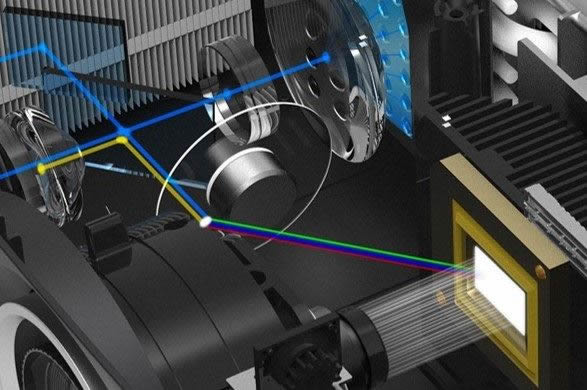

Mercury Free

High power consumption and mercury pollution in traditional lamp-based projectors are gradually replaced with more reliable, mercury-free, and eco-friendly lamp-free laser projectors.

AZH460ST Mercury Free

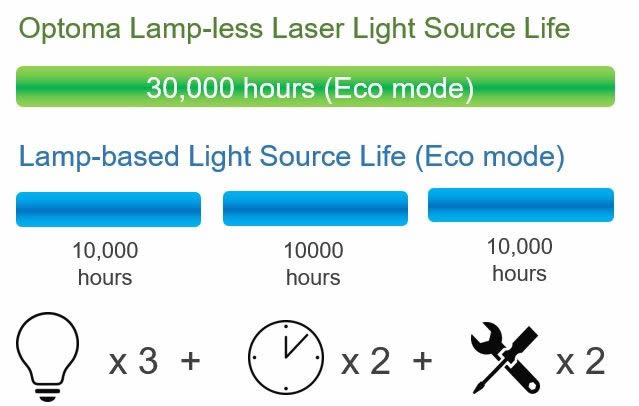

Maintenance Free & Economical

Laser projectors are durable with up to 30,000 hrs. life span (eco) and 24/7 operation, which save cost on the lamp replacements, and has a long-term lifespan for any professional applications.

AZH460ST Low Maintenance

Designed with sustainability in mind - Optoma Green Badge

Optoma is a forerunner in green product design. Optoma’s SSI products take things a step further with sustainability incorporated into all aspects of a product, including design, production, packaging, and logistics. Optoma Green Badge represents Optoma’s commitment to sustainability. Our primary ways of lowering the environmental impact of our products are centered on four areas.

AZH460ST Energy Saving

Energy-saving products reduce the carbon footprint of products and customers

Reducing power consumption is one of our key approaches to minimizing the impact of our products.

Energy consumption during product usage makes up most of the carbon footprint over the product's lifetime. Products that use less energy can reduce their environmental impact, so do our customers’.

As a result, Optoma is shifting to the use of laser technology in its business and home projectors, which can reduce power consumption by nearly 40% compared to lamp-based counterparts.

The use of environmentally friendly materials generate less waste

The use of environmentally friendly materials for products and during production.

According to UK Plastics Pack 2022, it takes 75% less energy to make a plastic bottle from recycled plastic than virgin materials. Our product design team works closely with suppliers to identify environmentally friendly recycled materials that minimize waste that would otherwise go into landfills and reduce the use of virgin plastics. Optoma is committed to producing SSI-based projectors that are made with 50 % post-consumer recycled (PCR) plastics.

Moreover, Optoma complies with WEEE, RoHS, and REACH regulations that restrict the use of hazardous substances during production, which helps protect landfills from permanent contamination.

AZH460ST Materials

Optimized product size for efficient logistics

Compact product and packaging sizes for logistical efficiency

Designed to be compact, Optoma’s advanced thermal and laser technology enable small and compact designs without sacrificing reliability and safety.

Our latest laser projector series is 34% smaller, and its packaging has been reduced by 47% in size compared with the previous series. This allows twice as many products per container, contributing to a reduction in fossil fuel consumed per unit and thus a lower carbon footprint.

AZH460ST Logistics

Sustainable Packaging

Optimized packaging made with more recycled and reusable materials

Optoma brings sustainability to the consumer unboxing experience. Our choice of materials ensures that our packaging can be easily recycled and reused to start another packaging journey.

Our outer carton boxes are made from up to 85% recycled material, and we have replaced EPE foam cushioning with recycled paper and paper mold materials without compromising the durability of the packaging!

AZH460ST Packaging

Amazing colour

Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

azh460st Colour

360 projection*

Images can be projected over a 360° rangealong the projector’s horizontal axis.
*For more information please refer to the user manual

azh460st 360 degree

Portrait projection

Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

azh460st Portrait

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

azh460st 3D

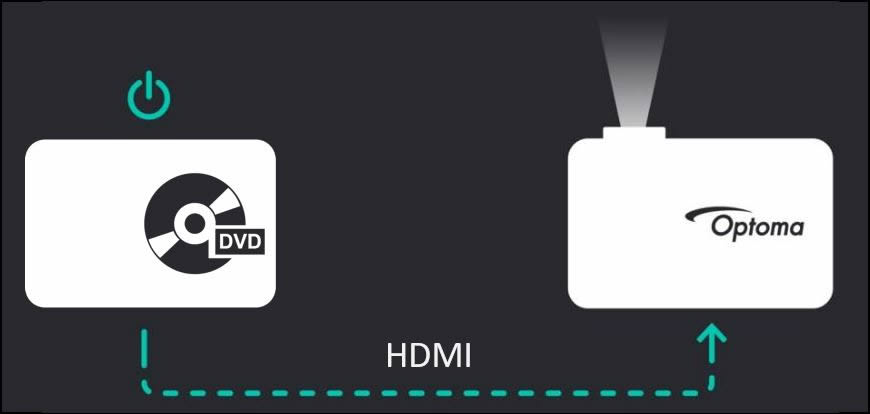

Device Control by HDMI CEC Link

When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link feature. This lets one device or multiple devices in a group power on/off simultaneously.

AZH460ST CEC

Quick start-up and shutdown

This projector features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.

azh460st Startup

Low Noise: Quieter than a Whisper

Less than 30 dB in ECO mode.

azh460st Quiet

Specifications
360 Operation Yes
Display Technology DLP
Native Resolution 1080p Full HD (1920×1080)
Brightness 4,000 Lumens
Contrast 2,000,000:1
Aspect Ratio 16:9 Native, 16:10 & 4:3 Compatible
Keystone Correction ±15° Vertical, ±15° Horizontal
Displayable Colors 1073.4 million colors (10 bit)
Horizontal Scan Rate 15 – 140Khz
Vertical Scan Rate 24 – 120Hz
Uniformity 75%
Projection Screen Size 30-300inch
Light Source Laser
Light Source Life 30,000 hours (Eco mode)
Throw Ratio 0.496:1
Projection Distance 0.4 – 3.2 m
Zoom None
Focal Length 7.51
Native offset 116%
I/O Connectors Inputs 2 x HDMI 2.0,
1 x RJ45Outputs
1 x Audio 3.5mm,
1 x USB-A power 1.5A
Control 1 x RS232
Noise Level 34 dB / 27 dB (eco)
Computer Compatibility UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
3D compatibilty Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D)ver-Under: 1080p24, 720p50 / 60
IP Rating IP6X
OSD/ Display Languages 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 Operation Yes
360-operation Yes
Operating Temperature 0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m
Speaker (Watts) 15W
LAN - Control Yes
LAN Yes
Power Supply DC input 19V via a 180W power adapter (AC input 100~240V, 50/60 Hz to DC 19V)
Power Consumption 0.5W (standby) 140W (min) 200W (max)
Dimensions (W x D x H) (mm) 274 x 216 x 114
Weight (Kg) Gross weight 4.2 kg, Net weight 3 kg

What's in the Box
remote control
Remote Control
AZH460ST power adapter
Power Adapter

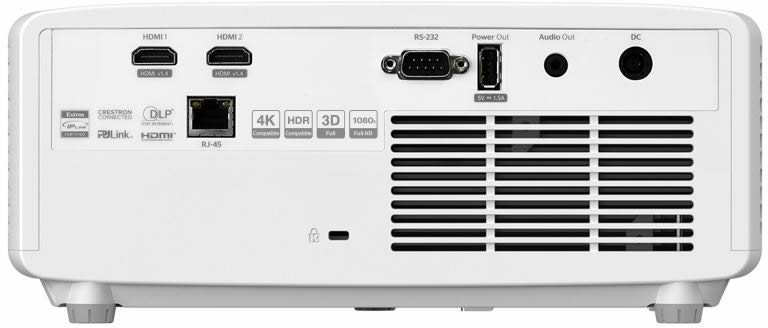

Rear Panel

azh460st rear panel
