Optoma PK230R DLP 4K Laser Home Theatre Projector
SKU: PK230R
Specifications
- UHD 3840 x 2160 16:9
- 4500 ANSI Lumens
- 2,300,000:1 Contrast
- 3.1kg Weight
- 29db (eco) Fan Noise
- 3 Year / 20,000hr Warranty
- 3 Year /20,000hr Laser Warranty
- Est. Laser Life up to 30,000hrs
Key Features
- HDR10 Compatible
- Flexible 1.6x Optical Zoom
- Horizontal & Vertical Keystone
- 4 Corner Correction
- 2x HDMI 2.0 Connection
- HDMI Audio Return (eARC)
- 1x 15W Speaker

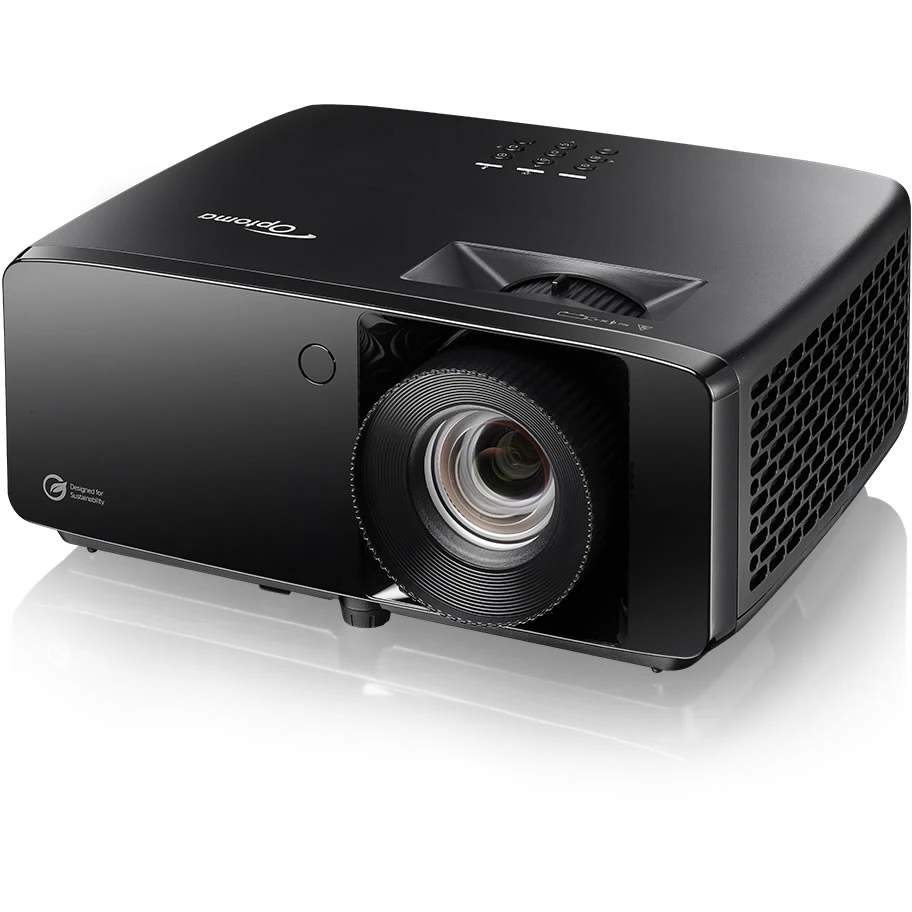

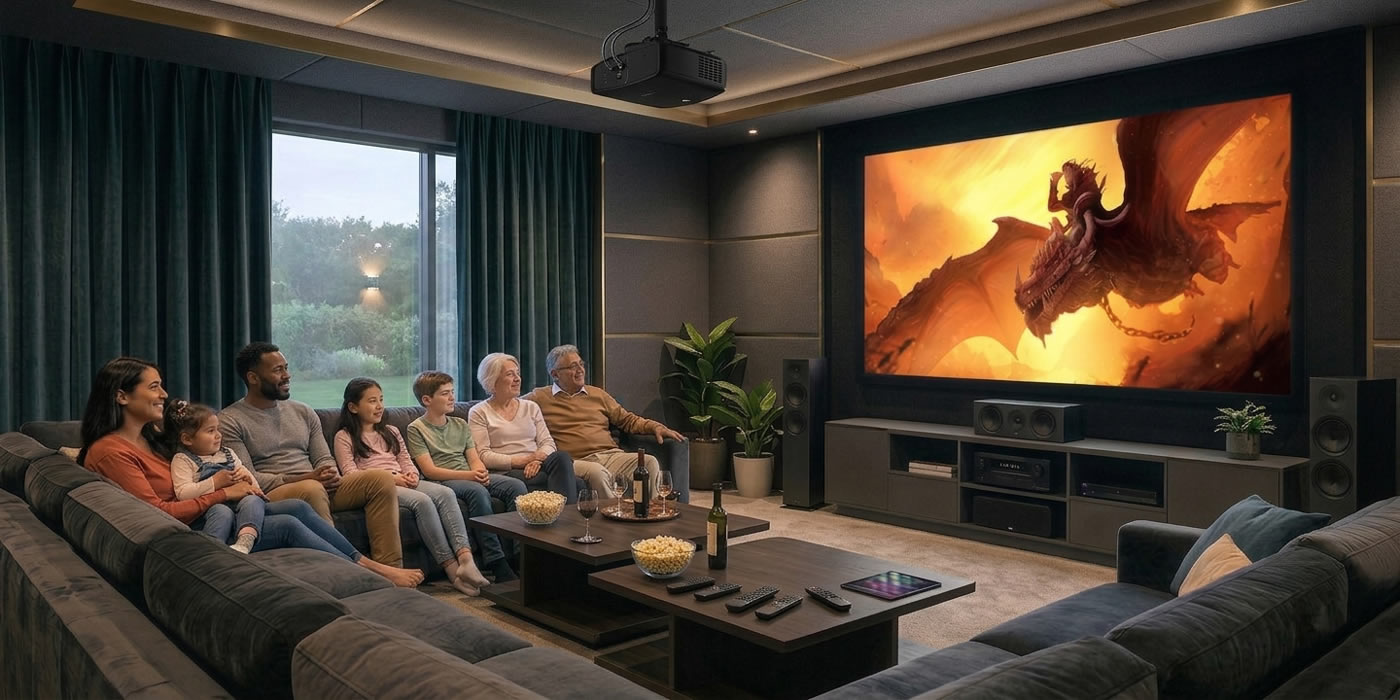

Optoma PK230R 4k Laser Projector
Experience cinema-quality entertainment anywhere with the Optoma PK230R. This compact 4,500-lumen 4K UHD laser projector delivers stunningly sharp, vibrant images with superior contrast and true-to-life colors — perfect for movies, sports, or presentations even with the lights on. Its ultra-reliable DuraCore laser lasts up to 30,000 hours with virtually no maintenance, while the 1.6x zoom and geometric correction make setup effortless in any space. Lightweight, smart-enabled, and packed with features, the PK230R turns any wall into an immersive big-screen experience you'll love.
Optional Accessories
Compact 4,500lm 4K UHD Laser Projector
The Optoma PK230R is a 4,500-lumen 4K UHD laser projector offers superior contrast, accurate true-to-life colour reproduction for movie lovers so sports fans can enjoy live action with the lights on.This compact, maintenance-free solution features a 30,000-hour DuraCore laser light source, 1.6x optical zoom, smart control, and centralized IT management via Optoma Management Suite (OMS™) to support 24/7 reliability and efficient operation.
- 4,500-lumen brightness - Clear projection for spaces with ambient light
- 30,000h laser life - DuraCore laser ensures long-term reliability and low TCO
- 1.6x optical zoom & geometric correction for versatile room placement
- Optoma Smart Control App - Intelligent screen alignment and remote control directly from your mobile device
Brighter, Greener, and Longer-Lasting Projection
Future-Proofed. Sustainable. Cost-Effective.
Optoma's new generation of lamp-free laser projectors is designed to deliver exceptional visual quality, simplified setup and control, and long-term value across business, education, or simulation environments.

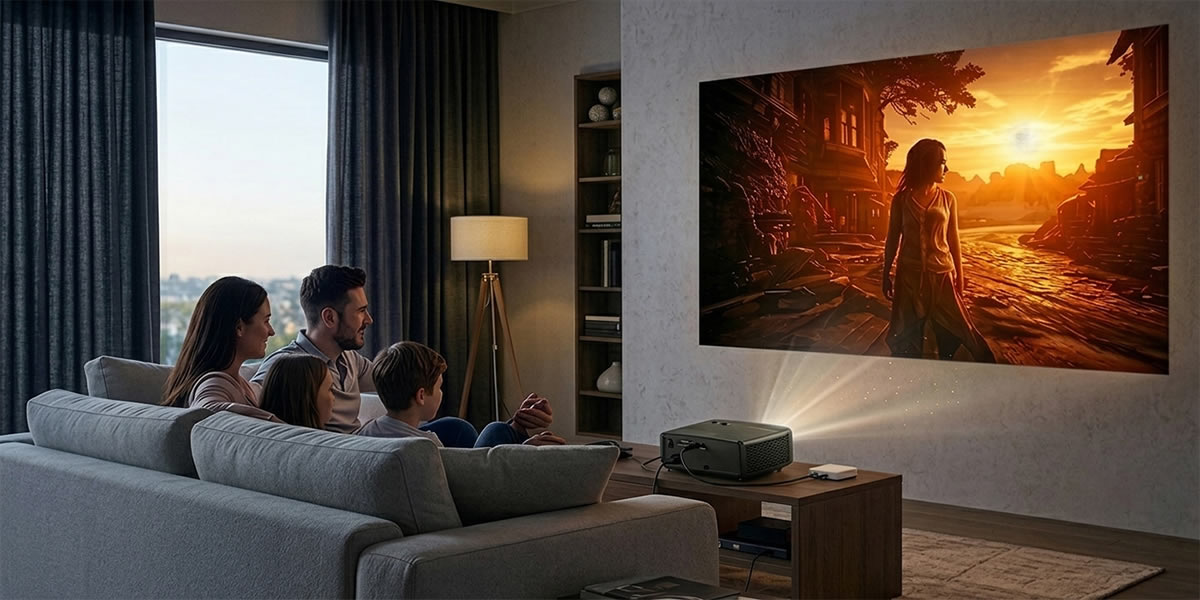

Clear Images in Ambient Light Environments
With 4,500 lumens of high brightness, this projector delivers sharp and readable visuals even in ambient light environments, making it ideal for meetings, classrooms, and commercial spaces.
Exceptional 4K viewing experience
The projectors deliver up to 8.3 million pixels with 4K UHD (3,840 x 2,160) resolution, providing exceptionally sharp images that make even small text and detailed graphs clear and easy to read.
Reliable for Long-Term Use with DuraCore Laser
Optoma DuraCore Laser technology delivers consistent brightness, vivid colors, and up to 30,000 hours of lamp-free operation. With instant on/off functionality, reduced power consumption, and no lamp replacements, it offers a lower total cost of ownership and long-term, reliable performance—ideal for business and education environments.
Smart Control at Your Fingertips
Optoma Smart Control app streamlines device management and intelligently adjusts screen alignment across Optoma displays, all from your mobile device. From setup to daily operation, it acts as an intelligent remote, enabling control of key functions such as power on/off, input source switching, status alerts, and more, helping users save time and deliver a better viewing experience in any space.
*Supports both iOS and Android OS.

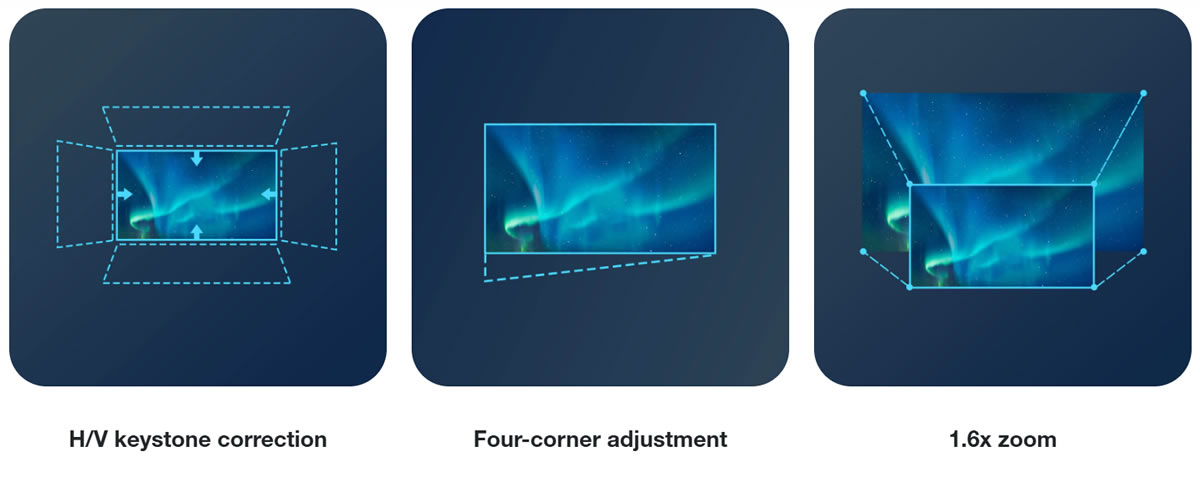

Flexible Setup for Any Spaces
With ±30° keystone correction, 1.6x zoom, and support for 360-degree or portrait mode projection, this projector offers flexible installation in any space.
| Display/Image | |
| Resolution | 4K UHD (3,840 x 2,160) |
| Brightness | 4,500 lumens |
| Contrast | 2,300,000:1 |
| Native aspect ratio | 16:9 |
| Aspect ratio - compatible | 4:3, 16:9, 16:10, Full, Auto, Native |
| Keystone correction - horizontal | +/-30° |
| Keystone correction - vertical | +/-30° |
| Horizontal scan rate | 15~150 KHz |
| Vertical scan rate | 24~120 Hz |
| Uniformity | 75% |
| Screen size | 30" - 300" diagonal |
| Light Source | |
| Light source type | Laser Phosphor |
| LASER life | 30,000 hours (Eco) |
| Optical | |
| Throw ratio | 1.4:1 ~ 2.24:1 |
| Projection distance | 1.3m to 9.4m |
| Zoom | 1.6x |
| Zoom type | Manual |
| Focal length | 20.91~32.62mm |
| Native offset | 114% (+/-5%) |
| Connectivity | |
| Connections | Inputs HDMI 2.0 x 2 Outputs Audio Out x 1, USB-A (5V/1.5A) x 1, USB-A(5V/0.5A) x 1, 3D sync out x 1 Control RJ45 x 1, RS232 x 1, 12V Trigger x 1 |
| General | |
| Noise level (min) | 29dB |
| Noise level (max) | 31dB |
| PC compatibility | VGA,SVGA,XGA,720p,WXGA,SXGA,SXGA+,UXGA,1080p,WUXGA |
| 2D compatibility | NTSC,PAL,SECAM,SDTV,HDTV,UHD |
| 3D compatibility | Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz |
| Security | Security bar, Kensington Lock, Password protected interface |
| OSD / display languages | 27 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Vietnamese |
| 24/7 operation | Yes |
| 360° operation | Yes |
| Operating conditions | Max Temperature(operating): 0 ~ 40°C; Tolerance +/- 2°C, Max Altitude(operating): 10,000 ft., for 0°C~30°C, Max humidity(operating): 80% RH, non-condensing |
| Speaker count | 1 x 15W |
| Remote control | Remote control |
| In the box | AC power cord Remote control Quick start user manual |
| Input lag | 4K/ 60Hz: 16.7 ms 1080P/ 60Hz: 16.7 ms 1080P/ 120Hz: 8.4 ms |
| Power | |
| Power supply | AC 100 ~ 240 V, 50 ~ 60 Hz |
| Power consumption (standby) | <0.5W |
| Power consumption (ECO) | 124 W@220VAC |
| Power consumption (Bright Mode) | 176 W @220VAC |
| Weight and dimensions | !!!!!!!!!!!!!!!!!!!!!!|
| Dimensions (W x D x H) | W/o feet: 216 x 274 x 108.5mm (10.8 x 8.5 x 4.3 inches) With feet: 216 x 274 x 114mm (10.8 x 8.5 x 4.5 inches) |
| Gross weight | 4.61±0.2KG |
| Net weight | 3.1±0.2KG |
Remote Control
Power Cord

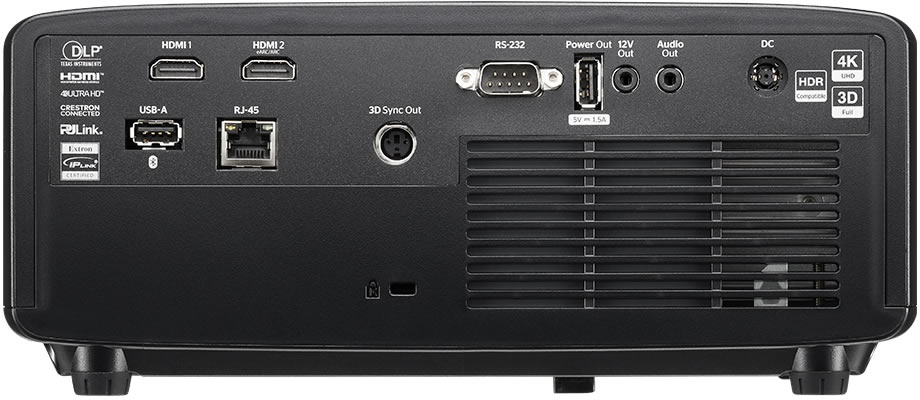

Rear Panel
