Image Size | Installation Distance | |
---|---|---|
92" (16:9) 2030x1140mm | From 2.7m to 4.3m | |
100" (16:9) 2214x1245mm | From 3.0m to 4.7m | |
110" (16:9) 2435x1370mm | From 3.3m to 5.2m | |
120" (16:9) 2657x1494mm | From 3.5m to 5.6m | |
135" (16:9) 2990x1681mm | From 4.0m to 6.3m | |
150" (16:9) 3320x1867mm | From 4.4m to 7.1m |

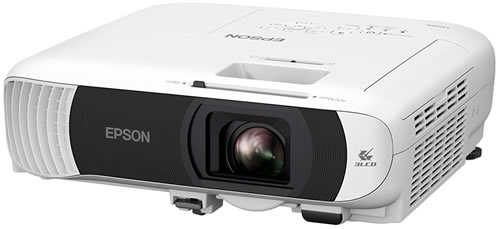

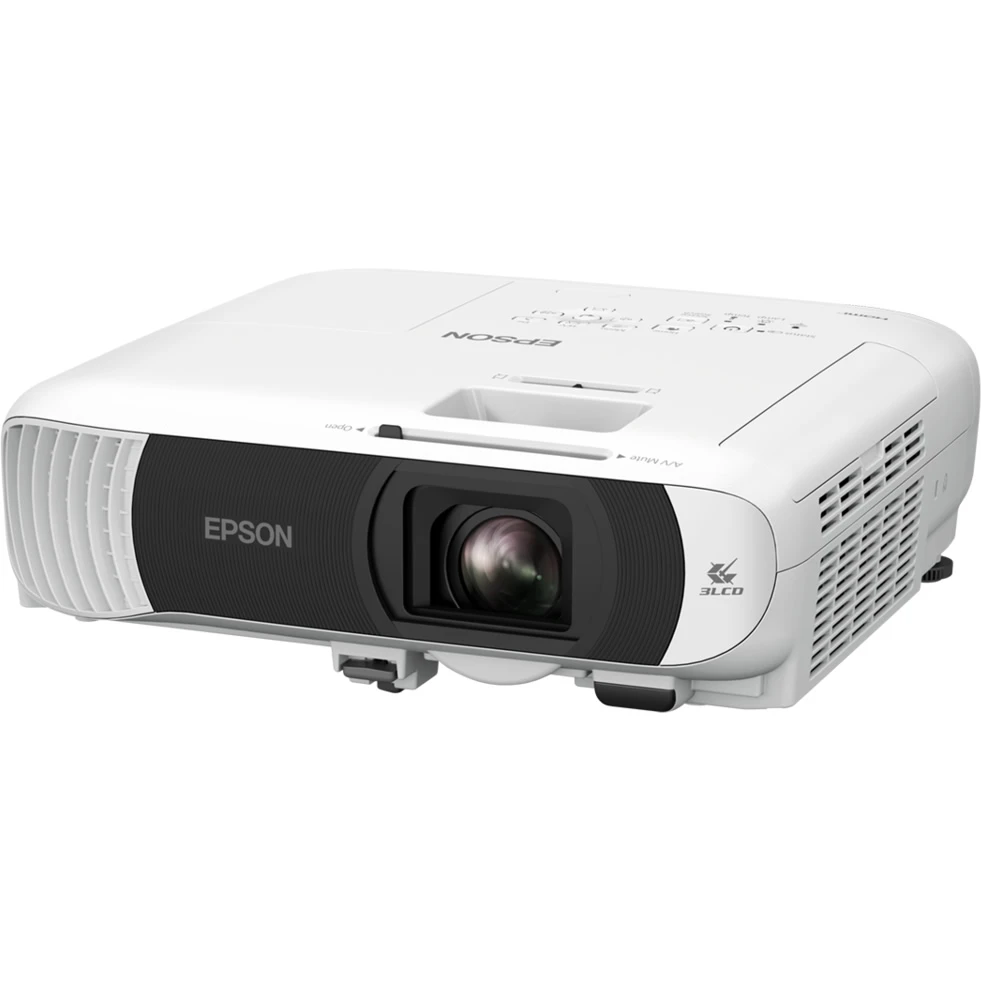

The Epson EB-FH54 offers a bright ‘lights on’ image with 4100 ANSI lumen output and a detailed Full HD resolution for detailed presentations. The handy 1.6x optical zoom lens offers loads of flexibility in the installation distance especially handy for replacing an older projector. With USB and HDMI cable connectivity as well as updated wireless connection to both Miracast and Airplay it is a cinch to get connected and start projecting.
Full HD resolution (1920 x 1080) ensures high quality images and crisp, sharp text without any distortion. Images can be projected on a large screen with no information left out. This applies to video output devices such as PCs and smart devices with their ever-increasing image quality and higher definition.
With both colour and white brightness up to 4,100 lumens, the EB-FH54 series makes it easy to enjoy brilliant content in any setting, even well-lit rooms. While the light weight and compact size of these projectors enable them to be carried from room to room, they are also capable of highly visible images thanks to high brightness and a superior 16,000:1 contrast ratio.
While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 304", your audience can easily read and understand the information you’re sharing.
Position your projector almost anywhere in the room and still get a correctly proportioned image with auto vertical correction and Easy-Slide horizontal image correction. Additionally, optical zoom up to 1 - 1.62x enables you to adjust the image easily and quickly, even in a limited space.
With an impressive 4,000 lumens of brightness and a 16,000:1 contrast ratio, this WXGA lamp projector delivers vivid, lifelike images with defined shadow detail. Powered by Epson's 3LCD technology, it offers up to three times brighter colours compared to 1-chip DLP projectors*.
With this model's long-lasting lamp light source, you can enjoy a big screen experience for up to 18 years*
A powerful 16W speaker delivers clear sound to every corner of the classroom or meeting room, saving money by eliminating the need for additional speakers.
Equipped with 2x HDMI ports and WiFi 6E to easily connect multiple devices and ensure faster communication speeds*
Weighing in at only 3.1kg, these projectors are perfect for being carried from room-to-room around the office. The switch between home and work has never been more convenient.
Wirelessly display content from your iOS or Android mobile devices as well as PCs, including Chromebook with the Epson iProjection App. Easily share information on the big image from up to 4 connected devices simultaneously. Just turn on the projector, use the Epson iProjection app to scan the on-screen QR code, and share content on the big screen. This application allows you to travel light and present from your mobile device.
Enjoy effortless setup with the auto power-on function, which detects signals from connected devices and starts automatically, ensuring an easy to use experience
PRODUCT NAME | EB-FH54 | ||
PRODUCT CODE | V11HB59053 | ||
TECHNOLOGY | |||
---|---|---|---|
Projection System | 3LCD | ||
LCD Panel | 0.62-inch | ||
IMAGE | |||
Light Source | Lamp | ||
Resolution | FULL HD | ||
Colour Light Output | 4,100 Lumens | ||
White Light Output | 4,100 Lumens | ||
ECO Mode Light Output | 2,300 Lumens | ||
Native Aspect Ratio | 16:9 | ||
Contrast Ratio | 16,000:1 | ||
Colour Reproduction | Up to 16.77 million colors | ||
Colour Processing | 8 Bit | ||
OPTICAL | |||
Zoom | 1 - 1.62 (optical) | ||
Screen Size (Standard Lens) | 31" to 304" | ||
Projection Distance (Standard Lens) | 60" screen 1.73 m – 2.80 m | ||
Throw Ratio | 1.30 (Zoom: Wide) 2.09 (Zoom: Tele) |
||
Projection Lens F Number | 1.51 – 1.77 | ||
Projection Lens Focal Length | 18.2 mm – 29.1 mm | ||
Focus Method | Manual | ||
CONNECTIVITY | |||

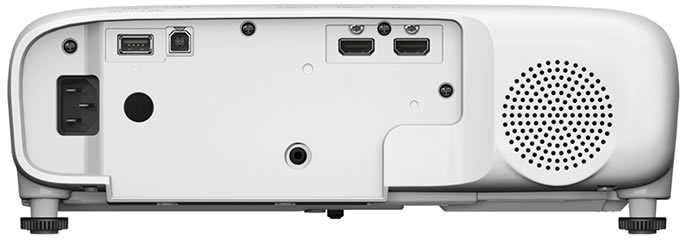

Interfaces | 2 x HDMI 1 x USB type A 1 x USB type B for firmware update 1 x stereo mini (audio out) |
||
ADVANCED FEATURES | |||
Built-in Speaker | 16 W | ||
Wireless | Built-in | ||
Epson Projector Management (Network & Control) | Yes | ||
Epson iProjection (Multi-PC Projection) | Yes | ||
Miracast | Yes | ||
Airplay | Yes | ||
Keystone correction | Vertical: - 30 to + 30 degrees (Auto) Horizontal: - 30 to + 30 degrees (Manual) |
||
Horizontal slide keystone correction | Yes | ||
Instant off | Yes | ||
Direct power on | Yes | ||
Security | Kensington – style lock provision & padlock | ||
Colour modes | Dynamic, Presentation, Cinema, sRGB, Blackboard | ||
GENERAL | |||
Dimensions W x D x H (Including Feet) | 309 x 282 x 90 mm | ||
Weight | 3.1kg | ||
Projector Warranty | 2 Years | ||
Power consumption (normal / energy saving): | 231 W / 0.3 W | ||
Noise Level (Normal/Eco) | 37 / 28 dB |
