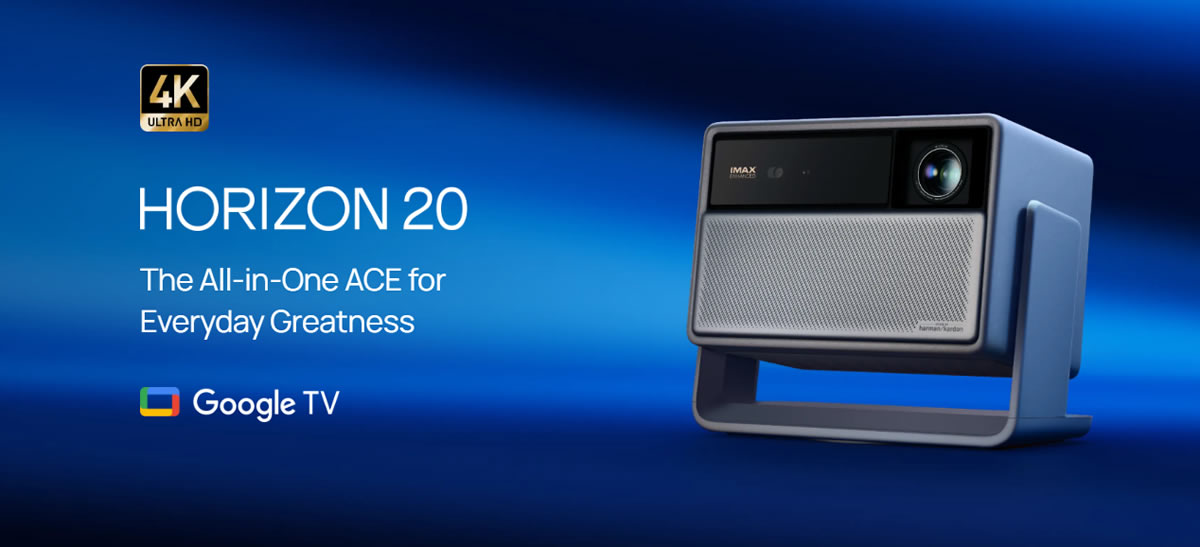

XGIMI Horizon 20 Triple Laser 4K Home Theatre Projector

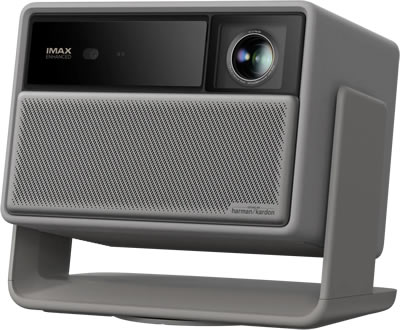

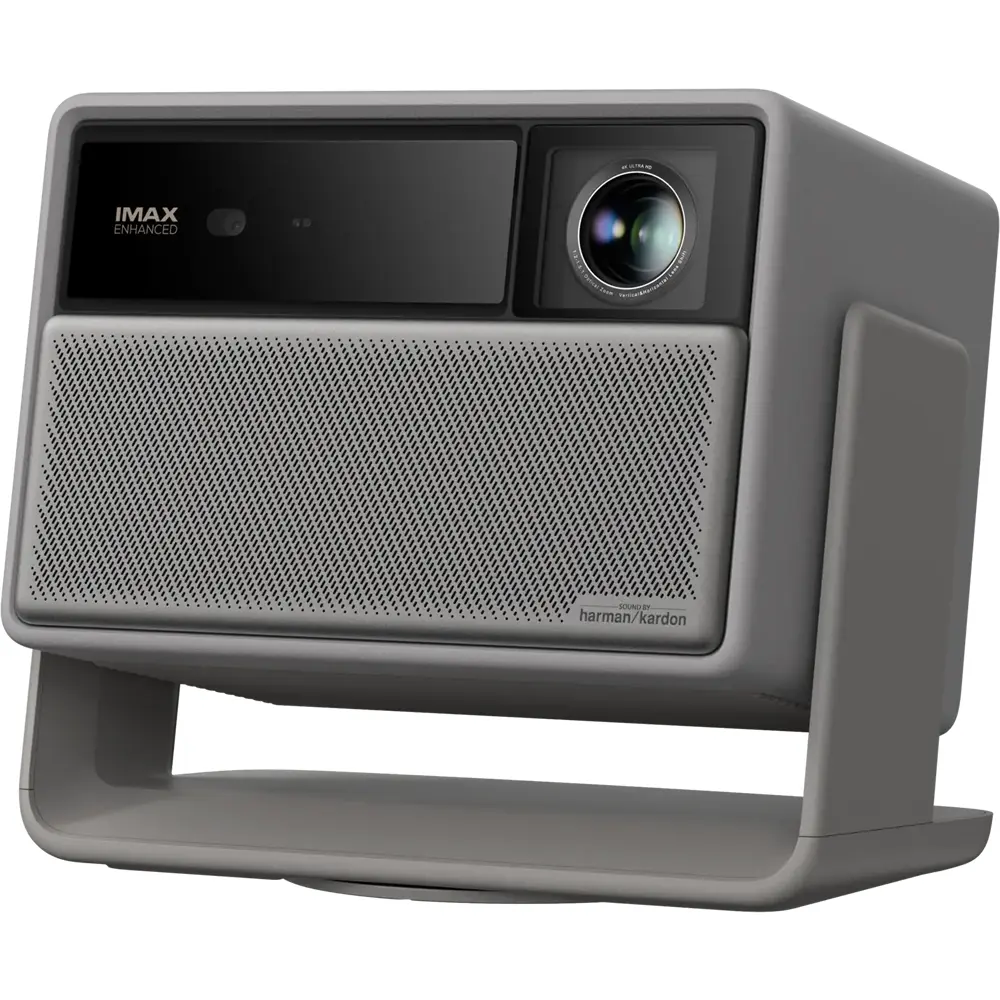

xgimi Horizon 20 projector
Delivery

$3,999 $3,799

Save $200. Extended till 15th Feb

special



2yr warranty
australian stock
Laser
4K resolution

Specifications

  • UHD 3840 x 2160 16:9
  • 3200 ISO Lumens
  • 4.8kg Weight
  • 28db(eco) Fan Noise
  • 2 Year Warranty
  • 2 Year Laser Warranty
  • Est. Laser Life up to 20,000hrs

Key Features

  • 1.25x Optical Zoom
  • Lens Shift
  • Auto V&H Keystone
  • Instant Off
  • Google TV Inbuilt
  • Wireless Streaming
  • Bluetooth Audio 5.1
  • Google Cast Inbuilt
  • 2x 12W Speakers
  • 2x HDMI connections

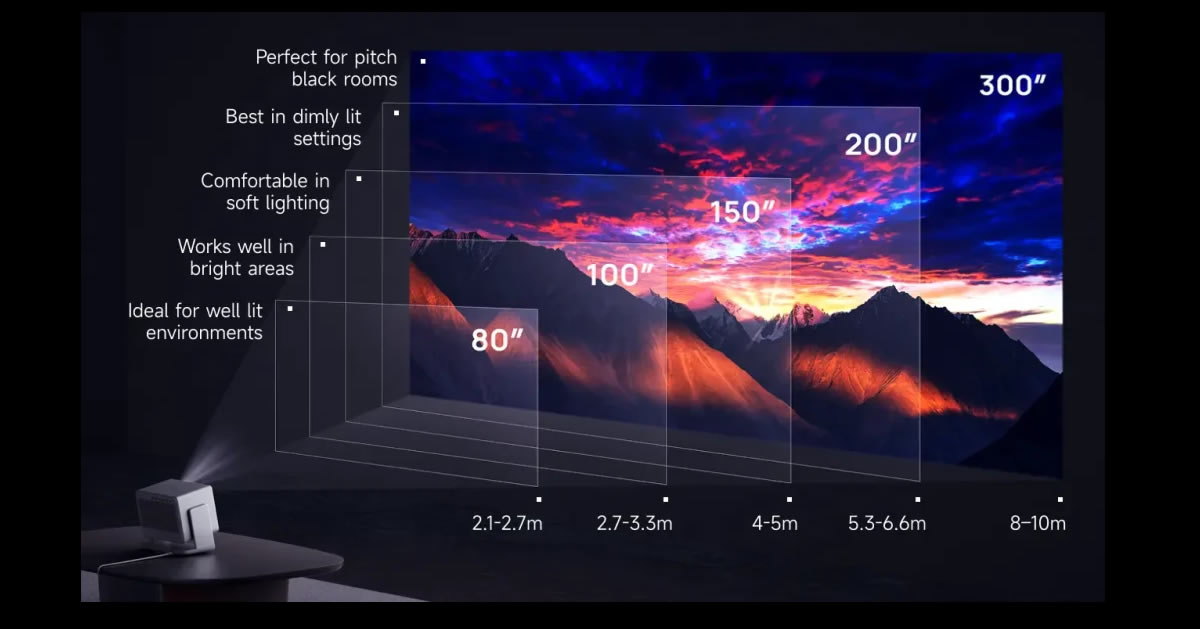

XGIMI Horizon 20 Throw Distance Chart

Throw Ratio: 1.2-1.5:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
92" (16:9) 2030x1140mm From 2.5m to 3.1m
100" (16:9) 2214x1245mm From 2.7m to 3.3m
110" (16:9) 2435x1370mm From 3.0m to 3.6m
120" (16:9) 2657x1494mm From 3.2m to 3.9m
135" (16:9) 2990x1681mm From 3.6m to 4.4m
150" (16:9) 3320x1867mm From 4.0m to 4.9m

XGIMI Horizon 20 RGB Triple Laser Home Theatre Projector

The XGIMI Horizon 20 is equipped with a triple laser light source for long lasting accurate colour with punchy brightness for big screen projection. The Horizon 20 also has both optical zoom and lens shift for easy placement without having to lose resolution using digital zoom or keystone. With a speedy gaming mode the Horizon 20 is also a great gaming projector boasting a lightning fast 1ms input lag and a bonus of handy gaming enhancements. The inbuilt Google TV system has that elusive Netflix certification so can do all the major aps without having to add on extra streaming devices.

Max Performance, Max Entertainment

  • Powered by RGB Triple Laser: The X-Master RGB triple laser engine delivers 3200 ISO lumens and a 20,000:1 contrast ratio for vivid, accurate colors and exceptional image depth—perfect for immersive viewing anytime.

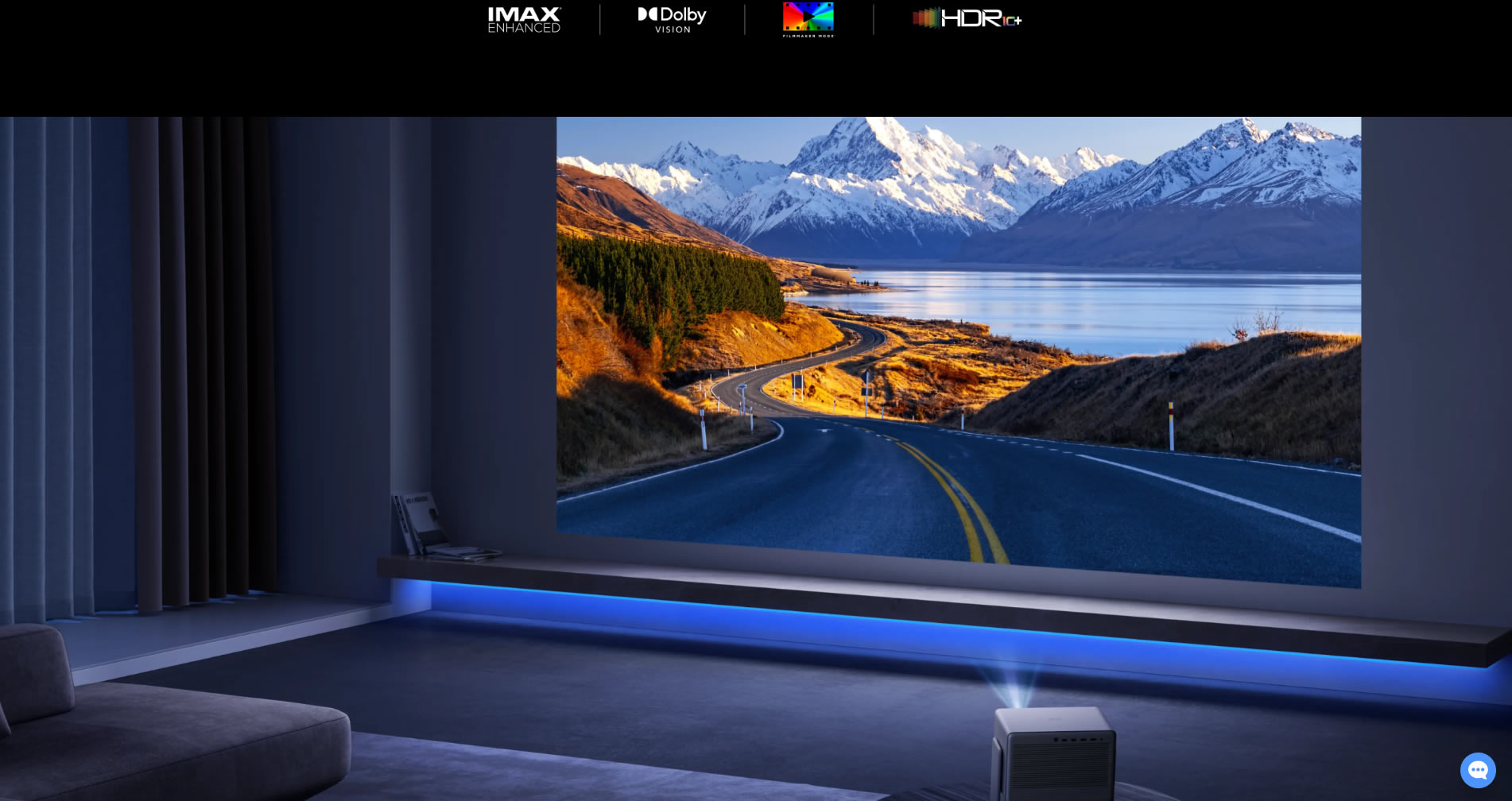

  • Cinematic Certified: IMAX Enhanced, Dolby Vision, HDR10+, and Filmmaker Mode combine to deliver stunning visuals and true-to-intent playback—bringing the theater home.
  • 4K Ultra HD Resolution: 3840 x 2160 pixels

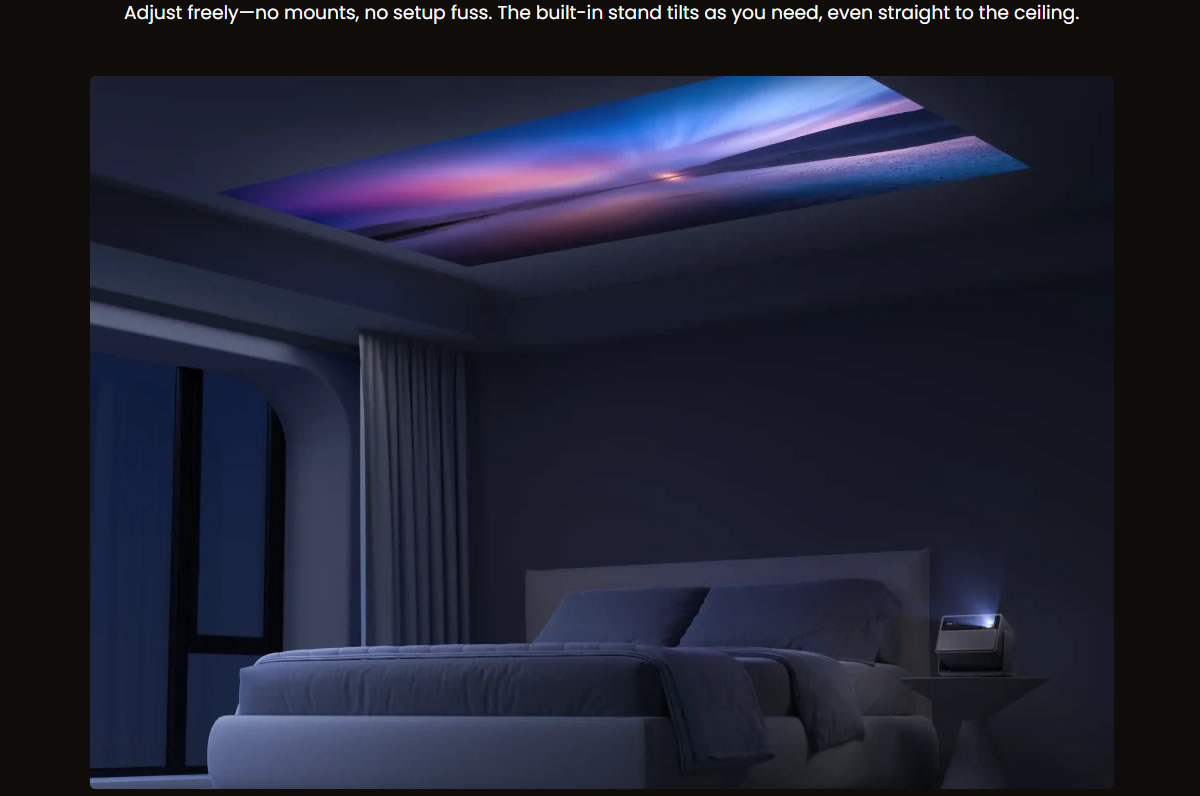

  • All-in-One Simplicity: From powerful Harman Kardon speakers to built-in Google TV and an integrated stand, everything you need is already inside—no extra setup, no compromises.
  • Lossless Optics: Flexible lens shift and optical zoom give you more freedom in setup—without sacrificing clarity. Enjoy crisp, distortion-free visuals at any size, from any angle.

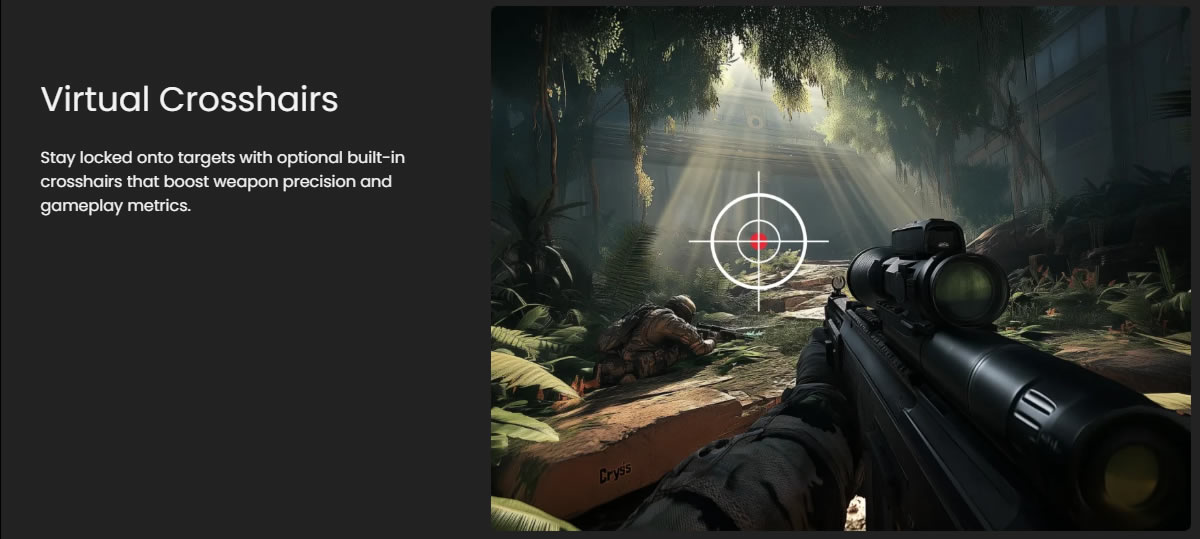

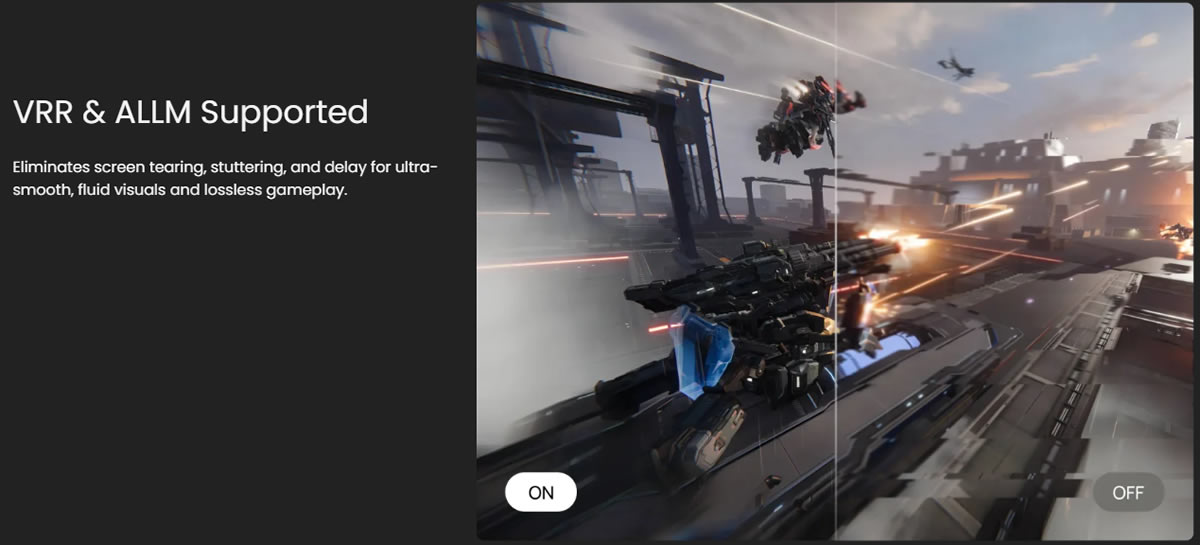

  • Pro-Level Gaming Features: Play big with 300″ visuals, 1ms response, 240Hz fluidity—plus VRR and ALLM for seamless sync and ultra-low latency.
  • Compact Size (H x W x D): 249 x 298 x 190 mm
  • 2-Year Warranty: Double the coverage for greater peace of mind. Outstanding performance, now with support to match.
Xgimi Horizon 20 Enviro Xgimi Horizon 20 Features Xgimi Horizon 20 Triple Laser Xgimi Horizon 20 Contrast Xgimi Horizon 20 Colour Xgimi Horizon 20 Colour Accuracy Xgimi Horizon 20 Imax Imax Xgimi Horizon 20 Dolby Xgimi Horizon 20 HDR Xgimi Horizon 20 Film maker Xgimi Horizon 20 Gaming Xgimi Horizon 20 Gaming Black Xgimi Horizon 20 Gaming Crosshairs Xgimi Horizon 20 Gaming vrr Xgimi Horizon 20 chip Xgimi Horizon 20 Sound Xgimi Horizon 20 Google TV Xgimi Horizon 20 Tilt Xgimi Horizon 20 connections Xgimi Horizon 20 Zoom

Specifications
Display
Product Classification Home Projector
Display Technique DLP
3D Yes
Latency (Game Mode, VRR on, AK off) 1ms at 1080P@240Hz
2.2ms at 1080P@120Hz
3ms at 4K@60Hz
Brightness 3200 ISO Lumens
Contrast Ratio 20,000:1 (DBLE On)
Eye Protection Yes
Light Source RGB Triple Laser
Display Chip 0.47” DMD
Supported Formats HDR 10+, IMAX Enhanced, Dolby Vision
MEMC Yes
Standard Resolution 3840 x 2160 pixels
Color Gamut BT.2020 110%
Lens High Light Transmission Coated Lens

Setup
Auto Keystone Correction Uninterrupted Auto Keystone
Intelligent Screen Alignment Yes
Lens Shift V±120% / H±45%
Digital Zoom Yes
Aspect Ratio 16:9
Image Size 40″ - 300″
Focus Auto Focus
Intelligent Obstacle Avoidance Yes
Optical Zoom Yes
Throw Ratio 1.2 - 1.5:1
Projection Method Front, Rear, Front Ceiling, Rear Ceiling

System

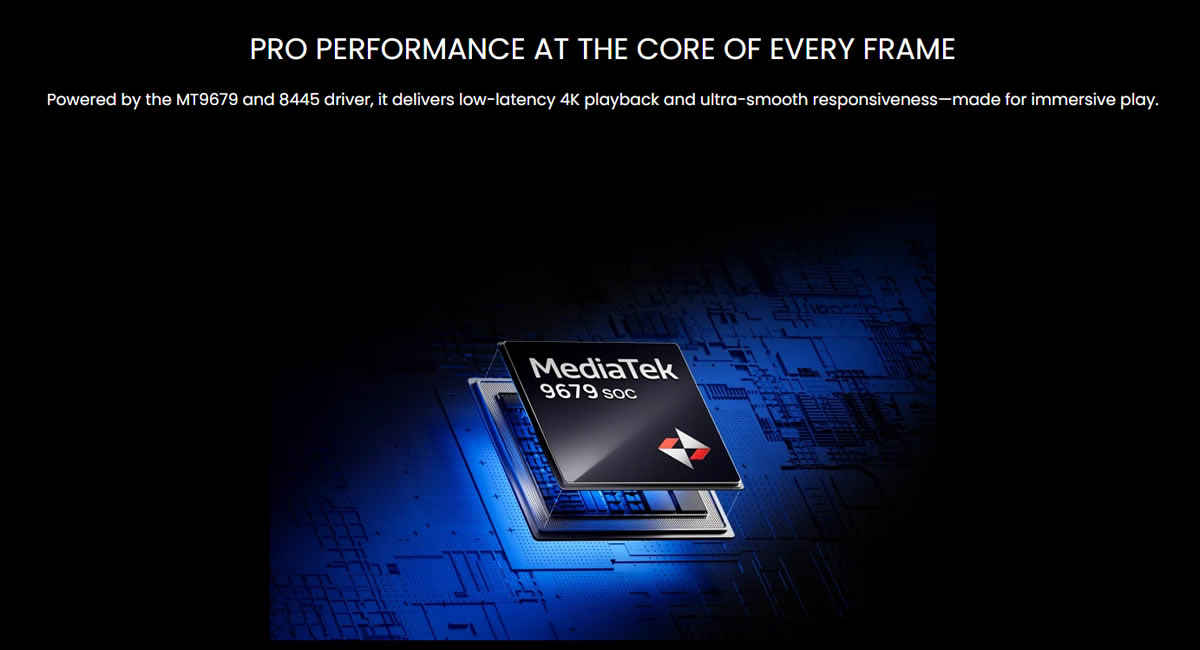

CPU MT9679
GPU Mali-G52
RAM 4GB
Storage 128GB

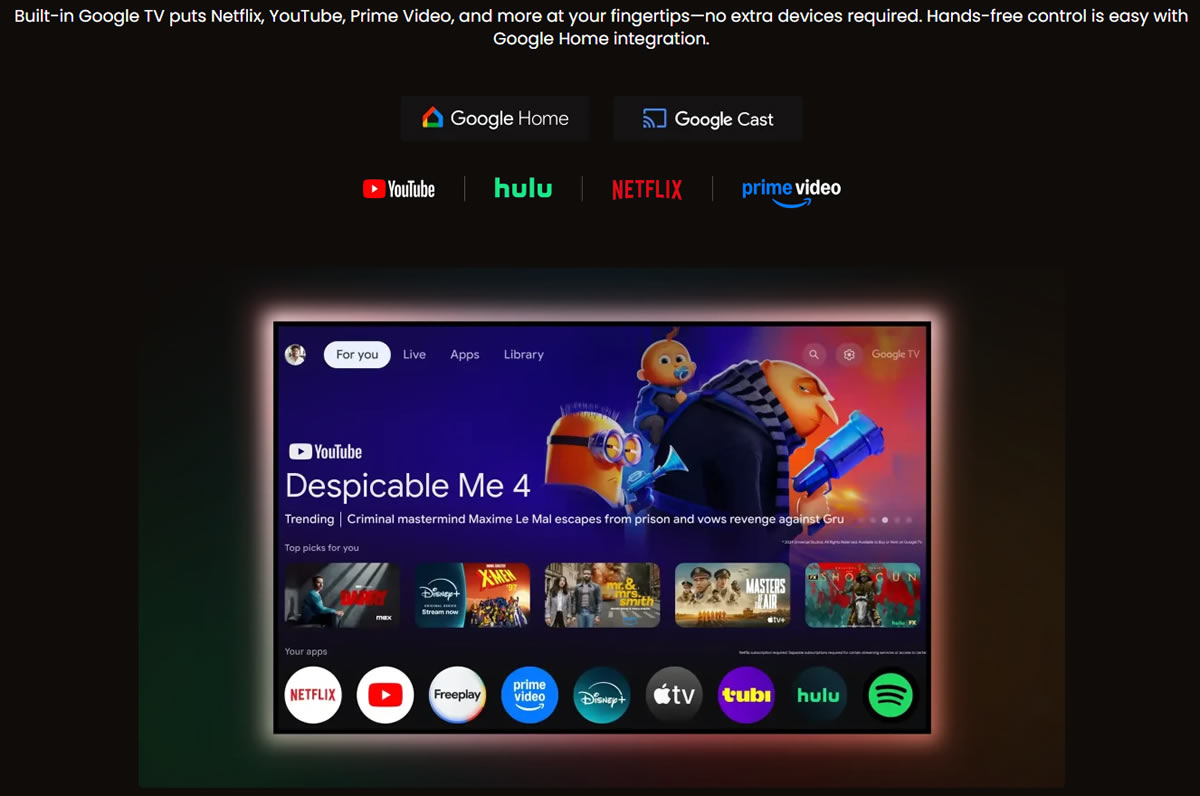

System Google TV
Fast Boot Yes (STR)
Mirroring Display DLNA / GoogleCast

Audio & Connectivity

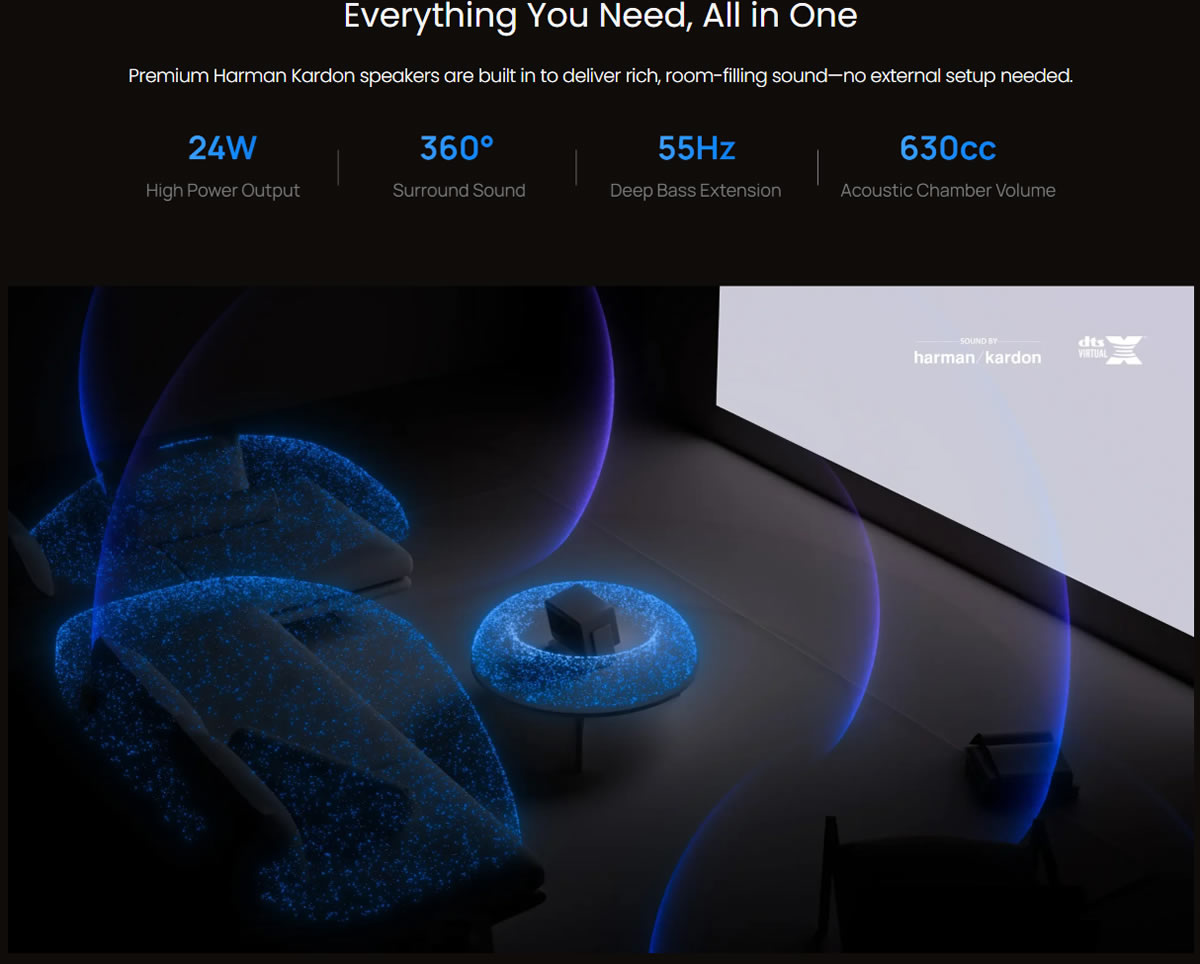

Speaker 2 x 12W Harman/Kardon
DTS-Virtual:X Yes
DTS-HD Yes
Dolby Audio Yes
Dolby Digital (DD) Yes
Dolby Digital Plus (DD+) Yes
Wi-Fi Wi-Fi 6 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2

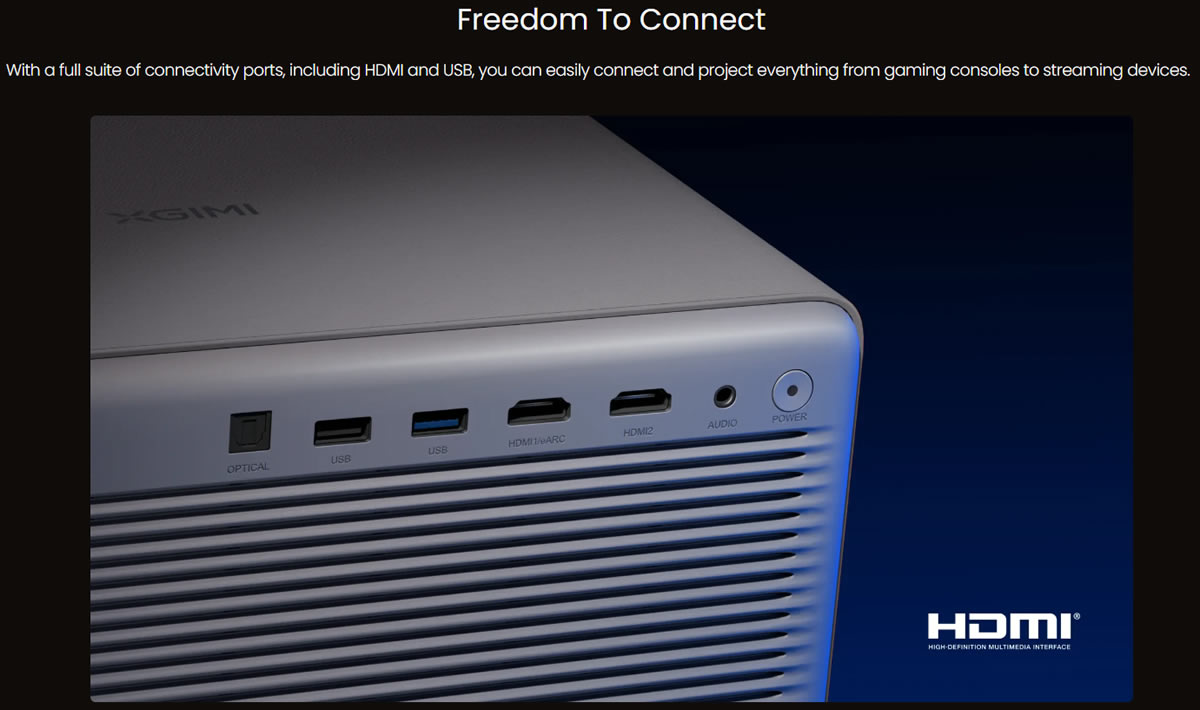

Input Ports DC x 1
HDMI x 2 (HDMI1 supports eARC)
USB 3.0 x 1, USB 2.0 x 1
Output Ports Optical x 1, Audio x 1
Noise Level ≤28dB @ 1m
Power Dissipation ≤180W
Power AC100-240V, 50/60Hz

Electrical
Noise Level <28dB@1m 7
Power Usage 300W
Power AC100-240V, 50/60Hz

Measurements
Product Size (H x W x D) 249 x 298 x 190 mm
Product Weight 4.8kg

1. Brightness (light output) will vary depending on usage conditions. White light output measured in accordance with ISO 21118. The nominal value represents the average value of mass production and is tested under ideal laboratory conditions in the performance mode/high power mode.

2. For the best viewing experience. we recommend using a projection size of 60-120 inches. Exceeding this range may affect the quality of your projected content. The display quality may vary based on product usage habits and environmental conditions.

3. Android TV is a trademark of Google LLC.

4. Router required.

5. 25,000 hours is the theoretical lifespan of the light source. The actual lifespan may vary due to differences in environmental conditions, product usage habits and the mode selected.

6. The actual storage capacity is subject to change based on various factors, such as system usage, software version, and settings used.

7. Measured under an ambient temperature of 25°C with a 1-meter distance from the machine. Results may vary based on different testing environments, conditions, and the product being evaluated. This data comes from XGIMI laboratories.

8. The measured size may vary based on configuration, manufacturing, and measurement method.

9. The measured weight may vary based on configuration, manufacturing process, and measurement method.

* Actual product features and specifications (including appearance, color, and size) and actual display aspects (including backgrounds, interface, and icons) may vary by country. Please consult the point of sale for further information.

* All performance data in the preceding pages are theoretical values obtained by XGIMI internal laboratories through tests conducted under particular conditions. Refer to the aforementioned product details for more information on the specific testing conditions. Actual performance may vary based on individual product configurations. software versions, application conditions, and environmental factors. All data is subject to actual usage.

* XGlMl makes every effort at the time of publication to ensure the accuracy of product information it provides. Due to subsequent changes involving product batches, production, and supply factors, it may be necessary for XGlMl to make changes and adjustments to text and images so that they match the performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.

* Operating temperature: 0℃to 40℃.

* All parameters listed on this page are measured in an XGIMl internal test environment for mass production. User experiences may vary in different settings, usage conditions, software versions, etc. Please check the official XGlMl website for detailed test standards and data.

* The product will be attached with a printed manual. However, the electronic manual will be updated on the XGlMl website.

* The typical value of ΔE≈1 for color accuracy in the factory production of XGIMI HORIZON Ultra is obtained from the XGIMI Optical Laboratory. The calibration parameters will take effect when the high color accuracy mode is correctly activated in the system. Color accuracy may vary slightly depending on factors such as projection usage time and lab testing equipment. Please refer to your actual experience for an accurate assessment.

* SGS Certification Number: PT/23/GEN/0063

* The Wall Color Adaption feature needs to be enabled in the system settings to take effect. Once activated, it can calibrate the picture based on wall colors with a color temperature ranging from 3000K to 15000K. However, the calibration effect may vary depending on the wall color. For optimal results, we recommend using it in dimly lit environments.

* All of XGIMI’s currently available floor stands and ceiling mounts are incompatible with HORIZON Ultra.


What's in the Box
Horizon 20 remote control
Remote Control
xgimi horizon 20 power cord
Power Adapter

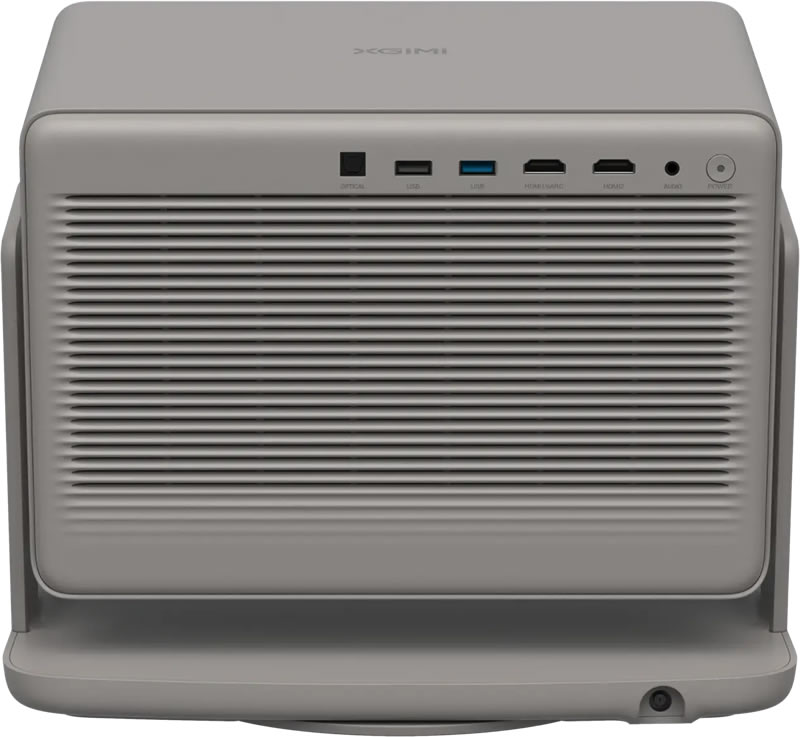

Rear Panel

Horizon 20 rear panel

Optional Accessories


+1 year warranty
Warranty Upgrade +1 Year
$139

More Information


Xgimi X-Desktop stand
XGIMI X-Desktop Stand
$169

More Information


Xgimi X-Desktop stand
XGIMI X-Roof Ceiling Mount
$99

More Information


Xgimi Floor Stand Ultra
XGIMI Floor Stand Ultra
$299

More Information


hdmi cable
Premium HDMI Cable
From $19.95


Boblov 3d glasses
Boblov DLP Link 3D Glasses
$50

More Information
