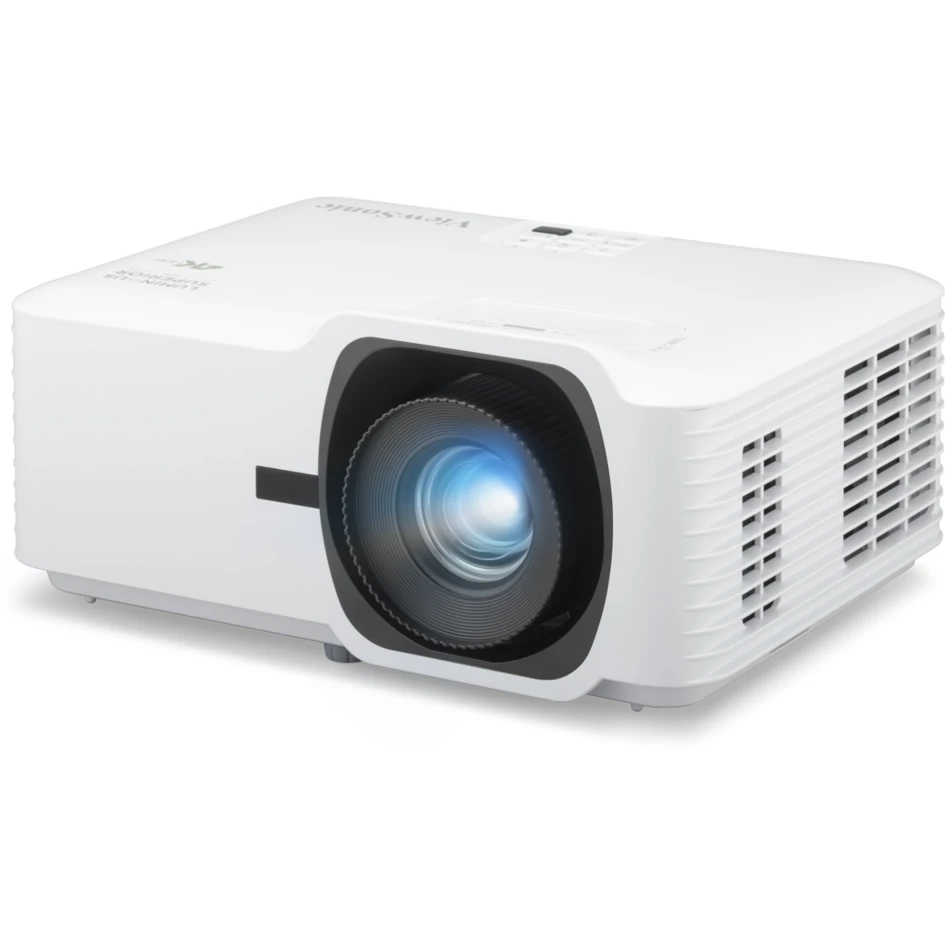

ViewSonic LSD500-4K 5000lm 4K Laser Projector
SKU: LSD500-4K
Specifications
- UHD 3840 x 2160 16:9
- 5000 ANSI Lumens
- 3,000,000:1 Contrast
- 3.1kg Weight
- 32 / 27db(eco) Fan Noise
- 3 Year Warranty
- 3 Years/10,000hrs Laser Warranty
- Est. Laser Life up to 30,000hrs
Key Features
- 2x HDMI Connections
- 1.6x Optical Zoom
- Horizontal & Vertical Keystone
- Powerful 15W Speaker
- 360° Installation
- Portrait Projection
- IP6X Dust Resistant Optical Engine
ViewSonic LSD500-4K 5000 Lumens 4K UHD Laser Projector
The LSD500-4K delivers a stunning 5,000 ANSI lumens of brightness paired with true native 4K UHD resolution (3840x2160), this projector produces razor-sharp, vibrant images with exceptional contrast (up to 3,000,000:1) that shine even in well-lit boardrooms, lecture halls, or large venues. Its advanced 3rd-generation laser phosphor light source offers instant on/off, maintenance-free operation, and a remarkable lifespan of up to 30,000 hours, dramatically cutting long-term costs while delivering consistent performance.
With flexible installation features like 1.6x optical zoom, H/V keystone correction, 360° projection, portrait mode, and support for massive screens up to 300 inches, the LSD500-4K adapts effortlessly to any space. Compact, reliable, and network-ready with centralized LAN control, it's the perfect upgrade for commercial, educational, or entertainment setups craving cinematic clarity without the hassle. Experience brilliance that lasts — choose the LSD500-4K.
Optional Accessories
Features
- True 4K HDR delivers exceptional image clarity and detail
- 5,000 ANSI Lumens offering bright images in any environment
- 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
- Up to a 300" ultra-large screen with a lower cost-per-inch
- Centralized LAN control for efficient management
- Installation flexibility: 1.6x optical zoom, H/V keystone, 360° projection, and portrait mode
OVERVIEW
Introducing the LSD500-4K from ViewSonic's Luminous Superior Series, tailored for expansive venue displays. Featuring 5,000 ANSI Lumens of brightness and high native contrast provided by a 0.65” DMD chip through DLP technology, it delivers stunning 4K UHD visuals on screens up to 300 inches. Perfect for commercial and educational institutions, the LSD500-4K's ultra-high resolution with HDR/HLG support ensures every detail is vivid and clear, enhancing viewer engagement. Comprehensive LAN control ensures seamless integration into corporate networks. Its 1.6x optical zoom allows for a flexible setup to suit various installation needs, and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Employing advanced 3rd generation laser phosphor technology, the LSD500-4K boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for businesses and large venues.
Ultimate Viewing Experience with 4K HDR
Experience 4K crystal-clear details and dynamic visuals powered by HDR/HLG support. The projector features HDMI 2.0/HDCP 2.3 ports for original 4K quality content, bringing your presentations, creative works, and sports viewing to life.
4K HDR

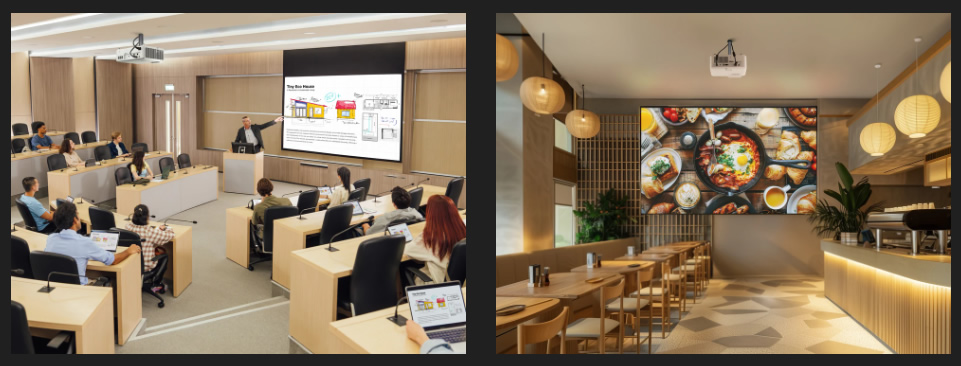

Bright Images for Large Venues
Delivering 5,000 ANSI Lumens, the LSD500-4K provides vibrant and sharp projection in all lighting conditions for auditoriums, boardrooms, lecture halls, public venues, and other expansive spaces.
5,000 ANSI Lumens

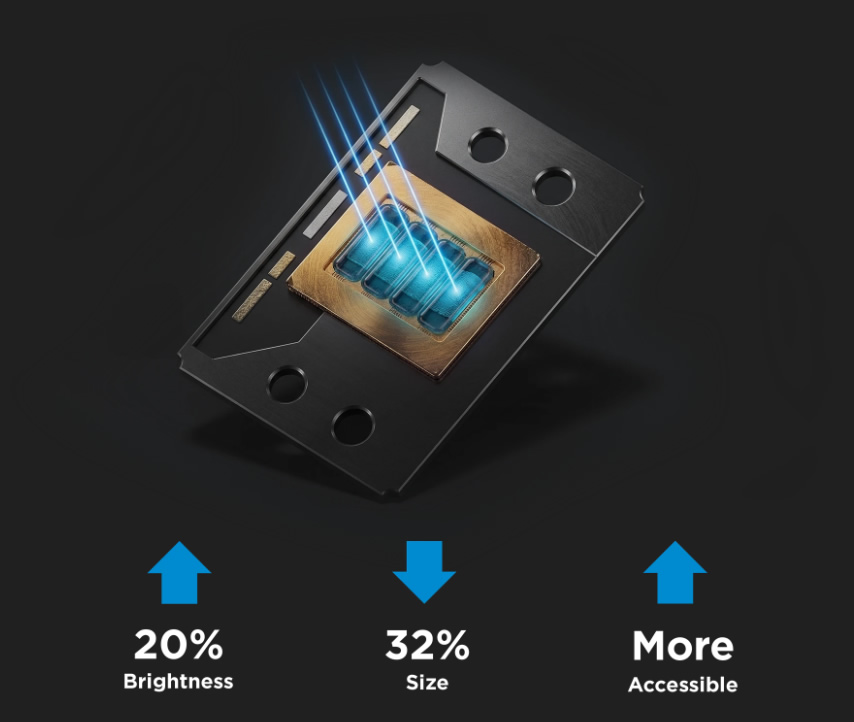

Bright, Compact, Durable
The LSD500-4K incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
3rd Generation Laser Phosphor Technology
Unmatched Contrasts, Enhanced Visibility
The projector's high native contrast ratio, achieved through its Texas Instruments 0.65"DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.
0.65” DMD Chip, High Native Contrast Ratio>
Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 300”
Centralized Control for Management Efficiency
Master your environment with the LSD500-4K. Certified for Crestron and Q-SYS and fully compatible with AMX, Extron, PJ Link, and ATEN, it brings your entire visual ecosystem into a single interface. Eliminate manual tweaks and drive operational efficiency through seamless, centralized control.
Comprehensive LAN Control

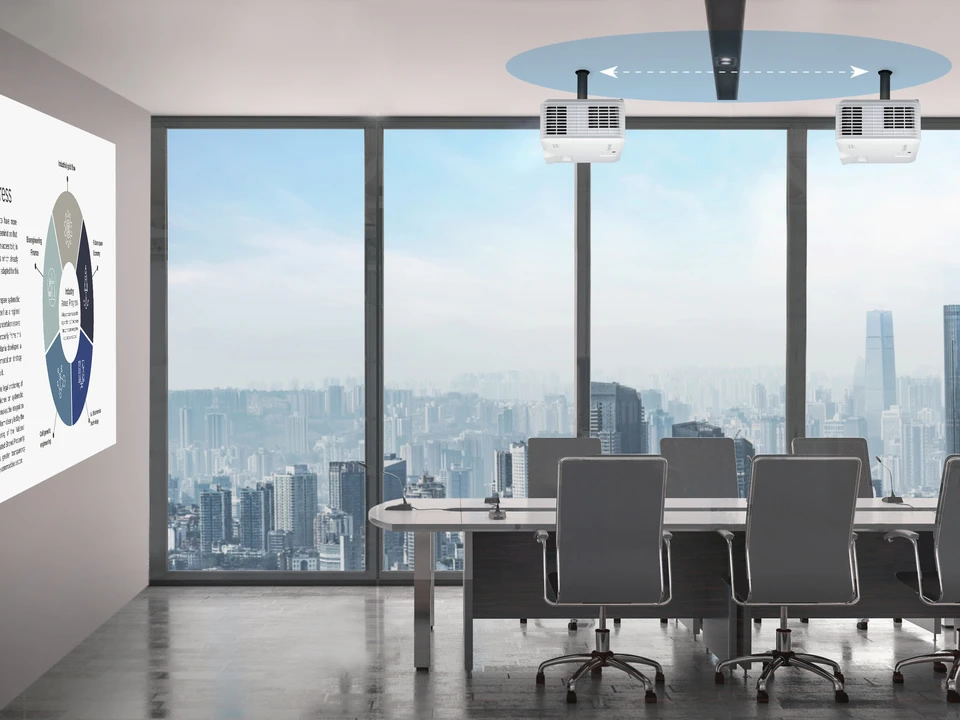

Enhanced Installation Flexibility
Equipped with a 1.6x optical zoom, the projector allows users to choose the ideal setup location within a range, getting the desired image size without needing to change the existing interior design.
1.6x Optical Zoom

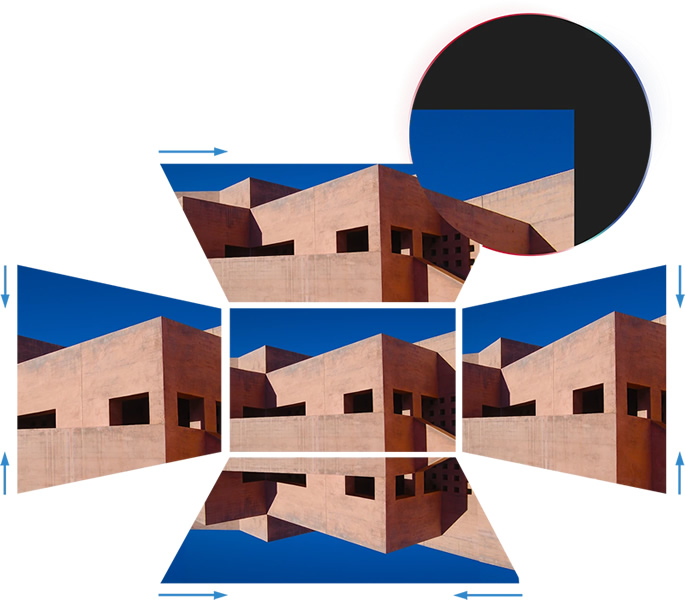

Get Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction, 4-corner Adjustment

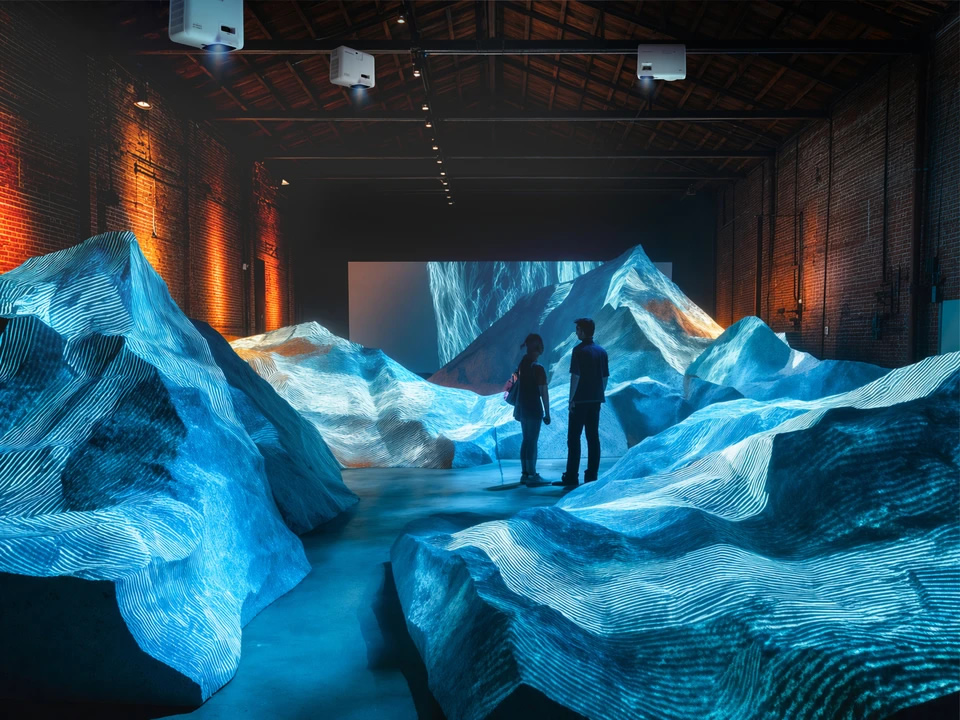

Versatile Creative Applications
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications
360° Projection, 90° Portrait Mode
Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic's advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.
Golf Color Mode

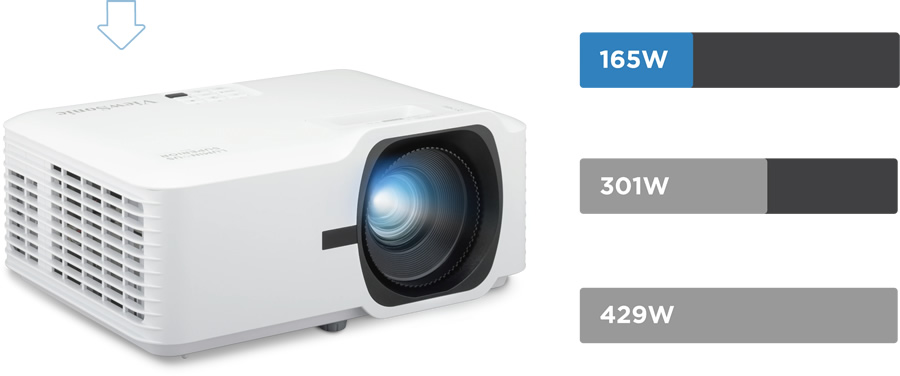

Save on Costs and Energy
With its advanced lamp-free light source, the LSD500-4K offers a highly energy-efficient and cost-saving display solution by consuming up to 51% less power than competing projectors
Less Power Consumption

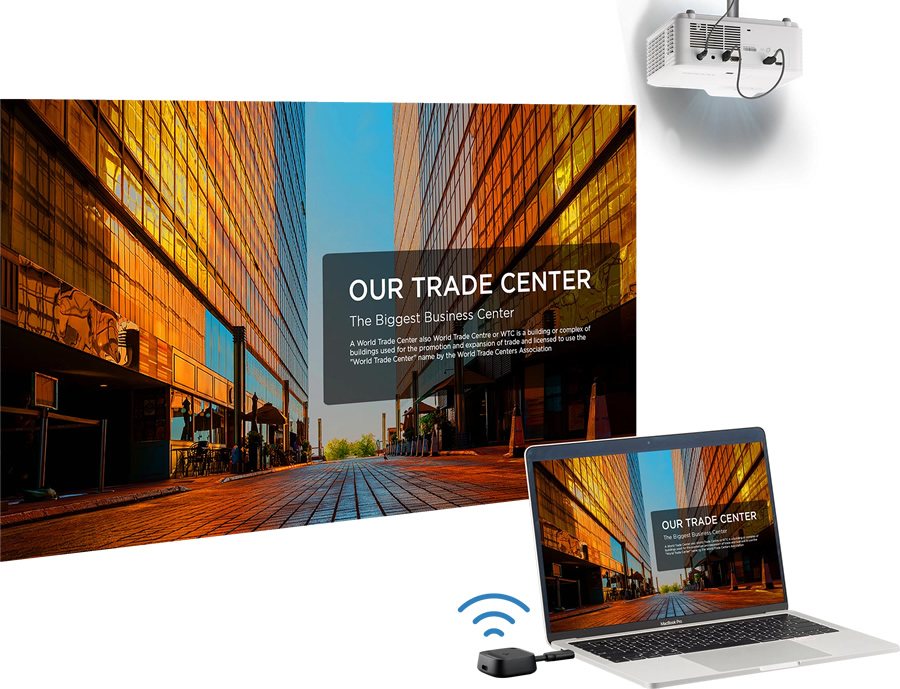

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *ViewShare sold separately
USB-A Power Supply

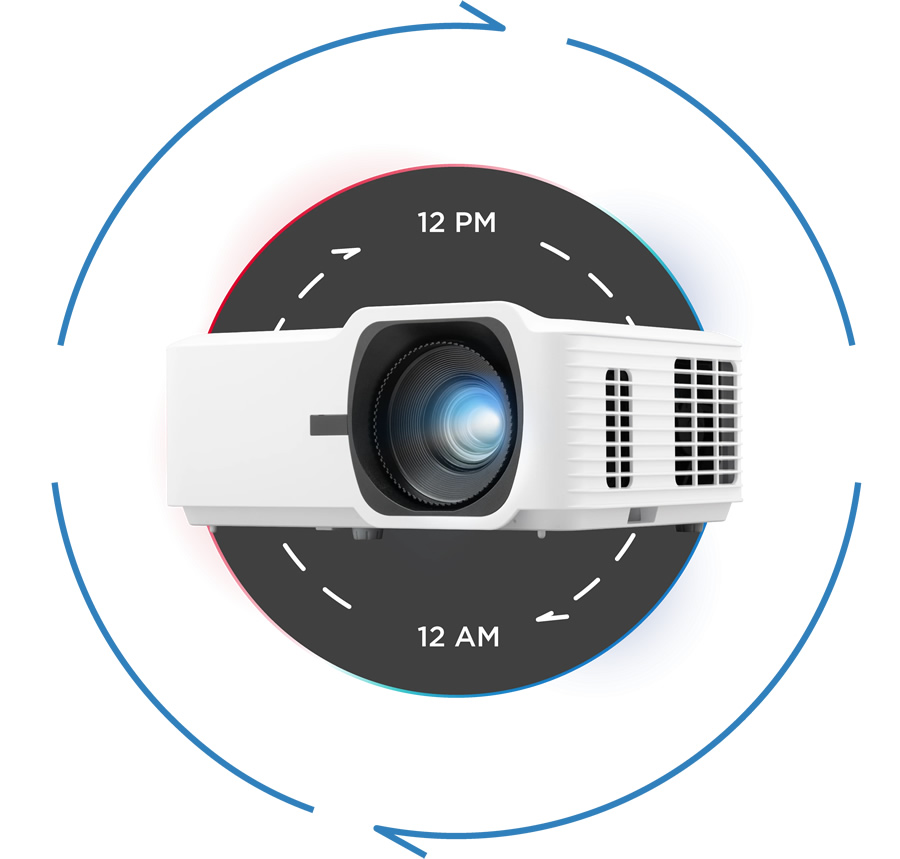

Non-stop 24/7 Operation
The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.

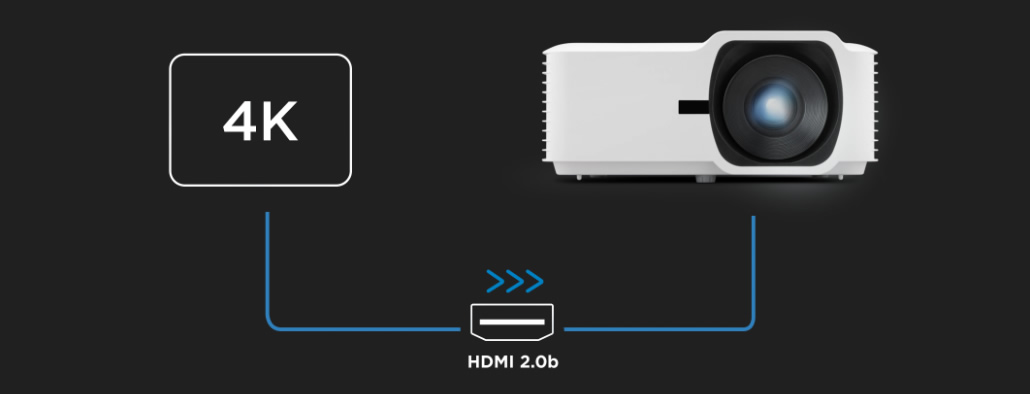

HDR / HLG / 4K UHD supported by HDMI 2.0b
The LSD500-4K is equipped with HDMI 2.0b and HDCP 2.3 ports, delivering full 4K resolution with HDR10 and HLG support at a smooth 60Hz frame rate. Whether streaming via a Roku stick or playing from a 4K Blu-ray player, enjoy brilliant whites, rich blacks, and enhanced detail for a truly cinematic visual experience.

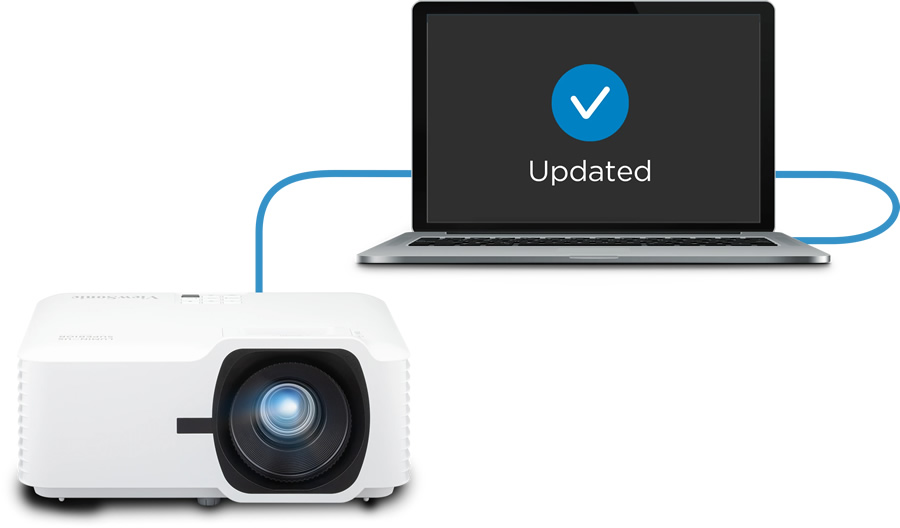

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.Learn more: https://youtu.be/irlhJLpDHas*The latest projector software update can be found in the download section at the bottom of the page when available.
Projector Software Update
| Native Resolution: | 3840x2160 |
|---|---|
| Projection System | 0.65" 4K UHD |
| Brightness: | 5000 (ANSI Lumens) |
| Centre Brightness: | 5500 (ANSI Lumens) |
| Contrast Ratio: | 3000000:1 |
| Display Color: | 1.07 Billion Colors |
| Light Source Type: | Laser Phosphor system |
| Light Source Life (hours) | up to 20,000 (Normal Mode) |
| Light Source Life (hours) | up to 30,000 (SuperEco Mode) |
| Lens: | F=2.5-3.26, f=20.91-32.62mm |
| Projection Offset: | 128% +/- 10% |
| Throw Ratio: | 1.4-2.24 |
| Optical Zoom: | 1.6X |
| Digital Zoom: | 0.8x-2.0x |
| Image Size: | 30-300" |
| Throw Distance: | 0.93-14.88m (100"@3.1m) |
| Keystone: | H:+/-30° , V:+/-30° |
| Audible Noise (Normal): | 32dB |
| Audible Noise (Eco): | 27dB |
| Input Lag: | 4.2ms |
| Resolution Support: | VGA(640 x 480) to 4K UHD(3840 x 2160) |
| HDTV Compatibility: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency: | 15K-150KHz |
| Vertical Scan Rate: | 24-240Hz |
| Inputs | |
| HDMI: | HDMI: 2 (HDMI 2.0, HDCP 2.3) |
| Output | |
| Audio-out (3.5mm): | 1 |
| Speaker: | 15W |
| USB Type A (Power): | 1 (5V/ 1.5A) |
| Control | |
| RS232 (DB 9-pin male): | 1 |
| RJ45 (LAN control): | 1 |
| USB Type A | 1 (share with USB A Output) |
| Others | |
| Power Supply Voltage: | Input: 100~240V Output: 19.5VDC / 11.79A |
| Power Consumption: | Normal: 165W, Standby: <0.5W |
| Operating Temperature: | 0~40℃ |
| Net Weight: | 3.1 kg |
| Dimensions (WxDxH) with Adjustment Foot: | 286x216x129mm |
| OSD Language: | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages |
| Standard Accessory | |
| Power Cord: | 1 |
| Remote Control: | 1 , (w/ laser pointer) |
| QSG: | Yes |
Remote Control

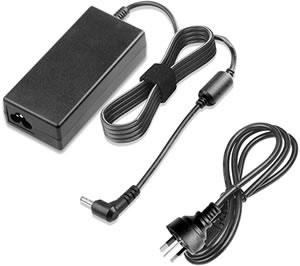

Power Adapter

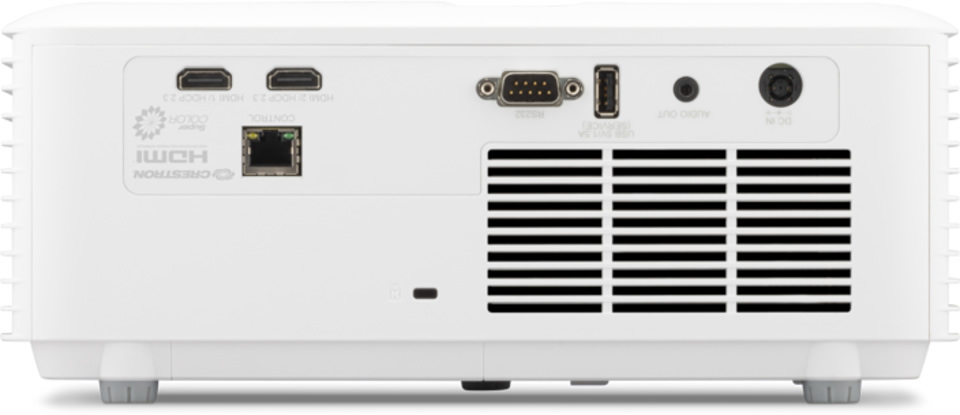

Rear Panel
