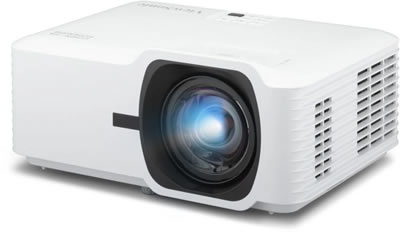

ViewSonic LSD400HD-ST 4,000lm Short Throw Laser Projector
$2,999 $2,199
Save $800. Extended Till 16th Nov
Specifications
- 1080p 1920 x 1080 16:9
- 4000 ANSI Lumens
- 3,000,000:1 Contrast
- 3.10kg Weight
- 32 / 27db(eco) Fan Noise
- 3 Year Warranty
- 3 Years/10,000hrs Laser Warranty
- Est. Laser Life up to 30,000hrs
Key Features
- 2x HDMI Connections
- Horizontal & Vertical Keystone
- Powerful 15W Speaker
- 360° Installation
- Portrait Projection
- IP6X Dust Resistant Optical Engine
Viewsonic LSD400HD-ST Throw Distance Chart
Throw Ratio: 0.5:1| Image Size | Installation Distance | |
|---|---|---|
| 92" (16:9) 2030x1140mm | Approx. 1.0m | |
| 100" (16:9) 2214x1245mm | Approx. 1.1m | |
| 110" (16:9) 2435x1370mm | Approx. 1.2m | |
| 120" (16:9) 2657x1494mm | Approx. 1.3m | |
| 135" (16:9) 2990x1681mm | Approx. 1.5m | |
| 150" (16:9) 3320x1867mm | Approx. 1.6m | |

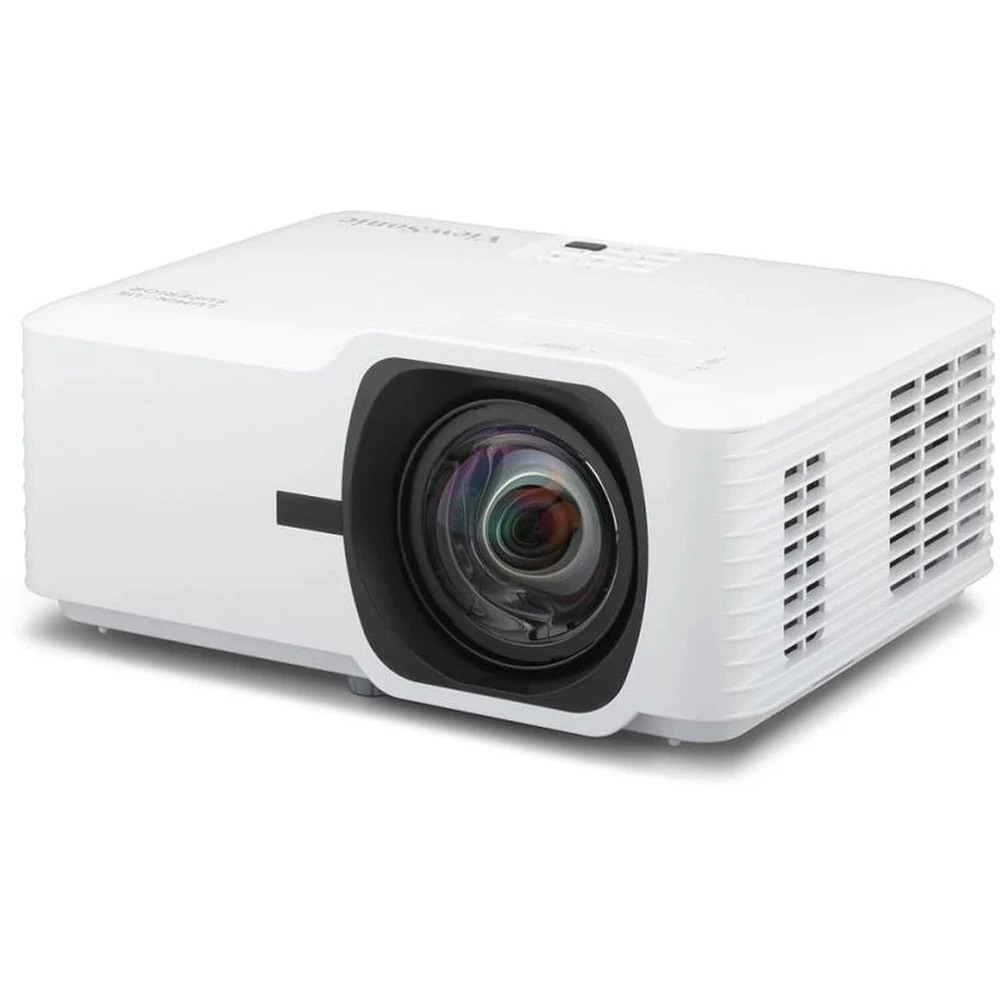

ViewSonic LSD400HD-ST 4000 Lumens Full HD Short Throw Laser Projector
Both compact and powerful the LSD400HD-ST from Viewsonic pumps out 4000 ANSI lumens perfect for large screen projection. With a short throw lens it can fill a 3 metre wide screen from just 1.5 metres distance also making it a great choice with Golf simulation avoiding casting shadows. The Long life laser can run up to 30,000 hours so no worrying about replacing lamps and down time.
Optional Accessories
Features
- 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
- 0.5 short throw for large images even in limited spaces
- 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
- High native contrast ratio powered by a 0.65” DMD chip and DLP technology
- Installation flexibility: H/V keystone, 4 corner adjustment, and 360° projection
- Centralized LAN control for efficient management
OVERVIEW
The LSD400HD-ST is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. Powered by 3rd-generation laser phosphor technology, it provides 4,000 ANSI Lumens of brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing up to 49% power consumption than competing lamp projectors. With a 0.5 short throw, it delivers a 100” image from just 1.1 meters, ideal for immersive visuals in space-constrained environments. Delivering ultra-large projections up to 300” in sharp 1080p Full HD resolution, this projector leverages high native contrast from a 0.65” DMD chip with DLP technology. Equipped with H/V keystone & 4 corner correction, and 360° projection, the LSD400HD-ST supports flexible installation options, making it an excellent choice for golf simulation setups, exhibitions, and retail applications.

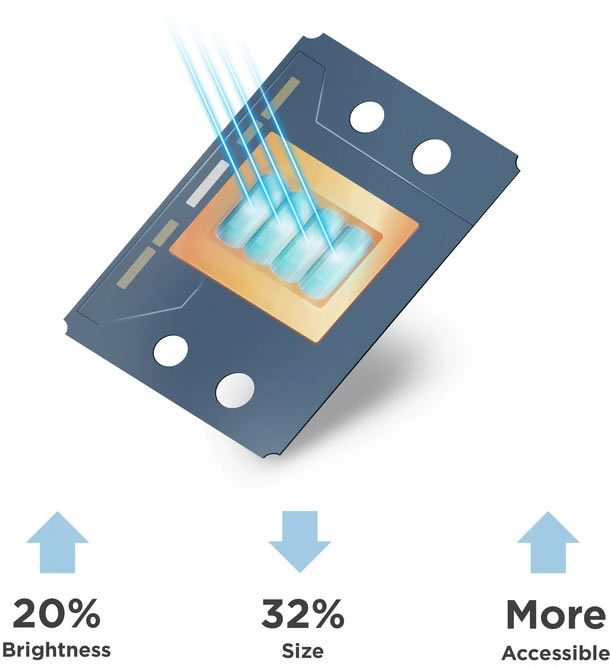

Bright, Compact, Durable
The LSD400HD-ST incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
3rd Generation Laser Phosphor Technology
Brilliant Clarity in Every Detail
Delivering 4,000 ANSI Lumens, the LSD400HD-ST projects vibrant, razor-sharp images in 1080p Full HD, making it ideal for golf simulators, exhibitions, and retail environments.
4,000 ANSI Lumens, 1080p FHD

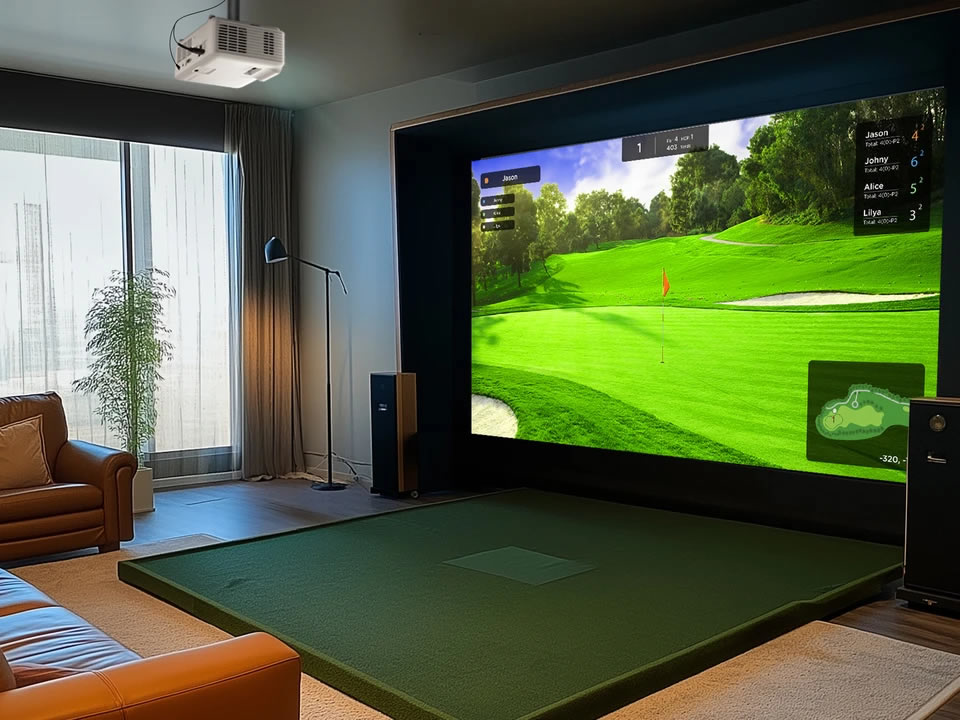

Go Big, Even in Small Spaces
Enjoy large images even in small spaces with a 0.5 short throw ratio. Capable of projecting a 100” screen from just 1.1 meters away, the LSD400HD-ST allows flexible installation—delivering immersive golf simulation experiences from the comfort of your home.
0.5 Short Throw Ratio
Unmatched Contrast, Enhanced Visibility
Experience enhanced visuals with the LSD400HD-ST, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.
0.65” DMD Chip, High Native Contrast Ratio

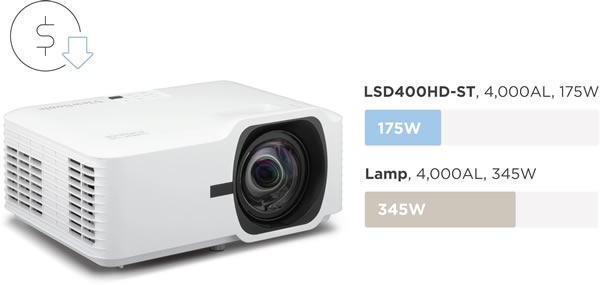

Save on Costs and Energy
With its advanced lamp-free light source, the LSD400HD-ST offers a highly energy-efficient and cost-saving display solutionby consuming up to 59% less powerthan competing projectors.
Less Power Consumption
Reliable Long-Term Performance with DLP Projection Technology
With DLP technology, the LSD400HD-ST maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design (IP6X), it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.
Filter-free, Sealed Engine (IP6X)

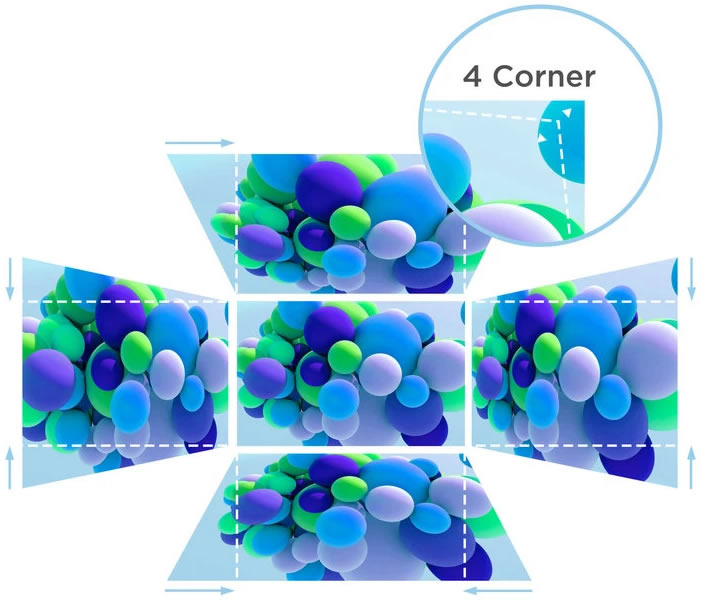

Get Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction, 4-corner Adjustment
Versatile Creative Applications
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode
Centralized Control for Management Efficiency
The LSD400HD-ST is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control
Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic's advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.
Golf Color Mode
Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *ViewShare sold separately
ViewShare, USB-A Power Supply

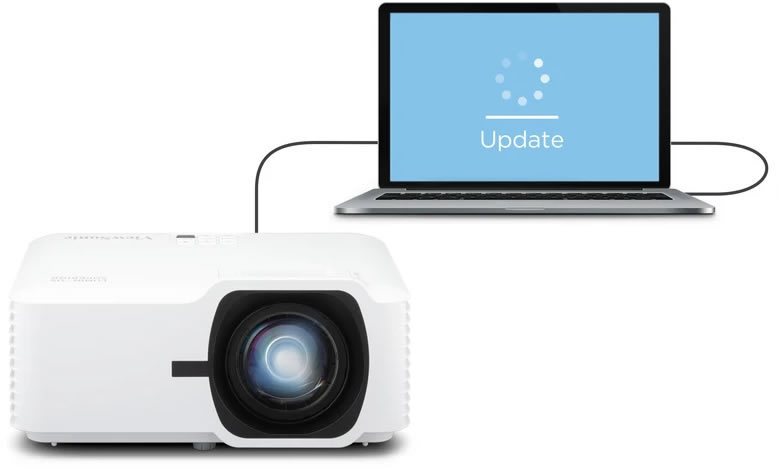

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.
Projector Software Update
| Native Resolution: | 1920x1080 |
|---|---|
| DMD Type: | DC3 |
| Brightness: | 4000 (ANSI Lumens) |
| Contrast Ratio: | 3000000:1 |
| Display Color: | 1.07 Billion Colors |
| Light Source Type: | Laser Phosphor system |
| Light Source Life (hours) | up to 20,000 (Normal Mode) |
| Light Source Life (hours) | up to 30,000 (SuperEco Mode) |
| Lens: | Lens: F=2.8, f=7.51mm |
| Projection Offset: | 132%+/-10% |
| Throw Ratio: | 0.5 |
| Optical Zoom: | Fixed |
| Digital Zoom: | 0.8x-2.0x |
| Image Size: | 40-300" |
| Throw Distance: | 0.44-3.29m (100"@1.10m) |
| Keystone: | H:+/-15° , V:+/-15° |
| Audible Noise (Normal): | 32dB |
| Audible Noise (Eco): | 27dB |
| Input Lag: | 16.7ms |
| Resolution Support: | VGA(640 x 480) to 4K UHD(3840 x 2160) |
| HDTV Compatibility: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency: | 15K-135KHz |
| Vertical Scan Rate: | 24-120Hz |
| Inputs | |
| HDMI: | HDMI: 2 (HDMI 2.0, HDCP 2.2) |
| Output | |
| Audio-out (3.5mm): | 1 |
| Speaker: | 15W |
| USB Type A (Power): | 1 (5V/ 1.5A) |
| Control | |
| RS232 (DB 9-pin male): | 1 |
| RJ45 (LAN control): | 1 |
| USB Type A | 1 (share with USB A Output) |
| Others | |
| Power Supply Voltage: | Input: 100~240V Output: 19.5VDC / 9.23A |
| Power Consumption: | Normal: 143W, Standby: <0.5W |
| Operating Temperature: | 0~40℃ |
| Net Weight: | 3.10 |
| Dimensions (WxDxH) with Adjustment Foot: | 286x216x129mm |
| OSD Language: | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages |
| Standard Accessory | |
| Power Cord: | 1 |
| Remote Control: | 1 |
| QSG: | Yes |
Remote Control
Power Adapter

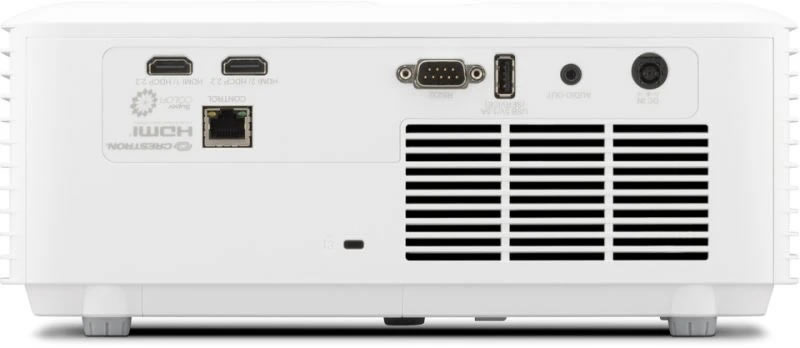

Rear Panel
