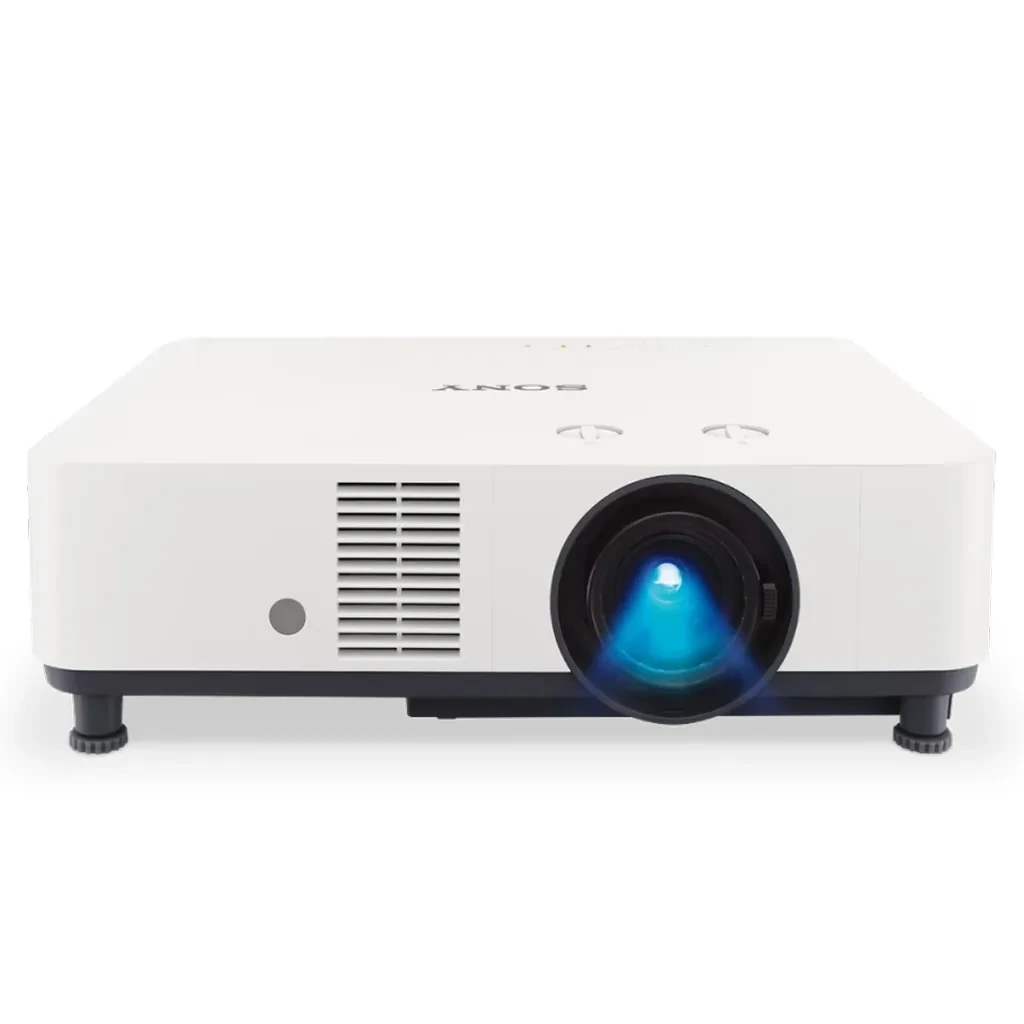

Sony VPLPHZ61 High Brightness Full HD Laser Projector

sony vplphz61 projector
Delivery

$4,699 $3,599

Save $1,100. Extended Till 13th Oct
special
IN STOCK NOW

Found a better deal? Request a price match here!


5yr warranty
australian stock
insured delivery
laser light

Specifications

  • WUXGA 1920 x 1200 16:10
  • 6,400 ANSI Lumens
  • 3,000,000:1 Contrast
  • 7kg Weight
  • 37 / 34db(eco) Fan Noise
  • 5 Years / 12,000 hours Warranty
  • 5 Years / 12,000 hours Laser Warranty
  • Est. Laser Life up to 20,000hrs

Key Features

  • 2x HDMI Input
  • Horizontal & Vertical Keystone
  • Vertical Lens Shift (-35%, +55%)
  • Horizontal Lens Shift (+/- 15%)
  • 1.6x Zoom
  • 360 degree tilt Horizontal & Vert.
  • Powerful 16W Speaker
  • HDBaseT Compatible

Sony VPLPHZ61 Throw Distance Chart

Throw Ratio: 1.23-1.97:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
94" (16:10) 2025x1265mm From 2.5m to 3.9m
110" (16:10) 2370x1480mm From 3.0m to 4.6m
120" (16:10) 2585x1615mm From 3.2m to 5.0m
130" (16:10) 2800x1750mm From 3.5m to 5.5m
140" (16:10) 3015x1885mm From 3.8m to 5.9m
150" (16:10) 3230x2020mm From 4.0m to 6.3m

Sony VPL-PHZ61 WUXGA Bright Laser Projector

The Sony VPLPHZ61 is the newest version of the very successful large venue Sony range with a boost in brightness, improved contrast and keeping all the amazing features. The VPL-PHZ61 pumps out a dazzling 6400 ANSI lumens perfect for bright rooms and large image sizes. It is powered by the energy efficient Sony Z-Phosphor laser light source with a 20,000 hour laser life. This eliminates the need for replacement lamps saving you money and down time. It also enables the PHZ61 to be able to be lilted 360 degrees on any axis so could be used in tricky installations without overheating. With a wide zoom and optical lens shift the Sony also offers flexible installation.

Sony VPLPHZ61 Projector Reviews:


VPLPHZ61 review
Projector Central Review

One of the smallest and easiest conference room projectors to set up, the Sony VPL-PHZ61 is surprisingly bright for its tiny package and can help with a wide variety of classroom lessons, conference room presentations and digital museum exhibits. It may lack the integrated or easily added Wi-Fi sharing capabilities offered by some projectors, which may require a third party solution. But assuming you can get an appealing and bright-enough image from its Intelligent Settings modes and automated light sensor, you'll potentially extend the life of the projector while having it conveniently adapt to changing viewing conditions.


VPLPHZ61 review
Projector Reviews Review

The VPL-PHZ61 is a powerful projector that offers users an excess of brightness, allowing it to be used in almost any environment. The projector can display an image with detailed colors even in environments with little control over ambient lighting.

This projector can accept content from various consumer products, including 4K UHD Blu-ray players. It does not display HDR, but it still does a commendable job of displaying a balanced and pleasant picture.

The Sony VPL-PHZ61 delivers a bright, accurate image from a compact package. Anyone who is looking for a 6000+ lumens projector for a classroom or office space should definitely consider the VPL-PHZ61.


Impressively small, light 6,400 lumen* laser projectors

Beautifully slim and light with the smallest body in its class, the VPL-PHZ61 laser projector combines outstanding picture performance with up to 7,000lm centre brightness and impressive reliability. A discreet blend-in design, minimal maintenance needs and flexible installation options make it the natural partner for today’s integrated AV environments.
*VPL-PHZ61 6,400 lm (7,000 lm centre)

vplphz61 Small

Bold, rich colour even in brightly lit rooms

Even powerful projectors can suffer from washed-out colours in strongly-lit rooms. Exclusive to Sony, Bright View delivers high-impact imagery without sacrificing colour. Newly improved Reality Creation ensures images, diagrams and text look clear and sharp, even in bright conditions. Intelligent Settings with Ambiance matches projected images with your environment for an enhanced viewing experience. There’s even an ambient light sensor to measure room brightness.

vplphz61 Rich colour

vplphz61 Clearer

Clearer images and text

Reality Creation uses powerful algorithms that boost image resolution closer to 4K clarity. Reality Text improves visibility of characters: great for conference rooms, university seminar rooms and large classrooms.

vplphz61 Bright

Bright, beautiful colors

Bright View is Sony’s unique processing technology that brightens images while maintaining rich color – even in brightly lit business and educational environments.

vplphz61 Clear

Enhanced viewing experience

Intelligent Settings with Ambiance uses a built-in light sensor to measure room brightness, automatically adjusting Bright View mode, color gain, and Reality Creation to suit your presentation environment.

Enjoy optimum pictures while saving energy

The VPL-PHZ61 makes sound business sense, helping you reduce running costs in corporate and educational environments. A new Auto Light Output feature works in conjunction with Ambiance, optimizing image quality and maintaining high visibility while reducing power consumption.

vplphz61 Optimum

4K 60P input support

Support for 4K 60P input signals makes life simpler when you’re using the VPL-PHZ61 in multi-screen set-ups with flat panel sub-screens. Just split the same 4K signal to drive all your displays, with no conversion needed. There’s also a high-performance image scaler that effortlessly converts 4K input signals to WUXGA resolution while achieving close to 4K image quality. Now optimized for 4K60P signals, Reality Creation is Sony’s unique picture enhancement feature that gives projected images even greater crispness and depth. There’s also support for devices with content protection such as 4K UHD players.

vplphz61 4K

Smart, installation-friendly design

Enjoy flexible installation options with a generous +55% vertical lens shift range, making it easy to achieve perfectly proportioned pictures without long pole mounts or keystone correction when the projector's ceiling mounted. We've also widened the throw ratio range, simplifying replacement of a previously installed projector without the hassle of re-positioning an existing ceiling mount.

Brighter for longer with less maintenance

There’s plenty of innovation inside the VPL-PHZ51 to keep pictures looking clear and bright over the projector’s operational lifetime with minimal maintenance – in any environment.

vplphz61 Golf
vplphz61 Design

Designed with intelligence

Intelligent Settings simplifies installation and maximizes performance based on usage, image detail, color richness and fidelity, light output, cooling level, and output noise. The Meeting/Classroom function controls laser output to keep brightness as high as possible for years of real-world use.

vplphz61 Dust

Keep dust out of the picture

The laser light source is sealed to prevent dust accumulation and eliminate reduced brightness. The dedicated cooling duct structure for the projector’s 3LCD panels is covered with an air filter to prevent dust from entering.

vplphz61 Filter

Hassle-free filter care

Focus on great-looking images instead of time-consuming maintenance. The new dust filtration system makes changing filters a thing of the past for general use in classrooms and meeting rooms.* For heavier use in dusty environments, there’s a new clogging sensor to advise when filter cleaning is needed. *Dust density < 0.03mg/m3 and operating time < 10,500 hours. (1,500 hours/year over 7 years.)

Other features

vplphz61 Data Cloning

Data Cloning

Settings for one projector can be copied to other projectors using a USB memory drive. This greatly simplifies installation and set-up of multiple projectors.

vplphz61 Input Select

Auto Input Select

The Auto Input Select feature automatically selects an active signal input, so there’s no need to change input each time a device is connected to the projector.

vplphz61 Auto Power On

Auto Power On

Connect the VPL-PHZ61 to a switched-on computer, and the projector turns on automatically without having to operate the power button.

More picture power in every environment

vplphz61 Conference Rooms

Conference rooms

Impress your audience with large, vibrant images and sleek, contemporary styling.

vplphz61 Lecture Halls

Lecture halls

Engage every student in larger teaching spaces with crisp, high-brightness pictures.

vplphz61 Golf Simulation

Golf simulation

Reality Creation brings even more lifelike detail, color and texture to each blade of grass.


Specifications
Display System 3LCD system

Display Device
Size of Effective Display Area 16.3 mm (0.64 in) x3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of Pixels 6,912,000 (1920 x 1200 x 3) pixels

Projection Lens
Focus Manual
Zoom Manual (Approx. x 1.6)
Lens shift Manual, Vertical –35% to +55%, Horizontal: +/–15%
Throw Ratio 1.23: 1 to 1.97: 1

Light Source
Light Source Laser diode

Screen Size
Screen Size 1.02 m to 7.62 m (40 in to 300 in) (measured diagonally)

Light Output*1
Mode: Standard 6,400 lm*2
Mode: Standard (Center) 7,000 lm*3
Mode: Middle 4,700 lm

Color Light Output*1
Mode: Standard 6,400 lm
Mode: Middle 4,700 lm

Contrast Ratio (full white / full black)*1
Contrast Ratio (full white / full black)*1 ∞:1

Displayable Scanning Frequency

Horizontal 15 kHz to 92 kHz Vertical 24 Hz to 92 Hz

Keystone Correction (Max.)
Keystone Correction (Max.) Horizontal: +/–30 degrees
Vertical: +/–30 degrees

Accepted Signal Resolution
Computer Signal Input Maximum signal resolution: 1920 x 1200
(4K/30p, 3840 x 2160 acceptable)
Video Signal Input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p 4k/30p, 4k/25p, 4k/24p (4k means 3840)

INPUT / OUTPUT
INPUT A RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
INPUT B HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support
Audio input connector: HDMI audio support
INPUT C HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support
Audio input connector: HDMI audio support
INPUT D HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN (100BASE-TX), RS-232C)
VIDEO IN Video input connector: Phono jack (Composite)
OUTPUT Audio output connector: Stereo mini jack
REMOTE D-sub 9-pin (male) / RS232C
LAN RJ45, 10BASE-T / 100BASE-TX
USB TYPE-A x 1 (for F/W update), TYPEA for Power supply

Speaker
Speaker 16 W
OSD Languages
OSD Languages 27-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungarian, Greek, Czech, Slovak, Romanian)

Acoustic noise (Mode: Standard / Middle) *1
Acoustic noise (Mode: Standard/Middle)*1 37 dB / 34 dB

Operating Temperature / Operating Humidity
Operating Temperature / Operating Humidity 32°F to 104°F (0°C to 40°C) / 20% to 80% (no condensation)

Storage Temperature / Storage Humidity
Storage Temperature / Storage Humidity 14 °F to +140 °F (–10 °C to +60 °C) / 20% to 80% (no condensation)

Power Requirements
AC 100 V to 120 V463 W AC 220 V to 240 V434 W
Power Consumption (Standby Mode) AC 100 V to 120 V0.5 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V0.5 W (when “Standby mode” is set to “Low”)
Power Consumption (Networked Standby Mode) AC 100 V to 120 V1 W (LAN), 16 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
AC 220 V to 240 V1 W (LAN), 16 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")

Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated Approx. 2 Minutes

Dimensions (W x H x D) (without dust filter, protrusions)
Dimensions (W x H x D) (without dust filter, protrusions)Approx. 16.61 x 3.94 x 13.11 in (422 x 100 x 333 mm)
Dimensions (W x H x D) Dimensions (W x H x D)Approx. 16.61 x 5.08 x 13.31 in (422 x 129 x 338 mm)

Mass
Mass Approx. 7 kg (15 lb)

Supplied Accessories
Supplied Accessories RM-PJ8 Remote Commander
Notes
*1The figures are approximate. They vary depending on the environment or how the projector is used.
*2The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.

*3The value is light output measured at center area of screen in Standard mode, and average of all products shipped.

Rear Panel
