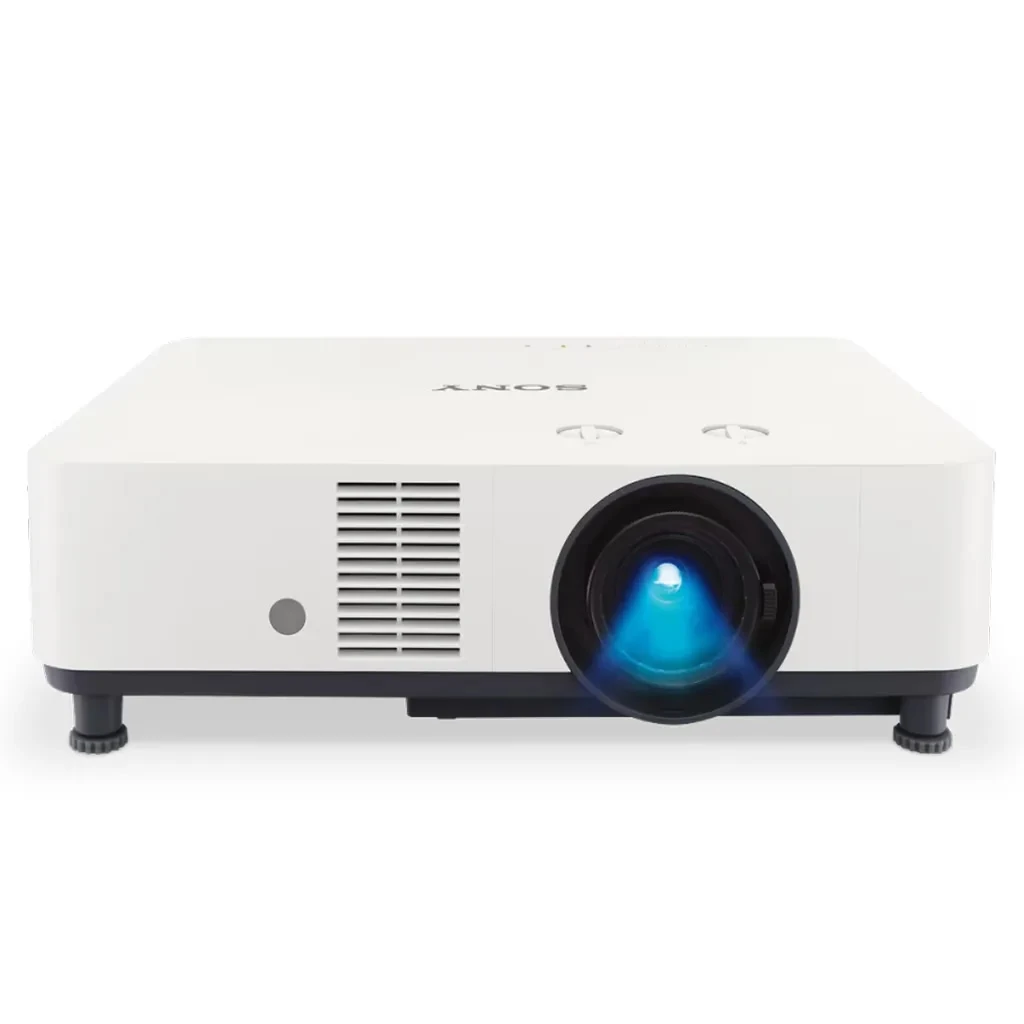

Sony VPLPHZ51 High Brightness Full HD Laser Projector
Specifications
- WUXGA 1920 x 1200 16:10
- 5,300 ANSI Lumens
- 3,000,000:1 Contrast
- 7kg Weight
- 37 / 34db(eco) Fan Noise
- 5 Years / 12,000 hours Warranty
- 5 Years / 12,000 hours Laser Warranty
- Est. Laser Life up to 20,000hrs
Key Features
- 2x HDMI Input
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-35%, +55%)
- Horizontal Lens Shift (+/- 15%)
- 1.6x Zoom
- 360 degree tilt Horizontal & Vert.
- Powerful 16W Speaker
- HDBaseT Compatible
Sony VPLPHZ51 Throw Distance Chart
Throw Ratio: 1.23-1.97:1| Image Size | Installation Distance | |
|---|---|---|
| 94" (16:10) 2025x1265mm | From 2.5m to 3.9m | |
| 110" (16:10) 2370x1480mm | From 3.0m to 4.6m | |
| 120" (16:10) 2585x1615mm | From 3.2m to 5.0m | |
| 130" (16:10) 2800x1750mm | From 3.5m to 5.5m | |
| 140" (16:10) 3015x1885mm | From 3.8m to 5.9m | |
| 150" (16:10) 3230x2020mm | From 4.0m to 6.3m | |
Sony VPL-PHZ51 WUXGA Bright Laser Projector
The Sony VPLPHZ51 pumps out an amazing 5,300 ANSI lumens perfect for large venue lights on installations. It is purpose made for heavy usage with a durable long life laser saving you down time, lamp costs and installation costs over traditional lamp based projectors. The Sony PHZ51 is also one of the smallest Laser projector in this brightness class making for a sleek unobtrusive installation. Backed by a 5 year or 20,000 hour warranty it is guaranteed to stand up to rigorous usage.
Impressively small, light 5,300 lumen* laser projectors
Beautifully slim and light with the smallest body in its class, the VPL-PHZ51 laser projector combines outstanding picture performance with up to 5,800lm centre brightness and impressive reliability. A discreet blend-in design, minimal maintenance needs and flexible installation options make it the natural partner for today’s integrated AV environments.
*VPL-PHZ51 5,300 lm (5,800 lm centre).
Bold, rich colour even in brightly lit rooms
Even powerful projectors can suffer from washed-out colours in strongly-lit rooms. Exclusive to Sony, Bright View delivers high-impact imagery without sacrificing colour. Newly improved Reality Creation ensures images, diagrams and text look clear and sharp, even in bright conditions. Intelligent Settings with Ambiance matches projected images with your environment for an enhanced viewing experience. There’s even an ambient light sensor to measure room brightness.
Clearer images and text
Reality Creation uses powerful algorithms that boost image resolution closer to 4K clarity. Reality Text improves visibility of characters: great for conference rooms, university seminar rooms and large classrooms.
Bright, beautiful colors
Bright View is Sony’s unique processing technology that brightens images while maintaining rich color – even in brightly lit business and educational environments.
Enhanced viewing experience
Intelligent Settings with Ambiance uses a built-in light sensor to measure room brightness, automatically adjusting Bright View mode, color gain, and Reality Creation to suit your presentation environment.
Enjoy optimum pictures while saving energy
The VPL-PHZ51 makes sound business sense, helping you reduce running costs in corporate and educational environments. A new Auto Light Output feature works in conjunction with Ambiance, optimizing image quality and maintaining high visibility while reducing power consumption.
4K 60P input support
Support for 4K 60P input signals makes life simpler when you’re using the VPL-PHZ51 in multi-screen set-ups with flat panel sub-screens. Just split the same 4K signal to drive all your displays, with no conversion needed. There’s also a high-performance image scaler that effortlessly converts 4K input signals to WUXGA resolution while achieving close to 4K image quality. Now optimized for 4K60P signals, Reality Creation is Sony’s unique picture enhancement feature that gives projected images even greater crispness and depth. There’s also support for devices with content protection such as 4K UHD players.
Smart, installation-friendly design
Enjoy flexible installation options with a generous +55% vertical lens shift range, making it easy to achieve perfectly proportioned pictures without long pole mounts or keystone correction when the projector's ceiling mounted. We've also widened the throw ratio range, simplifying replacement of a previously installed projector without the hassle of re-positioning an existing ceiling mount.
Brighter for longer with less maintenance
There’s plenty of innovation inside the VPL-PHZ51 to keep pictures looking clear and bright over the projector’s operational lifetime with minimal maintenance – in any environment.
Designed with intelligence
Intelligent Settings simplifies installation and maximizes performance based on usage, image detail, color richness and fidelity, light output, cooling level, and output noise. The Meeting/Classroom function controls laser output to keep brightness as high as possible for years of real-world use.
Keep dust out of the picture
The laser light source is sealed to prevent dust accumulation and eliminate reduced brightness. The dedicated cooling duct structure for the projector’s 3LCD panels is covered with an air filter to prevent dust from entering.
Hassle-free filter care
Focus on great-looking images instead of time-consuming maintenance. The new dust filtration system makes changing filters a thing of the past for general use in classrooms and meeting rooms.* For heavier use in dusty environments, there’s a new clogging sensor to advise when filter cleaning is needed. *Dust density < 0.03mg/m3 and operating time < 10,500 hours. (1,500 hours/year over 7 years.)
Other features
Data Cloning
Settings for one projector can be copied to other projectors using a USB memory drive. This greatly simplifies installation and set-up of multiple projectors.
Auto Input Select
The Auto Input Select feature automatically selects an active signal input, so there’s no need to change input each time a device is connected to the projector.
Auto Power On
Connect the VPL-PHZ51 to a switched-on computer, and the projector turns on automatically without having to operate the power button.
More picture power in every environment
Conference rooms
Impress your audience with large, vibrant images and sleek, contemporary styling.
Lecture halls
Engage every student in larger teaching spaces with crisp, high-brightness pictures.
Golf simulation
Reality Creation brings even more lifelike detail, color and texture to each blade of grass.
Display System 3LCD system
Display Device
Size of Effective Display Area 16.3 mm (0.64 in) x3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of Pixels 6,912,000 (1920 x 1200 x 3) pixels
Projection Lens
Focus Manual
Zoom Manual (Approx. x 1.6)
Lens shift Manual, Vertical –35% to +55%, Horizontal: +/–15%
Throw Ratio 1.23: 1 to 1.97: 1
Light Source
Light Source Laser diode
Screen Size
Screen Size 1.02 m to 7.62 m (40 in to 300 in) (measured diagonally)
Light Output*1
Mode: Standard 5,300 lm*2
Mode: Standard (Center) 5,800 lm*3
Mode: Middle 4,000 lm
Color Light Output*1
Mode: Standard 5,300 lm
Mode: Middle 4,000 lm
Contrast Ratio (full white / full black)*1
Contrast Ratio (full white / full black)*1 ∞:1
Displayable Scanning Frequency
Horizontal 15 kHz to 92 kHz Vertical 24 Hz to 92 Hz
Keystone Correction (Max.)
Keystone Correction (Max.) Horizontal: +/–30 degrees
Vertical: +/–30 degrees
Accepted Signal Resolution
Computer Signal Input Maximum signal resolution: 1920 x 1200
(4K/30p, 3840 x 2160 acceptable)
Video Signal Input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p 4k/30p, 4k/25p, 4k/24p (4k means 3840)
INPUT / OUTPUT
INPUT A RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
INPUT B HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support
Audio input connector: HDMI audio support
INPUT C HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support
Audio input connector: HDMI audio support
INPUT D HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN (100BASE-TX), RS-232C)
VIDEO IN Video input connector: Phono jack (Composite)
OUTPUT Audio output connector: Stereo mini jack
REMOTE D-sub 9-pin (male) / RS232C
LAN RJ45, 10BASE-T / 100BASE-TX
USB TYPE-A x 1 (for F/W update), TYPEA for Power supply
Speaker
Speaker 16 W
OSD Languages
OSD Languages 27-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungarian, Greek, Czech, Slovak, Romanian)
Acoustic noise (Mode: Standard / Middle) *1
Acoustic noise (Mode: Standard/Middle)*1 37 dB / 34 dB
Operating Temperature / Operating Humidity
Operating Temperature / Operating Humidity 32°F to 104°F (0°C to 40°C) / 20% to 80% (no condensation)
Storage Temperature / Storage Humidity
Storage Temperature / Storage Humidity 14 °F to +140 °F (–10 °C to +60 °C) / 20% to 80% (no condensation)
Power Requirements
AC 100 V to 120 V463 W AC 220 V to 240 V434 W
Power Consumption (Standby Mode) AC 100 V to 120 V0.5 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V0.5 W (when “Standby mode” is set to “Low”)
Power Consumption (Networked Standby Mode) AC 100 V to 120 V1 W (LAN), 16 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
AC 220 V to 240 V1 W (LAN), 16 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated Approx. 2 Minutes
Dimensions (W x H x D) (without dust filter, protrusions)
Dimensions (W x H x D) (without dust filter, protrusions)Approx. 16.61 x 3.94 x 13.11 in (422 x 100 x 333 mm)
Dimensions (W x H x D) Dimensions (W x H x D)Approx. 16.61 x 5.08 x 13.31 in (422 x 129 x 338 mm)
Mass
Mass Approx. 7 kg (15 lb)
Supplied Accessories
Supplied Accessories RM-PJ8 Remote Commander
Notes
*1The figures are approximate. They vary depending on the environment or how the projector is used.
*2The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.
*3The value is light output measured at center area of screen in Standard mode, and average of all products shipped.
