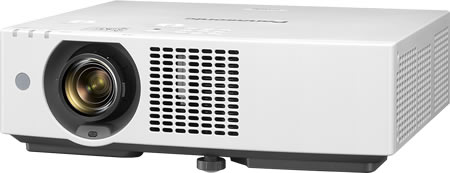

Panasonic PT-VMZ72 High Brightness Laser Projector

Examples of installation distance for some popular screen sizes.
Image Size	Installation Distance
94" (16:10) 2025x1265mm	From 2.3m to 3.5m
110" (16:10) 2370x1480mm	From 2.6m to 4.1m
120" (16:10) 2585x1615mm	From 2.9m to 4.5m
130" (16:10) 2800x1750mm	From 3.1m to 4.9m
140" (16:10) 3015x1885mm	From 3.3m to 5.3m
150" (16:10) 3230x2020mm	From 3.6m to 5.7m

!!!Stress-free Installation Adapts to Various Layouts

Project vivid 100-inch images from 1.72 m (5.6 ft) with minimal shadowing in tight spaces. Powered focus eliminates manual adjustment hassle, while 1.2x zoom, V/H lens shift, and Curved Screen Correction enhance layout flexibility. Angle Monitor5 and data-cloning6 via LAN/USB further streamline installation.

!!!Clear Projection in Bright Spaces

Enjoy bright, sharp, and realistic visuals with up to 7,000 lm1 brightness, 5,000,000:17 Dynamic Contrast, and Daylight View Basic, which optimizes image quality in any lighting. Vivid Green Mode enhances colors for more vibrant reproduction—ideal for golf simulators.

!!!Eco-Friendly Design

The projector body’s plastic contains about 56%8 recycled resins. The laser light source and long-life ECO Filter need no maintenance for 20,000 hours9, reducing cost and waste. Image Detection function10 conserves energy, and built-in scheduling feature supports automated operation.

Small Size, Huge Impact. Compact Brilliance Unleashed.

Introducing the VMZ72 Series: the world’s smallest and lightest projector in its class1, delivering up to 8,000 lm2 for crisp, vibrant visuals in well-lit spaces. These intuitive LCD projectors integrate seamlessly into any layout, minimizing distractions while simplifying installation with exclusive features. With a stylish body containing recycled plastic and engineered for efficient, low-maintenance operation, the VMZ72 Series revitalizes communication quality in offices, classrooms, and beyond.

1 Among projectors with 8,000 lm or more (PT-VMZ72), 7,300 lm or more (PT-VMZ72), and 6,500 lm or more (PT-VMZ62) as of March 2025, according to Panasonic’s research. 2 Measured when [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. Measurement, measuring conditions, and notation method comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.

Clear Projection Tailored to Your Space

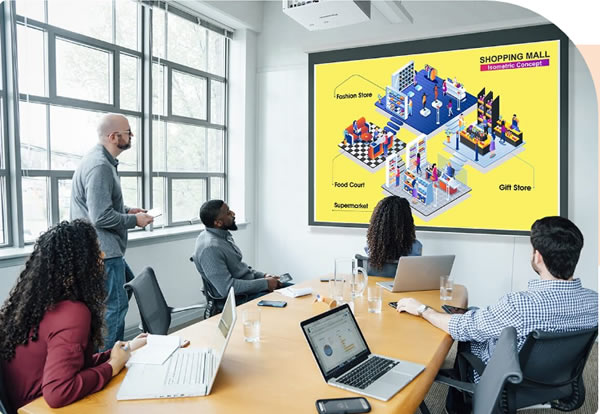

Up to 8,000 lm for Stunning Visuals Under Lights

The VMZ72 Series’ high-efficiency optical engine delivers up to 8,000 lm1 brightness, ensuring clear, sharp, and vibrant visuals in well-lit spaces. Enhance viewer comfort and communication quality in meetings and classes without dimming the lights or pulling the blinds.

1 PT-VMZ72 only. Measured when [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. Measurement, measuring conditions, and notation method comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.

High 5,000,000:1 Dynamic Contrast

Input signals are analyzed frame by frame to regulate light output for best contrast performance in every scene. As well as accurately reproducing pictures that contain a mix of dark and bright hues, Dynamic Contrast is more energy efficient than other technologies and can be optimized to suit the content or the room’s lighting. The projector’s high 5,000,000:11 contrast ratio provides better detail definition in shadows with deeper blacks, brighter whites, and more natural skin tones for a better sense of depth and definition.

1 Full On/Full Off, when [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.

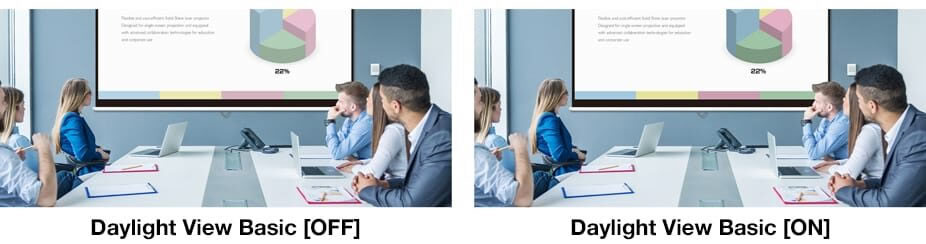

Optimized Visuals for Bright Spaces

Daylight View Basic uses a sensor to measure ambient light levels in your room and adjusts sharpness, halftone color, contrast, and brightness to optimize image visibility regardless of room illumination. The result is a clearer, more detailed image, even in challenging conditions.

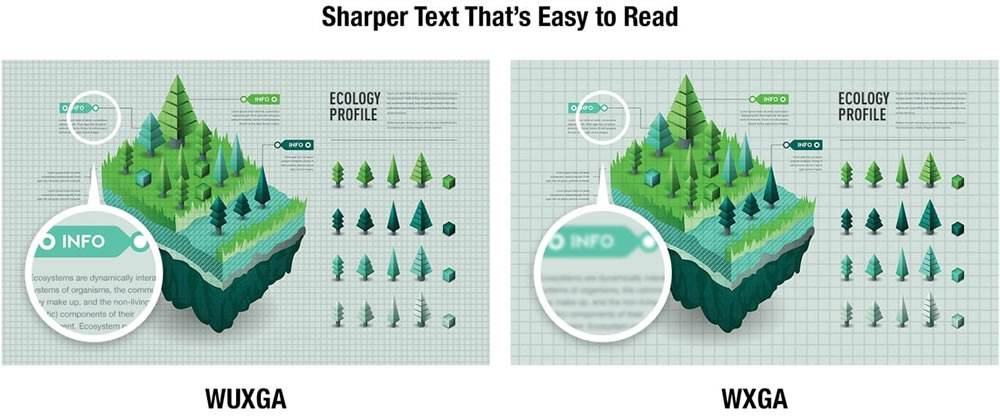

Smooth, Crisp Details at WUXGA

WUXGA (1920 x 1200) LCD panels improve detail definition for a more comfortable and insightful experience. Text edges are smooth, sharp, and easy to read, even for those seated furthest from the screen.

Vivid Green Mode for Lifelike Sports Simulation

The VMZ72 Series introduces a new Vivid Green Mode that enhances green tones for brighter, more natural-looking images—ideal for golf and other sports simulations. By adjusting signal gain and optimizing color balance, this mode delivers deeper greens and brighter midtones for a more vivid and engaging viewing experience.

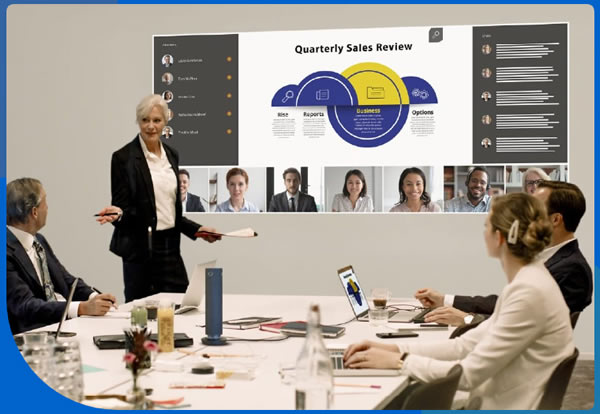

Supports Widescreen Video Content

Display widescreen content, such as 21:9 video conferencing layouts, at its original aspect ratio. Remote participants’ faces can be aligned at eye level with in-room attendees, improving communication and engagement during meetings or classes.

Note: Resolution may be reduced when projecting widescreen content at its native aspect ratio.

Quiet Operation for Hybrid Lessons and Meetings

The projector’s heat-resistant light source reduces operating noise, enhancing the clarity of conversations during in-person or hybrid lessons and meetings. In Quiet 2 Mode, operating noise is as low as 25 dB1—about as soft as the sound of rustling leaves.

1 For the PT-VMZ62. Please see the product specifications for noise values of other models.

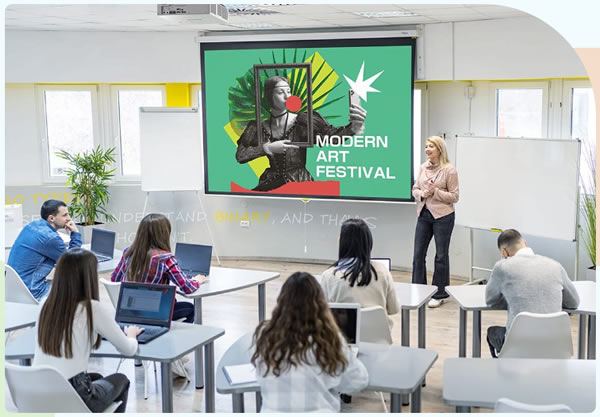

Stylish Design Blends Into Your Room

Available in black or white, VMZ72 Series projectors feature a compact form that harmonizes unobtrusively into any environment. Whether installed in an office, classroom, or museum, the projector minimizes distractions, keeping the focus on your presentation.

Stress-Free Installation Flexibility

Installation Streamlined with 1.6x Zoom and Lens Shift

Maximize your screen area in rooms of any shape or size. The VMZ72 Series can project a 100-inch image from 2.35 m (7.71 ft) and delivers bright, vibrant visuals on screens up to 300 inches. Its 1.6x optical zoom (throw ratio: 1.09–1.77:1) offers flexibility in mounting, making it easier to work around ceiling obstructions or adjust the image to fit the screen from an existing mount. Combined with lens shift (V: +44%, H: ±20%), it supports off-axis and high mounting positions while maintaining accurate image geometry.

Digital Zoom Extender and Digital Image Shift

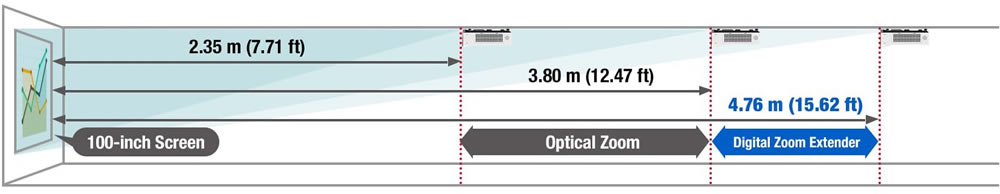

Digital Zoom Extender increases the projector’s throw distance beyond its optical zoom range, making it possible to reuse your existing ceiling mount or install the projector farther from the screen, saving construction work. Digital Image Shift allows the image to move up to 10% in any direction for off-axis or high-ceiling installations.

Note: Resolution decreases when using Digital Zoom Extender and Digital Image Shift. When using Digital Zoom Extender, the image reduction rate can be adjusted up to 80%. If set below 100%, the image position can be shifted vertically or horizontally using Digital Image Shift. Some screen correction functions are unavailable when using this function, and the range of corner adjustment is limited. Using the same projector mount may not be possible in every situation. PT-VMZ72 Zoom

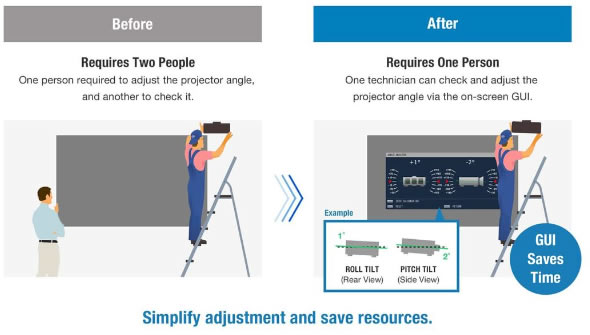

Quickly Find the Projection Angle with Angle Monitor

Aligning the projection angle with the design simulation can be challenging and usually requires two people. The VMZ72 Series features a built-in gyro sensor that detects changes in the projector’s pitch and roll angles, which are graphically displayed in the OSD menu. Installers can adjust the projection angle without needing assistance.

Note: The displayed values are based on the results of angle sensor detection and may differ from the actual projection angle. They are for reference only, and accuracy is not guaranteed.

Upgraded Screen Adjustment with New GUI

The VMZ72 Series introduces an upgraded Screen Adjustment suite with an intuitive new Graphical User Interface (GUI). Designed to simplify setup in various spaces—including curved screens—the GUI streamlines adjustments via remote control without the need for a connected PC, making installation faster, easier, and more flexible than ever.

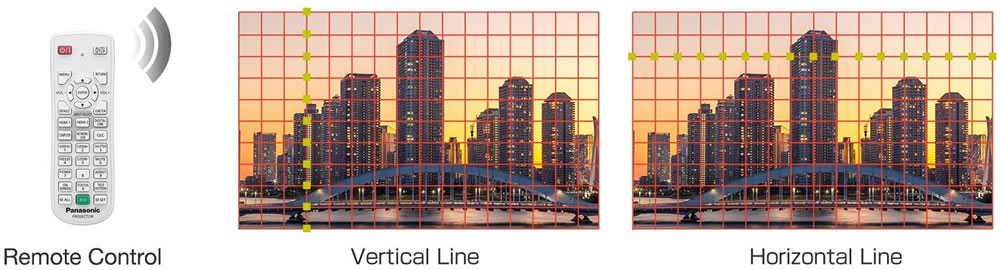

Precise Line Adjustment via Grid Function

Grid function enables correction of minor distortion by adjusting horizontal or vertical lines on a fixed 11 x 17 grid. Correction is easily performed via remote control.

Note: Remote control pictured is for illustrative purposes only. PT-VMZ72 Grid

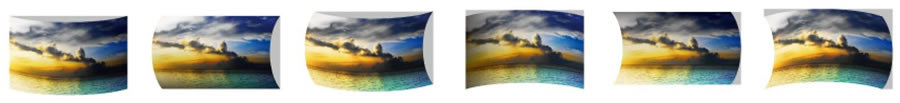

Enhanced Curved Screen Correction

Curved Correction now allows each side of the image to be adjusted independently—unlike previous models, where opposite sides moved in tandem. This added flexibility supports more accurate correction on curved surfaces, ideal for sports simulators, museum exhibits, and corporate displays.

6-Point Screen Adjustment System for Corner Projection

For corner-based or column projections, the 6-Point Screen Adjustment system enables fine-tuned control over image geometry. It’s ideal for maximizing screen use in compact meeting spaces or creating striking visual installations in galleries and showrooms.

Independent 4-Corner Adjustment

Correct trapezoidal distortion from off-center or angled projector placement. 4-Corner Adjustment lets users independently control each image corner via remote control. Settings can be saved and reapplied, streamlining setup across multiple rooms or sessions.

Maintain Aspect Ratio for Natural Scaling

Maintain Aspect Ratio preserves the image’s proportions during adjustment, preventing warping or stretching. It ensures content looks natural while still allowing for edge-to-edge alignment, providing a clean, professional finish in any space.

Single-Cable 4K DIGITAL LINK Solution

4K DIGITAL LINK is a connection based on HDBaseT™ that supports long-distance video, audio, and control-signal transmission via a single CAT 5e LAN cable, reducing installation complexity in schools, offices, and entertainment spaces.

Note: 4K input signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YPBPR 4:2:0 format only for 4K/30p input via DIGITAL LINK.

Accepts 4K Signals via HDMI™ and DIGITAL LINK

The VMZ72 Series accepts 4K1 video signals via DIGITAL LINK and HDMI™ terminals, simplifying projector integration into your existing infrastructure. This capability enables 4K1 signal transmission to display endpoints with varying screen resolutions, eliminating the need for external converters or content re-encoding.

1 4K input signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YPBPR 4:2:0 format only for 4K/30p signals input via DIGITAL LINK.

Supports Next-Generation Control Protocols

Dedicated LAN terminal and DIGITAL LINK connections support the latest protocols, including IPv6, Art-Net DMX, PJLink™ (Class 2), Crestron Connected® V2, Crestron® XiO Cloud, and Extron XTP®. The projector also includes an emulation function to ensure compatibility with legacy management software.

Note: The optional AJ-WM50 Series Wireless Module does not support IPv6.

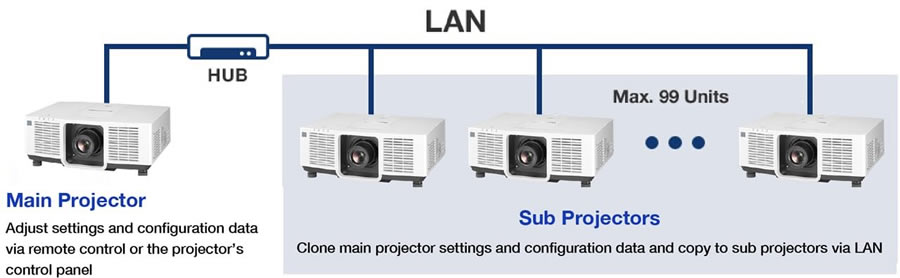

Data Cloning Function via LAN or USB Memory Devices

It can be time-consuming to adjust the same settings on each projector in your fleet. To expedite this task, the VMZ72 Series features a data cloning function that allows main projector settings, including saved adjustment data, to be copied to sub-projectors via LAN or USB device.

Note: Supported on identical models only. Excludes passwords, projector name/ID, time, date, time zone, and network settings. Data can be copied to a maximum of 99 sub-projectors via LAN. PT-VMZ72 LAn

CEC Command-Compatible HDMI™ Makes Life Easy

Both the projector’s HDMI™ inputs are compatible with CEC commands1, enabling use with fewer remote controllers. The projector will automatically switch on, play your content, and switch off when it detects these commands from a compatible source device.

1 Depending on the connected CEC command-compatible device, the link control may not operate normally.

Efficient and Eco-Conscious Design

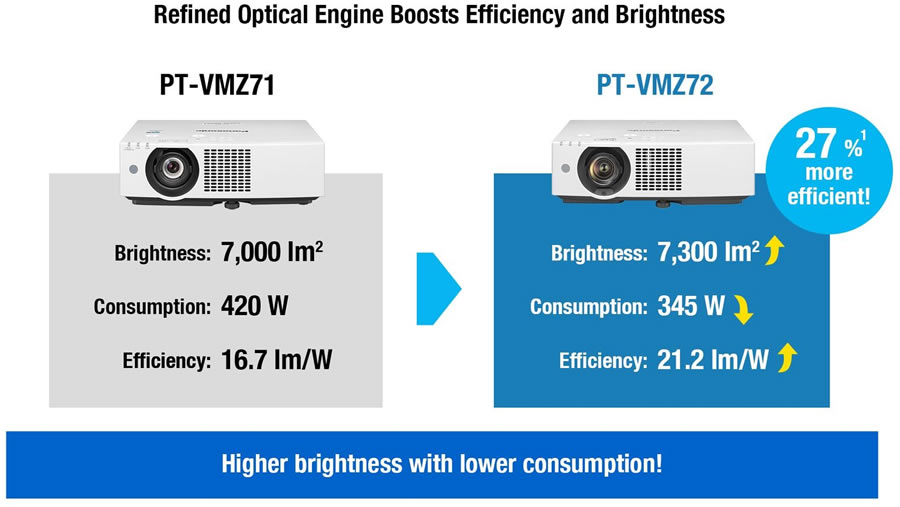

Our Most Efficient Portable Projector

The PT-VMZ72 Series is 27%1 more energy efficient than the current VMZ71 Series, generating an impressive 21.2 lumens of light per watt of energy consumed in NORMAL mode. Enjoy significant energy savings and reduce the carbon footprint of every unit in your fleet.

1 PT-VMZ72 (21.2 lm/W) compared to the PT-VMZ71 (16.7 lm/W) in [NORMAL] mode, according to Panasonic research. 2 Measured when [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. Measurement, measuring conditions, and notation method comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped. PT-VMZ72 Efficient

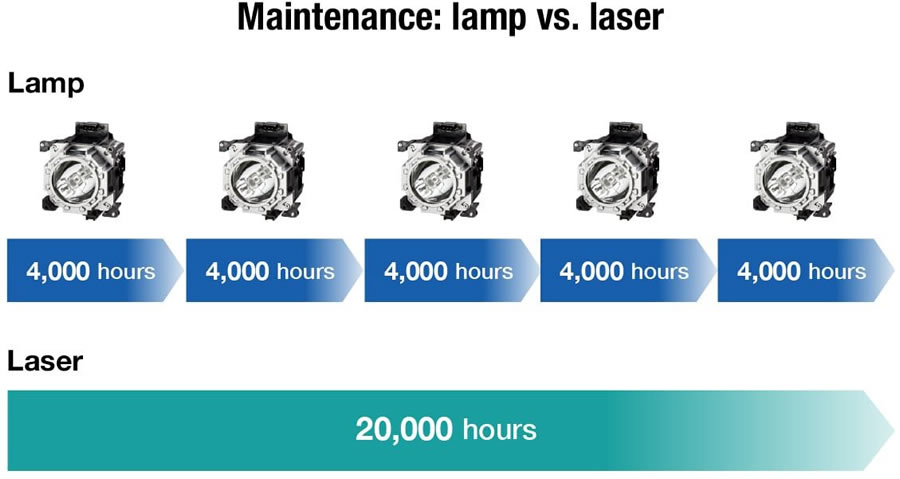

No Light-Source Maintenance for 20,000 Hours

The VMZ72 Series offers more than consistent, long-lasting picture quality. Its laser light source operates for about 20,000 hours1 without maintenance, outperforming lamp projectors that may require several lamp replacements over the same period. This reduces operating costs and eliminates mercury lamp disposal.

1 Around this time, the light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature
30 °C [86 °F], elevation 700 m [2,297 ft] with 0.15 mg/m3 of particulate matter). The estimated time until light output declines to 50 % varies depending on the environment.
Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). The filter cleaning cycle varies depending on the environment. PT-VMZ72 Laser

Long-Life ECO Filter Reduces Downtime

ECO Filter includes a Micro-Cut Filter that collects minute dust particles with an electrostatic effect. With the dust-resistant projector cabinet design, ECO Filter enables low maintenance and long-term use with less downtime. Filter replacement is recommended at about 20,000 hours1 when used in typical commercial environments. If it’s necessary to maintain the filter before then, it can be washed and reused2, reducing cost and waste.

1 Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). 2 Filter can be washed and reused up to two times. When washing the filter with water, please follow the procedures listed in the operating instructions.

Auto Power On: Save Power, Streamline Operation

The VMZ72 Series features an Auto Power On function that automatically turns the projector on from standby and begins projection when an input signal is detected. This allows presenters to turn off the projector between sessions without worrying about delays, streamlining daily use and reducing unnecessary energy consumption.

Note: Settings cannot be made when [STANDBY MODE] is set to [ECO] or when [IN STANDBY MODE] is set to [ON] in the [AUDIO SETTINGS] menu. Auto Power On is supported when the input signal is transmitted via HDMI™ or COMPUTER IN terminals.

Image Detection: Smart Power Savings

A new Image Detection function helps reduce power consumption during inactivity. If no change is detected in the projected image for a set time, the projector can automatically dim the light output by 50% or turn off the light source. The timer is adjustable, and brightness returns seamlessly when activity resumes1, reducing energy waste without interrupting the experience.

1 If the projector enters standby while in Image Detection power-saving mode, resumption time may vary depending on standby settings and input source. Note: Settings cannot be made when [DYNAMIC CONTRAST] is set to anything other than [OFF], [ECO MANAGEMENT] → [AUTO POWER SAVE] is set to [OFF], [ECO MANAGEMENT] → [LIGHT POWER] is set to anything other than [NORMAL], a [TEST PATTERN] is displayed, or there is no signal. Image Detection function is supported when the input signal is transmitted via HDMI™ or COMPUTER IN terminals.ings

Start Work Faster with Quick On

The VMZ72 Series includes a Quick Startup mode. When enabled, the projector displays your content at full brightness in about one second1 when started from standby—no fade-in delay as with lamp-based models. This helps you resume presentations quickly, minimizing distractions. Additionally, Direct Power Off2 lets you shut down the projector using the room breaker or by unplugging the power cord—no cooldown required.

1 When [ECO MANAGEMENT] > [QUICK STARTUP] is set to [ON]. [QUICK STARTUP] is unavailable after the [AVAILABLE PERIOD] setting has expired. When [QUICK STARTUP] is set to [ON], the projector continues to warm up, increasing power consumption. When [QUICK STARTUP] is set to [ON], the standby period when the [QUICK STARTUP] function is valid will be added as the projector runtime. [QUICK STARTUP] cannot be set when [STANDBY MODE] is set to [ECO]. Time varies depending on connection terminals, signals, and other conditions. 2 Settings made just before power is disconnected may not be retained on the next startup.

Effortless Automation with Built-In Scheduling

The VMZ72 Series introduces a new scheduling feature accessed via the OSD settings menu. You can program the projector to perform automated actions, including power on/off, shutter activation, and input selection, at specific times throughout the week. This functionality streamlines operations, reduces manual labor, and optimizes resource management.

Works with Multi Monitoring & Control Software

The VMZ72 Series is compatible with Multi Monitoring & Control Software, which enables management of up to 2,048 display devices from a remote PC over LAN. The software facilitates status monitoring, device control, playlist delivery, playback scheduling, and system map visualization. For more information, please visit our software information webpage.

Other Features

Shutter function and Auto Image Rotation function
Audible remote control feedback for projector on/off
Security slot and customizable startup logo
USB port for DC 5 V/2 A power supply, data transfer, firmware updates, and optional wireless module
Lens Block detection reduces light output when lens is obstructed to prevent damage
Compatible with the Multiple PJ Firmware Batch Update Tool
Presentation Support System
Multi-Screen Support System
Multi-Unit Brightness and Color Control
DICOM Simulation Mode
ECO Management System

Specifications

Projector type	LCD projectors
Display method	Transparent LCD panel (x 3, R/G/B)
Display Device -> Panel size	0.64 inch (16:10 aspect ratio)
Display Device -> Number of pixels	2,304,000 (1920 x 1200) pixels x 3
Light source	Laser diodes
Light output	7,300 lm
Light output (ANSI)	7,300 lm (ANSI)
Time until light output declines to 50 % -> NORMAL	20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO	24,000 hours [ECO]
Time until light output declines to 50 % -> QUIET	20,000 hours [QUIET]
Resolution	WUXGA (1920 x 1200 pixels)
Contrast Ratio (typ.)	5,000,000:1 (Full On/Full O) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen size (diagonal)	1.77-7.62 m (70-300 in), 16:10 aspect ratio
Center-to-corner zone ratio	85 %
Lens	1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F=1.58-1.91, f=15.30‒24.60 mm
Digital Zoom Extender *5	Throw Ratio 1.09–2.21:1*6 (Corresponding value. When used together with optical zoom.)
Lens shift -> Vertical(from center of screen)	+44 %
Lens shift -> Horizontal(from center of screen)	±20 %
Keystone correction range	Vertical ±25 %, Horizontal ±35 %
Terminals -> HDMI™ IN	HDMITM 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p7 signal input), CEC supported8
Terminals -> COMPUTER IN（D-SUB 15pin）	D-sub 15-pin (female) (RGB/YPBPR/YCBCR)
Terminals -> AUDIO IN(M3 Stereo Mini Jack)	M3 stereo mini-jack x 1
Terminals -> AUDIO OUT(M3 Stereo Mini Jack)	M3 stereo mini-jack x 1
Terminals -> SERIAL IN	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
Terminals -> DIGITAL LINK IN / LAN	RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseTTM compliant), 100Base-TX (Compatible with PJLinkTM [Class 2], HDCP, Deep Color, 4K/30p*7 signal input)
Terminals -> LAN	RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLinkTM [Class 2]
Terminals -> USB TYPE A	USB Connector Type A x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*9)
Protocol versions	IPv4, IPv6*10
Power supply	AC 100 –240 V, 50/60 Hz
Maximum power consumption *11	345 W (3.6 A) (350 VA) (Power consumption is 335 W at 200–240 V)
On-mode power consumption(Operating mode) -> Normal	310 W (100–240 V), 295 W (200–240 V) [NORMAL]
On-mode power consumption(Operating mode) -> Eco	235 W (100–240 V), 225 W (200–240 V) [ECO]
On-mode power consumption(Operating mode) -> Quiet *9	270 W (100–240 V), 260 W (200–240 V) [QUIET1] 230 W (100–240 V), 220 W (200–240 V) [QUIET2]
Built-in speaker	10 W monaural
Cabinet materials	Molded plastic
Filter	Included
Estimated filter maintenance cycle *12	Approx. 20,000 hours
Operation noise -> Normal *2	37 dB [NORMAL]
Operation noise -> Eco *2	37 dB [ECO]
Operation noise -> Quiet *2	32 dB [QUIET1] 27 dB [QUIET2]
Dimensions (W x H x D)	399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts) 399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position)
Weight [kg] *13	Approx. 7.0 kg (15.4 lbs)
Operating temperature	0–45 °C (32–113 °F)
Operating humidity (No condensation)	20–80 % (no condensation)
Applicable software	Multi Monitoring & Control Software, Projector Network Setup Software, Presenter Light Software for Windows®16, Wireless Projector App for iOS/AndroidTM17

What's in the Box

Remote Control

Power Cord

Rear Panel
