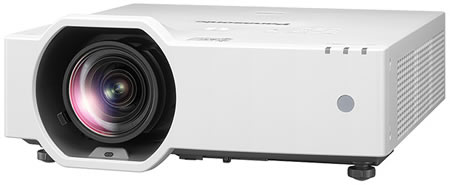

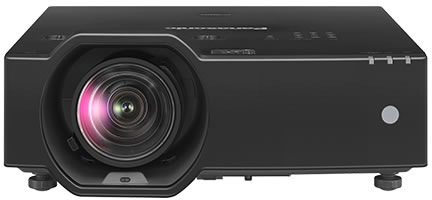

Panasonic PT-VMZ6ST High Brightness Short Throw Laser Projector
Specifications
- WUXGA 1920 x 1200 16:10
- 6,200 ANSI Lumens
- 5,000,000:1 Contrast
- 8.3kg Weight
- 35 / 25db(eco) Fan Noise
- 5 Year/10,000hr Warranty
- 5 Year/10,000hr Laser Warranty
- Est. Laser Life up to 24,000hrs
Key Features
- 2x HDMI Connections
- Horizontal & Vertical Keystone
- Vertical Lens Shift +50%
- Horizontal Lens Shift +/-20%
- 360 Degree Installation (v+h axis)
- Digital Link
- Portrait Projection
- 10 Watt Speaker
- 1.2x Optical Zoom
Panasonic PT-VMZ6ST Throw Distance Chart
Throw Ratio: 0.797–1.27:1| Image Size | Installation Distance | |
|---|---|---|
| 94" (16:10) 2025x1265mm | From 1.7m to 2.5m | |
| 110" (16:10) 2370x1480mm | From 1.9m to 3.0m | |
| 120" (16:10) 2585x1615mm | From 2.1m to 3.2m | |
| 130" (16:10) 2800x1750mm | From 2.3m to 3.5m | |
| 140" (16:10) 3015x1885mm | From 2.5m to 3.8m | |
| 150" (16:10) 3230x2020mm | From 2.6m to 4.1m | |
Panasonic PT-VMZ6ST Short throw Laser Projector

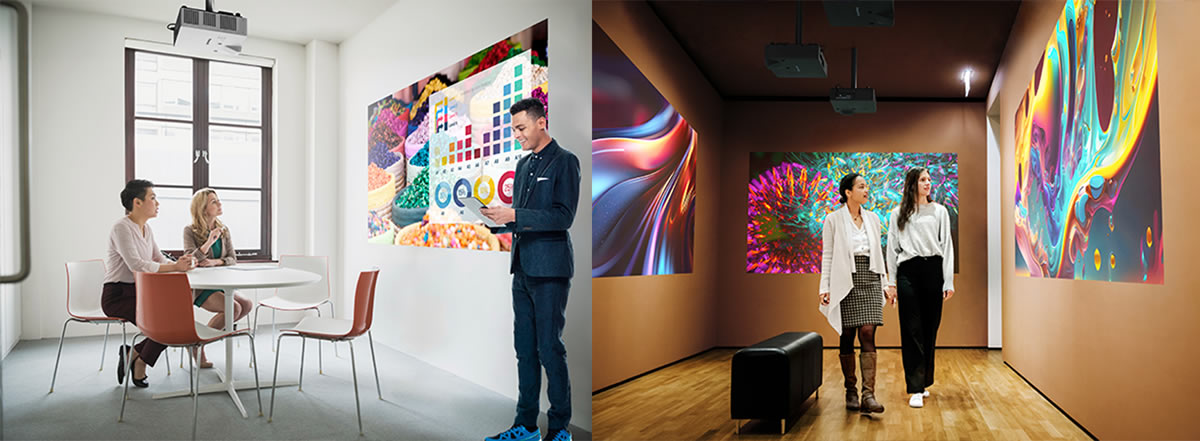

Elevate your presentations with the Panasonic PT-VMZ6ST, a cutting-edge short-throw LCD laser projector designed for vibrant, shadow-free visuals in compact spaces. Boasting 6,200 lumens of brightness and WUXGA resolution, this lightweight powerhouse delivers crisp, colorful images with a 3,000,000:1 dynamic contrast ratio, perfect for classrooms, boardrooms, museums, or golf simulators. Its 0.797–1.01:1 throw ratio projects a stunning 100-inch image from just 5.6 feet, while features like powered focus, 1.2x optical zoom, and 6-Point Screen Correction ensure flexible, hassle-free installation. With a 20,000-hour maintenance-free laser light source and eco-friendly design using 56% recycled resin, the PT-VMZ6ST combines sustainability with high performance, making it the ideal choice for engaging, reliable projection.
Optional Accessories
Stress-free Installation Adapts to Various Layouts
Project vivid 100-inch images from 1.72 m (5.6 ft) with minimal shadowing in tight spaces. Powered focus eliminates manual adjustment hassle, while 1.2x zoom, V/H lens shift, and Curved Screen Correction enhance layout flexibility. Angle Monitor5 and data-cloning6 via LAN/USB further streamline installation.
Clear Projection in Bright Spaces
Enjoy bright, sharp, and realistic visuals with up to 7,000 lm1 brightness, 5,000,000:17 Dynamic Contrast, and Daylight View Basic, which optimizes image quality in any lighting. Vivid Green Mode enhances colors for more vibrant reproduction—ideal for golf simulators.
Eco-Friendly Design
The projector body’s plastic contains about 56%8 recycled resins. The laser light source and long-life ECO Filter need no maintenance for 20,000 hours9, reducing cost and waste. Image Detection function10 conserves energy, and built-in scheduling feature supports automated operation.
Bright, Efficient, and Flexible Performance
Discover the VMZ7ST Series: compact, eco-friendly short-throw projectors to fit diverse applications, from offices and classrooms to golf simulators and digital museums. Delivering vivid, shadow-free visuals up to 300 inches, its high brightness and brilliant colors bring content to life. With resource-friendly features, the series integrates into any layout, exceeding your expectations for stable, efficient, and reliable long-term operation.
Stress-free Installation Adapts to Various Layouts
Short-Throw Lens with Powered Focus via Remote Control
Unlock stunning visuals in compact spaces. The VMZ7ST Series’ 0.797–1.01:1 throw ratio projects large images up to 300 inches (16:10) while minimizing shadows from presenters or guests. Powered focus offers swift adjustment via remote control without the hassle of manual adjustment in hard-to-reach locations.
Installation Freedom: 1.2x Optical Zoom and Wide-Range Shift
Enjoy greater installation flexibility with the built-in 1.2x optical zoom, which makes it easier to avoid ceiling obstructions. The projector offers +50% vertical and ±20% horizontal lens shift, accommodating off-axis or high mounting positions while maintaining image geometry. This adaptability is ideal for challenging layouts where the optimal projector position isn’t available.

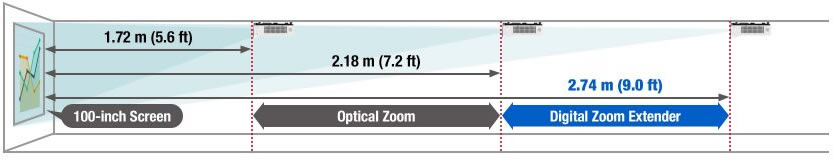

Digital Zoom Extender: Installation Freedom for Any Layout
Aligning the projection angle with the design simulation can be challenging and usually requires two people. The VMZ7ST Series features a built-in gyro sensor that detects changes in the projector’s pitch and roll angles, which are graphically displayed in the OSD menu. Installers can adjust the projection angle without needing assistance.
Note: The displayed values are based on the results of angle sensor detection and may differ from the actual projection angle. They are for reference only, and accuracy is not guaranteed.

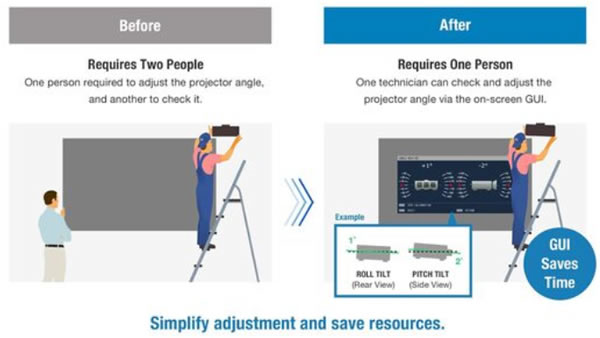

Quickly Find the Projection Angle with Angle Monitor
Aligning the projection angle with the design simulation can be challenging and usually requires two people. The VMZ7ST Series features a built-in angle sensor that detects changes in the projector’s pitch and roll angles, which are graphically displayed in the OSD settings menu. Installers can adjust the projection angle without needing assistance.
Note: The displayed values are based on the results of angle sensor detection and may differ from the actual projection angle. They are for reference only, and accuracy is not guaranteed.
Upgraded Screen Adjustment with New GUI
The VMZ7ST Series introduces an upgraded Screen Adjustment suite with an intuitive new Graphical User Interface (GUI). Designed to simplify setup in various spaces—including curved screens—the GUI streamlines adjustments via remote control without the need for a connected PC, making installation faster, easier, and more flexible than ever.

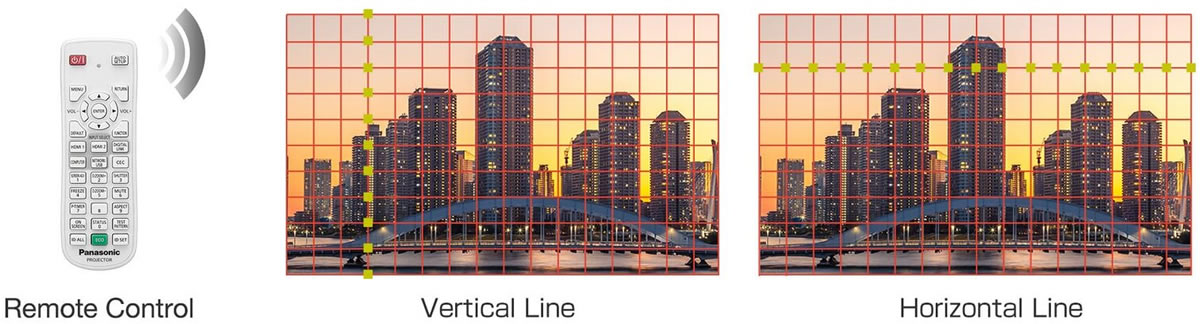

Precise Line Adjustment via Grid Function
Grid function enables correction of minor distortion by adjusting horizontal or vertical lines on a fixed 11 x 17 grid. Correction is easily performed via remote control.
Note: Remote control pictured is for illustrative purposes only.
Enhanced Curved Screen Correction
Curved Correction now allows each side of the image to be adjusted independently—unlike previous models, where opposite sides moved in tandem. This added flexibility supports more accurate correction on curved surfaces, ideal for sports simulators, museum exhibits, and corporate displays.
6-Point Screen Adjustment System for Corner Projection
For corner-based or column projections, the 6-Point Screen Adjustment system enables fine-tuned control over image geometry. It’s ideal for maximizing screen use in compact meeting spaces or creating striking visual installations in galleries and showrooms.
Independent 4-Corner Adjustment
Correct trapezoidal distortion from off-center or angled projector placement. 4-Corner Adjustment lets users independently control each image corner via remote control. Settings can be saved and reapplied, streamlining setup across multiple rooms or sessions.

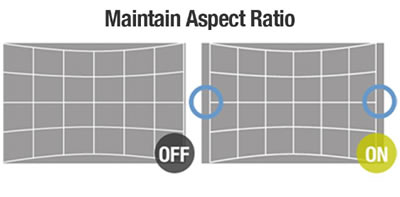

Maintain Aspect Ratio for Natural Scaling
Maintain Aspect Ratio preserves the image’s proportions during adjustment, preventing warping or stretching. It ensures content looks natural while still allowing for edge-to-edge alignment, providing a clean, professional finish in any space.
Single-Cable 4K DIGITAL LINK Solution
4K DIGITAL LINK is a connection based on HDBaseT™ that supports long-distance video, audio, and control-signal transmission via a single CAT 5e LAN cable, reducing installation complexity in schools, offices, and entertainment spaces.
Note: 4K input signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YPBPR 4:2:0 format only for 4K/30p input via DIGITAL LINK.Accepts 4K Signals via HDMI™ and DIGITAL LINK
The VMZ7ST Series accepts 4K1 video signals via DIGITAL LINK and HDMI™ terminals, simplifying projector integration into your existing infrastructure. This capability enables 4K1 signal transmission to display endpoints with varying screen resolutions, eliminating the need for external converters or content re-encoding.
1 4K input signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YPBPR 4:2:0 format only for 4K/30p signals input via DIGITAL LINK.Supports Next-Generation Control Protocols
Dedicated LAN terminal and DIGITAL LINK connections support the latest protocols, including IPv6, Art-Net DMX, PJLink™ (Class 2), Crestron Connected® V2, Crestron® XiO Cloud, and Extron XTP®. The projector also includes an emulation function to ensure compatibility with legacy management software.
Note: The optional AJ-WM50 Series Wireless Module does not support IPv6.Data Cloning Function via LAN or USB Memory Devices

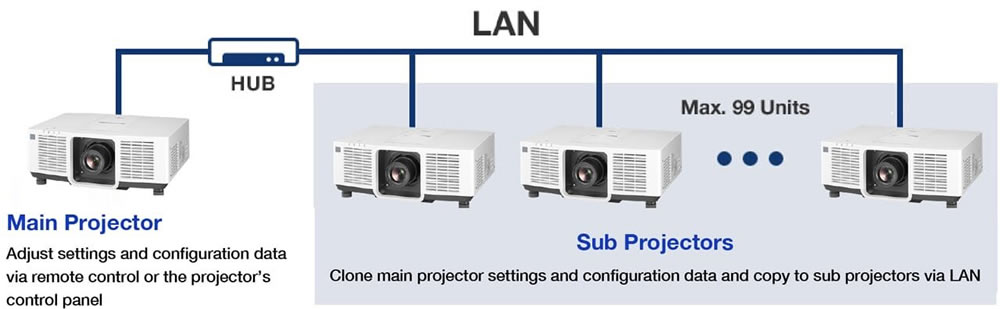

Adjusting each projector in your fleet can be time-consuming. To expedite this task, the VMZ7ST Series features a data cloning function that allows main projector settings, including saved adjustment data, to be copied to sub-projectors via LAN or USB flash memory device.
Note: Supported on identical models only. Excludes passwords, projector name/ID, time, date, time zone, and network settings. Data can be copied to a maximum of 99 sub-projectors via LAN.
Clear Projection in Bright Spaces
Enhance Visual Impact with Striking Graphics
The VMZ7ST Series features a high-efficiency optical engine that delivers up to 7,000 lm1 brightness, ensuring vibrant, consistently beautiful visuals even on large screens. Its 5,000,000:12 contrast ratio boosts the impact of colorful content, providing depth and dimensionality essential for an engaging viewing experience.
1 PT-VMZ7ST only. Measured when [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. Measurement, measuring conditions, and notation method comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped. 2 Full On/Full Off, when [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
High 5,000,000:1 Dynamic Contrast
Input signals are analyzed frame by frame to regulate light output for best contrast performance in every scene. As well as accurately reproducing pictures that contain a mix of dark and bright hues, Dynamic Contrast is more energy efficient than other technologies and can be optimized to suit the content or the room’s lighting. The projector’s high 5,000,000:11 contrast ratio provides better detail definition in shadows with deeper blacks, brighter whites, and more natural skin tones for a better sense of depth and definition.
1 Full On/Full Off, when [RE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.Optimized Visuals for Bright Spaces

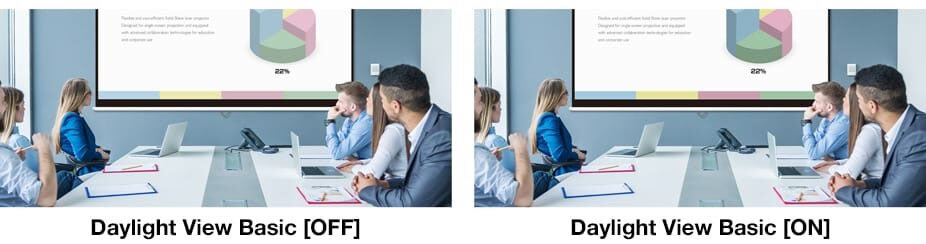

Daylight View Basic uses a sensor to measure ambient light levels in your space and adjusts sharpness, halftone color, contrast, and brightness to optimize image visibility regardless of room illumination. The result is a clearer, more detailed image, even in challenging conditions.
Smooth, Crisp Details at WUXGA
WUXGA (1920 x 1200) LCD panels improve detail definition for a more comfortable and insightful experience. Text edges are smooth, sharp, and easy to read, even for those seated furthest from the screen.

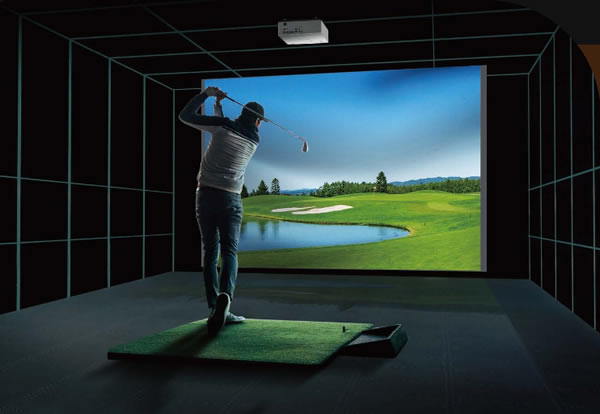

Vivid Green Mode for Lifelike Sports Simulation
The VMZ7ST Series introduces a new Vivid Green Mode that enhances green tones for brighter, more natural-looking images—ideal for golf and other sports simulations. By adjusting signal gain and optimizing color balance, this mode delivers deeper greens and brighter midtones for a more vivid and engaging viewing experience.
Quiet Operation for Hybrid Lessons and Meetings
The projector’s heat-resistant light source reduces operating noise, enhancing the clarity of conversations during in-person or hybrid lessons and meetings. In Quiet 2 Mode, operating noise is as low as 25 dB1—about as soft as the sound of rustling leaves.
1 For the PT-VMZ6ST. Please see the product specifications for noise values of other models.Eco-Friendly Design
Features Eco-Friendly Recycled Materials
The VMZ7ST Series is designed with sustainability in mind. The plastic used in the projector’s main body contains approximately 56%1 recycled resin to reduce reliance on virgin plastics. Recyclable cardboard insulation replaces foam in the shipping carton, and unnecessary packaging has been eliminated to cut waste. These efforts support eco-conscious manufacturing and help your organization reduce its footprint throughout the projector’s lifecycle.
1 By total weight of plastic parts in the projector main unit. Excludes projection lenses, printed circuit boards, labels, cables, connectors, electronic components, optical components, ESD components, EMI component adhesives, and coatings.No Light-Source Maintenance for 20,000 Hours
The VMZ7ST Series offers more than consistent, long-lasting picture quality. Its laser light source also operates for about 20,000 hours1 without maintenance, outperforming lamp projectors that may require several lamp replacements over the same period. This reduces operating costs and eliminates mercury lamp disposal.
1 Around this time, the light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). The estimated time until light output declines to 50 % varies depending on the environment.Note: Lamp replacement cycle is approximate and varies by model and other factors.
| Projector type | LCD projectors |
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Display Device -> Panel size | 0.64 inch (16:10 aspect ratio) |
| Display Device -> Number of pixels | 2,304,000 (1920 x 1200) pixels x 3 |
| Light source | Laser diodes |
| Light output | 6,200 lm |
| Light output (ANSI) | 6,200 lm (ANSI) |
| Time until light output declines to 50 % -> NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 % -> ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 % -> QUIET | 20,000 hours [QUIET] |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio (typ.) | 5,000,000:1 (Full On/Full O) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 1.77-7.62 m (70-300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio | 85 % |
| Lens | 1.2x manual zoom (throw ratio: 0.797–1.01:1), powered focus, F 1.53–1.66, f 11.3–14.2 mm |
| Digital Zoom Extender *5 | Throw Ratio 0.797–1.27:1*6 (Corresponding value. When used together with optical zoom.) |
| Lens shift -> Vertical(from center of screen) | +50 % |
| Lens shift -> Horizontal(from center of screen) | ±20 % |
| Keystone correction range | Vertical ±25 %, Horizontal ±35 % |
| Terminals -> HDMI™ IN | HDMITM 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p*7 signal input), CEC supported*8 |
| Terminals -> COMPUTER IN（D-SUB 15pin） | D-sub 15-pin (female) (RGB/YPBPR/YCBCR) |
| Terminals -> AUDIO OUT(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals -> SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| Terminals -> DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseTTM compliant), 100Base-TX (Compatible with PJLinkTM [Class 2], HDCP, Deep Color, 4K/30p*7 signal input) |
| Terminals -> LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLinkTM [Class 2] |
| Terminals -> USB TYPE A | USB Connector Type A x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*9) |
| Protocol versions | IPv4, IPv6*10 |
| Power supply | AC 100 –240 V, 50/60 Hz |
| Maximum power consumption *11 | 320 W (3.3 A) (325 VA) (Power consumption is 305 W at 200–240 V) |
| On-mode power consumption(Operating mode) -> Normal *11 | 280 W (100–240 V), 270 W (200–240 V) [NORMAL] |
| On-mode power consumption(Operating mode) -> Eco *11/td> | 215 W (100–240 V), 205 W (200–240 V) [ECO] |
| On-mode power consumption(Operating mode) -> Quiet *11 | 245 W (100–240 V), 235 W (200–240 V) [QUIET1] 210 W (100–240 V), 200 W (200–240 V) [QUIET2] |
| Built-in speaker | 10 W monaural |
| Cabinet materials | Molded plastic |
| Filter | Included |
| Estimated filter maintenance cycle *12 | Approx. 20,000 hours |
| Operation noise -> Normal *2 | 35 dB [NORMAL] |
| Operation noise -> Eco *2 | 35 dB [ECO] |
| Operation noise -> Quiet *2 | 30 dB [QUIET1] 25 dB [QUIET2] |
| Dimensions (W x H x D) | 414 x 120 x 424 mm (16 5/16˝ x 4 23/32˝ x 16 11/16˝ ) (not including protruding parts) 414 x 167 x 424 mm (16 5/16˝ x 6 9/16˝ x 16 11/16˝ ) (with feet at shortest position) |
| Weight [kg] *13 | Approx. 8.3 kg (18.30 lbs) |
| Operating temperature | 0–45 °C (32–113 °F)*14, *15 |
| Operating humidity (No condensation) | 20–80 % (no condensation) |
| Applicable software | Multi Monitoring & Control Software, Projector Network Setup Software, Presenter Light Software for Windows®*16, Wireless Projector App for iOS/AndroidTM*17 |
Remote Control
Power Cord

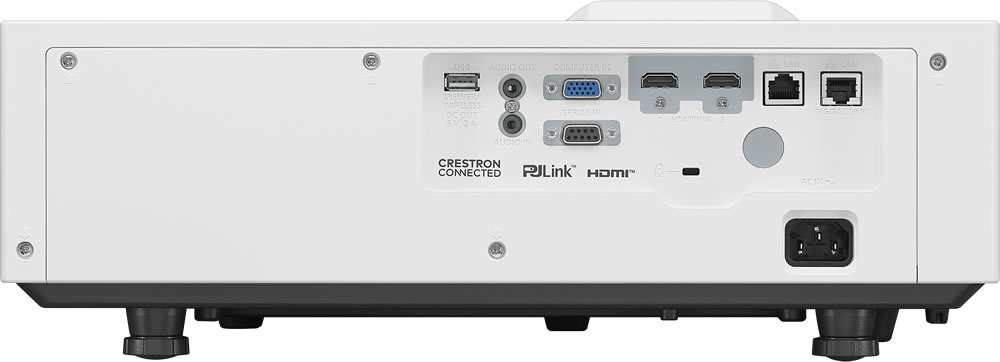

Rear Panel
