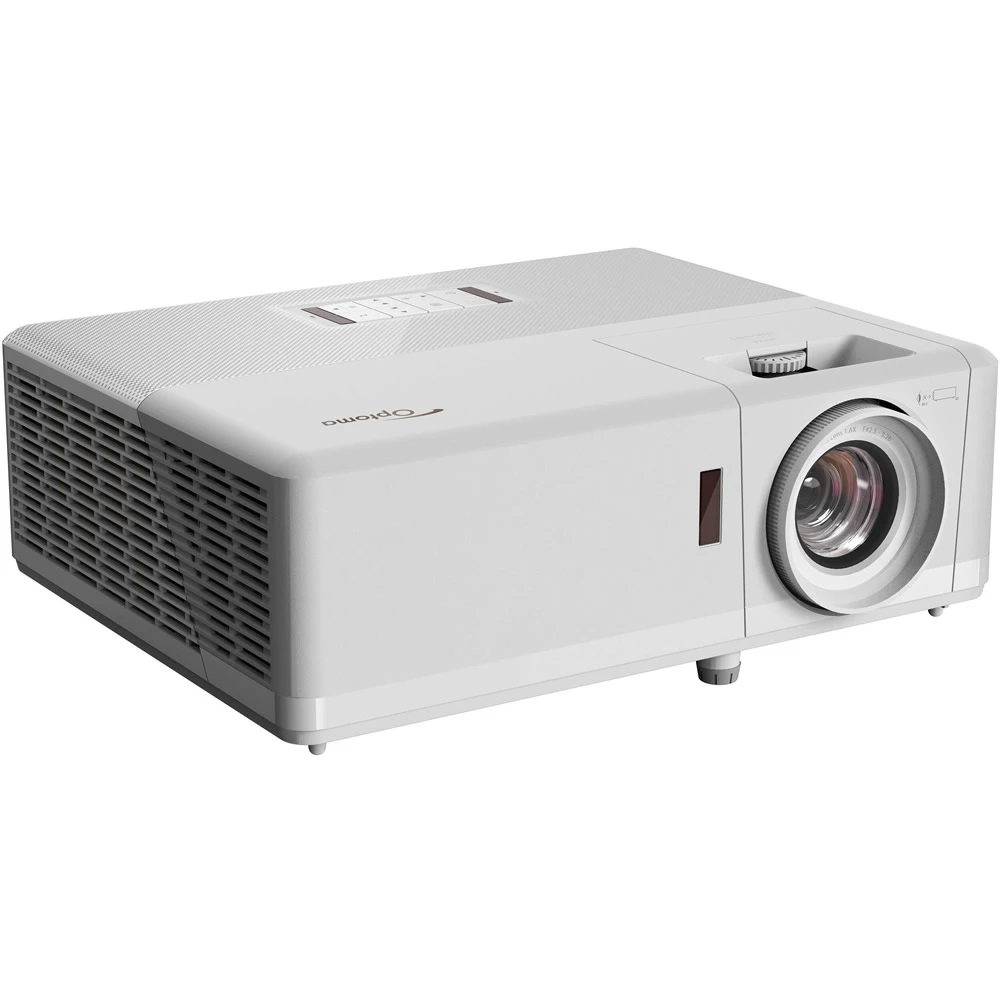

Optoma ZH507 DLP Full HD High Brightness Laser Projector

optoma eh507 projector
Delivery

$3,199 $2,599

Save $600. Extended Till June 16th

special

IN STOCK NOW

3yr warranty
australian stock
laser projector
1080p resolution

Specifications

  • 1080p 1920 x 1080 16:9
  • 5500 ANSI Lumens
  • 300,000:1 Contrast
  • 5.0kg Weight
  • 33db (eco) Fan Noise
  • 3 Year / 20,000hr Warranty
  • 3 Year / 20,000hr Laser Warranty
  • Est. Laser Life up to 30,000hrs

Key Features

  • Long Life Laser Lightsource
  • Horizontal & Vertical Keystone
  • 2x HDMI Connection
  • Powerful 2x 10W Speaker
  • 16% Vertical Lens Shift
  • 1.6x Zoom
  • 360° Installation
  • Portrait Installation
  • 3D Capable(3D glasses required)
  • IP6X Dust Resistant Optical Engine

Optoma ZH507 Throw Distance Chart

Throw Ratio: 1.4-2.24:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
92" (16:9) 2030x1140mm From 2.9m to 4.5m
100" (16:9) 2214x1245mm From 3.1m to 4.9m
110" (16:9) 2435x1370mm From 3.5m to 5.4m
120" (16:9) 2657x1494mm From 3.8m to 5.9m
135" (16:9) 2990x1681mm From 4.2m to 6.6m
150" (16:9) 3320x1867mm From 4.7m to 7.4m

Optoma ZH507 Bright 1080P Laser Projection

The ZH507 projector from Optoma is made to last with a long life Duracore laser that can last up to 30,000 hours. The optical block of the ZH507 is also sealed and has an IP6X rating to stop dust build up affecting the projectors life and performance. With a 5500 ANSI lumen brightness the ZH507 can operate in a lit room perfect for lights on presentations allowing for note taking and people to be able to safely move around the room. The ZH507 offers a huge amount of flexibility of installation with both horizontal and vertical keystone correction for off centre installations and a huge 1.6x optical zoom making it a perfect candidate for replacing older projectors in the same position.

  • Optoma DuraCore Technology, IP6X dust resist provides good brightness and reliability
  • Up to 30,000 hours laser light source life and virtually zero maintenance for system
  • Amazing color, 91% Rec.709 color gamut coverage to render lifelike images
  • Ultra-low input lag at 8.2ms @1080P 120Hz
  • Big 1.6x zoom and vertical lens shift with 4-corner adjustment
  • Tilt free orientation, including portrait mode
  • Compatible with Optoma Management Suite (OMS)
duracore laser

Introducing ZH507, the best value laser projector for the entry professional installation market, featuring brightness at 5,500 lumens, 300,000:1 contrast, and with flexible installation options such as 1.6x zoom, 360-degree orientation, and 4-corner adjustment. With the IP6X certified airtight optical engine, ZH507 can maintain high quality performance up to 30,000 hours. Delivering outstanding reliability, high intensity brightness, compact design, stunning colors and spectacular image quality, The ZH507 is precision engineered to power larger than life experiences.

ZH507 provides the perfect solution for businesses, conference rooms, higher education, auditoriums, exhibitions, digital signage, entertainment venues, projection mapping, and simulation.

4K / HDR Compatible

High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.

zh407 4k

Robust & Reliable Optoma DuraCore

ZH507 is designed with Optoma’s Airtight Optical Engine with IP6X certification.The airtight enclosure resists dust particles and ensures a long lasting, reliable and maintenance free experience, and ultimate brightness consistency and reliability. The Mercury free laser light source is rated for up to 30,000 hours enabling a low total cost of ownership.

zh407 laser life
zh507 amazing colour

Amazing colour

ZH507 achieves 91% Rec. 709 coverage to render lifelike images that will wow your audience.

zh507 zoom

1.6x Zoom Range

A large zoom range enables multiple placement possibilities at a variety of distances from the projection screen. An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution whilst still retaining a diverse choice of positioning options.

zh507 lens shift

Vertical Lens Shift

Simplify installation with lens shift, which provides a wide range of projector placement possibilities.

Ultra-Low Input Lag

ZH507 support ultra-low input lag under 1080P 60Hz and 120Hz source. Gamers can enjoy responsive controls while gaming on a giant screen.

Note:
The input lag according to input signal is detailed in the table
The values in the table can vary slightly

input lag

4 Corner Adjustment

By individually adjusting each corner of the image, it eliminates any crooked or distorted images in off-angle or restricted space installations for that perfect picture.

4 corner correction
zh507 24 7 operation

24/7 operation

All ProScene projectors are designed for continuous 24/7 operation. Only industry proven components are used to ensure superior reliability.

360° and portrait projection capability

Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or floor. ZH507 can also be placed in portrait mode for applications such as digital signage or for tall thin projection areas.

360 degree operation
zh507 oms

Compatible with Optoma Management Suite (OMS™)

Optoma Management Suite (OMS)™ is an intuitive display management solution, designed to streamline operations by monitoring, diagnosing and controlling audio visual displays via a local area network from a single platform and location. Users can also broadcast or schedule alerts and messages across displays and remotely program and schedule device operating hours, reducing energy consumption and lowering operating costs.

zh507 network control

Network control protocols

Versatile System Integration Control Protocols Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery, PJ-Link, Telnet and HTTP protocols are fully supported, allowing the series to be controlled across a network, keeping you in control, wherever you are.

AV Mute

In situations where only absolute darkness is required, ZH507 can provide a total blackout that functions like mechanical shutter. The change between normal projection to a total black image and vice versa is instantaneous.

Low Noise: Quieter than a Whisper

Only 33dB in ECO mode.

Quick start-up and shutdown

ZH507 features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser-light source requires minimal cool-down time.


Specifications
Display Technology

DLP

Native Resolution

1080p 1920 x 1080

Brightness

5,500 Lumens

Contrast

300,000:1 (w/ Extreme black)

Light Source

Laser phosphor

Light Source Life

30,000 hours (Eco mode)

Throw Ratio

1.4 – 2.24 :1

Zoom Type

1.6x Manual

Lens Shift

100% ~116% vertical

I/O Connectors

HDMI 1.4a x1, HDMI 2.0 x1, VGA in x1, VGA out x1, Video x1, USB Power (5V/1.5A), Micro USB (for service), Audio in x 2, Audio out x1, Mic in x 1, 12V out x1, RS232 x 1, 3D sync x 1, RJ 45 x 1 (support web control)

Speaker (Watts)

10W x 2

Keystone Correction

±30° Vertical, ±30° Horizontal

Weight (Kg)

5

Dimensions (W x D x H) (mm)

337 x 265 x 108 (excluded adjustment feet)

Aspect Ratio

16:9 Native, 4:3 Compatible

Offset

100% – 116% ±5%

Projection Screen Size

20.2”~320.4”

Projection Distance

1.0 ~ 10 M

Projection Lens

F/2.5~3.26; f=20.91~32.62mm, 1.6x Manual Zoom

Uniformity

85%

Computer Compatibility

WUXGA,1080P,UXGA, SXGA+,SXGA ,WXGA+,WXGA,720P,XGA,SVGA, VGA Compression, VESA standards, PC & Macintosh compatible

Video Compatibility

480i/p, 576i/p, 720p/1080i (50/60Hz), 1080p (50/60Hz)

3D Support

Full 3D

Horizontal Scan Rate

15.375~91.146 KHz

Vertical Scan Rate

50 ~ 85 Hz (120Hz for 3D feature)

Displayable Colors

1073.4 million colors (10 bit)

Noise Level

33dB (Eco mode)

Power Supply

100–240V, 50–60Hz, auto-switching

Power Consumption

Bright : MAX 292W @110VAC, MAX 282W @220VAC; Eco: MAX 235W @110VAC, MAX 227W @220VAC

360-operation

Yes

Portrait Mode

Yes


What's in the Box
remote control
Remote Control
power cord
Power Cord

Rear Panel

zh407 rear panel
