Grandview Slim Motorised Projector Lift
Grandview Slim In Ceiling projector Lift
Grandview X-arm projector ultra-thin electric elevator perfect for a small ceiling cavity with
minimum cut out size. The new GPSC series is perfect for small and medium sized projectors and
perfect for installations in a variety of small to medium spaces such as a meeting room, training

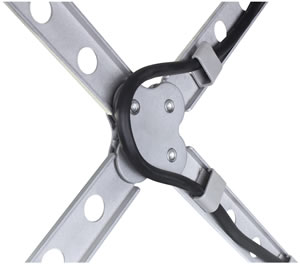

room, multimedia classroom and other places. The motorised projector lift uses x-type composite
mechanical arm system to lift and lower, features stable operation, accurate electronic travel
positioning, easy one-key setting, and simple operation. The hidden installation design can be
integrated with the ceiling after being closed to form a sleek finish. The Grandview slim motorised
ceiling lift is designed for Long-term service life, easy maintenance and features overload
protection.
*The pictured projector is for illustrative purposes only. Please check max size
dimensions.
KEY FEATURES
- Easy adjust electronic travel positioning
- 12 Kg Max weight capacity
- Wireless remote included
- 1000mm Max travel
Grandview
GPSC5010B User Manual

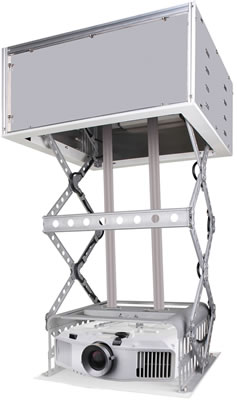

Grandview Slim Projector Lift With Box GPSC5010B
- Product Dimensions(W x D x H): 580×580×250mm
- Net Weight(kg): 27
- Max Projector Dimensions (With Cabling & Lens): 440x480x160mm
- Max Load(kg): 12
- Power(w): 50
- Max Travel: 1000mm
- Precision: ＜2mm
- Operating Noice: ≤55dB
- Voltage(v): 220V/110V
- jib attachment(mm): 518x518
- Decorative Plate Dimensions(mm): 630x630
- Ceiling Opening Dimensions(mm): 600x600
- Angle Adjustments Up/Down/Left/Right: 1 8 4 4
- Dry Contact: Yes
- Wireless Control: Yes

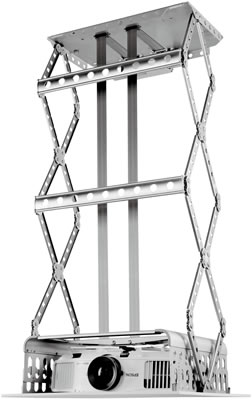

Grandview Slim Projector Lift GPSC5010
- Product Dimensions(W x D x H): 580x580x215mm
- Net Weight(kg): 20
- Max Projector Dimensions (With Cabling & Lens): 480x480x160mm
- Max Load(kg): 12
- Power(w): 50
- Max Travel(mm): 1000
- Precision(mm): ＜2mm
- Operating Noice: ≤55dB
- Voltage(v): 220V/110V
- jib attachment(mm): 360x220
- Decorative Plate Dimensions(mm): 600x600
- Ceiling Opening Dimensions(mm): 590x590
- Angle Adjustments Up/Down/Left/Right: 1 8 4 4
- Dry Contact: Yes
- Wireless Control: Yes

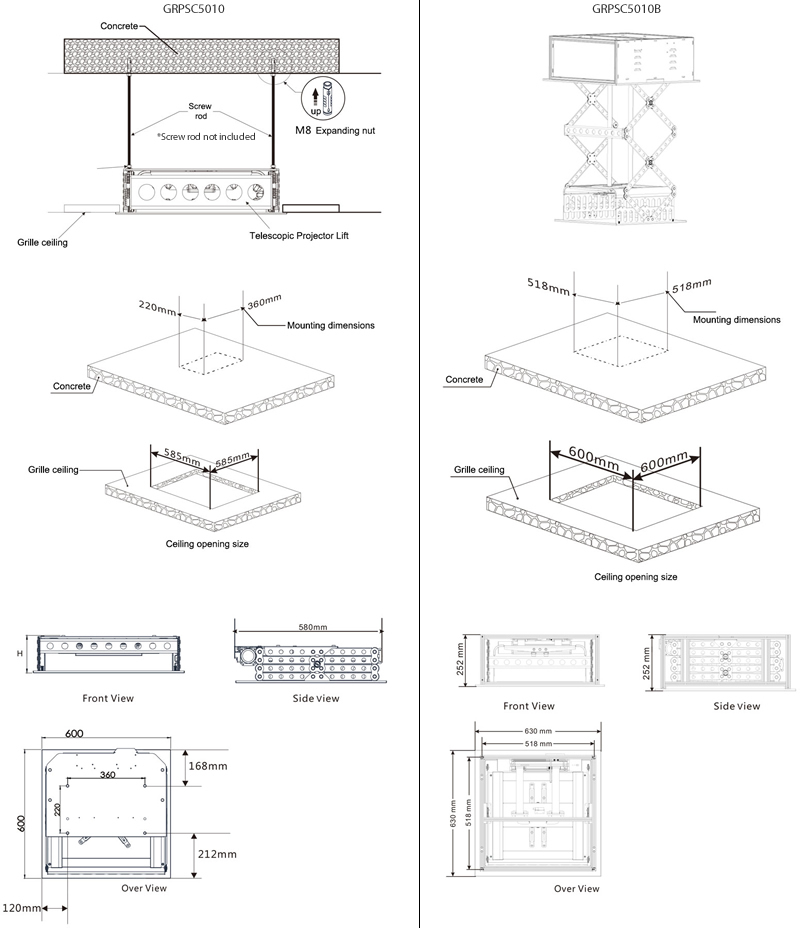

Specifications
