Image Size | Installation Distance | |
---|---|---|
94" (16:10) 2025x1265mm | From 2.7m to 3.1m | |
110" (16:10) 2370x1480mm | From 3.1m to 3.6m | |
120" (16:10) 2585x1615mm | From 3.4m to 4.0m | |
130" (16:10) 2800x1750mm | From 3.7m to 4.3m | |
140" (16:10) 3015x1885mm | From 4.0m to 4.7m | |
150" (16:10) 3230x2020mm | From 4.0m to 5.0m |
The EB-W52 is a true workhorse at an amazing price. Offering a bright HD image the EB-W52 is perfect for everything from a wide array of business presentations even for occasional home use. The 4000 lumen brightness is capable of working in a lights on environment the HD WXGA resolution is perfect for detailed presentations and all this is built into a portable 2.6kg chassis makes it easy to travel with. The EB-W52 also offers a lamp life up to 12,000 hours ensuring low running costs.
Epson 2198635 Spare Remote Control
$70
The Epson LCD technology offers more vibrant projection with a 4,000 ANSI lumen output in both colour and white brightness perfect for well lit rooms. Combined with a strong contrast ratio of 16,000:1 the EB-W52 can also project deep dark shades and blacks.
*Colour brightness(colour light output)_in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors_based on NPD sales_data for May 2017- April 2018.
The Epson LCD technology offers more vibrant projection with a 4,000 ANSI lumen output in both colour and white brightness perfect for well lit rooms. Combined with a strong contrast ratio of 16,000:1 the EB-W52 can also project deep dark shades and blacks.
The EB-W52 gives you the ability to present on the big screen with even a modest 100” image it can dwarf an average TV or commercial panel. The EB-W52 can even blow up the size all the way up to 320” in dark conditions.
Although it is quite powerful the EB-W52 weighs in at just 2.6kg and has a fairly compact chassis so is the perfect candidate for mobile presentations where you wouldn’t want to be lugging around a heavy projector.
The EB-W52 comes with both horizontal and vertical keystone allowing you to position it off centre and even off to the side of the room handy in rooms where there is no central desk to place the projector on. It also have a 1.2x optical zoom allowing a little flexibility on the projection distance.
Split screen function can be a handy way to show material from two different sources side by side. Especially handy in smaller meeting rooms or when using the W52 in conjunction with a document camera. The EB-W52 offers different layout options for the different sources allowing you to customise where each source is displayed.
The EB-W52 also offers handy wireless presentation function. This is handy for still image presentation and is compatible with iOS or Android mobile devices as well as PC’s or Macs using the Epson iProjection app. It allows you to connect and share up to 4 devices simultaneously. Simply open the app, and scan the on screen QR code to connect with your mobile device.
The EB-W52 also offers some handy features offering you easier control.
The EB-W52 features a long life lamp for less maintenance and lower running costs. The lamp can run up to 12,000 hours in economic mode which under standard amounts of use would amount to over a decade of life. Even in high use environments of 6 hours a day every single day of the year it would work out to 5 years of usage.

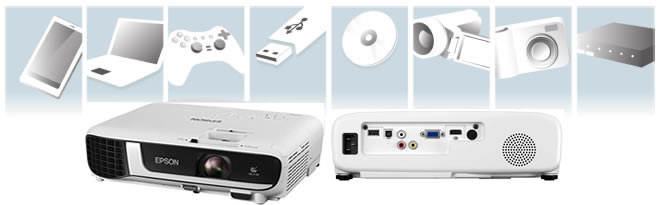

The EB-W52 features a VGA, HDMI and USB connection on the back. Allowing for connectivity to older PC’s that use analogue connections and newer ones with digital connectors for a sharper image.
The EB-W52 offers a handy media reader capable to playing basic files from a memory stick. The onboard media player can read JPG, GIF, PNG, and BMP image files as well as basic AVI format video’s.
The EB-W52 also features a new home screen for greater ease of use. It show all the inputs at a glance and allows for wireless connection with the on screen information.
PRODUCT NAME | EB-W52 | ||
PRODUCT CODE | V11HA02053 | ||
TECHNOLOGY | |||
---|---|---|---|
Projection System | 3LCD | ||
LCD Panel | 0.59-inch | ||
IMAGE | |||
Light Source | Lamp | ||
Resolution | WXGA | ||
Colour Light Output | 4,000 Lumens | ||
White Light Output | 4,000 Lumens | ||
Native Aspect Ratio | 16:10 | ||
Contrast Ratio | 16,000:1 | ||
Lamp Type | 210 W UHE | ||
Keystone Correction (Standard Lens) | Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees |
||
OPTICAL | |||
Zoom | 1 - 1.2 (Optical Zoom) | ||
Screen Size (Standard Lens) | 30" to 320" | ||
Projection Distance (Standard Lens) | 60" screen 1.68 - 2.02 m | ||
Throw Ratio | 1.30 (Zoom: Wide) 1.56 (Zoom: Tele) |
||
Projection Lens F Number | 1.49 - 1.72 | ||
Projection Lens Focal Length | 16.9 mm - 20.28 mm | ||
Focus Method | Manual | ||
Offset | 10:1 | ||
CONNECTIVITY | |||
Input: Video | 1 x RCA (Yellow) | ||
Input: Computer | 1 x D-sub 15-Pin (RGB) 1 x USB 2.0 type B |
||
Input: Digital | 1 x HDMI | ||
Input: Audio | 2 x RCA (Red / White) | ||
Control: I/O | – | ||
Network: I/O | 1 x USB 2.0 type A | ||
Wireless Connectivity | Included | ||
Output: Video | – | ||
Output: Audio | – | ||
ADVANCED FEATURES | |||
Built-in Speaker | 2 W | ||
Epson Projector Management (Network & Control) | Yes | ||
Epson iProjection (Multi-PC Projection) | Yes | ||
Wireless LAN Enterprise Security | – | ||
Miracast | – | ||
Split Screen | Yes | ||
Auto Keystone Correction | Vertical: -30 to +30 degrees | ||
Horizontal Slide Keystone Correction | Yes | ||
Instant Off | Yes | ||
Direct Power On | Yes | ||
Security | Kensington - style lock provision | ||
Colour Modes | Dynamic, Presentation, Cinema, sRGB, Blackboard | ||
GENERAL | |||
Dimensions D x W x H (Including Feet) | 237 x 302 x 92 mm | ||
Weight | 2.6 kg | ||
Projector Warranty | 2 Years | ||
Lamp Life (Normal/Eco) | 6,000 h / 12,000 h | ||
Power Consumption: Lamp On | 327 W | ||
Power Consumption: Standby | 2.0 W | ||
Noise Level (Normal/Eco) | 37 / 28 dB |
