Image Size | Installation Distance | |
---|---|---|
94" (16:10) 2025x1265mm | From 2.8m to 4.4m | |
110" (16:10) 2370x1480mm | From 3.2m to 5.2m | |
120" (16:10) 2585x1615mm | From 3.5m to 5.6m | |
130" (16:10) 2800x1750mm | From 3.8m to 6.1m | |
140" (16:10) 3015x1885mm | From 4.1m to 6.6m | |
150" (16:10) 3230x2020mm | From 4.4m to 7.1m |

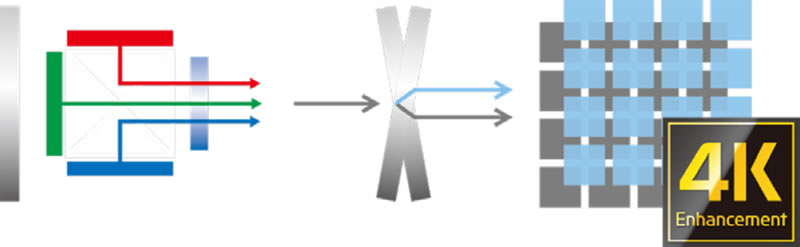

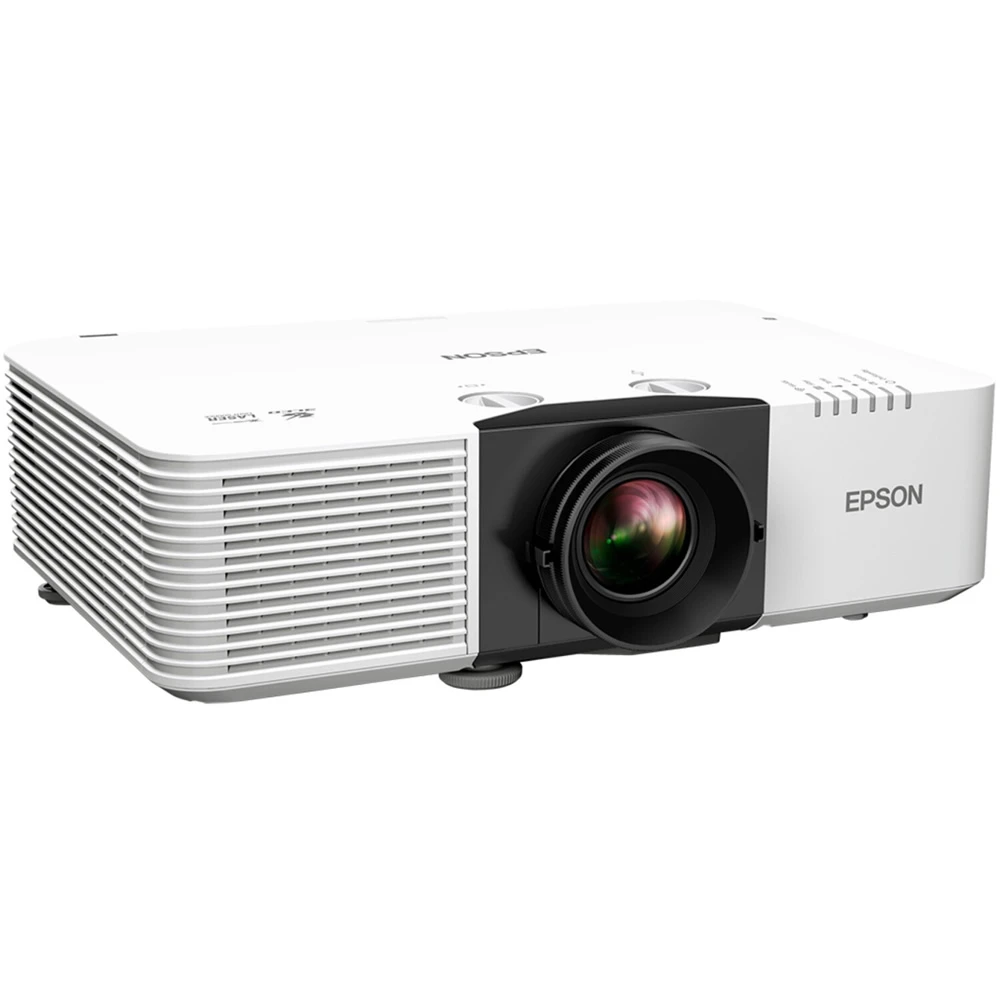

The Epson EB-L890E is one of the most compact 8000 ANSI lumen projectors on the market offering an unobtrusive projector while able to handle large image sizes for large venue installations. The L890E is also equipped with 4K enhancement technology which uses pixel shifting to achieve a n incredibly detailed picture at a fraction of the cost of a native 4K machine. Backed up with a 5 year guarantee and featuring a long life laser light source the EB-L890E is built to last.
Epson Edge Blending & Stacking Camera
$549
An updated fleet of projectors that are designed to fit within many environments including meeting rooms, classrooms, immersive experiences, and golf simulators.
Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum.
Powered by 3LCD technology and Epson’s laser optical engine, the Epson L890U series is capable of producing white light and colour light output of 8,000 lumens in WUXGA resolution, delivering captivating images in virtually any venue. While the light weight and compact size of these projectors enable them to be carried from room to room, they are also capable of highly visible images thanks to high brightness and a superior 5,000,000:1 contrast ratio.
While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 500”, your audience can easily read and understand the information you’re sharing.
Get a crisper and sharper image with advanced image features on the EB-L700 Series. Super-resolution defines edges for standard and HD content, while Detail enhancement refines surface detail for true-to-life images. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.
The EB-L890U offers high visibility in any environment with image quality adjustment features, such as scene-adaptive gamma correction. This feature analyses images frame-by-frame and automatically adjusts the gamma level to project at the optimum contrast. Natural-looking images are achieved by controlling crushed blacks in dark scenes and clipped whites in bright scenes.
The manual lens shift2 covers a wide range, offering a great deal of flexibility when installing the projector.
Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.
NFC functionality enables communication with smart devices even when the projector is switched off and can be configured and checked easily from the Epson Projector Config Tool on a smart device. This means initial configuration can be carried out at the warehouse before transportation, reducing the work hours needed for installation and helping to reduce adjustment time when multiple projectors are being installed.
The Epson L890U can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.
Weighing around 9 kg, the Epson L890U series projectors boast a compact and lightweight design. They offer exceptional flexibility and easy installation.
Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.
Make smooth adjustments of distorted projection images by shifting each of the points laid out on the grid pattern.
Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction function.
Setup multiple projectors straight out of the box with new large venue application software. Epson Professional tool allows you to adjust and control images projected on a network with high-end projector setup features such as geometry correction, image layout adjustment and edge blending. Exclusively bundled to Epson laser projectors, large scale presenting has become much easier and flexible with automation.
The Epson L890U supports the software Epson Projector Management Connected, which provides a range of monitoring, notification and control functions for the projector.
Wirelessly display content from your iOS or Android mobile devices as well as PCs, including Chromebook with the Epson iProjection App. Easily share information on the big image from up to 4 connected devices simultaneously. Just turn on the projector, use the Epson iProjection app to scan the on-screen QR code, and share content on the big screen. This application allows you to travel light and present from your mobile device.
Sharing information has been made easier with Miracast*. Users can project their smartphone or tablet screens without a cable connection and ensure high resolution content can be viewed effortlessly.
*Laptops or mobile devices must support Miracast.
Sharing information has been made easier with Apple Airplay. Stream high quality video from your iPhone or iPad with no cable. Apple Airplay has screen mirroring feature from your iPhone or iPad or Mac.
This feature can make Apple user connect to Epson projector without cable.
PRODUCT NAME | Epson EB-L890E | ||
PRODUCT CODE | N/A | ||
TECHNOLOGY | |||
---|---|---|---|
Projection System | 3LCD | ||
LCD Panel | 0.67-inch | ||
IMAGE | |||
Light Source | Laser Diode | ||
Resolution | WUXGA 4K enhancement | ||
Colour Light Output | 8,000 Lumens | ||
White Light Output | 8,000 Lumens | ||
Native Aspect Ratio | 16:10 | ||
Contrast Ratio | 2,500,000:1 | ||
LD Input Power | 233.6 W | ||
Keystone Correction (Standard Lens) | Vertical: ±30° Horizontal ±30° |
||
Lens Shift (Standard Lens) | Manual - Vertical ± 50 %, horizontal ± 20 % | ||
OPTICAL | |||
Zoom | 1 - 1.6 (Optical) | ||
Screen Size (Standard Lens) | 50" to 500" | ||
Projection Distance (Standard Lens) | 80" screen 2.33 m - 3.78 m | ||
Throw Ratio | 1.35 (Zoom:Wide) 2.20 (Zoom:Tele) |
||
Projection Lens F Number | 1.5 - 1.7 | ||
Projection Lens Focal Length | 20.0mm - 31.8mm | ||
Focus Method | Manual | ||
CONNECTIVITY | |||
Input: Digital | 2 x HDMI, 1 x HDBaseT | ||
Control: I/O | 1 x RS-232C | ||
Network: I/O | 2 x USB Type A (1 x USB Type A for PC Free, Firmware update, Wireless LAN, Doc Camera, Copy OSD Settings, Content playback, External Camera, 1 x USB Type A for 5V/2A Power Supply only) 1 x USB Type B (for Firmware update, Copy OSD Settings) |
||
HDBaseT | Yes | ||
Wireless Connectivity | Optional (ELPAP11) | ||
Output: Video | 1 x HDMI | ||
Output: Audio | 1 x Stereo mini | ||
ADVANCED FEATURES | |||
4k enhancement | Yes | ||
Built-in Speaker | 10W | ||
External camera support (ELPEC01) | Yes (Optional Camera Required) | ||
EPSON Projector Management (Network & Control) |
Yes | ||
EPSON iProjection (Multi-PC Projection) |
Yes | ||
EPSON Professional Tool | Yes | ||
EPSON Projector Content Manager | Yes | ||
Wireless LAN Enterprise Security | Yes | ||
Split screen | Yes | ||
Super resolution | Yes | ||
Detail enhancement | Yes | ||
Scene adaptive gamma | Yes | ||
360° projection | Yes | ||
Content playback | Yes | ||
Edge blending | Yes | ||
Curved surface correction | Yes | ||
GENERAL | |||
Dimensions D x W x H (Including Feet) | 339 x 440 x 136 mm | ||
Weight | 8.5 Kg | ||
Power Consumption: LD On | 366 W | ||
Power Consumption: Standby | 2.0 W | ||
Noise Level (Normal/Eco) | 38 / 27 dB |
