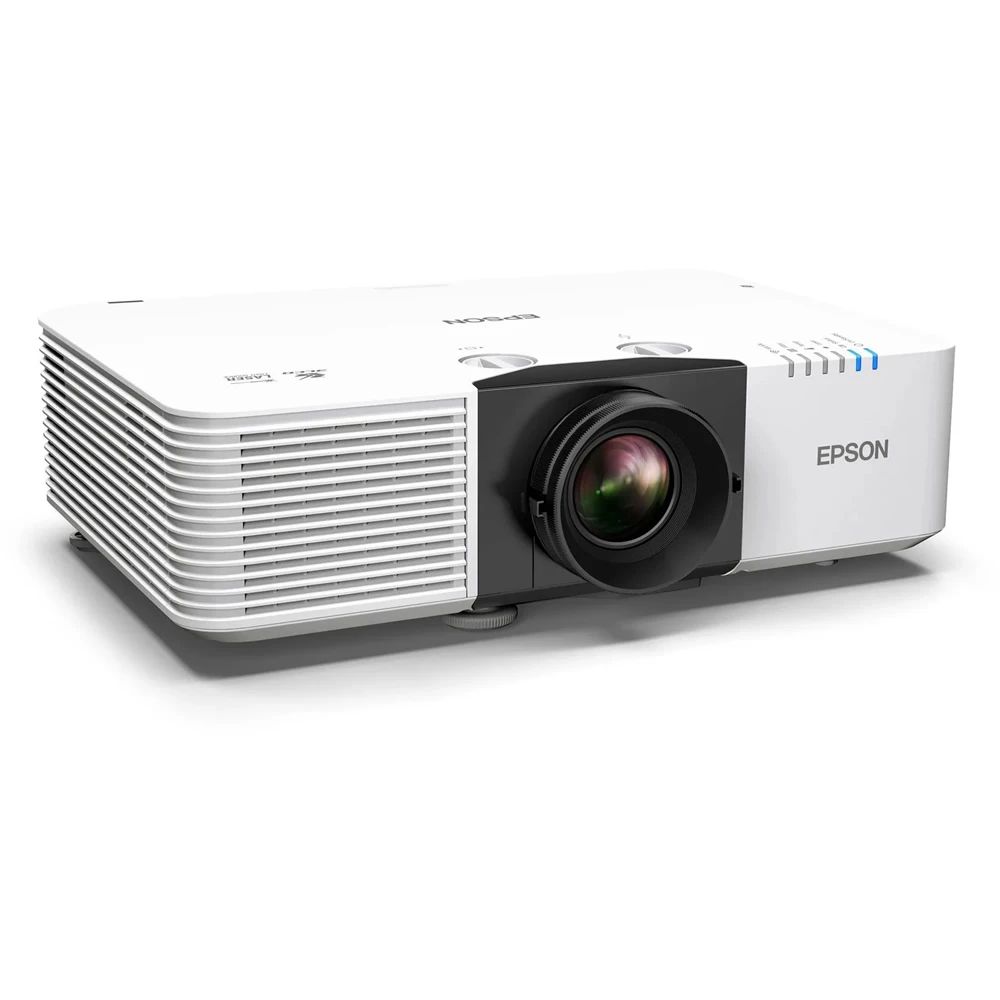

Epson EB-L790U LCD High Brightness Laser Projector

Epson EB-L790U
Delivery

$8,999

COMING SOON

Found a better deal? Request a price match here!


5 year warranty
australian stock
laser lightsource
1080P

Specifications

  • WUXGA 1920 x 1200
  • 7300 ANSI Lumens
  • 2,500,000:1 Contrast
  • 8.5kg Weight
  • 38 / 27db(eco) Fan Noise
  • 5 Year/ 20,000hr Warranty
  • 5 Year/ 20,000hr Laser Warranty
  • Est. Laser Life up to 30,000hrs

Key Features

  • Horizontal & Vertical Keystone
  • Vertical Lens Shift (-50%, +50%)
  • Horizontal Lens Shift (+/- 20%)
  • 1.6x Zoom
  • 2x HDMI Connection
  • 360° Projection
  • Portrait Projection
  • HDBaseT Compatible
  • USB to laptop Connection
  • Instant Off
  • Miracast Wireless Included
  • Presentation Wireless - Optional
  • Easy Wireless Sharing - Optional

Epson EB-L790U Throw Distance Chart

Throw Ratio: 1.35-2.20:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
94" (16:10) 2025x1265mm From 2.8m to 4.4m
110" (16:10) 2370x1480mm From 3.2m to 5.2m
120" (16:10) 2585x1615mm From 3.5m to 5.6m
130" (16:10) 2800x1750mm From 3.8m to 6.1m
140" (16:10) 3015x1885mm From 4.1m to 6.6m
150" (16:10) 3230x2020mm From 4.4m to 7.1m

Epson EB-L790U Large venue laser Projector

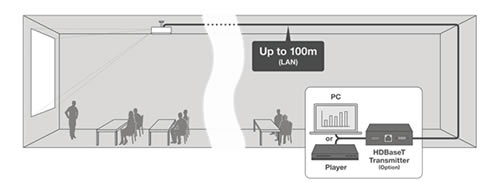

The Epson EB-L790U offers flexible optics for easy upgrading of an older projector. With a 1.6x optical zoom and inbuilt optical lens shift the L790U is a great candidate for replacing an older projector without having to move the installation point. With an inbuilt HDBaseT receiver the L790U is ready for hard to reach locations with an inexpensive CAT6 network cable and the addition of a HDBaseT transmitter. Backed up with a 5 year warranty and powered with a long life laser it is built to last even in heavy usage environments.


Optional Accessories

Epson ELPEC01 Edge Blending or Stacking Camera

Epson Edge Blending & Stacking Camera
$549


Experience ultra bright and compact projectors with pro‑level features.

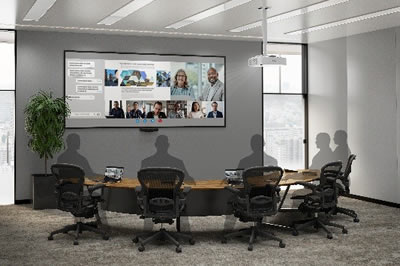

An updated fleet of projectors that are designed to fit within many environments including meeting rooms, classrooms, immersive experiences, and golf simulators.

Key Features

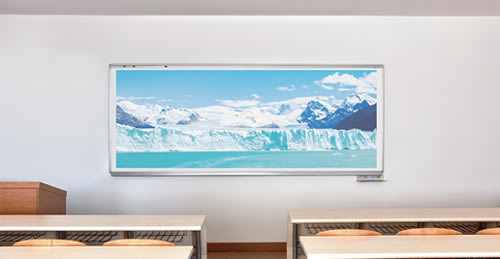

  • Ultra bright, true-to-life images – 3-chip 3LCD technology and 6,000 - 8,000 lumens of equal color and white brightness1
  • WUXGA with 4K Enhancement – select models also feature 4K Enhancement Technology2 which displays double HD resolution on-screen for a visibly sharper, more detailed picture even at close viewing distances
  • Large, versatile display options – easily create displays up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility
  • Simplified installation – wide vertical and horizontal lens shift, 3 different options of throw ratio ranges that together can display between 0.5 to 2.2 throw ratio coverage, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern
  • Low maintenance – up to 30,000-hour laser light source and air filter3 in Extended Mode
  • Wireless networking and content sharing4 – optional Wi-Fi® 6/6E allows for fast, reliable wireless connectivity for screen casting4, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

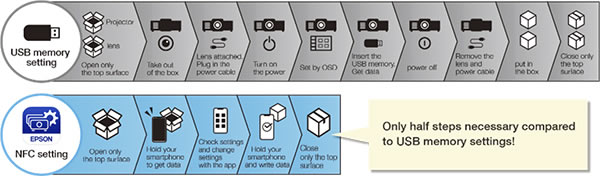

  • Built-in NFC5 – helps reduce installation time of multiple projectors; read and write setting information using the Epson Projector Configuration Tool App
  • Optional attachable PixAlign camera – adds powerful multi-projector tools including screen matching6, auto color calibration6, blending assist7 for super wide displays and simple stacking7 without an external PC
  • Over-the-air updates8 – allows user to optionally be alerted when a Firmware update is available and apply remotely

5 Year Warranty**

Experience complete peace of mind with the 5 year warranty. This ensures reliable long-term performance and gives you the freedom to concentrate on your presentations.

EB-L790U Enviro
Specifications
PRODUCT NAME Epson EB-L790U
PRODUCT CODE N/A
TECHNOLOGY
Projection System 3LCD
LCD Panel 0.67-inch
Light Source Laser Diode
Resolution WUXGA
Colour Light Output 7,300 Lumens
White Light Output 7,300 Lumens
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
LD Input Power 233.6 W
Keystone Correction (Standard Lens) Vertical: ±30°
Horizontal ±30°
Lens Shift (Standard Lens) Manual - Vertical ± 50 %, horizontal ± 20 %
OPTICAL
Zoom 1 - 1.6 (Optical)
Screen Size (Standard Lens) 50" to 500"
Projection Distance (Standard Lens) 80" screen 2.33 m - 3.78 m
Throw Ratio 1.35 (Zoom:Wide)
2.20 (Zoom:Tele)
Projection Lens F Number 1.5 - 1.7
Projection Lens Focal Length 20.0mm - 31.8mm
Focus Method Manual
CONNECTIVITY
Input: Digital 2 x HDMI, 1 x HDBaseT
Control: I/O 1 x RS-232C
Network: I/O 2 x USB Type A (1 x USB Type A for PC Free, Firmware update, Wireless LAN, Doc Camera, Copy OSD Settings, Content playback, External Camera, 1 x USB Type A for 5V/2A Power Supply only)
1 x USB Type B (for Firmware update, Copy OSD Settings)
HDBaseT Yes
Wireless Connectivity Optional (ELPAP11)
Output: Video 1 x HDMI
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
4k enhancement Yes
Built-in Speaker 10W
External camera support (ELPEC01) Yes (Optional Camera Required)
EPSON Projector Management
(Network & Control)
Yes
EPSON iProjection
(Multi-PC Projection)
Yes
EPSON Professional Tool Yes
EPSON Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Split screen Yes
Super resolution Yes

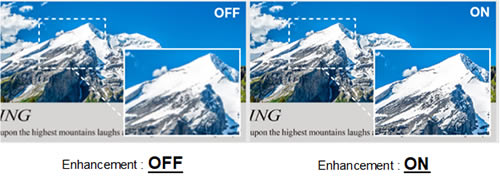

Detail enhancement Yes

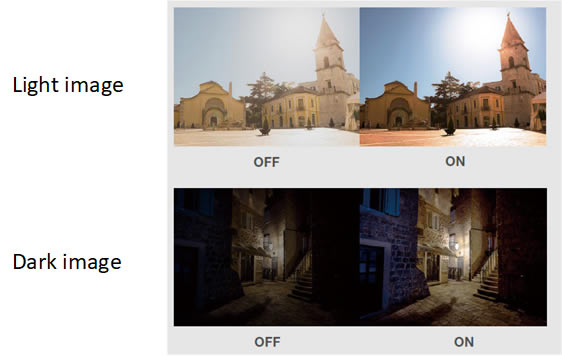

Scene adaptive gamma Yes
360° projection Yes
Content playback Yes
Edge blending Yes

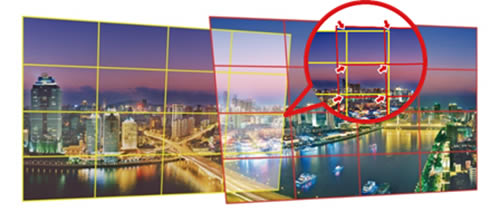

Curved surface correction Yes
GENERAL
Dimensions D x W x H (Including Feet) 339 x 440 x 136 mm
Weight 8.5 Kg
Power Consumption: LD On 366 W
Power Consumption: Standby 2.0 W
Noise Level (Normal/Eco) 38 / 27 dB

What's in the Box
EB-L790U remote control
Remote Control
power cord
Power Cord

Rear Panel

EB-L790U rear panel
