Epson EB-L570U LCD High Brightness 4Ke Laser Projector

Epson EB-L570U
Delivery

$4,799 $3,999

Save $800. Extended Till 14th April

special

IN STOCK NOW

5 year warranty
australian stock
laser lightsource
4K Pro UHD

Specifications

  • 4Ke 1920 x 1200x2 16:10
  • 5200 ANSI Lumens
  • 2,500,000:1 Contrast
  • 8.5kg Weight
  • 31 / 23db(eco) Fan Noise
  • 5 Year/ 20,000hr Warranty
  • 5 Year/ 20,000hr Laser Warranty
  • Est. Laser Life up to 30,000hrs

Key Features

  • Horizontal & Vertical Keystone
  • Vertical Lens Shift (-50%, +50%)
  • Horizontal Lens Shift (+/- 20%)
  • 1.6x Zoom
  • 2x HDMI Connection
  • 360° Projection
  • Portrait Projection
  • HDBaseT Compatible
  • USB to laptop Connection
  • Instant Off
  • Miracast Wireless Included
  • Presentation Wireless - Optional
  • Easy Wireless Sharing - Optional

Epson EB-L570U Throw Distance Chart

Throw Ratio: 1.35-2.20:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
94" (16:10) 2025x1265mm From 2.8m to 4.4m
110" (16:10) 2370x1480mm From 3.2m to 5.2m
120" (16:10) 2585x1615mm From 3.5m to 5.6m
130" (16:10) 2800x1750mm From 3.8m to 6.1m
140" (16:10) 3015x1885mm From 4.1m to 6.6m
150" (16:10) 3230x2020mm From 4.4m to 7.1m

Epson EB-L570U 4Ke Large venue laser Projector

The EB-L570U offers next generation 4K enhancement bringing you a more detailed finer image at a much lower price than native 4K projectors. Utilizing pixel shifting the L570U produces more detailed smoother images perfect for large screen projection and high resolution images. The upgraded long life laser offers up to 30,000 hours of life perfect in even the most demanding environments. With a flexible zoom lens the EB-L570U is a great candidate for replacing an older projector and keeping the same position. It also has optical lens shift and both horizontal and vertical keystone correction for off centre installations.

Epson EB-L570U Projector Reviews:


EB-L570U review
Projector Reviews Review

The EB-L570U is a highly capable laser projector that offers outstanding image quality, excellent connectivity, and versatile installation options. With its 3-chip 3LCD technology and 5,200 lumens of brightness, the projector produces vivid and lifelike images with exceptional color accuracy and brightness uniformity. The projector's 4K Enhancement1 feature provides a visibly smoother and sharper display, even at close viewing distances. The EB-L570U's large, ultra-wide display supports both standard and ultra-wide aspect ratios, making it ideal for immersive video conferencing and other applications.

Key Features

  • Laser Light Source – Experience astonishing quality and reliability
  • Up to 3x Brighter Colours, and reliable performance* – 3LCD, 3-chip technology
  • NEW Powerful Brightness – Up to 5,200 Lumens colour brightness and 5,200 Lumens white brightness
  • 4Ke UHD Resolution – WUXGA with 4K Enhancement1 provides a visibly smoother and sharper display, even at close viewing distances; accepts 4K content
  • Extraordinary sharpness and detail – Up to 2,500,000:1 dynamic contrast ratio
  • Virtually Maintenance-free Operation – Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours†;
  • Bright and Compact – The flat, simplified design makes the EB-L700 series an ideal fit for a range of environments, including modern offices and luxury interiors
  • NEW Flexible Display Options and Sizes – Deliver impactful sessions with displays up to 450 inches in 16:6 wide aspect ratio
  • NEW Wireless Screen Sharing – With optional ELPWP10 screen sharing device
  • NEW Image Enhancement Features – Experience crisp images with super resolution and detail enhancement technology
  • Content playback – Save videos and photos to USB flash memory and project them instantly without the need for a PC
  • 360° Installation – Install on any plane, from horizontal to vertical and everything in-between
  • HDBaseT– Transmit Full HD video and audio, Ethernet and Serial communication through a single CAT 5/6 cable that can be extended up to 100m
  • Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment
  • 5 Year Projector Warranty– A class leading 5 year warranty**
* Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on PMA Research sales data for Dec.2015 through Nov.2016.
† 20,000 hours is the estimated laser light source life when used in Normal Mode. Actual hours may vary depending on mode and usage environment. The projector has a standard limited warranty of 5 years.
** Warranted for 5 years, see www.epson.com.au for full warranty terms and conditions
EB-L570U Laser

Laser Light Source

Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum.

4K Enhancement

The EB-L570U deliver high-precision images with 4K Enhancement (4KE) technology. Upscale 1080p content with 4KE, which shifts pixels diagonally by 0.5 pixels to double the resolution, for crisp and high-definition images. When using a daisy chain, 4KE isn’t supported.

EB-L570U 4K

5,200 ANSI Lumens Brightness

Powered by 3LCD technology and Epson’s laser optical engine, the EB-L570U is capable of producing White Light and Colour Light Output of 5,200 lumens in 4Ke resolution, delivering captivating images in virtually any venue.

EB-L570U Brightness

Custom brightness adjustment

The laser light source also lets you take control of brightness with precise adjustment in increments of 1% and a constant brightness mode that maintains brightness at a specified level. This makes it easy to adjust the image to fit to your viewing environment and can also prolong projector life.

EB-L570U Laser Life

Flexible display options and sizes

Display images up to 500'' and switch between a variety of aspect ratios, from standard 16:10 to ultra-wide 21:9 that provides for a more immersive experience—ideal for hybrid work environments as well as classrooms.
The more information that needs to be displayed on a single screen, the more critical the need for a larger display and higher resolution.

EB-L570U Flexible Sizes

Super Resolution with Detail Enhancement

Get a crisper and sharper image with advanced image features on the EB-L700 Series. Super-resolution defines edges for standard and HD content, while Detail enhancement refines surface detail for true-to-life images. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.

EB-L570U Detail Enhancement

Scene adaptive gamma correction

The EB-L570U offers high visibility in any environment with image quality adjustment features, such as scene-adaptive gamma correction. This feature analyses images frame-by-frame and automatically adjusts the gamma level to project at the optimum contrast. Natural-looking images are achieved by controlling crushed blacks in dark scenes and clipped whites in bright scenes.

EB-L570U Gamma Correction

ADVANCED INSTALLATION FEATURES

HDBaseT and Diverse Connectivity

Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

EB-L570U HDBaseT
EB-L570U 360 Installations

360 Degree Projection

The Epson EB-L570U can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

Edge Blending

Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.

EB-L570U Edge Blending

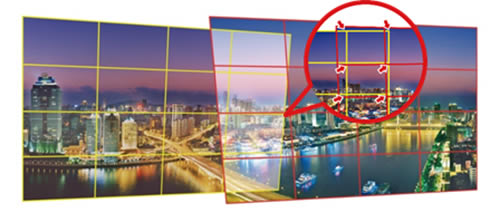

Point Correction

Make smooth adjustments of distorted projection images by shifting each of the points laid out on the grid pattern.

EB-L570U Point Correction

Corner Wall and Curved Surface Projection

Quickly and precisely correct any vertical or horizontal image distortion with Epson’s curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers’ experience by projecting your content in a unique environment with ease.

EB-L570U Arc Correction

Colour Uniformity

Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction function.

EB-L570U EPPT

Epson Projector Professional Tool (EPPT)

Setup multiple projectors straight out of the box with new large venue application software. Epson Professional tool allows you to adjust and control images projected on a network with high-end projector setup features such as geometry correction, image layout adjustment and edge blending. Exclusively bundled to Epson laser projectors, large scale presenting has become much easier and flexible with automation.

EB-L770U Screen Matching

Epson Projector Professional Tool x ELPEC01 support

Pair an ELPEC01 (Optional) external camera with the L570U projector to enable automation for geometry correction and screen matching. Powered by Epson Projector Professional Tool software, the set up for tiling and stacking of multiple projectors is quicker and easier than ever before.

EB-L770U Tiling Stacking

EB-L770U Screen Matching

Universal Ceiling Mounts

EB-L700 series is compatible with ceiling mount ELPMB22. If you are already using ELMB23, simply attach the lower parts of ELMB22 to the EB-L700 projector. This eliminates the need for additional cable work or other construction.

EB-L570U Mount

EASY TO USE

Content Playback

The EB-L700 series projectors have an in-built content playback feature, allowing you to save videos and photos to USB flash memory and project them instantly without the need for a PC. Epson’s dedicated software for digital signage applications complements the embedded feature for a cost-effective solution.

EB-L570U Content Management

For instant content creation, the Epson Creative Projection App is available on iOS devices.

EB-L570U Scheduling

For scheduling, the Epson Content Management software is available for planning and execution.

EB-L570U Creative App

Epson Creative Projection App

With Epson Creative Projection app, you can create original, dazzling content to enliven rooms, product displays and spaces around you, anytime and anywhere. Available on iOS devices, such as iPhone and iPad, content can be projected on the wall with the ability to edit and preview content at the same time. With extensive preloaded templates, freely arrange and combine materials in the app any way you like. From simply uploading photos and movies from mobile device to making animated visual effects, instantly make your display content come to life without requiring a PC.

EB-L570U Creative App

EB-L570U Content Management

Epson Content Management Software

With Epson Content Management software, you can easily create playlists for signage content from a PC or a laptop. The ability to set schedule and register the shape filter settings gives you advanced control such as synchronised playback.

Key features of the software include:

- Creating playlists
- Adding visual effects
- Setting up remote shortcuts
- Applying custom filters
- Scheduling playlists

EB-L570U Playlist Management

DICOM Simulation Mode

DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector's DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.

EB-L570U Wireless

Collaborative Presenting

Multiple users can connect simultaneously to one projector using Epson iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector.

EB-L570U Wifi

You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image: another great tool for remote meeting setups.

Simple Control with Epson Projector Management software

Use features such as Epson Projector Management software to monitor and control projectors, with fleet control across a network or on a web browser to keep track of up to 2,000 projectors. The latest models feature a newly designed OSD Control Pad function that shows a representation of lens conditions on a smart device.

Wireless Screen Sharing with the optional ELPWP10 device

Content sharing from individual devices is a crucial element in today’s workspaces - and so too is the ability to see and collaborate with content on a large screen display. The EB-L700 series paired with an ELPWP10 wireless device is the perfect solution for this, enabling more interactive presentations and increasing productivity in the meeting room.

EB-L570U Wireless adapter

The ELPWP10 connects any source device (such as a laptop) directly to a select range of Epson laser display solutions without the need for long cable connections, with users simply plugging the wireless transmitter into their laptop. Other mobile devices can also be connected using the Epson iProjection app. The ELPWP10 allows content to be displayed from four different devices simultaneously, making content sharing a seamless experience.

EB-L570U Wireless connection

ELPWP10 Contains:

EB-L570U easy wireless

EB-L570U Miracast

Miracast

Sharing information has been made easier with Miracast*. Users can project their smartphone or tablet screens without a cable connection and ensure high resolution content can be viewed effortlessly.

*Laptops or mobile devices must support Miracast

EB-L570U Wifi Security

Wireless LAN Enterprise security

WPA2/WPA3-Enterprise Network provides a safe method of wireless connectivity so that projectors can connect to an integrated environment over a secure network.

5 Year Warranty**

Experience complete peace of mind with the 5 year warranty. This ensures reliable long-term performance and gives you the freedom to concentrate on your presentations.

Specifications
PRODUCT NAME Epson EB-L570U
PRODUCT CODE V11HA98053BU
TECHNOLOGY
Projection System 3LCD
LCD Panel 0.67-inch
Light Source Laser Diode
Resolution WUXGA 4K enhancement
Colour Light Output 5,200 Lumens
White Light Output 5,200 Lumens
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
LD Input Power 185 W
Keystone Correction (Standard Lens) Vertical: ±30°
Horizontal ±30°
Lens Shift (Standard Lens) Manual - Vertical ± 50 %, horizontal ± 20 %
OPTICAL
Zoom 1 - 1.6 (Optical)
Screen Size (Standard Lens) 50" to 500"
Projection Distance (Standard Lens) 80" screen 2.33 m - 3.78 m
Throw Ratio 1.35 (Zoom:Wide)
2.20 (Zoom:Tele)
Projection Lens F Number 1.5 - 1.7
Projection Lens Focal Length 20.0mm - 31.8mm
Focus Method Manual
CONNECTIVITY
Input: Digital 2 x HDMI, 1 x HDBaseT
Control: I/O 1 x RS-232C
Network: I/O 2 x USB Type A (1 x USB Type A for PC Free, Firmware update, Wireless LAN, Doc Camera, Copy OSD Settings, Content playback, External Camera, 1 x USB Type A for 5V/2A Power Supply only)
1 x USB Type B (for Firmware update, Copy OSD Settings)
HDBaseT Yes
Wireless Connectivity Optional (ELPAP11)
Output: Video 1 x HDMI
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
4k enhancement Yes
Built-in Speaker 10W
External camera support (ELPEC01) Yes (Optional Camera Required)
EPSON Projector Management
(Network & Control)
Yes
EPSON iProjection
(Multi-PC Projection)
Yes
EPSON Professional Tool Yes
EPSON Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Split screen Yes
Super resolution Yes
Detail enhancement Yes
Scene adaptive gamma Yes
360° projection Yes
Content playback Yes
Edge blending Yes
Curved surface correction Yes
GENERAL
Dimensions D x W x H (Including Feet) 339 x 440 x 136 mm
Weight 8.5 Kg
Power Consumption: LD On 312 W
Power Consumption: Standby 2.0 W
Noise Level (Normal/Eco) 31 / 23 dB

What's in the Box
EB-L570U remote control
Remote Control
power cord
Power Cord

Rear Panel

EB-L570U rear panel
