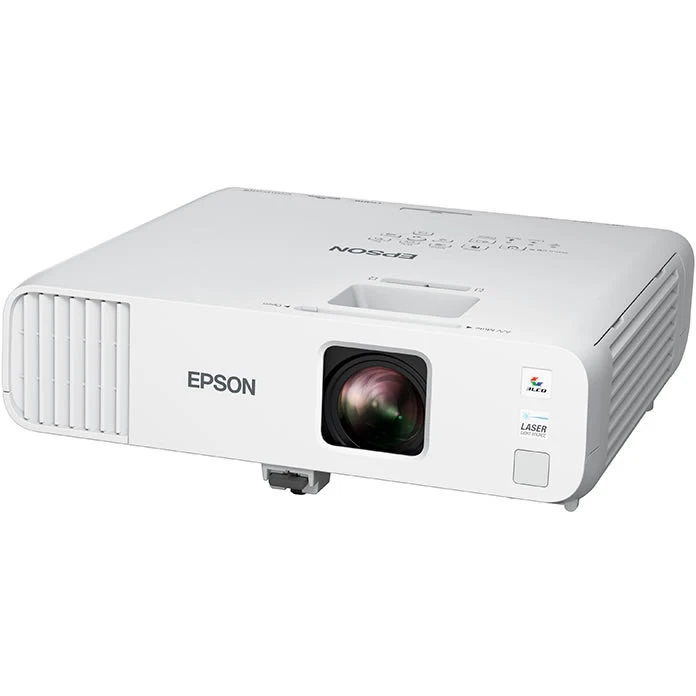

Epson EB-L270F 5200lm LCD Full HD Laser Projector
SKU: EB-L270F
Specifications
- 1080p 1920x1080 16:9
- 5200 ANSI Lumens
- 5,000,000:1 Contrast
- 4.2kg Weight
- 38 / 28db(eco) Fan Noise
- 3 Years / 20,000 hours Warranty
- 3 Years / 20,000 hr Laser Warranty
- Laser Life up to 30,000hrs
Key Features
- Horizontal & Vertical Keystone
- Powerful 16W Speaker
- 1.6x Zoom
- 360° Installation
- Portrait Installation
- 2x HDMI Connections
- LAN, RS-232, Audio Out, Mic In
- USB to laptop Connection
- Instant Off
- Edge Blending, Geometric Correction
- Presentation Wireless - Optional
Epson EB-L270F Large Venue Laser Projector
Experience brilliant, reliable performance with the Epson EB-L270F—the affordable Full HD laser projector built for classrooms, lecture halls, and meeting rooms that demand big, clear visuals without the hassle.
With a powerful 5,200 lumens of equal color and white brightness and sharp 1080p resolution powered by Epson's advanced 3LCD technology, it delivers vivid, true-to-life images that stay bright and detailed even in ambient light, while the laser light source lasts up to 20,000 hours (or 30,000 in Eco mode) with zero lamp replacements for dramatically lower maintenance and total cost of ownership. Project a massive image up to 310 inches from a single compact unit (around 4.2 kg), enjoy flexible placement thanks to the 1.6x optical zoom and ±30° keystone correction, and connect easily via dual HDMI and more (with optional wireless). Whether you're engaging students across a large room or impressing clients in a boardroom, the EB-L270F turns any space into a high-impact display solution that's bright, scalable, and built to last.
Optional Accessories
Epson 2221508 Spare Remote Control
$79
Key Features
- Up to 3x brighter colours and reliable performance1 - 3LCD, 3-chip technology
- Breakthrough laser technology - provides up to 20,000 hours2 of virtually maintenance-free operation with higher image contrast and instant ON/OFF
- 1080p Full HD resolution - ideal for presentations, videos, images, digital signage and more
- Amazing colour brightness - up to 5,200 lumens colour brightness and 5,200 lumens white brightness
- Split screen - project from two different image sources for flexible options in the workplace or classroom
- Multi-projection capabilities - install multiple EB-L270F series projectors and utilise edge blending technology for versatile, breathtaking displays
- Captivating sound - enjoy a built-in stereo speaker up to 16 W for life-like sound
- Simple setup - auto keystone correction and easy-slide horizontal image correction for fast installation
- Easy to use - a new simple welcome guide and easy-to-use remote puts all the most used functions right at your fingertips
- Auto power on - simply plug-in a HDMI, USB or VGA cable to turn the projector on
- Up to 3-year projector warranty - enjoy added peace of mind3
20,000 hours is the estimated laser light source life when used in Normal Mode. Actual hours may vary depending on mode and usage environment. The projector has a standard limited warranty of 3 years.
For more information, please visit www.epson.com.au/warranty/
Laser light source
Experience astonishing quality and reliability with Epson's laser light source. The laser light source and advanced electrostatic filter deliver up to 20,000 1 hours of maintenance-free use and consistent performance for total peace of mind.
3LCD technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour - red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD's true-to-life colour.
Brightness for Any Environment
Powered by 3LCD technology and a laser light source, the EB-L270F is capable of producing 4,500 lumens in both colour and white brightness, making it easy to deliver brilliant content in any setting, even well-lit rooms.

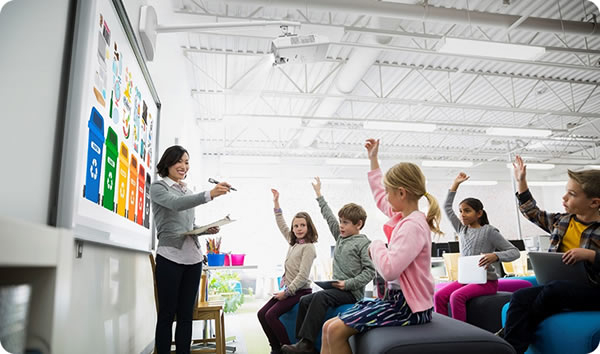

Brilliant images in any setting
Powered by 3LCD technology and Epson's laser optical engine, the EB-L270F can produce white light and colour light output of 5,200 lumens in Full HD resolution, delivering captivating images in virtually any venue. While the light weight and compact size of this projector enable them to be carried from room to room, they are also capable of highly visible images thanks to high brightness and a superior 5,000,000:1 contrast ratio.
Full high-definition content
Enjoy images in Full HD resolution and crisp, sharp text without any distortion. Images can be projected on a large screen with no information left out. This applies to video output devices such as PCs and smart devices with their ever-increasing image quality and higher definition.

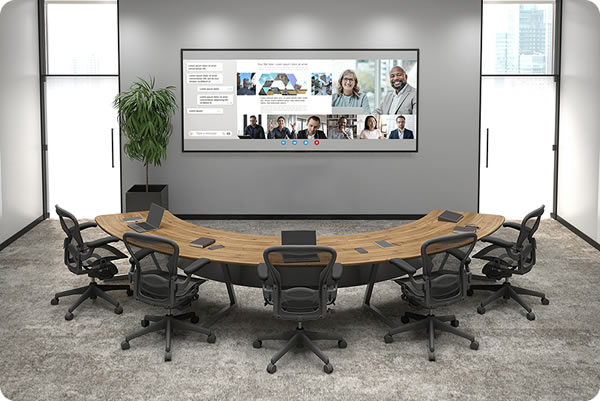

Big screen for big displays
While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 310” on the L270F, your audience can easily read and understand the information you're sharing, especially in a large meeting room or classroom. Designed for convenience, this projector also features flexible aspect ratios up to 21:9 for widescreen displays.
Detail Enhancement
Get a sharper image by turning on detail enhancement. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.
Scene Adaptive Gamma
Scene adaptive gamma allows the user to adjust the image quality based upon the scene information itself. This provides a simple way to get impressive colour and contrast, regardless of the content being displayed and provides a balanced and dynamic image with improved detail, especially in dark and bright scenes.

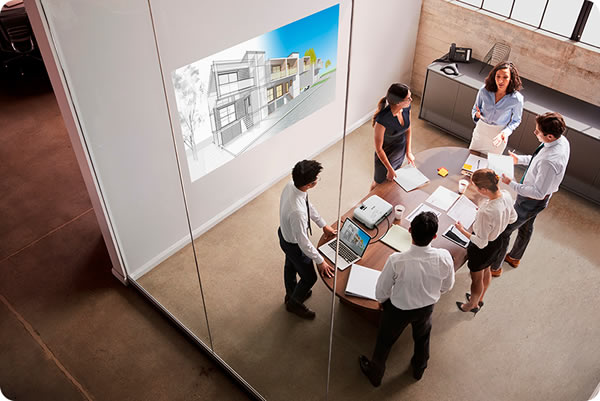

Split Screen
Split screen allows inputs from two separate sources to be displayed side-by-side on the same screen. With different layout options you can display video and presentation materials and run video on both screens. This function allows the projector to perform a dual role, eliminating the need for a second screen, perfect for meeting rooms with limited spaces. Additionally, classroom lessons can be made more engaging by connecting a projector with a document camera and a PC or tablet.
Edge blending
Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.
Content Playback
The EB-L270F projector has in-built content playback feature, allowing you to save videos and photos to USB flash memory and project them instantly without the need for a PC. Epson's dedicated software for digital signage applications complements the embedded feature for a cost-effective solution.
For instant content creation, the Epson Creative Projection App is available on iOS devices.
Epson Creative Projection App
With the Epson Creative Projection app, you can create original, dazzling content to enliven rooms, product displays, and spaces around you, anytime and anywhere. Available on iOS devices, such as iPhone and iPad, content can be previewed while projecting and editing content at the same time. With extensive preloaded templates, freely arrange and combine materials in the app any way you like.
From simply uploading photos and movies from a mobile device to making animated visual effects, instantly make your display content come to life without requiring a PC.
| PRODUCT NAME | EB-L270F | ||
| PRODUCT CODE | V11HC68053 | ||
| TECHNOLOGY | |||
|---|---|---|---|
| Projection System | Epson 3LCD, 3-chip technology | ||
| LCD Panel | 0.67-inch | ||
| Laser Source | Laser diode | ||
| IMAGE | |||
| Colour Light Output | 5,200 Lumens | ||
| White Light Output | 5,200 Lumens | ||
| ECO Mode Light Output | 3,600 Lumens | ||
| Resolution | FHD | ||
| Aspect Ratio | 16:9 | ||
| Contrast Ratio | 5,000,000:1 | ||
| Colour Video Processing | Up to 1.07 billion colours | ||
| Colour Reproduction | 10 bit | ||
| OPTICAL | |||
| Zoom | 1 - 1.62 (Optical Zoom) | ||
| Screen Size | 31" to 310" | ||
| Projection Distance | 62" screen 1.8 m | ||
| Throw Ratio | 1.32 (Zoom: Wide), 2.12 (Zoom: Tele) | ||
| Projection Lens F Number | 1.51 - 1.77 | ||
| Projection Lens Focal Length | 18.2 mm - 29.1 mm | ||
| Focus Method | Manual Focus | ||
| Keystone Correction | Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees |
||
| CONNECTIVITY | |||
| Input: Computer | 1 x USB type B (firmware update) | ||
| Input: Video | 1 x RCA yellow, 2 x D-sub 15-pin (RGB) | ||
| Input: Digital | 2 x HDMI | ||
| Input: Audio | 1 x RCA (red / white), 2 x stereo mini | ||
| Input: Mic | 1 x stereo mini | ||
| Control: I/O | 1 x RS-232C | ||
| USB I/O: | 1 x USB type A (for ELPAP11) | ||
| Network I/O: | 1 x RJ45 | ||
| Wireless Connectivity | Optional (ELPAP11) | ||
| Output: Video | D-sub 15 pin (black molding) | ||
| Output: Audio | Stereo mini jack x 1 | ||
| Output: Analog | 1 x D-sub 15 pin | ||
| Output: Audio | 1 x stereo mini | ||
| ADVANCED FEATURES | |||
| Projector Management Software | Yes | ||
| Built-in Speaker | 16 W | ||
| 360 Degrees Projection | Yes | ||
| Super Resolution | Yes | ||
| Detail Enhancement | Yes | ||
| Scene Adaptive Gamma | Yes | ||
| Horizontal Slide Keystone Correction | Yes | ||
| Content Playback | Yes | ||
| Instant Off | Yes | ||
| Direct Power On | Yes | ||
| Split Screen | Yes | ||
| Edge Blending | Yes | ||
| Security | Kensington-style lock provision Padlock & security cable hole Wireless LAN unit lock |
||
| Colour Modes | Dynamic Presentation Cinema sRGB Blackboard DICOM SIM Multi-projection |
||
| GENERAL | |||
| Dimensions W x D x H (excluding feet) | 299 x 325 x 90 mm | ||
| Weight | 4.2kg | ||
| Projector Warranty | 3 years | ||
| Power Consumption Normal/Energy Saving | 278 W /0.5 W | ||
| Noise Level | Normal / Eco : 38 / 28 dB | ||
Remote Control
Power Cord

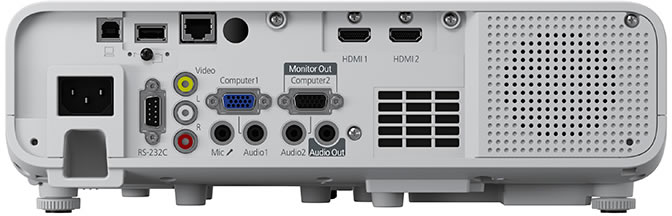

Rear Panel
