Image Size | Installation Distance | |
---|---|---|
94" (16:10) 2025x1265mm | From 2.8m to 4.5m | |
110" (16:10) 2370x1480mm | From 3.3m to 5.2m | |
120" (16:10) 2585x1615mm | From 3.6m to 5.7m | |
130" (16:10) 2800x1750mm | From 3.9m to 6.2m | |
140" (16:10) 3015x1885mm | From 4.2m to 6.7m | |
150" (16:10) 3230x2020mm | From 4.5m to 7.2m |
The EB-982W offers a HD resolution and a bright vibrant picture coupled with a big 1.6x optical zoom is the perfect companion for a replacement projector to upgrade an existing installation. The EB-982W also offers a great array of connection with two HDMI, two VGA, USB, RJ45 and even optional wireless making it easy to plug in. Backed with a 3 year warranty and boasting a long lamp life the EB-982W is a great choice for an office installation.
White brightness alone cannot bring the True Colours you see every day. While other manufacturers of 1-chip DLP technology believe they can improve image quality by just increasing the brightness of their projectors’ white light output, Epson ensures that its projectors combine brightness and True Colours to create vibrant and realistic images with 3LCD technology across every projector model.
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant,realistic images and video all delivered with 3LCD’s true-to-life colour.
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a trade-off between white and colour brightness. In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*. All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
*Colour brightness(colour light output)_in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors_based on NPD sales_data for May 2017- April 2018.
With both colour and white brightness up to 4,200 lumens, the FH52 and 992F series makes it easy to enjoy brilliant content in any setting, even well-lit rooms. While the light weight and compact size of these projectors enable them to be carried from room to room, they are also capable of highly visible images thanks to high brightness and a superior 16,000:1 contrast ratio.
While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 320”, your audience can easily read and understand the information you’re sharing.
Weighing in at only 3.1kg, these projectors are perfect for being carried from room-to-room around the office. The switch between home and work has never been more convenient.
Position your projector almost anywhere in the room and still get a correctly proportioned image with auto vertical correction and Easy-Slide horizontal image correction. Additionally, optical zoom up to 1 - 1.6x enables you to adjust the image easily and quickly, even in a limited space.
Split Screen allows inputs from two separate sources to be displayed side by side on the same screen. With different layout options you can display video and presentation materials, and run video on both screens. This function allows the projector to perform a dual role, eliminating the need for a second screen, perfect for meeting rooms with limited spaces. Additionally, classroom lessons can be made more engaging by connecting a projector with a document camera and a PC or tablet.
Wirelessly display content from your iOS or Android mobile devices as well as PCs, including Chromebook with the Epson iProjection App. Easily share information on the big image from up to 4 connected devices simultaneously. Just turn on the projector, use the Epson iProjection app to scan the on-screen QR code, and share content on the big screen. This application allows you to travel light and present from your mobile device.

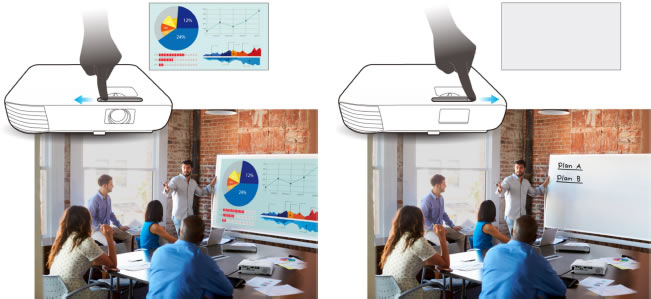

Enjoy fast set-up with the Auto Power On function, as the projector startup is activated via USB, HDMI, or VGA cable insertion. Slide the lens shutter closed at any time and the projector will go into A/V mute (sleep mode) so you can stop and start your presentations when needed. Then, with Instant Off, simply remove the power cord of the projector, pack up and go.
Save on costs with a longer lamp life and a high efficiency filter, allowing for hassle free maintenance. The EB-982W series lamps last up to 17,000 hours in ECO mode, the equivalent of 14 years’ worth of use. (Using 6 hours for 200 days)

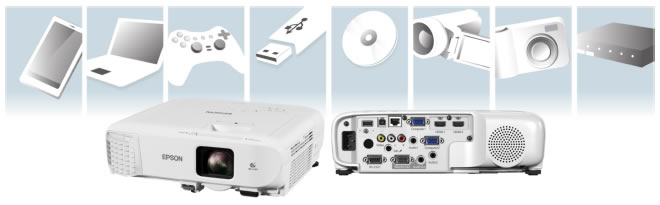

These projectors support a range of connectivity options, including HDMI, VGA and USB, allowing you to connect to the latest digital devices without the need for adaptors.
Easily present basic files from a memory stick without the need for a media player or computer. Image files and even video can be presented directly from a memory stick for extra versatility and portabilty. For best results format the stick file format to Fat16/32. File format and size limits apply see manual for more details.
An easy-to-use home screen offers quick access to a variety of useful functions. Also, all source information, no matter what the source input is, can be seen at a glance. Wireless connections can be made effortlessly because all the information you need is right there on the screen.
A powerful 16W speaker delivers clear sound to every corner of the classroom or meeting room, saving money by eliminating the need for additional speakers.
PRODUCT NAME | EB-982W | ||
PRODUCT CODE | V11H987053 | ||
TECHNOLOGY | |||
---|---|---|---|
Projection System | 3LCD | ||
LCD Panel | 0.59-inch | ||
IMAGE | |||
Light Source | Lamp | ||
Resolution | WXGA | ||
Colour Light Output | 4,200 Lumens | ||
White Light Output | 4,200 Lumens | ||
Native Aspect Ratio | 16:10 | ||
Contrast Ratio | 16,000:1 | ||
Lamp Type | 230 W UHE | ||
Keystone Correction (Standard Lens) | Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees |
||
OPTICAL | |||
Zoom | 1 - 1.6 (Optical) | ||
Screen Size (Standard Lens) | 29" to 280" | ||
Projection Distance (Standard Lens) | 60" screen 1.79 - 2.92 m | ||
Throw Ratio | 1.38 (Zoom: Wide) 2.24 (Zoom: Tele) |
||
Projection Lens F Number | 1.51 - 1.99 | ||
Projection Lens Focal Length | 18.2 mm - 29.2 mm | ||
Focus Method | Manual | ||
Offset | 10:0 | ||
CONNECTIVITY | |||
Input: Video | 1 x RCA (Yellow) | ||
Input: Computer | 1 x D-sub 15-Pin (RGB) 1 x USB 2.0 type B |
||
Input: Digital | 2 x HDMI | ||
Input: Audio | 2 x RCA (Red / White) 2 x Stereo mini |
||
Control: I/O | 1 x RS232C | ||
Network: I/O | 1 x RJ45 1 x USB 2.0 type A (for Optional Wireless LAN) |
||
Wireless Connectivity | Optional | ||
Output: Video | 1 x D-sub 15 pin | ||
Output: Audio | 1 x Stereo mini | ||
ADVANCED FEATURES | |||
Built-in Speaker | 16 W | ||
Epson Projector Management (Network & Control) | Yes | ||
Epson iProjection (Multi-PC Projection) | Yes | ||
Wireless LAN Enterprise Security | – | ||
Miracast | – | ||
Split Screen | Yes | ||
Auto Keystone Correction | Vertical: -30 to +30 degrees | ||
Horizontal Slide Keystone Correction | Yes | ||
Instant Off | Yes | ||
Direct Power On | Yes | ||
Security | Kensington - style lock provision | ||
Colour Modes | Dynamic, Presentation, Cinema, sRGB, Blackboard | ||
GENERAL | |||
Dimensions D x W x H (Including Feet) | 293 x 309 x 105 mm | ||
Weight | 3.1 kg | ||
Projector Warranty | 3 Years | ||
Lamp Life (Normal/Eco) | 6,500 h / 17,000 h | ||
Power Consumption: Lamp On | 327 W | ||
Power Consumption: Standby | 2.0 W | ||
Noise Level (Normal/Eco) | 37 / 28 dB |
