BenQ MW560 DLP HD Multipurpose Projector
Specifications
- WXGA 1280 x 800 16:10
- 4000 ANSI Lumens
- 20,000:1 Contrast
- 2.3kg Weight
- 34 / 29db(eco) Fan Noise
- 2 Year Warranty
- 6 Month / 750hrs Lamp Warranty
- Est. Lamp Life up to 15,000hrs
Key Features
- Vertical Keystone Correction
- 2x HDMI connections
- 10W Inbuilt Speaker
- 3D Capable (3D glasses required)
BenQ MW560 Throw Distance Chart
Throw Ratio: 1.55-1.7:1| Image Size | Installation Distance | |
|---|---|---|
| 94" (16:10) 2025x1265mm | From 3.2m to 3.4m | |
| 110" (16:10) 2370x1480mm | From 3.7m to 4.0m | |
| 120" (16:10) 2585x1615mm | From 4.0m to 4.3m | |
| 130" (16:10) 2800x1750mm | From 4.4m to 4.7m | |
| 140" (16:10) 3015x1885mm | From 4.7m to 5.1m | |
| 150" (16:10) 3230x2020mm | From 5.0m to 5.4m | |
BenQ MW560 Multimedia HD Projector
The MW560 is a bright projector for the modern office or home where light control is a problem. With a 4000 ANSI lumen brightness it can handle a lit room perfect for lights on presentations. The HD WXGA resolution is quite capable with video and presentations and weighing in at a mere 2.3kg the MW560 is very easy to transport. It also comes with a powerful 10 watt inbuilt speaker and a long lamp life making it cheap to run.
Optional Accessories
key features
- 4000 ANSI Lumen High Brightness for Stunning Presentations
- 20,000:1 High Native Contrast for Crisp Readability
- Dual HDMI inputs for multiplatform digital connectivity
- Simple Setup, Intuitive Operation, and Hassle-Free Maintenance
- Eco-Friendly Low Total Cost of Ownership
HDMI for Fast Transmission
HDMI connectivity provides faster data transmission to digital devices
Dual Connectivity, Dual Convenience
Dual HDMI offers more flexible connectivity between devices
Time-Saving Convenience
Automatically turns on the projector once the HDMI input signal is detected
4000 Lumens, 20000: 1 Contrast
High brightness & contrast images even in well-lit meeting rooms
Crystal-Clear Images
All glass lenses for image quality in brilliant clarity
Clear Data Review
Data Review Mode makes every letter and digit leap to the eye with clarity
Detailed Infographics
Exclusive Infographic Mode showcases the text and graphics in detail
Clear User Interface
Intuitive windows design to display the contents clearly
Auto Vertical Keystone for Perfect Alignment
Project the image from any angle and get the perfect squared image with Auto Vertical Keystone. It’s to quick to eliminate the blurry images and get to the point in the meeting
Lamp Life up to 15,000 hrs
SmartEco Mode saves lamp power up to 70%
Power-Saving, Energy-Saving
Auto Power Off shuts itself off for power savings after the projector detects no input signal for 20 minutes. (This can be also operated via the OSD)
Easy Setup
Ergonomic retractable foot for easy setup
Get Instant ON
Turn on the projector again within 90 secs after power off and you can start it up in no time
Enhanced Security
Kensington Lock for physical security to discourage theft

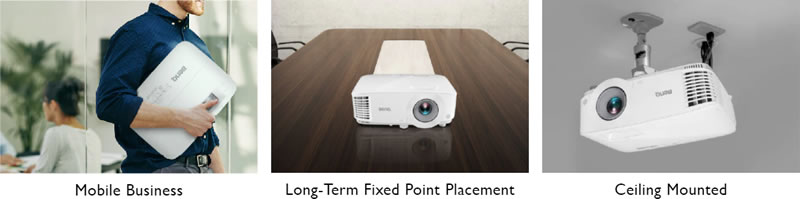

Mobile Business
Long-Term Fixed Point Placement
Ceiling Mounted
All-in-One Solution that Solves It All
No more fuzzy texts and figures
Perfect Combination of Stunning Clarity and Crafted Colors.
Finest Precision Glass Lenses for Crystal-Sharp Clarity.
BenQ only uses high-quality glass lenses to minimize chromatic aberration, ensuring long-term image quality in brilliant clarity.
Exclusive Color Craft Calibrated to Suit Your Needs
Presentation Mode
Designed for presentations with vivid colors. In this mode, the brightness is emphasized to match PC and notebook coloring.
Infographic Mode
Great for showcasing the text and graphics of infographic in detail thanks to the high brightness and better color gradation.
Data Review Mode
Review your reports with Data Review Mode. Its emphasized contrast and clarity speed up your meeting and strategy-making process

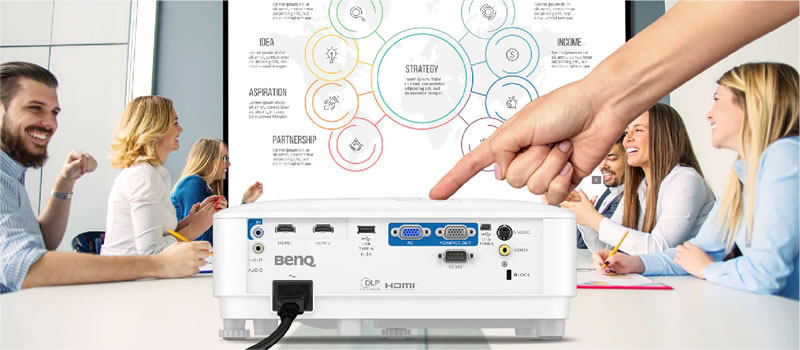

No More Waiting - Start Meetings in a Blink
No more irritating maintenance and energy waste
Save Power, Save Manpower
Kensington Lock
Designed to secure tabletop projectors, the Kensington lock interface provides “physical” security.
Anti-Dust Accumulation Sensor
Rejects dust accumulation, enhancing device durability and hence reducing maintenance costs.
SmartEco Mode
Conserving up to 70% of lamp power for a lamp life of up to 15,000 hrs.
Power-Saving, Energy-Saving
MW560 shuts off if the projector detects no input signal for 20 minutes. (Also accessible via the OSD)
Details that Make a Difference
| Display | |
| Projection System | DLP Single 0.65" WXGA |
| Resolution | 1280 x 800 pixels |
| Brightness (ANSI lumens) | 4000 ANSI Lumens |
| Contrast Ratio (FOFO) | 20,000:1 |
| Display Color | 30 Bits (1,07 billion colors) |
| Native Aspect Ratio | Native 16:9 (5 aspect ratio selectable) |
| Light Source | Lamp |
| Light Source life* | Normal 6000 hr |
| Resolution Support | VGA(640 x 480) to WUXGA_RB(1920 x 1200) |
| Optical | |
| Throw Ratio | 1.55~1.7 (87" ±3% @ 2.9m) |
| Zoom Ratio | 1.1X |
| Lens shift | NA |
| Projection Offset** | 100%±2.5% (Full-Height) |
| Projection Size | 60"~150" |
| Keystone Correction | Auto ID, Vertical +/- 40 degrees |
| Audio | |
| Speaker | 10W x 1 |
| Special Feature | |
| Security | Security Bar, Kensington lock |
| Feature | 1D Auto Keystone, High Brightness, Spreadsheet mode, Bright Mode, Presentation Mode, Infographic Mode, Video Mode, Srgb Mode |
| Interface | |
| Composite Video in (RCA) | x1 |
| S-Video | x1 |
| VGA | x1 |
| HDMI | x2 |
| Compatibility | |
| Resolution Support | VGA(640 x 480) to WUXGA_RB(1920 x 1200) |
| Horizontal Frequency | 15K~102KHz |
| Vertical Scan Rate | 23 ~ 120 Hz |
| HDTV Compatibility | 480i, 480p, 576i, 567p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p), HDTV (720p, 1080i/p 60Hz) |
| Power | |
| Power Consumption(Max/Normal/Eco) | Max 280W, Normal 260W, Eco 215W |
| Standby Power Consumption | Normal < 0.5Watts. |
| Power Supply | 100 ~ 240V AC |
| Dimension and Weight | |
| Net Weight (Kg/ lbs ) | 2.3kg +/- 200g |
| Dimensions (W x H x D)(mm) | 296 x 120 x 221 mm |
| Operation Condition | |
| Noise Level(Normal/Eco) | 34 /29 dBA |
| Operating Temperature | 0~40℃ |
| Accessories (Standard) | |
| Remote Control w/ Battery | x 1 (5J.JND06.001) |
| Power Cord (by region) | x 1 (1.8m) |
| Warranty Card (by region) | x 1 |
| VGA(D-sub 15pin) Cable | x 1 (1.5m) |
| AAA Battery | x2 |
| QSG | x1 (4J.JND01.001) |
| OSD | |
| OSD Language | Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Farsi / Vietnamese/ (30 Languages) |
Remote Control
Power Cord
Rear Panel
