Image Size | Installation Distance | |
---|---|---|
92" (16:9) 2030x1140mm | From 2.4m to 3.0m | |
100" (16:9) 2130x1200mm | From 2.5m to 3.1m | |
110" (16:9) 2435x1370mm | From 2.8m to 3.6m | |
120" (16:9) 2657x1494mm | From 3.1m to 3.9m | |
135" (16:9) 2990x1681mm | From 3.5m to 4.4m | |
150" (16:9) 3320x1867mm | From 3.9m to 4.9m |
The BenQ MH733 Combines a razor sharp full HD 1080P resolution with a powerful 4000 lumens brightness making for a clear bright image perfect for well-lit rooms. The MH733 also features great connectivity with to HDMI ports, a VGA port and a USB media reader. Coupled with a long lamp life of up to 15,000 hours the MH733 is also cheap to run.
4,000 lumens of high brightness enable comfortable lights-on presentations to promote discussion, collaboration, and note-taking in larger meeting rooms with bright lights accommodating up to 40 participants. The high luminance lets even participants seated furthermost clearly see the slides and boosts picture quality with vibrant color for pictures and videos as well as crisp text and fine details.
With industry-leading contrast and pixel fill factor, BenQ projectors produce the truest blacks and unmatched readability with every character, graph, and chart crisply defined. High fill factor increases clarity for black and white or color images and reduces eye strain for presenters and audiences to stay focused on the content.
Full HD 1080p resolution offers enhanced productivity for professional presentations. The two-megapixel high resolution delivers ultra-sharp readability, enhanced picture detail, and additional presentation real estate for expanded content.

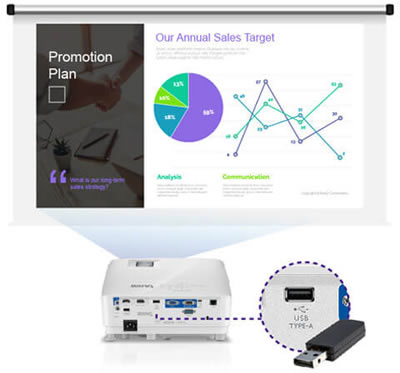

Supporting a wide range of files including JPEG, PDF, Microsoft Word, Excel and PowerPoint files, MH733’s USB Type-A port lets presenters easily project images or documents directly without the need for a laptop.

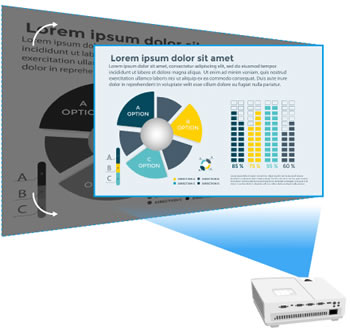

Adjusting the projected image vertically and horizontally to correct trapezoidal distortion when the projector is tilted or placed off center, 2D Keystone compensates for any projection angle or position. The projector may be placed anywhere on a u-shaped table without hassle to enhance presentation freedom and optimal viewing experiences.

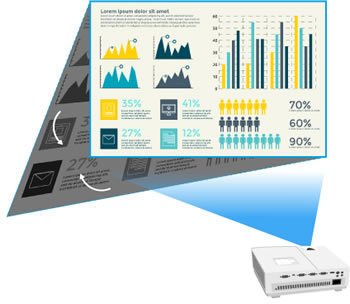

A flexible and convenient way to align perfect pictures, Corner Fit adjusts each of the four corners of an image independently. When projecting on uneven spaces or restricted within a certain frame, Corner Fit corrects picture dimensions for professional results in any installation.
BenQ business projectors are widely compatible with leading projector control systems including Crestron, AMX, PJ-Link, and Extron Control IP Link* for network control via LAN, making it simple to integrate into local networks. It also supports RS-232 for reliable long-distance installations up to 15 meters for situations without LAN.
* Developed by Extron, IP Link driver allows device monitoring, control, and support over LAN when MediaLink controller, IP Link Ethernet control interface, or other IP Link-enabled device is installed.
BenQ Multiple Display Administrator (MDA) software provides powerful centralized multiple-projector management including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations.
MH733 comes with any easy setting that allows IT managers to conveniently control any specific projector through a web browser remotely without having to physically visiting the meeting room, guaranteeing to save time and effort.

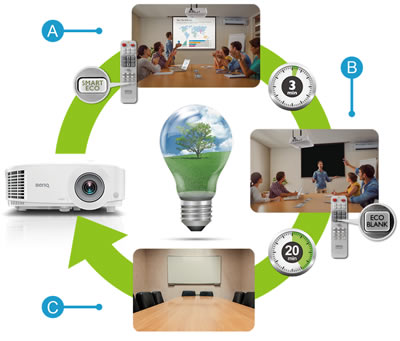

The BenQ Eco Cycle System eliminates electricity waste, reduces power-up wait time before and after meetings and minimizes maintenance for lower total cost of ownership.
A. SmartEco™ Mode: SmartEco™ Mode analyzes input content to determine the brightness required for optimal color and contrast performance, conserving up to 70% lamp power while delivering the finest image quality without compromise.
B. Eco Blank Mode: When the projector detects no source content, Eco Blank Mode automatically actives after 3 minutes of inactivity to eliminate distractions and save energy.
C. Auto Power Off: BenQ business projectors power down after 20 minutes of inactivity to eliminate energy waste and concerns for teachers of leaving the equipment on.
Quick Tips: Eco Blank Mode and SmartEco Mode can be activated directly using the remote control.
When inactive, BenQ business projectors keep power consumption to a minimum with 0.5W standby power, maximizing energy savings when the projector is connected but not in use.
Fewer lamp replacements and maintenance translates into an overall lower cost of ownership. LampSave Mode adjusts lamp power dynamically according to content to extend projector lamp life up to 50% compared to normal mode.
Display | |
Projection System | DLP |
Native Resolution | 1080p(1920x 1080) |
Resolution Support | VGA(640 x 480) to WUXGA_RB(1920 x 1200) |
Brightness (ANSI lumens) | 4,000 Lumens |
Contrast Ratio (FOFO) | 16,000:1 |
Display Color | 30 Bits (1,07 billion colors) |
Native Aspect Ratio | Native 16:9 (5 aspect ratio selectable) |
Light Source | Lamp |
Light Source Wattage | 240W |
Light Source life* | Normal 4000 hours |
Optical | |
Throw Ratio | 1.15-1.5 |
Zoom Ratio | 1.3:1 |
Lens | F=2.59~2.87, f=16.88~21.88 |
Keystone Adjustment | 2D keystone, Vertical ± 30 & Horizontal ± 20 degrees, Auto Vertical keystone |
Projection Offset** | 105%±2.5% (Full-Height) |
Clear Image Size (Diagonal) | 60"~180" |
Image Size | 30"~300" |
Horizontal Frequency | 15K-102KHz |
Vertical Scan Rate | 23~120Hz |
Audio | |
Speaker | 10W x1 |
Interface | |
PC (D-sub) | 1 |
Monitor out (D-sub 15pin) | 1 |
HDMI | 2 (one shared w/ MHL) |
USB Type A | 2 (one for Wireless dongle, one for USB reader, Power supply, 5V,1A) |
USB Type Mini B | 1 (Download & Page up/down ) |
Audio in (3.5mm Mini Jack) | 1 |
Audio out (3.5mm Mini Jack) | 1 |
LAN (RJ45) | 1 |
RS232 (DB-9pin) | 1 |
IR Receiver | 2(Front/Top) |
Security Bar | 1 |
Compatibility | |
HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Video Compatibility | NTSC, PAL, SECAM |
Environment | |
Power Supply | AC 100 to 240 V, 50/60 Hz |
Typical Power Consumption | 320W( Normal) |
Standby Power Consumption | <0.5W |
Network Stand-by Power Consumption | <2W |
Acoustic Noise (Typ./Eco.) | 33/29 dBA (Normal/Eco mode) |
Operating Temperature | 0 ~ 40oC |
Dimension and Weight | |
Dimensions (W x H x D)(mm) | 296 x 120x 221 mm |
Net Weight (Kg/ lbs ) | 2.5kg |
Accessories (Standard) | |
Carton | Carton brown |
Remote Control w/ Battery | x 1(RCE013) |
Power Cord (by region) | x 1 (1.8m) |
User Manual CD | x 1 (24L) |
Quick Start Guide | x 1 (18L) |
Warranty Card (by region) | x 1 |
VGA(D-sub 15pin) Cable | x 1 (1.5m) |
Lens cover | x 1 |
OSD | |
OSD Language | Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/TraditionalChinese/Vietnamese /Farsi (30 Languages) |
