BenQ LH860ST 1080p Laser Golf Simulation Projector

SKU: LH860ST

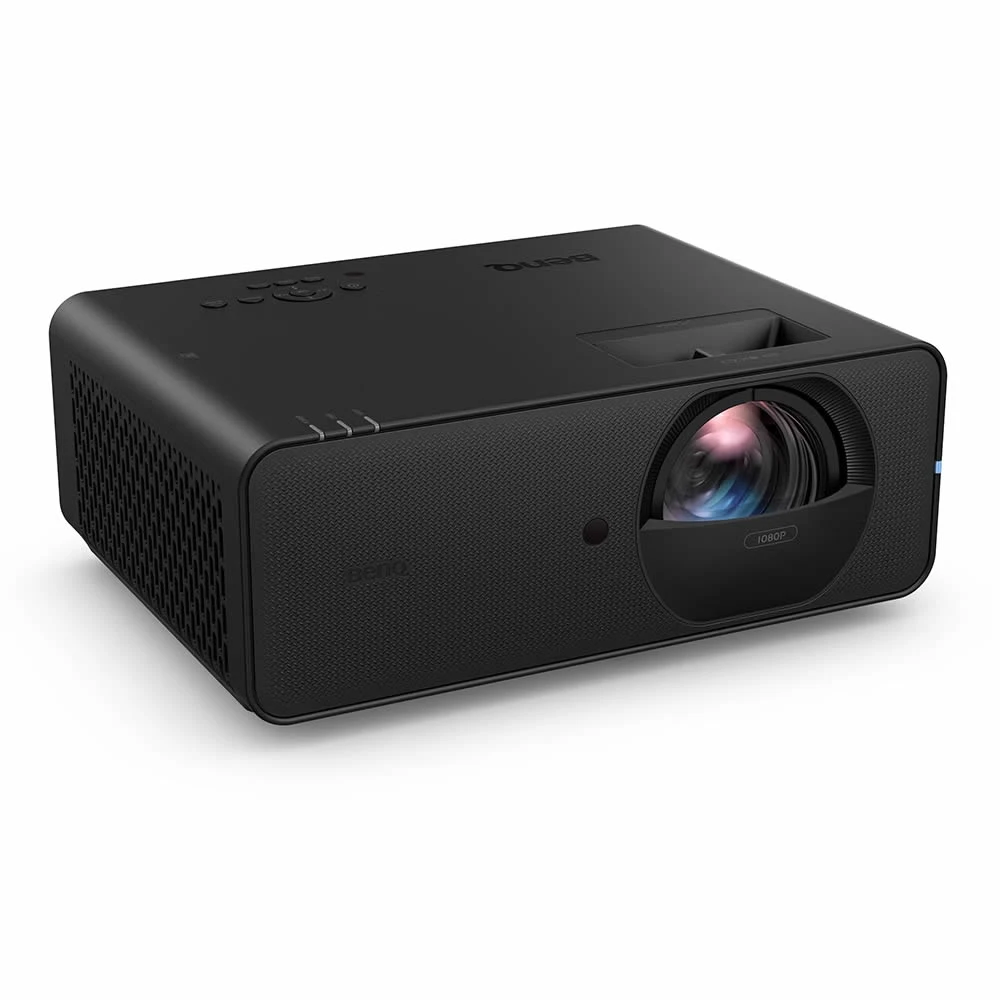

benq lh860st projector

$2,699

Includes GST • Prices in AUD

IN STOCK NOW
Great for Golf Simulators. FREE DELIVERY Limited Time Only
Insured Free Transit Cover
No Fees Surcharge Free
Local Support 1300 739 131

3yr warranty
australian stock
Laser
1080p resolution

Specifications

  • 1080p 1920 x 1080 16:9
  • 5,000 ANSI Lumens
  • 3,000,000:1 Contrast
  • 5.2kg Weight
  • 36 / 31db(eco) Fan Noise
  • 3 Year/20,000hr Warranty
  • 3 Year/20,000hr Laser Warranty
  • Est. Laser Life up to 30,000hrs

Key Features

  • 93% REC.709 Colour
  • Horizontal & Vertical Keystone
  • 10W Speaker
  • HDMI connections


BenQ LH860ST 1080p Laser Short Throw Golf Simulator Projector

If you're looking to set up a seriously immersive golf sim (or any short-throw setup) without eating up half your room, the BenQ LH860ST is an absolute gem. This laser beast pumps out a bright 5,000 ANSI lumens in full 1080p so your courses look sharp and vibrant even with some lights on, thanks to solid Rec.709 color accuracy and that huge 3,000,000:1 contrast. The 0.5 throw ratio means you can get a massive image from just a few feet away—perfect for floor-mounted setups or tight spaces—and BenQ's Screen Fill feature lets you switch aspect ratios (1:1, 4:3, 16:9, whatever your screen needs) with zero distortion. Add in super-low input lag (down to 6 ms at 240 Hz), a maintenance-free laser that lasts up to 20-30k hours, and IP6X dust protection, and you've got a projector that's bright, reliable, and ready to make every round feel like the real thing.

  • 0.5 short throw ratio for large image from short distance

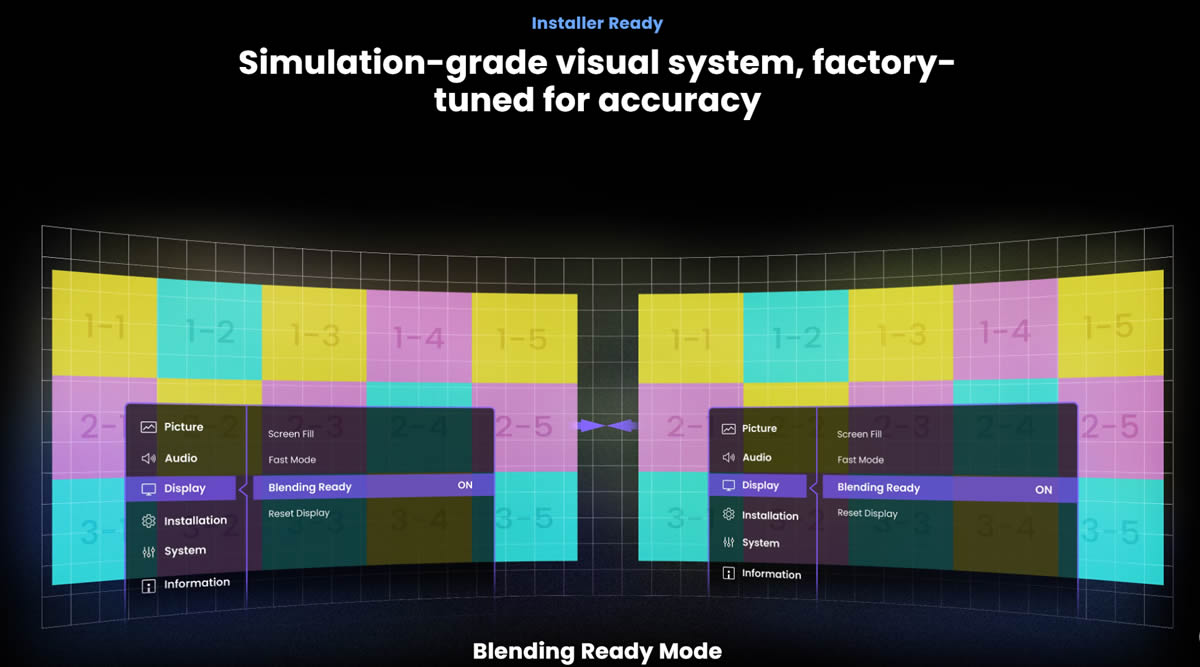

  • One-click preset configurations to prepare multi-projectors for blending
  • IP6X sealed engine with optional filter for optimal dust resistance and protection
  • Supports firmware updates via LAN to keep all devices up to date without physical access
  • Laser high visual 5000lms brightness

Optional Accessories

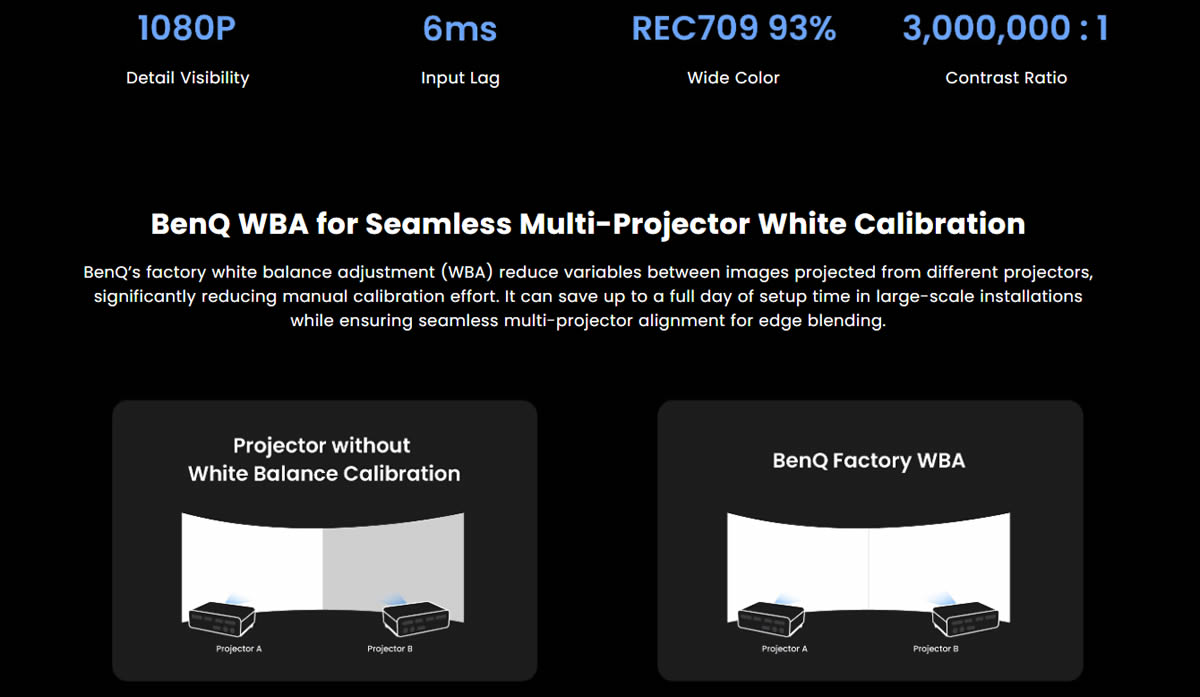

lh860st Features lh860st Immersive lh860st Image lh860st Blending lh860st Calibration lh860st Flexibility lh860st 200 Inch

Specifications
Display
Brightness (ANSI lumens) 5000
Native Resolution 1080P (1920x1080)
Native Aspect Ratio 16:9
Contrast Ratio (FOFO) 3,000,000:1
Display Color 30-bit (1.07 billion colours)
Light Source Laser
Light Source Life 20,000 hrs, ECO 30000 hrs

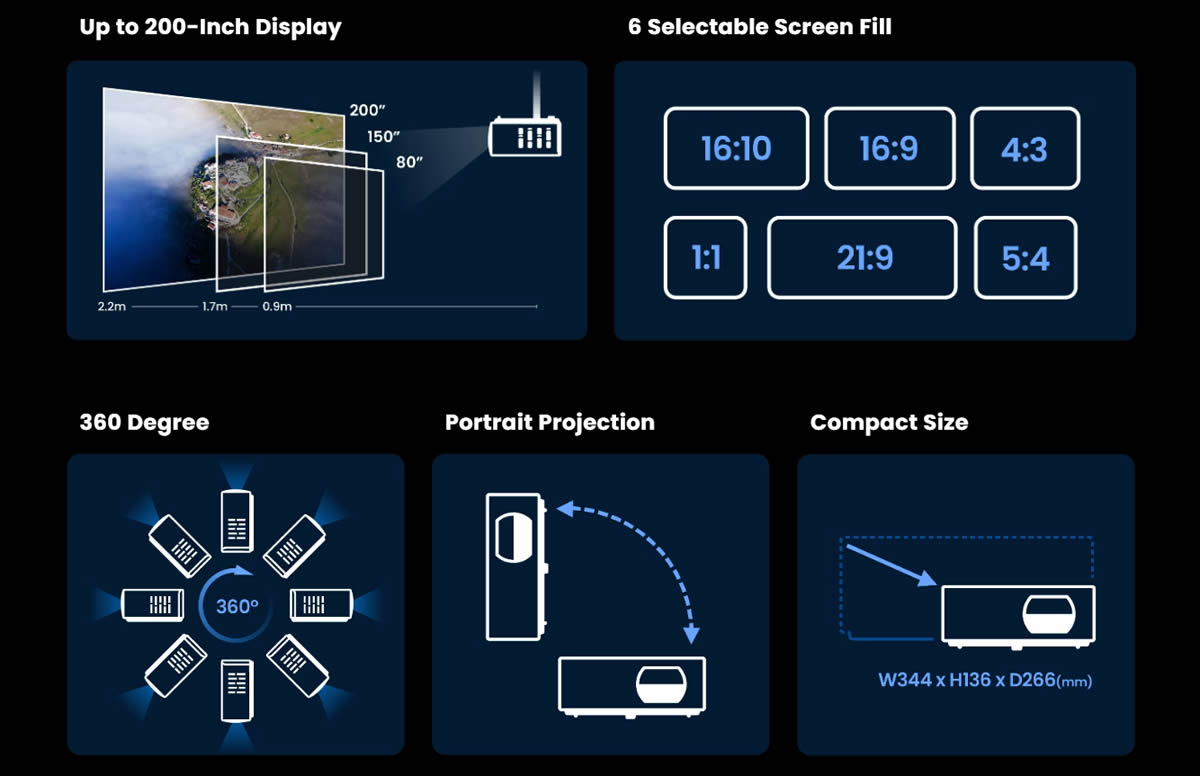

Screen Fill 16:9/16:10/4:3/1:1/21:9/5:4

Optical
Throw Ratio 0.5
Zoom Ratio Fixed
Lens F 2.0, f=5.28 mm
Projection Offset (Full-Height) 105%
Keystone Adjustment 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees

Rec. 709 Coverage 93%
Picture Modes Simulation, 3D, Bright, HDR10, HLG, Presentation, sRGB, User 1, User 2, Vivid
Compatibility
Input Lag 6 ms (1080P 240Hz), 8.4 ms (1080P 120Hz), 16.7 ms (1080P 60Hz)
Resolution Support VGA(640 x 480) to Full HD(1920 x 1080)
Horizontal Frequency 15K~135KHz
Vertical Scan Rate 23~240Hz
I/O Interface
HDMI in (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
Display Port (x1)
LAN (RJ45) (x1)
3D Sync out (x1), VESA
USB Type A (x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-2 (2.0/Power Supply1.5A)
RS232 in (DB-9pin) (x1)
DC 12V Trigger (3.5mm Jack) (x1)

Audio
Speaker (x1), 10W
Audio out (3.5mm Mini Jack) (x1)

Environment
Operating Temperature 0~40℃
Typical Power Consumption (110V) 281 W @100VAC
Stand-by Power Consumption 0.5W
Acoustic Noise (Typ./Eco.)(dB) 36/31

Accessories
Remote Control w/ Battery RCA011
Power Cord (by region) x1 (1.8M)
Quick Start Guide (x1) 8L
Warranty Card (by region) Yes

Dimension & Weight
Dimensions (WxHxD) (mm) 343.8 x 136.0 x 265.5 (mm)
Net Weight (kg) 5.2 Kg+/- 100g

What's in the Box
remote control
Remote Control

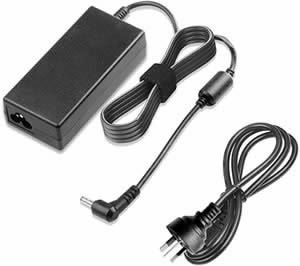

power cord
Power Cord

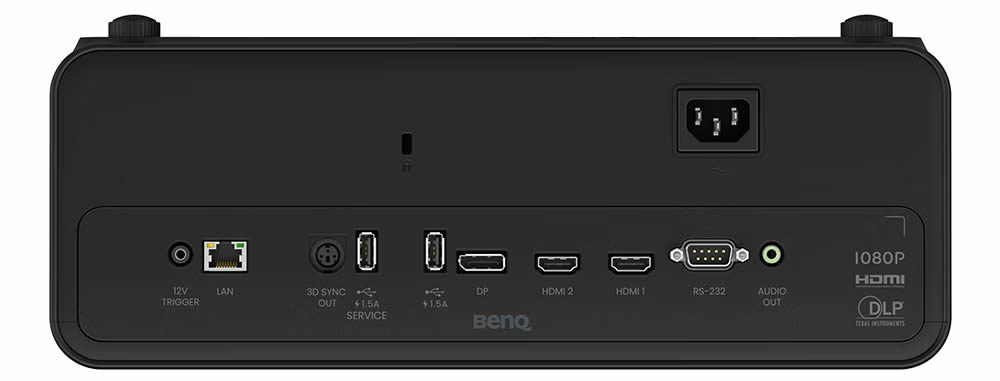

Rear Panel

lh860st rear panel
