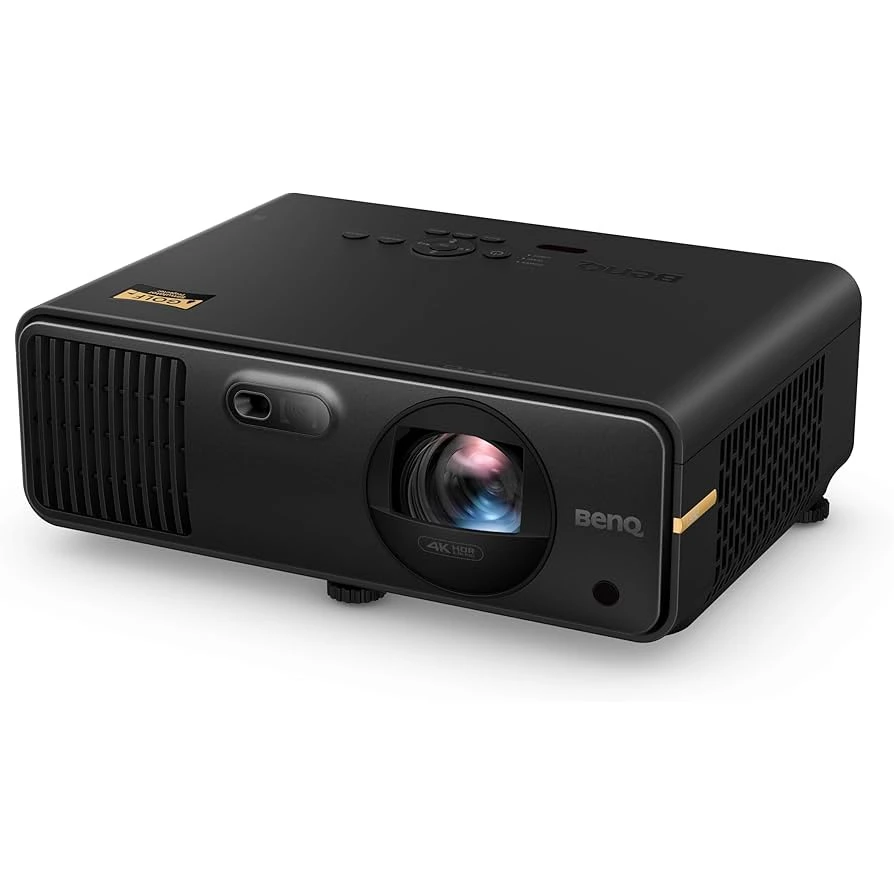

BenQ AK700ST 4K Laser Golf Simulation Projector
Specifications
- UHD 3840 x 2160 16:9
- 4,000 ANSI Lumens
- 3,000,000:1 Contrast
- 3.4kg Weight
- 32 / 29db(eco) Fan Noise
- 3 Year/20,000hr Warranty
- 3 Year/20,000hr Laser Warranty
- Est. LED Life up to 20,000hrs
Key Features
- 95% REC.709 Colour
- 1.2x Zoom
- Auto Screen Fit
- Auto Focus
- Horizontal & Vertical Keystone
- 10W Speaker
- HDMI connections
- HDMI Audio Return (eARC)
BenQ AK700ST Throw Distance Chart
Throw Ratio: 0.69-0.83:1| Image Size | Installation Distance | |
|---|---|---|
| 120" (16:9) 2657x1494mm | From 1.9m to 2.2m | |
| 150" (16:9) 3320x1867mm | From 2.3m to 2.7m | |
| 180" (16:9) 3985x2240mm | From 2.8m to 3.3m | |
| 200" (16:9) 4430x2490mm | From 3.1m to 3.6m | |
BenQ AK700ST 4K Laser Golf Simulator Projector
The BenQ AK700ST is offers an incredible feature for an easy golf simulator setup. Simply position the projector at the correct range and with one click the onboard camera will auto focus screen fit and adjust the aspect ratio for a perfect image up to a 200inch size. With a dust proof long life laser you will be able to practice for hours with no need for worry of replacement lamps or down time. With accurate colour and a bright crisp 4K image the AK700ST can also be used with movies and home entertainment.
- Enjoy seamless transitions with exclusive Auto Screen Fit for full-screen projection at the touch of a button.
- BenQ's exclusive golf color modes for an immersive experience
- Set it and forget it - Dustproof and Laser light source
Optional Accessories
Seamless Swinging and Movie Transitions
The AK700ST is BenQ's dedicated golf simulation projector, offering cinematic-grade 4K resolution and a unique remote control for easy setup. Eliminate the hassle of adjusting screen ratios and effortlessly enjoy a complete 4K entertainment experience with family and friends.
Building Your Golf Theater Combo?
Common Setup Issues in Your Golf Theater
Projector Placement Challenge
Identifying the projector throw ratio, and moving the slider rail for the optimal position takes time.
Complex Process to Fill Up the Screen
With math calculation, go into graphic card setting, and back and forth to settle down.
Difficulty with Focus Adjustment
Most projectors had their focus ring on the projector itself. Climbing up the ladder for manual focus is un-user-friendly.
One Projector, Two Experiences
With the BenQ AK700ST, your all-in-one projection solution, effortlessly switch aspect ratios with just one button, ensuring full-screen enjoyment without wasting time on settings.
Auto Screen Fit
Automatically detects and adjusts to your impact screen’s aspect ratio, maintaining optimal resolution.
*Note:
- Auto Screen Fit supports 16:9, 16:10, 4:3, and 1:1 aspect ratios.
- For non-standard aspect ratios, please view the video and adjust via graphic card settings.
- Enclosure or screen black border requires at least 6 cm of width.
Quick Focus
Press the Quick Focus button on the remote control and make slight manual adjustments to effortlessly deliver clear images.
Safe Short-Throw Solution
The AK700ST enables a safe and shadow-free location for your swing.
Traditional short throw projectors: Positioned too close to the hitting area, creates potential collision risks.
AK700ST: Positioned behind the hitter, lowering collision risks and eliminating shadows.
Up to 200-Inch Display
AK700ST features a professional-grade motorized lens with 1.2x optical zoom flexibility. Easily adjust screen size without reinstalling, ensuring no loss in picture quality
4K Detail Visibility
With true 4K resolution and 830 million pixels, AK700ST reveals every detail of the golf course terrain and grass, enhancing texture richness.
Perfect for Any Lighting
The AK700ST's laser light source delivers 4000 lumens of brightness and high contrast, ensuring stunning visuals in any lighting condition.
Lights On: Clear contrast and vibrant colors even in a well-lit living room.

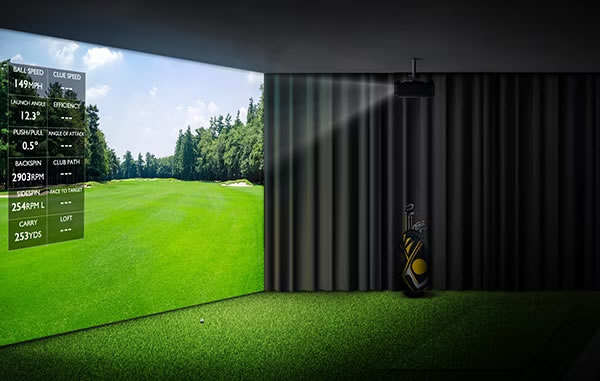

Lights Off: Sharp contrast and vivid colors in low-light settings.
True-to-Life Golf Course Colors
Experience authentic colors from the start with BenQ's exclusive Golf Mode, tailored for different golf course environments that ensure an immersive experience from the most famous courses in the world.

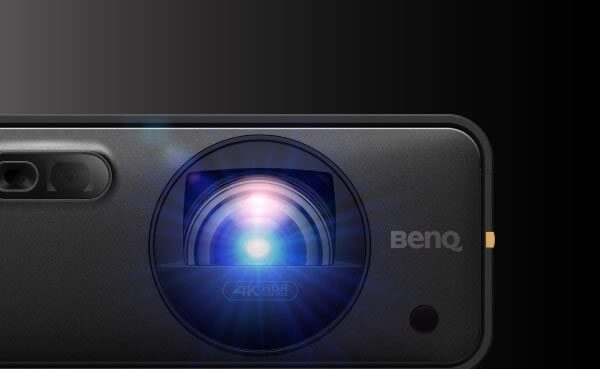

Durable Laser Technology
The AK700ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.
Green Technology, Efficient Performance
AK700ST reduces energy consumption by 15% compared to traditional lamp projectors and features a chassis made from post-consumer recycled materials. Plus, it's TUV and UL-certified.
| Display | |
| Brightness (ANSI lumens) | 4000 |
| Native Resolution | 4K UHD (3840×2160) |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio (FOFO) | (w/ Lightsource Dimming), 3,000,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | Laser |
| Light Source Life | 20,000 hrs |
| Optical | |
| Throw Ratio | 0.69-0.83 |
| Zoom Ratio | 1.2x |
| Lens | F/2.53(Wide), f = 10.2mm(Wide) |
| Projection Offset (Full-Height) | 102.5% |
| Keystone Adjustment | 3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees |
| Picture | |
| Rec. 709 Coverage | 95% |
| Picture Modes | 3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2 |
| Compatibility | |
| Input Lag | 33.4 ms (1080P 60Hz) |
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Horizontal Frequency | 15K~135KHz |
| I/O Interface | |
| HDMI in | (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2) |
| USB Type A | (x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-3 (2.0/Wireless Dongle) |
| USB Type C | (x1), Display Port with PD out 5V/1A |
| RS232 in (DB-9pin) | (x1) |
| Audio | |
| Speaker | (x1), 10W |
| HDMI Audio Return | eARC, 7.1 channel |
| Environment | |
| Operating Temperature | 0~40℃ |
| Typical Power Consumption (110V) | 212W |
| Stand-by Power Consumption | 0.5W |
| Acoustic Noise (Typ./Eco.)(dB) | 32/29 |
| Accessories | |
| Wireless USB dongle | EZC-5201BS 1080p, (Optional) |
| Remote Control w/ Battery | RCA011 |
| Power Cord (by region) | x1 (1.8M) |
| Quick Start Guide | (x1) 21L |
| Warranty Card (by region) | Yes |
| Dimension & Weight | |
| Dimensions (WxHxD) (mm) | 303.5 x 112.4 x 234.5 |
| Net Weight (kg) | 3.4 Kg +/- 100g |
Remote Control
Power Cord
Rear Panel
