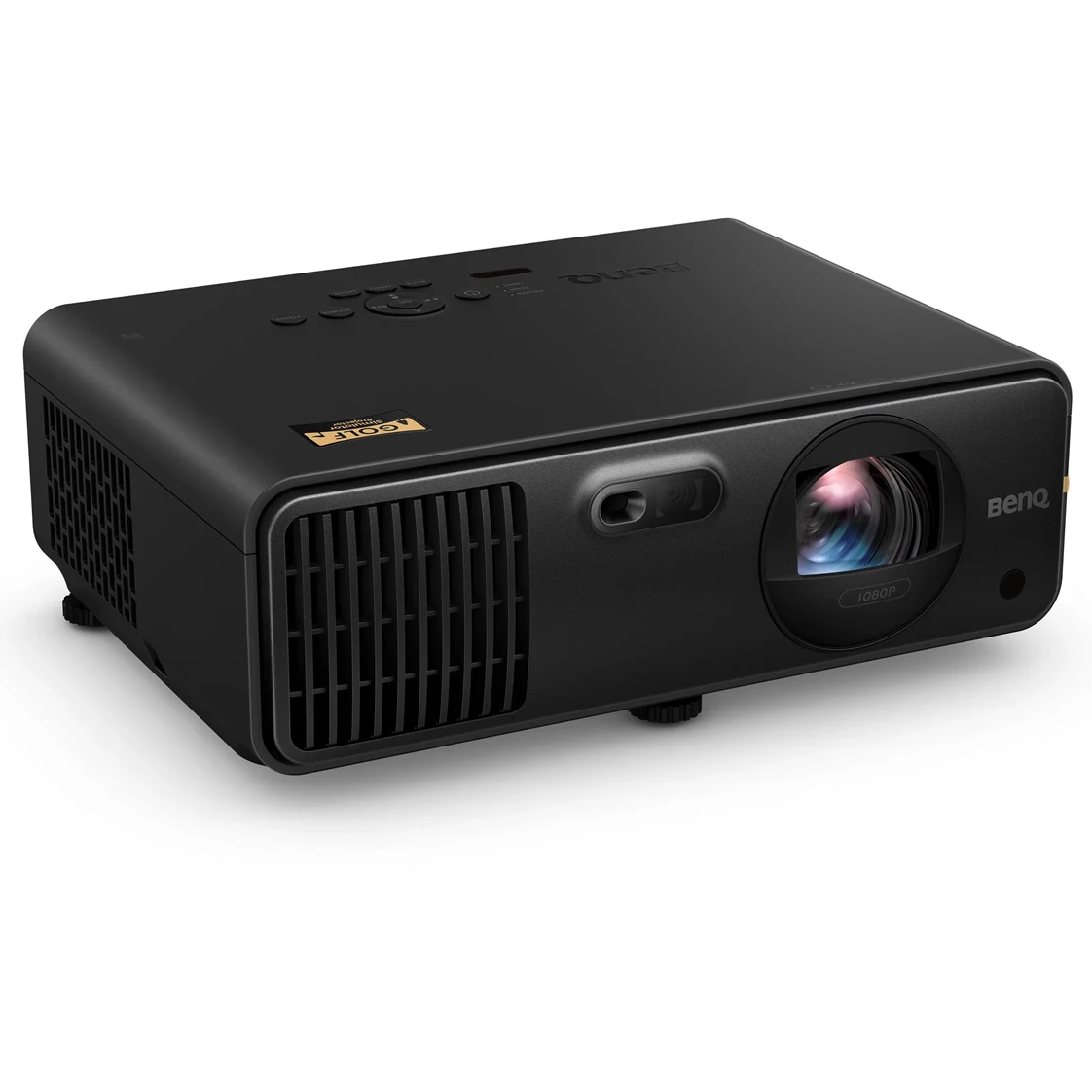

BenQ AH700ST Full HD Laser Golf Simulation Projector
Specifications
- 1080p 1920 x 1080 16:9
- 4,000 ANSI Lumens
- 3,000,000:1 Contrast
- 3.4kg Weight
- 32 / 29db(eco) Fan Noise
- 3 Year/20,000hr Warranty
- 3 Year/20,000hr Laser Warranty
- Est. LED Life up to 20,000hrs
Key Features
- 95% REC.709 Colour
- 1.2x Zoom
- Auto Screen Fit
- Auto Focus
- Horizontal & Vertical Keystone
- 10W Speaker
- HDMI connections
- HDMI Audio Return (eARC)
BenQ AH700ST Throw Distance Chart
Throw Ratio: 0.69-0.83:1| Image Size | Installation Distance | |
|---|---|---|
| 120" (16:9) 2657x1494mm | From 1.9m to 2.2m | |
| 150" (16:9) 3320x1867mm | From 2.3m to 2.7m | |
| 180" (16:9) 3985x2240mm | From 2.8m to 3.3m | |
| 200" (16:9) 4430x2490mm | From 3.1m to 3.6m | |
BenQ AH700ST Full HD Laser Golf Simulator Projector
The BenQ AH700ST is purpose built for golf simulation with exclusive golf colour modes for authentic greens and an amazing auto setup camera inbuilt into the projector for easy zoom, focus and aspect ratio changes. With a laser light source built for long term reliability it is perfect for even the most enthusiastic golfer and featuring a dust proof sealed optical engine it is built to withstand garage conditions. The 4000 ANSI lumens is perfect for large screen projection and a short throw lens to achieve a good range without casting a golfers shadow.
- Automatically adjusts to your impact screen in seconds
- Golf mode delivers realistic grass and sand
- Set it and forget it - Dustproof and Laser light source
Optional Accessories
Golf Simulation without the Hassle
One button setup will automatically adapt to nearly any screen. Start playing golf faster and easier than ever before.
Almost Any Size and Any Shape from Any Angle
AH700ST's auto-sensing technology corrects and calibrates the screen with the press of a button, simplifying setup for mounting flexibility.
Auto Screen Fit
Automatically detects and adjusts to your impact screen’s aspect ratio, maintaining optimal resolution.
*Note:Auto Screen Fit supports 16:9, 16:10, 4:3, and 1:1 aspect ratios.
For non-standard aspect ratios, please view the video and adjust via graphic card settings.
Enclosure or screen border requires at least 2 inches of width.
Motorized Auto Focus
Press the Focus button on the remote control as well as make slight adjustments to deliver sharp images.
Safe Short-Throw Solution
The AH700ST enables a safe and shadow-free location for your swing.
Traditional short throw projectors: Positioned too close to the hitting area, creates potential collision risks.
AH700ST: Positioned behind the hitter, lowering collision risks and eliminating shadows.
Up to 200-Inch Display
AH700ST features a professional-grade motorized lens with 1.2x optical zoom flexibility. Easily adjust screen size without reinstalling, ensuring no loss in picture quality.
Perfect for Any Lighting
AH700ST's laser light source delivers 4000 lumens of brightness, 95% Rec. 709 color accuracy, and high contrast, ensuring stunning visuals in any lighting condition.
Lights On: Clear contrast and vibrant colors even in a well-lit living room.
Lights Off: Sharp contrast and vivid colors in low-light settings.
True-to-Life Golf Course Colors
Experience authentic colors from the start with BenQ's exclusive Golf Mode, tailored for different golf course environments that ensure an immersive experience from the most famous courses in the world.
Durable Laser Technology
The AH700ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.
Green Technology, Efficient Performance
AK700ST reduces energy consumption by 15% compared to traditional lamp projectors and features a chassis made from post-consumer recycled materials. Plus, it's TUV and UL-certified.
| Display | |
| Brightness (ANSI lumens) | 4000 |
| Native Resolution | 1080P (1920x1080) |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio (FOFO) | (w/ Lightsource Dimming), 3,000,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | Laser |
| Light Source Life | 20,000 hrs |
| Optical | |
| Throw Ratio | 0.69-0.83 |
| Zoom Ratio | 1.2x |
| Lens | F/2.53(Wide), f = 10.2mm(Wide) |
| Projection Offset (Full-Height) | 102.5% |
| Keystone Adjustment | 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees |
| Picture | |
| Rec. 709 Coverage | 95% |
| Picture Modes | 3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2 |
| Compatibility | |
| Input Lag | 33.4 ms (1080P 60Hz) |
| Resolution Support | VGA(640 x 480) to Full HD(1920 x 1080) |
| Horizontal Frequency | 15K~135KHz |
| I/O Interface | |
| HDMI in | (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2) |
| USB Type A | (x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-3 (2.0/Wireless Dongle) |
| USB Type C | (x1), Display Port with PD out 5V/1A |
| RS232 in (DB-9pin) | (x1) |
| Audio | |
| Speaker | (x1), 10W |
| HDMI Audio Return | eARC, 7.1 channel |
| Environment | |
| Operating Temperature | 0~40℃ |
| Typical Power Consumption (110V) | 192W |
| Stand-by Power Consumption | 0.5W |
| Acoustic Noise (Typ./Eco.)(dB) | 32/29 |
| Accessories | |
| Wireless USB dongle | EZC-5201BS 1080p, (Optional) |
| Remote Control w/ Battery | RCA011 |
| Power Cord (by region) | x1 (1.8M) |
| Quick Start Guide | (x1) 21L |
| Warranty Card (by region) | Yes |
| Dimension & Weight | |
| Dimensions (WxHxD) (mm) | 303.5 x 112.4 x 234.5 |
| Net Weight (kg) | 3.3 Kg +/- 100g |
Remote Control
Power Cord
Rear Panel
