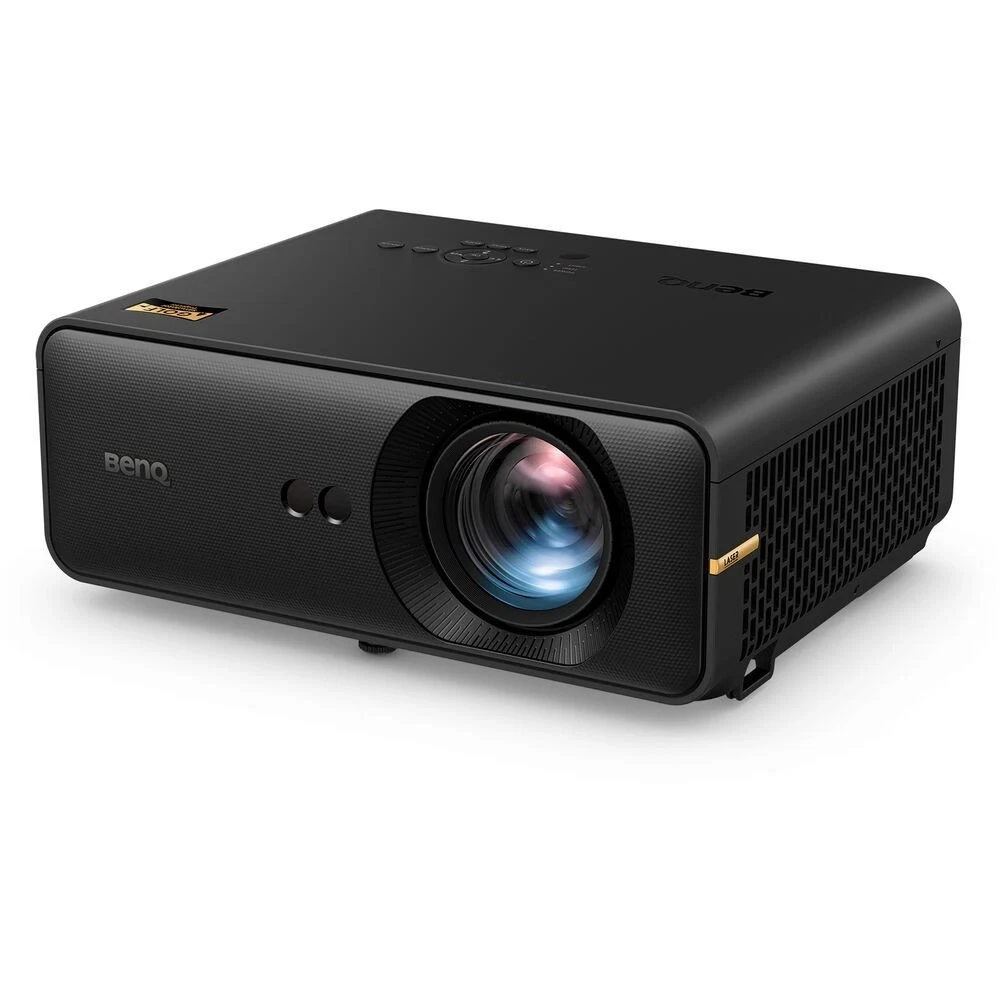

BenQ AH500ST Full HD Laser Golf Simulation Projector
Specifications
- 1080p 1920 x 1080 16:9
- 4,000 ANSI Lumens
- 3,000,000:1 Contrast
- 5.1kg Weight
- 35 / 32db(eco) Fan Noise
- 3 Year/20,000hr Warranty
- 3 Year/20,000hr Laser Warranty
- Est. LED Life up to 32,000hrs
Key Features
- 83% REC.709 Colour
- 0.5:1 Throw Ratio
- Auto Screen Fit
- Auto Focus
- Horizontal & Vertical Keystone
- 10W Speaker
- HDMI connections
BenQ AH500ST Throw Distance Chart
Throw Ratio: 0.499:1| Image Size | Installation Distance | |
|---|---|---|
| 120" (16:9) 2657x1494mm | Approx. 1.4m | |
| 150" (16:9) 3320x1867mm | Approx. 1.7m | |
| 180" (16:9) 3985x2240mm | Approx. 2.0m | |
| 200" (16:9) 4430x2490mm | Approx. 2.3m | |
BenQ AH500ST Full HD Laser Golf Simulator Projector
The AH500ST offers an extra short 0.5 throw ratio ideally suited to smaller spaces where you want the projector closer to the impact screen in a golf simulator. Powered by a long life laser light source the AH500ST eliminates the stress and worry of lamps replacements, downtime, or counting hours. With a dust proof sealed optical engine it is built tough for garage conditions and equipped with the newest auto setup system from BenQ it will have you golfing with ease.
- TR0.5 short throw ratio, perfect for limited spaces with low ceilings.
- BenQ Screen Fill automatically adjusts to 1:1, 4:3, 16:9, or 16:10 native resolutions.
- BenQ Exclusive Golf Mode presents a realistic color for Indoor Golfers.
- Set it and forget it - dustproof and laser light source.
Optional Accessories
Golf Simulation without the Hassle
The AH500ST BenQ entry-level projector is designed for home golf simulation in small spaces. Experience immersive gameplay with vibrant colors, optimal focal length, and easy installation features.
Safe Short-Throw Solution
The AH500ST enables a safe and shadow-free location for your swing.
Kickstart with BenQ's Planning Tool
Get started on the right foot with BenQ Golf-Sim 3D Planner tool, simplifying the initial installation process for first-timers.
Easy Installation for Beginners
To solve complex screen ratio, alignment, and focus issues, the BenQ AH500ST integrates commonly used installation functions into a dedicated remote control hotkey, eliminating the need for repetitive adjustments.
Screen Fill
BenQ's exclusive Screen Fill feature automatically switches to 1:1, 4:3, 16:9, or 16:10 native resolutions, ensuring the image fully fills the screen without distortion.
Quick Focus
Press the Focus button on the remote control as well as make slight adjustments to deliver sharp images.
Perfect for Any Lighting
The AH500ST's laser light source delivers 4000 lumens of brightness and high contrast, ensuring stunning visuals in any lighting condition.
Lights On: Clear contrast and vibrant colors even in a well-lit living room.
Lights Off: Sharp contrast and vivid colors in low-light settings.
True-to-Life Golf Colors
Experience authentic colors from the start with BenQ's exclusive Golf Mode, tailored for different golf course environments that ensure an immersive experience from the most famous courses in the world. With a default Golf Mode, presenting an exclusive experience for the golfers.
Durable Laser Technology
The AH500ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.
| Display | |
| Brightness (ANSI lumens) | 4000 |
| Native Resolution | 1080P (1920x1080) |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio (FOFO) | (w/ Lightsource Dimming), 3,000,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | Laser |
| Light Source Life | 20,000 hrs |
| Optical | |
| Throw Ratio | 0.499 |
| Zoom | Fixed |
| Lens | F#=2.8 f=7.46mm |
| Projection Offset (Full-Height) | 112% |
| Keystone Adjustment | 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees |
| Picture | |
| Rec. 709 Coverage | 83% |
| Picture Modes | 3D, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2 |
| Compatibility | |
| Input Lag | 16.7 ms (1080P 60Hz), 8.3 ms (1080P 120Hz) |
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Horizontal Frequency | 15K~135KHz |
| I/O Interface | |
| HDMI in | HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2) |
| LAN (RJ45) | (x1) |
| USB Type A | (x1), USB Type A-4 (2.0/Wireless Dongle) |
| USB Type Mini B | (x1), USB Type Mini B-1(service) |
| RS232 in (DB-9pin) | (x1) |
| Audio | |
| Speaker | (x1), 10W |
| Audio out (3.5mm Mini Jack) | (x1) |
| Environment | |
| Operating Temperature | 0~40℃ |
| Typical Power Consumption (110V) | 250W |
| Stand-by Power Consumption | 0.5W |
| Network Stand-by Power Consumption | <2W |
| Acoustic Noise (Typ./Eco.)(dB) | 35/32 |
| Accessories | |
| Wireless USB dongle | EZC-5201BS 1080p, (Optional) |
| Remote Control w/ Battery | RCE018 |
| Power Cord (by region) | x1 (3.0M) |
| Quick Start Guide | (x1) 18L |
| Warranty Card (by region) | Yes |
| Dimension & Weight | |
| Dimensions (WxHxD) (mm) | 320.0 x 130.6 x 255 |
| Net Weight (kg) | 5.1 Kg +/- 100g |
