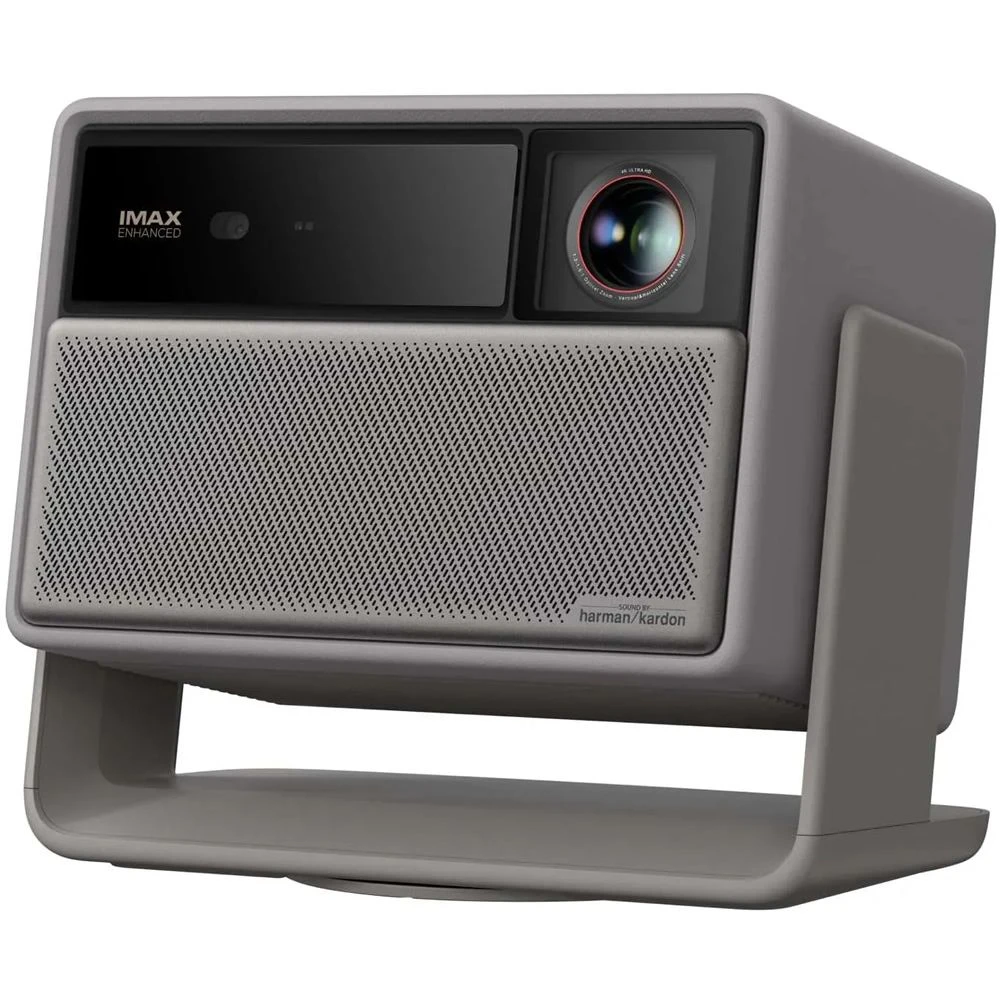

XGIMI Horizon 20 Pro Triple Laser 4K Home Theatre Projector

Display
Product Classification	Home Projector
Display Technique	DLP
3D	Yes
Latency (Game Mode, VRR on, AK off)	1ms at 1080P@240Hz 2.2ms at 1080P@120Hz 3ms at 4K@60Hz
Brightness	4100 ISO Lumens
Contrast Ratio	20,000:1 (DBLE On)
Eye Protection	Yes
Light Source	RGB Triple Laser
Display Chip	0.47” DMD
Supported Formats	HDR 10+, IMAX Enhanced, Dolby Vision
MEMC	Yes
Standard Resolution	3840 x 2160 pixels
Color Gamut	BT.2020 110%
Lens	High Light Transmission Coated Lens
Setup
Auto Keystone Correction	Uninterrupted Auto Keystone
Intelligent Screen Alignment	Yes

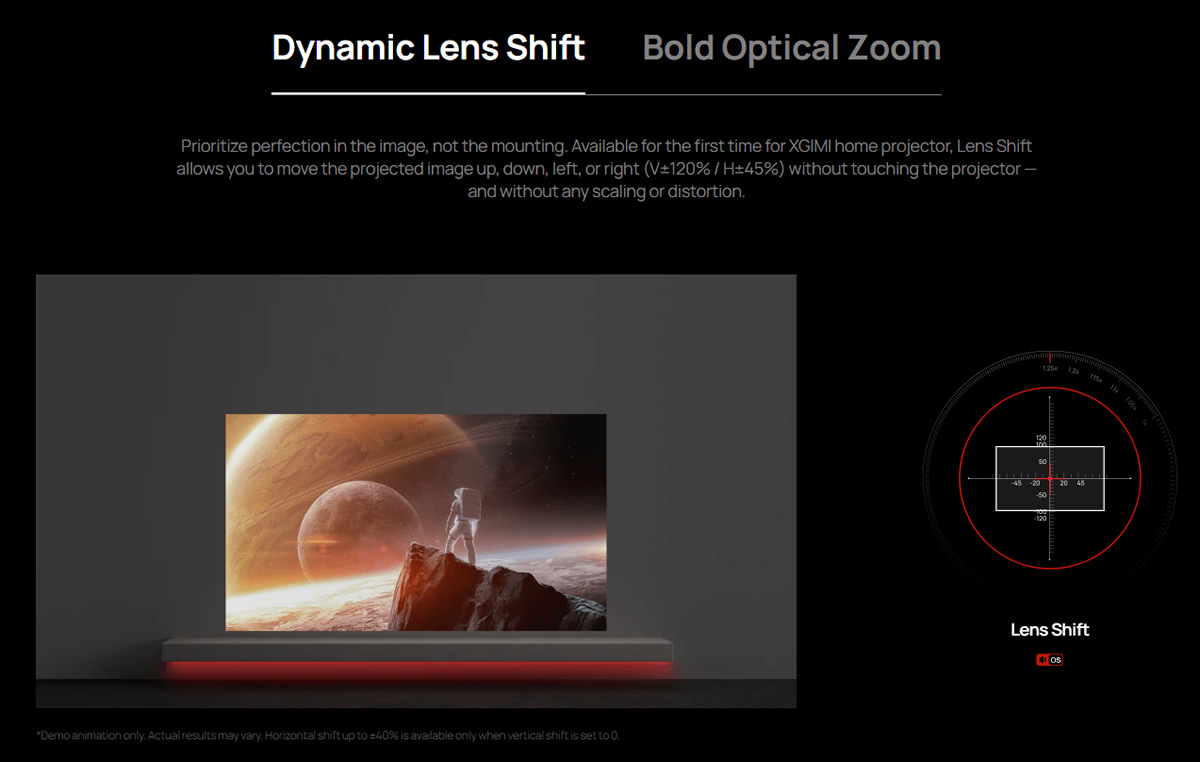

Lens Shift	V±120% / H±45%
Digital Zoom	Yes
Aspect Ratio	16:9
Image Size	40″ - 300″
Focus	Auto Focus
Intelligent Obstacle Avoidance	Yes
Optical Zoom	Yes
Throw Ratio	1.2 - 1.5:1
Projection Method	Front, Rear, Front Ceiling, Rear Ceiling
System
CPU	MT9679
GPU	Mali-G52
RAM	4GB
Storage	128GB
System	Google TV
Fast Boot	Yes (STR)
Mirroring Display	DLNA / GoogleCast
Audio & Connectivity
Speaker	2 x 12W Harman/Kardon
DTS-Virtual:X	Yes
DTS-HD	Yes
Dolby Audio	Yes
Dolby Digital (DD)	Yes
Dolby Digital Plus (DD+)	Yes
Wi-Fi	Wi-Fi 6 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

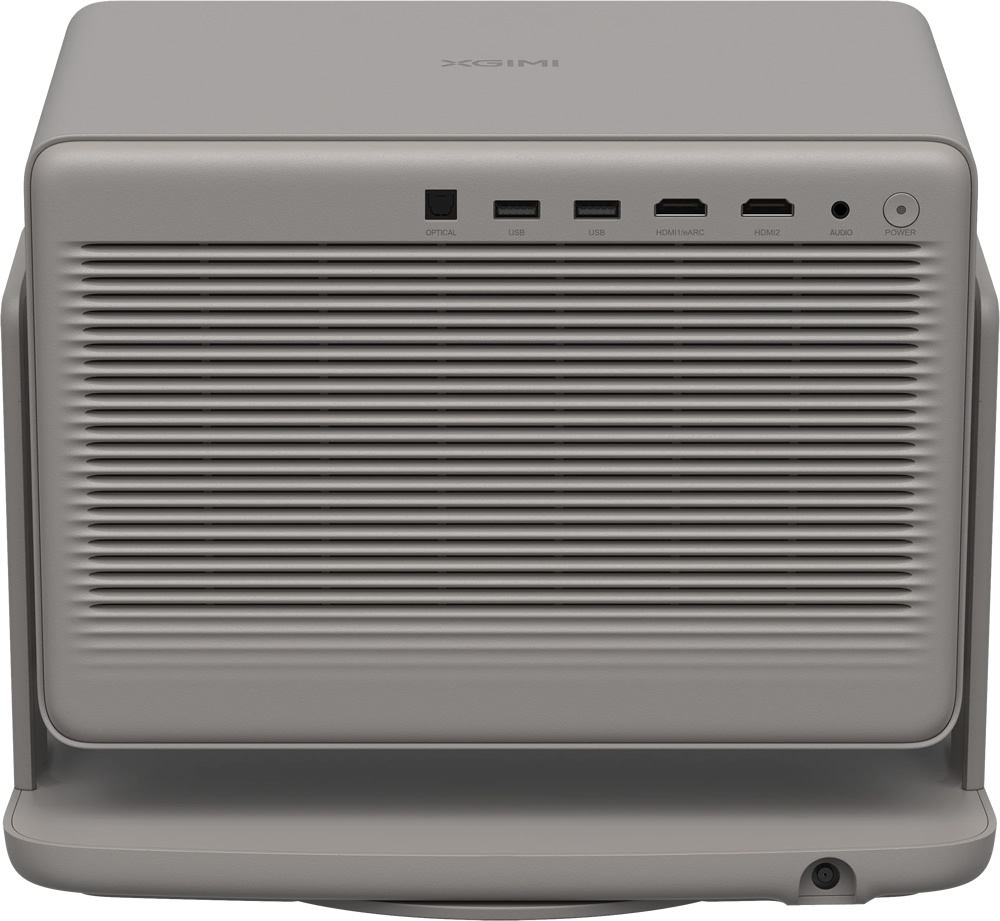

Input Ports	DC x 1 HDMI x 2 (HDMI1 supports eARC) USB 3.0 x 1, USB 2.0 x 1
Output Ports	Optical x 1, Audio x 1
Noise Level	≤28dB @ 1m
Power Dissipation	≤230W
Power	AC100-240V, 50/60Hz
Electrical
Noise Level	<28dB@1m 7
Power	AC100-240V, 50/60Hz
Measurements
Product Size (H x W x D)	249 x 298 x 190 mm
Product Weight	4.9kg

1. Brightness (light output) will vary depending on usage conditions. White light output measured in accordance with ISO 21118. The nominal value represents the average value of mass production and is tested under ideal laboratory conditions in the performance mode/high power mode.

2. For the best viewing experience. we recommend using a projection size of 60-120 inches. Exceeding this range may affect the quality of your projected content. The display quality may vary based on product usage habits and environmental conditions.

3. Android TV is a trademark of Google LLC.

4. Router required.

5. 25,000 hours is the theoretical lifespan of the light source. The actual lifespan may vary due to differences in environmental conditions, product usage habits and the mode selected.

6. The actual storage capacity is subject to change based on various factors, such as system usage, software version, and settings used.

7. Measured under an ambient temperature of 25°C with a 1-meter distance from the machine. Results may vary based on different testing environments, conditions, and the product being evaluated. This data comes from XGIMI laboratories.

8. The measured size may vary based on configuration, manufacturing, and measurement method.

9. The measured weight may vary based on configuration, manufacturing process, and measurement method.

* Actual product features and specifications (including appearance, color, and size) and actual display aspects (including backgrounds, interface, and icons) may vary by country. Please consult the point of sale for further information.

* All performance data in the preceding pages are theoretical values obtained by XGIMI internal laboratories through tests conducted under particular conditions. Refer to the aforementioned product details for more information on the specific testing conditions. Actual performance may vary based on individual product configurations. software versions, application conditions, and environmental factors. All data is subject to actual usage.

* XGlMl makes every effort at the time of publication to ensure the accuracy of product information it provides. Due to subsequent changes involving product batches, production, and supply factors, it may be necessary for XGlMl to make changes and adjustments to text and images so that they match the performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.

* Operating temperature: 0℃to 40℃.

* All parameters listed on this page are measured in an XGIMl internal test environment for mass production. User experiences may vary in different settings, usage conditions, software versions, etc. Please check the official XGlMl website for detailed test standards and data.

* The product will be attached with a printed manual. However, the electronic manual will be updated on the XGlMl website.

* The typical value of ΔE≈1 for color accuracy in the factory production of XGIMI HORIZON Ultra is obtained from the XGIMI Optical Laboratory. The calibration parameters will take effect when the high color accuracy mode is correctly activated in the system. Color accuracy may vary slightly depending on factors such as projection usage time and lab testing equipment. Please refer to your actual experience for an accurate assessment.

* SGS Certification Number: PT/23/GEN/0063

* The Wall Color Adaption feature needs to be enabled in the system settings to take effect. Once activated, it can calibrate the picture based on wall colors with a color temperature ranging from 3000K to 15000K. However, the calibration effect may vary depending on the wall color. For optimal results, we recommend using it in dimly lit environments.

* All of XGIMI’s currently available floor stands and ceiling mounts are incompatible with HORIZON Ultra.
