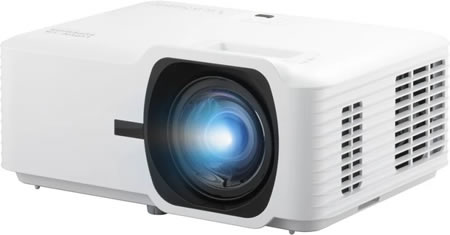

ViewSonic LS711HD 4,200lm Short Throw Laser Projector

viewsonic ls711hd
Delivery

$3,199 $2,599

Save $600. Extended Till 14th Sept

special

PREORDER - Stock Due 12th Sept

Found a better deal? Request a price match here!


3 year warranty
australian stock
laser
1080pk resolution

Specifications

  • 1080p 1920 x 1080 16:9
  • 4200 ANSI Lumens
  • 3,000,000:1 Contrast
  • 3.15kg Weight
  • 30 / 24db(eco) Fan Noise
  • 3 Year Warranty
  • 3 Years/10,000hrs Laser Warranty
  • Est. Laser Life up to 30,000hrs

Key Features

  • 2x HDMI Connections
  • Horizontal & Vertical Keystone
  • Powerful 15W Speaker
  • 360° Installation
  • Portrait Projection
  • IP6X Dust Resistant Optical Engine

Viewsonic LS711HD Throw Distance Chart

Throw Ratio: 0.496:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
92" (16:9) 2030x1140mm Approx. 1.0m
100" (16:9) 2214x1245mm Approx. 1.1m
110" (16:9) 2435x1370mm Approx. 1.2m
120" (16:9) 2657x1494mm Approx. 1.3m
135" (16:9) 2990x1681mm Approx. 1.5m
150" (16:9) 3320x1867mm Approx. 1.6m

ViewSonic LS711HD 4200 Lumens Full HD Short Throw Laser Projector

The Viewsonic LS711HD is a powerful compact laser projector with a long life solid state laser light source for stress free use with no lamp replacements to worry about. The sealed optical engine means there are no filters to clean or worry about. It can operate in a range of environments including for golf simulation typically in garages and sheds. The 0.49 short throw lens is perfect for massive projection in tight spaces and it is backed with a peace of mind 3 year warranty.


Optional Accessories


Viewsonic LS711HD Projector Reviews:

LS711HD review
Projector Central Review

Lighter and much smaller than the projector it replaces, ViewSonic's LS711HD is a big evolutionary update for short throw projectors. It not only pumps out more than 4,200 ANSI lumens of light but shows HD imaging and its sealed optics and laser illumination mean that it is just about maintenance free and should last for years of typical use.

  • Smaller and lighter than predecessor
  • Sealed optics with no need for dust filter
  • Long-lived laser illumination
  • Optional wireless casting kit


Features

  • 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
  • 4,200 ANSI Lumens offering bright images in any environment
  • High native contrast ratio achieved through Texas Instruments 0.65" DMD chip
  • 0.49 short throw for seamless edge-blending without shadows
  • Compact size and light weight reducing cost of transportation and installation
  • Installation flexibility: H/V keystone correction, 360° projection, and portrait mode

OVERVIEW

The LS711HD belongs to ViewSonic’s Luminous Superior series, a lamp-free high-brightness projector lineup designed for commercial and educational spaces. With its adoption of the 3rd generation laser phosphor technology, it delivers 4,200 ANSI Lumens for up to 30,000 hours, ensuring bright and vivid images without lamp replacement. The lamp-free design offers an eco-friendly and cost-effective solution, while the projector‘s lightweight and compact design reduces transportation costs. With a 0.49 short throw ratio, the projector can deliver a seamless image on a 100” screen from just 1.1 m away without shadows, which enables effortless edge blending to create an immersive experience. This projector features a H/V keystone correction with 4 corner adjustment, 360° projection, and a portrait mode for easy setup and versatile applications.

Bright, Compact, Durable

The LS711HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

3rd Generation Laser Phosphor Technology

LS711HD Laser

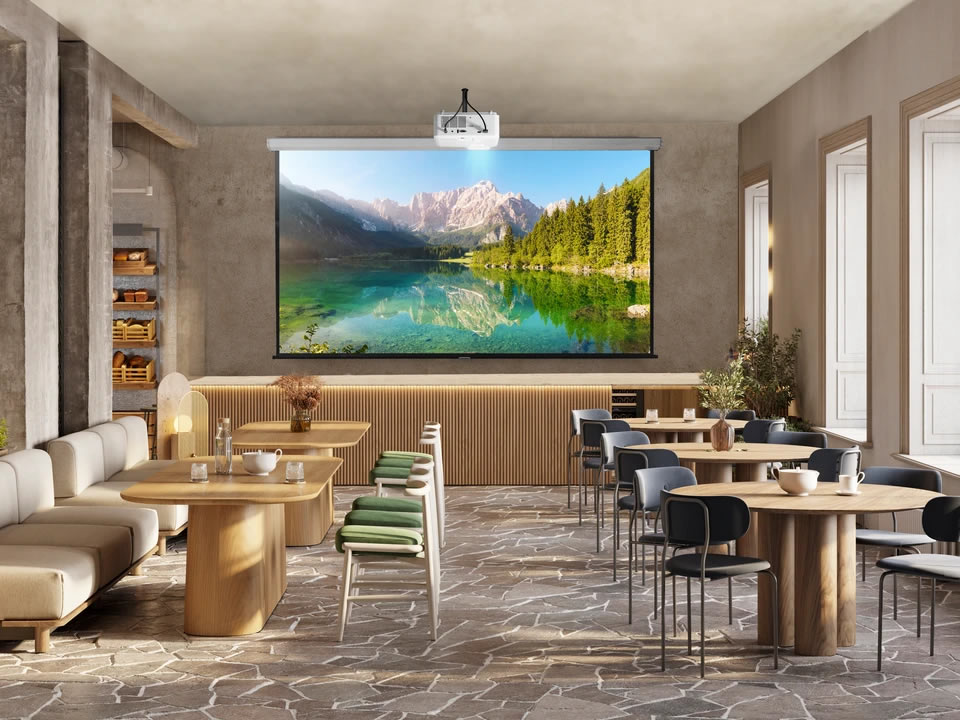

Bright Images for Large Venues

Delivering 4,200 ANSI Lumens, the LS711HD provides vibrant and sharp projection in 1080p FHD in all lighting conditions for auditoriums, boardrooms, public venues, and other expansive spaces.

4,200 ANSI Lumens

LS711HD Brightness

Unmatched Contrasts, Enhanced Visibility

The projector's high native contrast ratio, achieved through its Texas Instruments 0.65" DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.

High Native Contrast Ratio

LS711HD Contrast

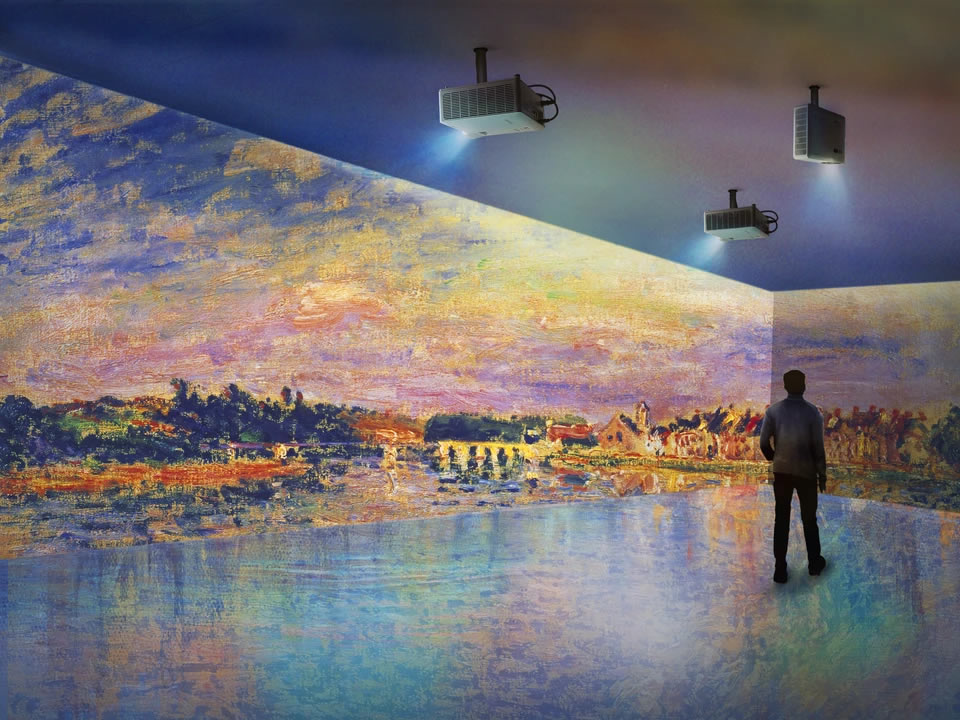

No Shadows, No Blinding Lights

The 0.49 short throw offers a 100” visuals from only 1.1 m away. When projecting onto a wall, there are no distracting shadows, providing seamless edge-blending for immersive viewing experience.

0.49 Short Throw Ratio

LS711HD Short throw

Ultra-large Screen with Lower Cost-per-inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.

Up to 300”

LS711HD Size

Easy and Cost-effective Installation

The LS711HD is 35% lighter in weight and 35% smaller in size compared to its predecessor and even most competing projectors in the market, greatly reducing the cost of transportation and increasing the ease of installation.

Lighter Weight, Compact Size

LS711HD Smaller

Save on Costs and Energy

With its advanced lamp-free light source, the LS711HD offers a highly energy-efficient and cost-saving display solution by consuming up to 51% less power than competing projectors.

Less Power Consumption

LS711HD Power Usage

Get Perfectly-shaped Images Effortlessly

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

H/V Keystone Correction, 4 Corner Adjustment

LS711HD 4 Corner Correction

Versatile Creative Applications

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

360° Projection, 90° Portrait Mode

LS711HD 360 degree

Present the Best with Vibrant Colors

Impress any audience with ViewSonic’s exclusive color technology, elevating your presentation with a true-to-life color experience.

LS711HD Colour

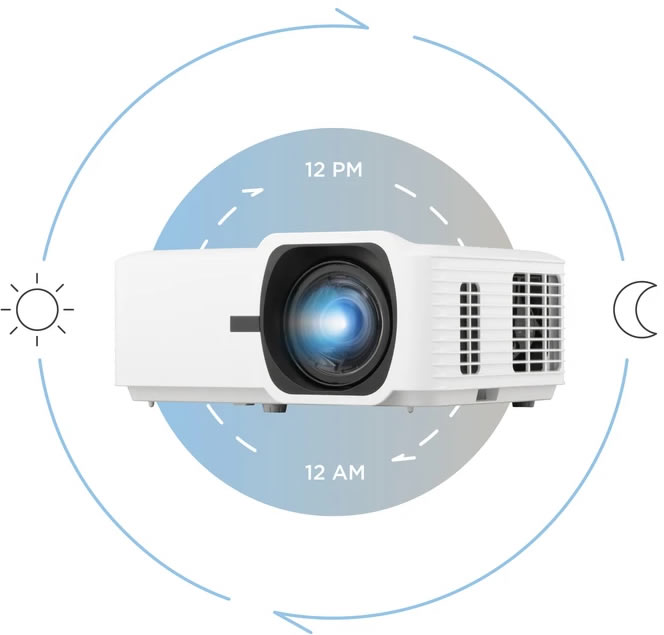

Non-stop 24/7 Operation

The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.

LS711HD 24/7 Operation

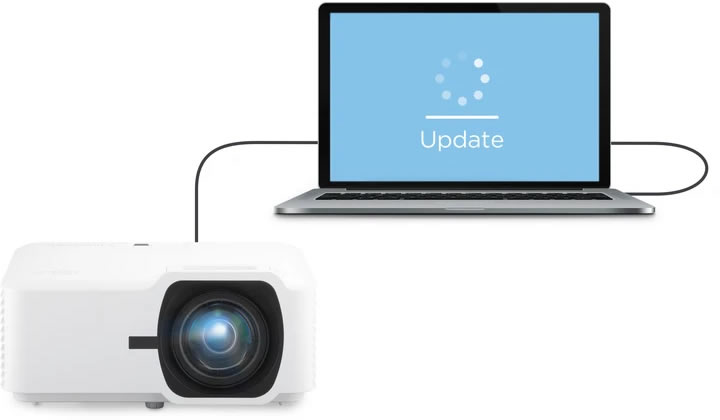

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily via USB cable connection with your own laptop.

LS711HD Update

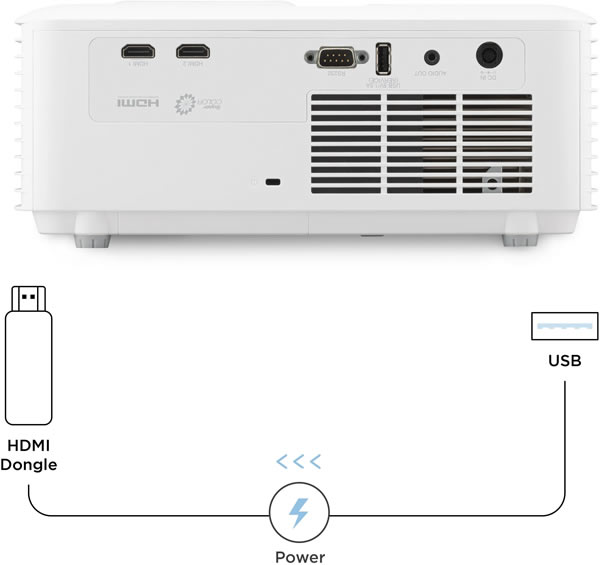

Directly Power Wireless HDMI Dongle

The built-in 5V/1.5A USB-A output conveniently delivers power to a wireless HDMI dongle, eliminating the need for separate power adapters when streaming multimedia content.

USB-A Power Supply

LS711HD USB Power

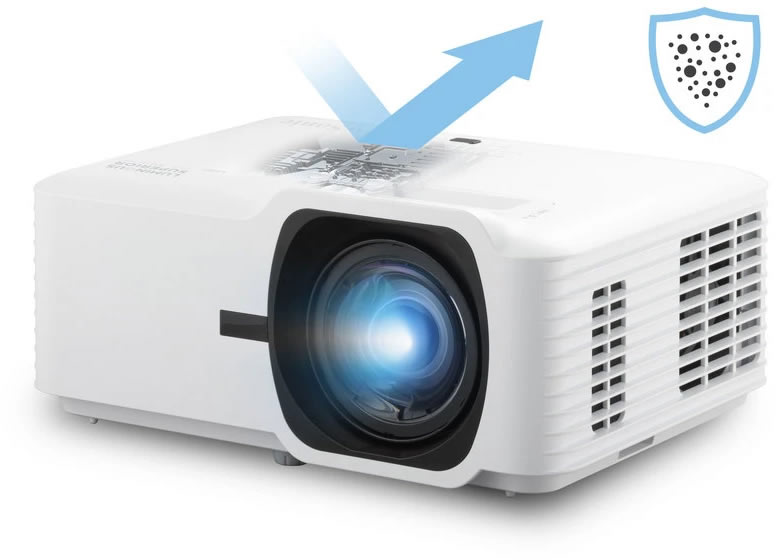

Enhanced Dust Resistance

Maintain crystal-clear image quality and product longevity with an advanced IP6X sealed engine design that prevents dust from entering and affecting internal components.

IP6X

LS711HD IP6X
Specifications
Native Resolution:1920x1080
DMD Type:DC3
Brightness:4200 (ANSI Lumens)
Contrast Ratio:3000000:1
Display Color:1.07 Billion Colors
Light Source Type:Laser Phosphor system
Light Source Life (hours)up to 20,000 (Normal Mode)
Light Source Life (hours)up to 30,000 (SuperEco Mode)
Lens:Lens: F=2.8, f=7.51mm
Projection Offset:132%+/-5%
Throw Ratio:0.496
Optical Zoom:Fixed
Digital Zoom:0.8x-2.0x
Image Size:35-300"
Throw Distance:0.38-3.29m
(100"@1.10m)
Keystone:H:+/-15° , V:+/-15°
Audible Noise (Normal):30dB
Audible Noise (Eco):24dB
Input Lag:49.5ms
Resolution Support:VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB-Reduced Blanking
HDTV Compatibility:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency:15K-102KHz
Vertical Scan Rate:24-120Hz
Inputs
HDMI:HDMI: 2 (HDMI 1.4/ HDCP 1.4)
Output
Audio-out (3.5mm):1
Speaker:15W
USB Type A (Power):1 (5V/ 1.5A)
Control
RS232 (DB 9-pin male):1
USB Type A1 (share with USB A Output)
Others
Power Supply Voltage:Input: 100~240V
Output: 19.5VDC / 11.79A
Power Consumption:Normal: 210W, Standby: <0.5W
Operating Temperature:0~40℃
Net Weight:3.15
Dimensions (WxDxH) with Adjustment Foot:286x216x129mm
OSD Language:English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
Standard Accessory
Power Cord:1
Remote Control:1 , (w/ laser pointer)
QSG:Yes

What's in the Box
remote control
Remote Control
power adapter
Power Adapter

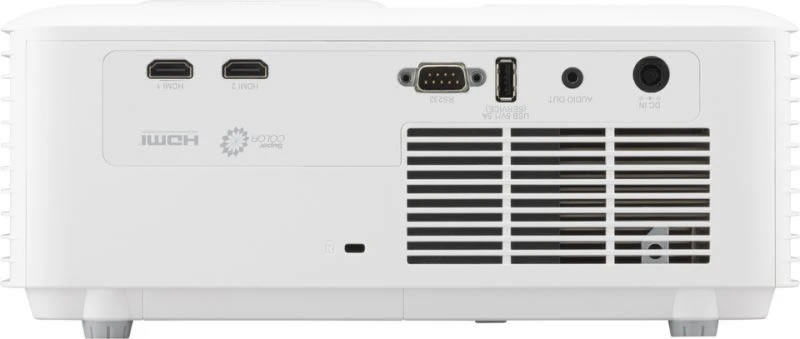

Rear Panel

ls711hd rear panel
