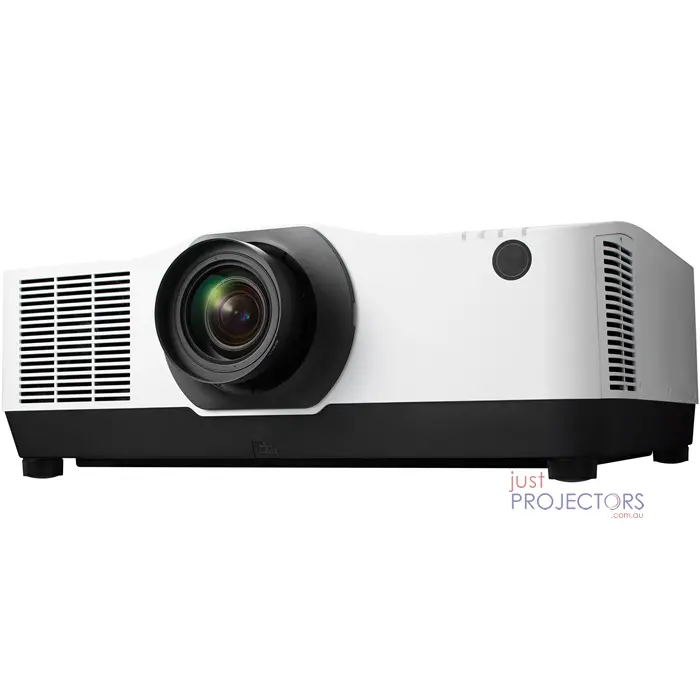

NEC Sharp PA1004UL-WG 10,000lm LCD Large Venue Laser Projector

(White Chassis)

NEC SHARP PA1004UL-WG projector
Delivery

5yr warranty
australian stock
insured delivery
laser light

Specifications

  • WUXGA 1920 x 1200 16:10
  • 10,000 ANSI Lumens
  • 3,000,000:1 Contrast
  • 24.4kg Weight
  • 35 / 32db(eco) Fan Noise
  • 5 Year/ 20,000hr Warranty
  • 5 Year/ 20,000hr laser Warranty
  • Est. Laser Life up to 20,000hrs

Key Features

  • 2x HDMI Input
  • Displayport Input
  • Horizontal + Vertical Keystone
  • Horizontal + Vertical Lens Shift
  • 360 Degree Installation
  • Portrait Installation
  • Edge Blending Inbuilt
  • Stacking Function
  • HDBaseT Input and Output
  • Large Range of Lens Options

Lens Options & Throw Distances

Measurements provided may vary slightly between batches.
Expand Lens Throw Ratio Price

Type : Fixed
Includes 02LK lens support kit
Min Image : 40"
Max Image : 400"

Throw Distance Guide
120" 16:10 : 0.83m
150" 16:10 : 1.03m
200" 16:10 : 1.38m
np44ml lens

Type : Motorised
Min Image : 50"
Max Image : 500"

Throw Distance Guide
120" 16:10 : 1.55-1.94m
150" 16:10 : 1.94-2.42m
200" 16:10 : 2.58-3.23m
np50zl lens

Type : Motorised
Min Image : 50"
Max Image : 500"

Throw Distance Guide
120" 16:10 : 2.05-2.86m
150" 16:10 : 2.56-3.58m
200" 16:10 : 3.41-4.78m
np40zl lens

Type : Manual
Min Image : 30"
Max Image : 500"

Throw Distance Guide
120" 16:10 : 3.08-4.03m
150" 16:10 : 3.85-5.03m
200" 16:10 : 5.13-6.70m
np12zl lens

Type : Motorised
Min Image : 50"
Max Image : 500"

Throw Distance Guide
120" 16:10 : 3.37-7.80m
150" 16:10 : 4.20-9.75m
200" 16:10 : 5.60-13.01m
np41zl lens

Type : Manual
Min Image : 40"
Max Image : 500"

Throw Distance Guide
120" 16:10 : 3.88-7.80m
150" 16:10 : 4.85-9.75m
200" 16:10 : 6.47-13.01m
np13zl lens

Type : Manual
Min Image : 60"
Max Image : 500"

Throw Distance Guide
120" 16:10 : 7.68-12.38m
150" 16:10 : 9.60-15.47m
200" 16:10 : 12.80-20.63m
np14zl lens

Type : Motorised
Min Image : 50"
Max Image : 500"

Throw Distance Guide
120" 16:10 : 7.73-15.32m
150" 16:10 : 9.66-19.15m
200" 16:10 : 12.89-25.54m
np43zl lens

Type : Manual
Min Image : 60"
Max Image : 500"

Throw Distance Guide
120" 16:10 : 12.15-18.61m
150" 16:10 : 15.19-23.25m
200" 16:10 : 20.25-31.01m
np15zl lens

NEC Sharp PA1004UL-WG 10,000 lumen LCD Laser Installation Projector

A new class of ultra-quiet, ultra-bright, ultra-reliable projection

Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 10,000 lumens PA1004UL laser projector, ensuring all attention is focused on the stunning image delivery.

Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.

The enhanced sealed optical engine allows a filter-free design, IP5X rated against dust ingress - no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.

Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA1004UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.


Optional Accessories


Key Benefits

  • No lamp replacement– up to 20,000 h maintenance free operation possible due to Laser Light Source.
  • No filter service required– a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
  • Super Silent operation– patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.
  • Impress with vivid colour & contrast– brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
  • Incredible visualisation capabilities– impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.

Multiple Digital Inputs

Includes 2x HDMI connections and a DisplayPort for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers and personal computers.

PA1004UL hdmi ports

Wall colour correction presets

Presets provide for adaptive colour tone correction to display properly on non-white surfaces.

PA1004UL wall colour correction

Cornerstone Correction

Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.

PA1004UL cornerstone

Geometric Correction

Allows you to project on spheres, cylinders, corner angles and more.

PA1004UL geometric

Roll-Free Installation

The projector can be rotated freely (360°) to orient the image depending on the installation requirements

PA1004UL 360 rotation

Landscape/Portrait Capable

Allows for distortion-free display of content in various orientations, creating new application opportunities.

PA1004UL portrait

Edge Blending

Blend multiple projectors together to create not standard images

TileMatrix™

Allows users to customize a video wall configuration using advanced On Screen Display controls.

Stacking Capabilities

Allows the projectors to boost an image’s brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

4K Ready

Display stunning 4K content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details.

PIP/POP/Side-by-Side

Picture-in-picture (PIP) allows for a second frame within the screen area. Picture-on-picture (POP) surrounds the standard frame with multiple frames. Side-by-side places two sources adjacent to one another.

HDBaseT Input & Output

The HDBaseT input and seperate HDBaseT repeater provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.


Specifications
General Information
Projection Technology 3LCD Technology
Native Resolution 1920x1200
Aspect Ratio 16:10
Contrast Ratio (typ.) 3,000,000:1
Brightness (Lumen) 10,000 ANSI Lumens
Light Source Laser
Light Source Life 20,000 hrs
Lens 4 motorized lens options; 5 manual lens options
Projection Distance (m) 0.7 – 50.9m
Screen Size (diagonal) Max. 1,270cm, Min. 101.6cm
Fan Noise 32db / 35db (Eco/ Normal)
Dimensions (W x D x H) 599 x 490 x 208 millimetre
Weight 24.4 kilogram
Connectivity
RGB (analog) Input 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Digital Input 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Digital Output 1 x HDBaseT supporting HDCP 2.2
Audio Input 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support
Audio Output 1 x 3.5 mm Stereo Mini Jack
Input Control 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN 1 x RJ45
USB 1 x Type A (USB 2.0 high speed)
Remote Control Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Electrical
Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption 700-800W, 0.8W (Network Stand-by) / 0.28W (Stand-by)
Environmental
Operating Temperature 0ºC to 40ºC
Operating Humidity 20% to 80%
Storage Temperature -10ºC to 50ºC
Storage Humidity 20% to 80%
Optional Accessories
Lenses (Manual) NP11FL (0.79:1), NP12ZL (1.16-1.52:1), NP13ZL (1.46-2.95:1), NP14ZL (2.9-4.68:1), NP15ZL (4.59-7.02:1)
Lenses (Motorized) NP40ZL (0.79-1.11:1) NP41ZL (1.3-3.02:1) NP43ZL (2.99-5.93:1) NP44ML (0.32:1) NP50ZL (0.6-0.75:1)
Other Features
Safety and Ergonomics CE, EAC, ErP, RoHS, TUEV Type Approved
Shipping Content (Accessories) Power Cable, Projector, Quick Setup Guide, IR Remote Control, Users Manual on CD-ROM

Rear Panel

NEC SHARP PA1004UL-WG Rear Panel
