Sharp XP-V801U-W 8000lm 3LCD WUXGA Large Venue Laser Projector
Specifications
- WUXGA 1920 x 1200 16:10
- 8,000 ANSI Lumens
- 3,000,000:1 Contrast
- 11.2kg Weight
- 42 / 32db(eco) Fan Noise
- 5 Year Warranty
- 5 Year/ 10,000hr laser Warranty
- Est. Laser Life up to 20,000hrs
Key Features
- 2x HDMI Input
- Horizontal & Vertical Keystone
- Vertical Lens Shift (+10%, -50%)
- Horizontal Lens Shift (+/- 20%)
- Powered Zoom, Focus, & Shift
- 360 Degree Installation (v+h axis)
- HDBaseT Compatible
- Portrait Projection
- Optional Lenses

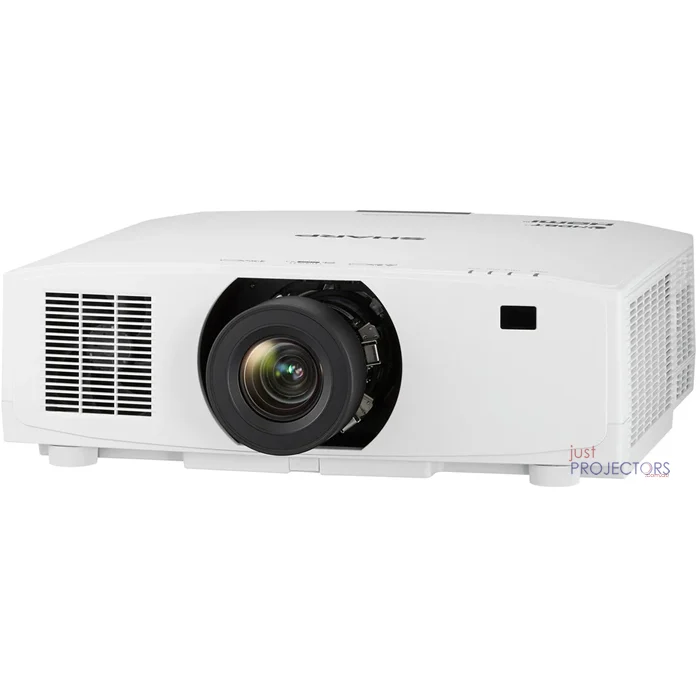

Sharp XP-V801U-W Bright Large Venue Projector with White Chassis.
The Sharp XP-V801U-W is a high-performance 8,000-lumen laser projector designed to deliver brilliant, colour-accurate visuals in large, well-lit venues. Featuring native WUXGA resolution and 4K input support, it offers a maintenance-free life of up to 20,000 hours, making it an exceptionally reliable choice for higher education and corporate environments. Its standout feature is its versatile integration: it is compatible with a wide range of motorized lenses and legacy NEC optics, providing a cost-effective, professional-grade upgrade that simplifies setup with advanced edge-blending and geometric correction.
Lens Options & Throw Distances
| Expand | Lens | Throw Ratio | Price | |
|---|---|---|---|---|
| NP50ZL | 0.60-0.75:1 | $5499 | ||
| NP40ZL | 0.79-1.11:1 | $2699 | ||
| NP41ZL | 1.30-3.02:1 | $1490 | ||
| XP43ZL | 2.99-5.93: 1 | $2699 |
Optional Accessories
The Sharp V series - Professional Installation Projectors
Powerful Installation Projectors ideal for higher education, house of worship, corporate and museum applications
A highly economical projection solution, the XP-V801U offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.
3LCD technology generates brilliantly vivid colour, which, at 8000 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.
The XP-V801U offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same mount and lenses as the lamp-based NEC PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the XP-V801U offers outstanding value for higher education, corporate, leisure and hospitality sectors.
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
- Get Great Performance – while not compromising on quality and ease of use.
- Low Noise Level – with 32dB, the silent technology will not disturb your meeting.
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast.
Legacy Support
Customers utilizing previous generation NEC PA Series projectors can use their existing lenses. Eliminates the costly expense of purchasing a new lens. The time consuming efforts and costs associated with reinstallation are eliminated. Supports the legacy manually adjustable lenses, NP11FL, NP12ZL, NP13ZL, NP14ZL and NP15ZL.
Integrated
- 4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs.
- Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP and PJ Link
- Allow for complete control system support
- Lower the cost of your installation by eliminating the need for costly reprogramming of a control system. (supports competitors commands, call NEC for complete list)
Flexible
- Enjoy greater installation flexibility with motorized optional bayonet style lenses providing
quick and easy exchanges. Lens throw distances range from 2.5 to 68.5 ft
- New NP44ML-01LK UST lens placing the projector above the screen and out of site (installation may place the projector above the ceiling line) - Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
- Up to 60% vertical lens shift and +/- 20% horizontal lens shift capabilities make alignment easy
NaViSet Administrator 2
This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management and control functionality for a majority of NEC display devices and Windows computers. It is ideal for multi-device installations over larger infrastructures.
Laser Light Source
- Images appear immediately after power on due to instantaneous start up of the laser
- Dual blue laser systems provide best in class white balance over the life of the projector
- Inorganic optical components create longer lifetime and greater peace of mind
Get Connected with a wide range of Inputs
- Multiple Digital computer inputs ensure quick switching between presentations
- Three audio inputs (one mini stereo HDMI 1 & HDMI 2, and HDBaseT) make it easy to add sound to enhance your presentations
- 21:9 Aspect Ratio supported for engaging meeting spaces
Digital Inputs
Among the PV Series wide selection of inputs are dual HDMI w/ HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers and personal computers.
Remote control
Wired and wireless backlit remote allows you to adjust for complete control of the projectors menu structure in a well lit or dark environment. Direct controls such as lamp mode, aspect ratio, volume and input selection eliminates multiple button pushes.
10,000-hour filter life
NEC is committed to designing its products to provide long lifecycles. This virtually maintenance-free filter reduces the frequency at which cleaning is required, thereby decreasing total cost of ownership.
Roll-free
The projector can be rotated freely (360°) to orient the image depending on the installation requirements
ProAssistTM
Projector management software for installation professionals provides network based projector control including input switching, picture, and geometric correction.
| General Information | |
|---|---|
| Projection Technology | 3LCD Technology |
| Native Resolution | 1920x1200 |
| Aspect Ratio | 16:10 |
| Contrast Ratio (typ.) | 3,000,000:1 |
| Brightness (Lumen) | 8000 Lm Normal / 8300 Lm Center / 7200 Lm Silent Mode; compliant with ISO21118-2012 |
| Light Source | Laser |
| Light Source Life | 20,000 hrs |
| Lens | 5 motorized lens options |
| Lens Adjustment | Motorized |
| Keystone correction | +/- 30° manual horizontal / +/- 30° manual vertical |
| Lens shift | H:±20, V:+10,-50 |
| Projection Factor | depending on lens selection (std. option XP-41ZL at 1.3-3.02:1) |
| Projection Distance (m) | 0.7 – 50.9m |
| Screen Size (diagonal) | Max. 1,270cm, Min. 101.6cm |
| Zoom | Motorized and manual (depending on lens) |
| Focus Adjustment | Motorized and manual (depending on lens) |
| Frequency | Digital Frequency: Horizontal: 15/24 - 153 kHz; Vertical: 24-120 Hz |
| Connectivity | |
| Digital Input | 1 x HDBaseT; 2 x HDMI™ supporting HDCP |
| Audio Input | 1 x HDBaseT audio support; 2 x HDMI audio support |
| Audio Output | 1 x 3.5 mm Stereo Mini Jack |
| Input Control | 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet |
| LAN | 1 x RJ45 |
| USB | 1 x Type A (USB 2.0 high speed) |
| Remote Control | Audio Control; Digital Zoom; Geometric Correction; HDMI; ID Select; ID set; Keystone Correction; Picture Adjust; Picture Mute; Power; Shutter function; Source Select; Test Picture; Wired / Wireless Connection; Zoom/Focus and Lens Shift Control |
| Electrical | |
| Power Supply | 100-240 V AC; 50 - 60 Hz |
| Power Consumption | 467.0 Normal / 421.0 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by |
| Environmental | |
| Operating Temperature | 0ºC to 40ºC |
| Operating Humidity | 20% to 80% |
| Storage Temperature | -10ºC to 50ºC |
| Storage Humidity | 20% to 80% |
| Mechanical | |
| Dimensions (W x H x D) [mm] | 499 x 164 x 407 (without lens and feet) |
| Weight [kg] | 11.2 |
| Fan Noise [dB (A)] | 42 / 32 (Normal / Silent) |
| Colour Versions | Black |
| Optional Accessories | |
| Optional Accessories | 5 optional bayonet lenses; Cable Cover (XP-13CV-W, XP-13CV-B) |
| Lenses (Motorized) | XP-40ZL/NP40ZL (0.79-1.11:1); XP-41ZL/NP41ZL (1.3-3.02:1); XP-43ZL/NP43ZL (2.99-5.93:1); XP-44ML-A/NP44ML-PA4 (0.32:1); XP-50ZL/NP50ZL (0.6-0.75:1) |
| Other Features | |
| Safety and Ergonomics | RCM, CE, EAC, ErP, RoHS |
| Special Characteristics | AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Control ID Function; Crestron RoomView; DICOM simulation; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; High Altitude Mode; HTTP Browser Control; Keystone Correction (H=±30°, V=±30°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.2 max.); Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PJ LINK; Portrait Setting; Quick On/Off; RS-232 Control; Test Pattern; Up to 20,000 hrs Light Source Life |
| Shipping Content (Accessories) | Power Cable, Projector, Quick Setup Guide, IR Remote Control |
