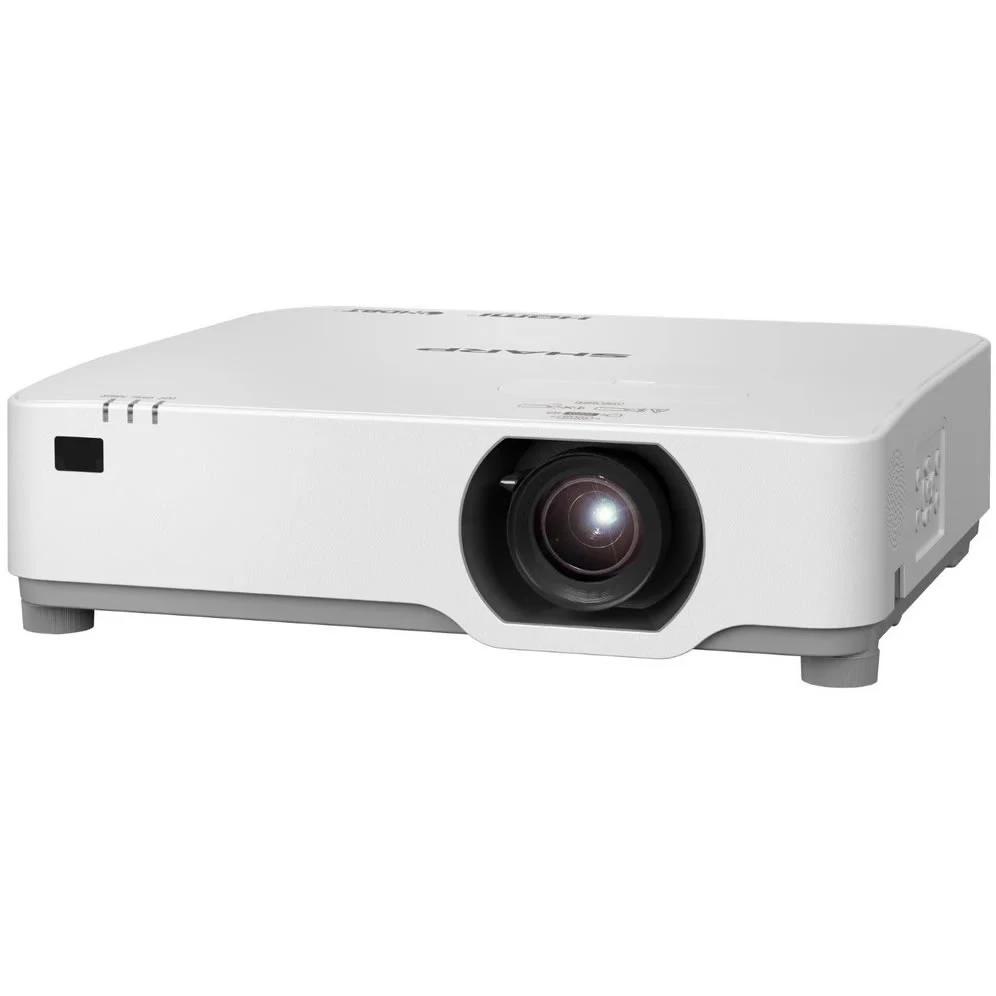

Sharp XP-P701U-W 7000lm 3LCD WUXGA Laser Projector
SKU: XP-P701U-W
Specifications
- WUXGA 1920 x 1200 16:10
- 7,000 Lumens
- 3,000,000:1 Contrast
- 9.6kg Weight
- 31 / 22db(eco) Fan Noise
- 5 Year/ 20,000hr Warranty
- 5 Year/ 20,000hr laser Warranty
- Est. Laser Life up to 20,000hrs
Key Features
- 2x HDMI Input
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-0%, +44%)
- Horizontal Lens Shift (+/- 20%)
- Powerful 16w Speaker
- 1.6x zoom
- 360 Degree Installation
- Portrait Installation
- HDBaseT Compatible
Sharp XP-P701U-W High Brightness Laser Projector
Power your presentations with the Sharp XP-P701U-W—the ultimate maintenance-free laser LCD projector built for higher education classrooms and corporate conference rooms.Delivering a brilliant 7,000 lumens (up to 7,400 center lumens) of crisp WUXGA (1920x1200) resolution with outstanding LCD color fidelity and a staggering 3,000,000:1 dynamic contrast ratio, this projector produces vivid, detailed images even in brightly lit spaces—while supporting 4K UHD content at 30Hz and immersive 21:9 aspect ratios for more engaging meetings. Its long-life laser light source lasts up to 20,000 hours, and Sharp's patented IP5x sealed cooling system eliminates filters entirely for true set-and-forget reliability with near-silent operation (as low as 22 dB). Flexible installation is effortless thanks to broad manual lens shift (±20% horizontal / +44% vertical), 1.6x zoom, HDBaseT single-cable connectivity for video/audio/control, dual HDMI, and versatile placement options. Lower your total cost of ownership, cut downtime, and impress every audience with the versatile, eco-friendly Sharp XP-P701U-W—your smart investment in bright, reliable, hassle-free projection.
Optional Accessories
Versatile, maintenance free, and quiet: Entry installation projectors with a reliable laser light source.

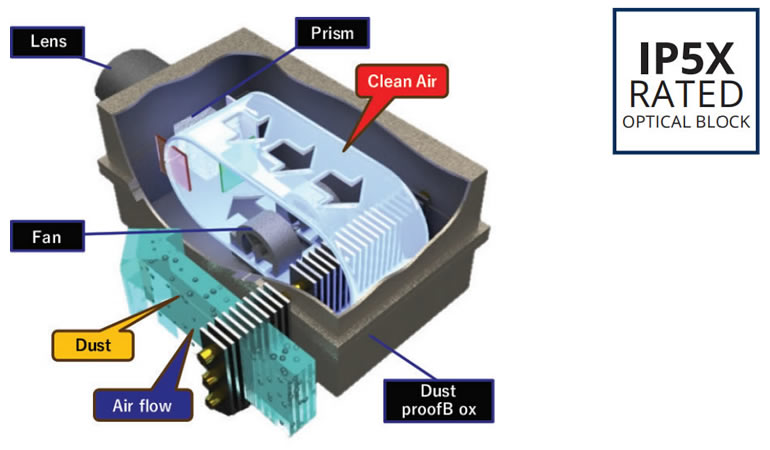

Eliminate Downtime with Advanced Dust Protection and Longevity
Zero Maintenance Requirements: The IP5x sealed LCD cooling system protects optics from dust, which completely eliminates the need for filter cleanings or replacements.
Extended Operational Life: Benefit from advanced laser technology that provides a consistent, high quality light source for up to 20,000 hours of use. 20,000 hours.
Simplify Your Setup and Reduce Costs with Single Cable HDBaseT Connectivity
Streamline your installation using a single cable to manage uncompressed HD video, audio, and control signals. This efficient solution eliminates cable clutter while delivering stunning, high definition imagery over distances up to 100m.
Flexible Installations
Broad 1.6x manual zoom lens and manual lens shift capabilities make alignment easy: (H = +/- 20% / V = 0%~+44%)

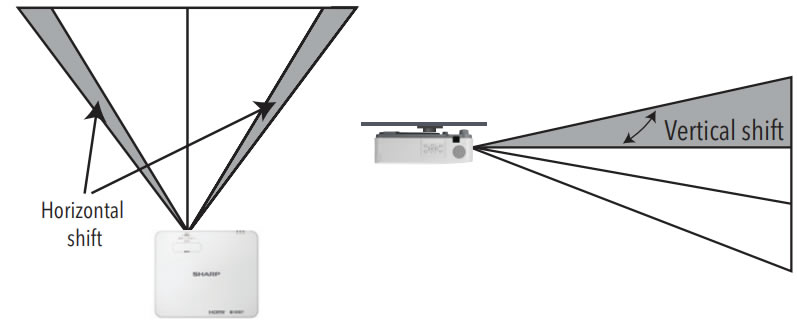

Lens Shift
Manual lens shift provides greater flexibility when determining an install location.

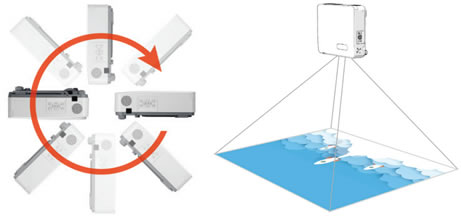

Roll free
The projector can be rotated freely (360°) to orient the image depending on the installation requirements.
Portrait Mode
Allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
| IMAGE | |
|---|---|
| Projection Technology | 0.64" LCD |
| Native Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 (Supports 4:3, 16:9, 21:9) |
| Contrast Ratio | 3,000,000:1 |
| Brightness | 7,000 Lumens |
| Centre Brightness | 7,400 Lumens |
| Lamp | Blue laser with phosphor |
| Light Source Life [hrs] | 20,000 hours |
| Lens Shift | Manual focus, zoom, horizontal (+/- 20%) and vertical (+44%) shift |
| Throw Ratio | 1.08-1.76:1 |
| Lens | F: 1.58-2.02, f: 15.3-24.6 mm |
| Keystone correction | +/- 30° horizontal (manual), +/-30° vertical (auto) |
| Projection Distance [m] | 2.3 to 22.9 ft. / 0.7 to 7m |
| Screen Size (diagonal) [cm] / [inch] | 30-300 in. / 0.762 to 7.6 m |
| Zoom | Manual, 1.6x |
| Focus Adjustment | Manual |
| CONNECTIVITY | |
| Digital | 2 x HDMI™ supporting HDCP |
| Audio Output | 1 x 3.5 mm Stereo Mini Jack |
| Digital In | HDBaseT w/HDCP (V1.4) |
| Control | 1 x D-Sub 9 pin (RS-232) (male) |
| LAN | 1 x RJ45 |
| USB | 1x Type A with 2.0A Power Supply |
| ELECTRICAL | |
| Power Supply | 100-240 V AC; 50 - 60 Hz |
| Power Consumption [W] | 375W / 305W / 8W / 0.3W |
| ENVIRONMENTAL CONDICTIONS | |
| Operating Temperature [°C] | 0ºC to 45ºC |
| Operating Humidity [%] | 20 to 80 non-condensing |
| Storage Temperature [°C] | -10ºC to 50ºC |
| Storage Humidity [%] | 20 to 80 non-condensing |
| MECHANICAL | |
| Dimensions (W x H x D) [mm] | 480 x 143 x 407 mm |
| Weight [kg] | 9.6 |
| Fan Noise [dB (A)] | 31 / 22 (Normal / Silent) |
| WARRANTY | |
| Projector Warranty | 5 years Warranty |
Remote Control
Power Cord

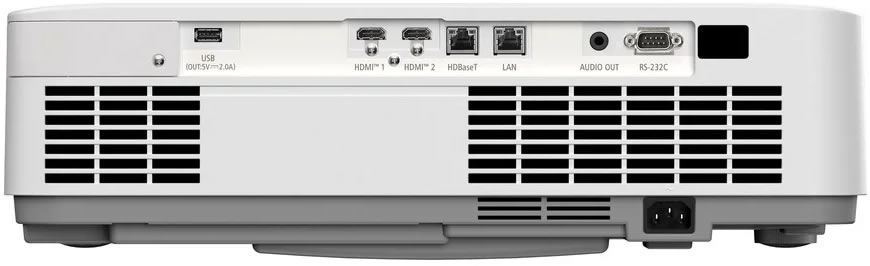

Rear Panel
