Sharp XP-P621U-W 5000lm 3LCD WUXGA Laser Projector
SKU: XP-P621U-W
Specifications
- WUXGA 1920 x 1200 16:10
- 6,200 Lumens
- 3,000,000:1 Contrast
- 9.6kg Weight
- 29 / 22db(eco) Fan Noise
- 5 Year/ 20,000hr Warranty
- 5 Year/ 20,000hr laser Warranty
- Est. Laser Life up to 20,000hrs
Key Features
- 2x HDMI Input
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-0%, +44%)
- Horizontal Lens Shift (+/- 20%)
- Powerful 16w Speaker
- 1.6x zoom
- 360 Degree Installation
- Portrait Installation
- HDBaseT Compatible

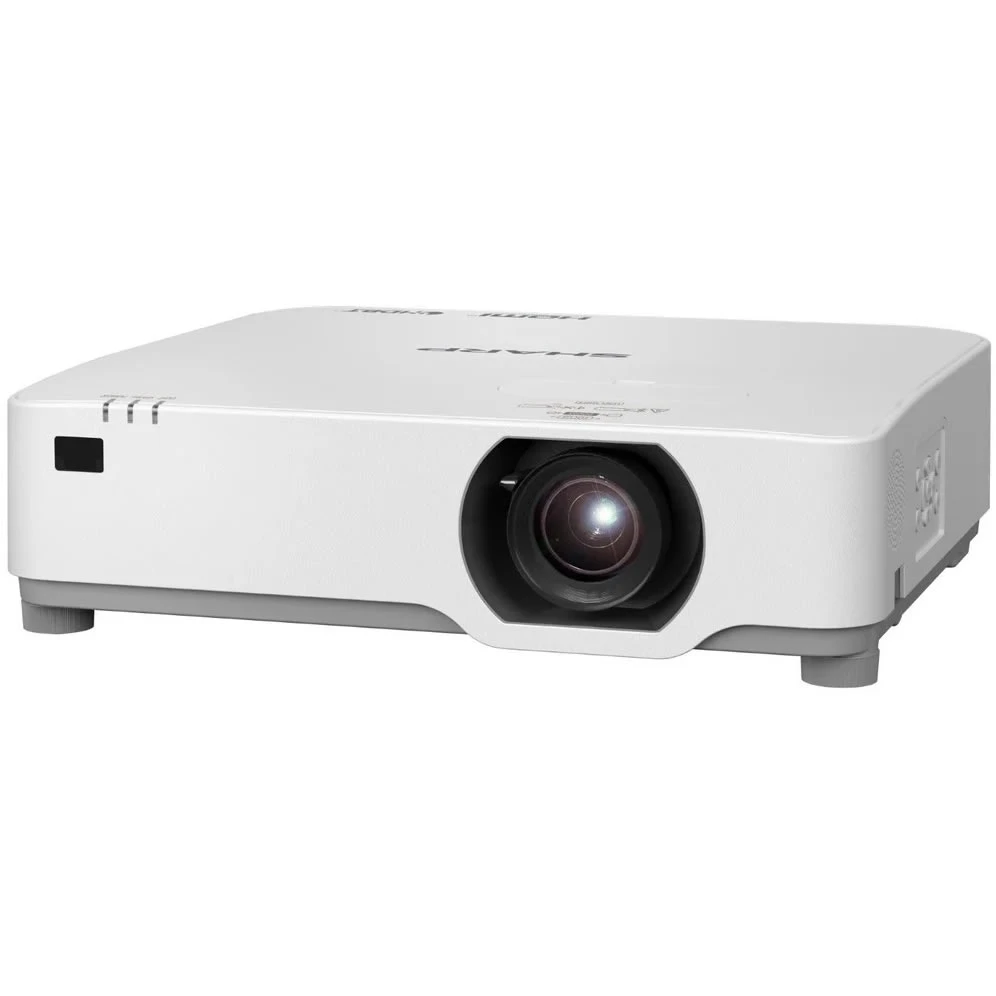

Sharp XP-P621U-W High Brightness Laser Projector
Discover effortless reliability with the Sharp XP-P621U-W, a smart laser LCD projector that prioritizes quiet performance and long-term value for classrooms and meeting rooms. With 6,200 lumens of bright output (6,500 center) in true WUXGA resolution, it delivers clear, colorful images that hold up under ambient light, while remaining whisper-quiet at just 22-29 dB so discussions stay uninterrupted. The maintenance-free laser source and fully sealed IP5x cooling system mean no filters to clean or replace—simply install it and enjoy consistent results for up to 20,000 hours. Manual lens shift, 1.6x zoom, dual HDMI plus HDBaseT connectivity, and support for 4K content and 21:9 formats give you flexible placement and modern versatility without complexity. Choose the XP-P621U-W when you want dependable, low-cost ownership and professional image quality that just works, day after day.
Optional Accessories
Versatile, maintenance free, and quiet: Entry installation projectors with a reliable laser light source.

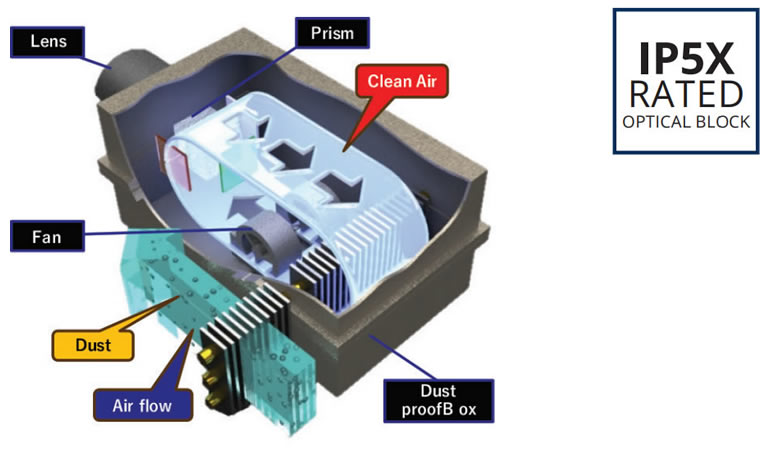

Eliminate Downtime with Advanced Dust Protection and Longevity
Zero Maintenance Requirements: The IP5x sealed LCD cooling system protects optics from dust, which completely eliminates the need for filter cleanings or replacements.
Extended Operational Life: Benefit from advanced laser technology that provides a consistent, high quality light source for up to 20,000 hours of use. 20,000 hours.
Simplify Your Setup and Reduce Costs with Single Cable HDBaseT Connectivity
Streamline your installation using a single cable to manage uncompressed HD video, audio, and control signals. This efficient solution eliminates cable clutter while delivering stunning, high definition imagery over distances up to 100m.
Flexible Installations
Broad 1.6x manual zoom lens and manual lens shift capabilities make alignment easy: (H = +/- 20% / V = 0%~+44%)

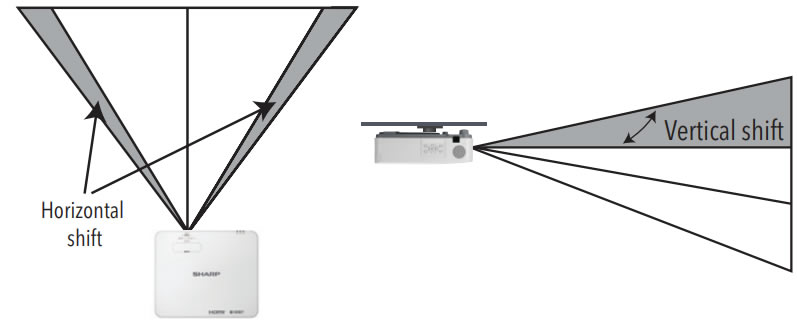

Lens Shift
Manual lens shift provides greater flexibility when determining an install location.

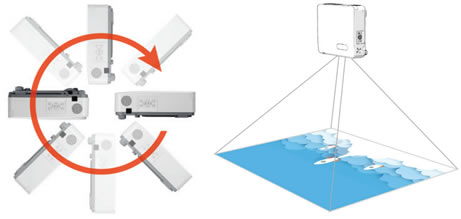

Roll free
The projector can be rotated freely (360°) to orient the image depending on the installation requirements.
Portrait Mode
Allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
| IMAGE | |
|---|---|
| Projection Technology | 0.64" LCD |
| Native Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 (Supports 4:3, 16:9, 21:9) |
| Contrast Ratio | 3,000,000:1 |
| Brightness | 6,200 Lumens |
| Brightness | 6,500 Lumens |
| Lamp | Blue laser with phosphor |
| Light Source Life [hrs] | 20,000 hours |
| Lens Shift | Manual focus, zoom, horizontal (+/- 20%) and vertical (+44%) shift |
| Throw Ratio | 1.08-1.76:1 |
| Lens | F: 1.58-2.02, f: 15.3-24.6 mm |
| Keystone correction | +/- 30° horizontal (manual), +/-30° vertical (auto) |
| Projection Distance [m] | 2.3 to 22.9 ft. / 0.7 to 7m |
| Screen Size (diagonal) [cm] / [inch] | 30-300 in. / 0.762 to 7.6 m |
| Zoom | Manual, 1.6x |
| Focus Adjustment | Manual |
| CONNECTIVITY | |
| Digital | 2 x HDMI™ supporting HDCP |
| Audio Output | 1 x 3.5 mm Stereo Mini Jack |
| Digital In | HDBaseT w/HDCP (V1.4) |
| Control | 1 x D-Sub 9 pin (RS-232) (male) |
| LAN | 1 x RJ45 |
| USB | 1x Type A with 2.0A Power Supply |
| ELECTRICAL | |
| Power Supply | 100-240 V AC; 50 - 60 Hz |
| Power Consumption [W] | 315W / 260W / 8W / 0.3W |
| ENVIRONMENTAL CONDICTIONS | |
| Operating Temperature [°C] | 0ºC to 45ºC |
| Operating Humidity [%] | 20 to 80 non-condensing |
| Storage Temperature [°C] | -10ºC to 50ºC |
| Storage Humidity [%] | 20 to 80 non-condensing |
| MECHANICAL | |
| Dimensions (W x H x D) [mm] | 480 x 143 x 407 mm |
| Weight [kg] | 9.6 |
| Fan Noise [dB (A)] | 29 / 22 (Normal / Silent) |
| WARRANTY | |
| Projector Warranty | 5 years Warranty |
Remote Control
Power Cord

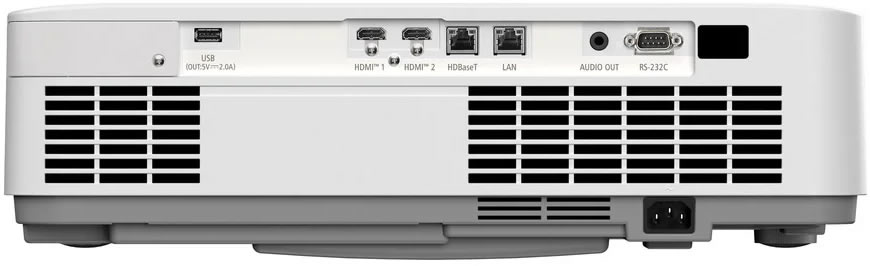

Rear Panel
