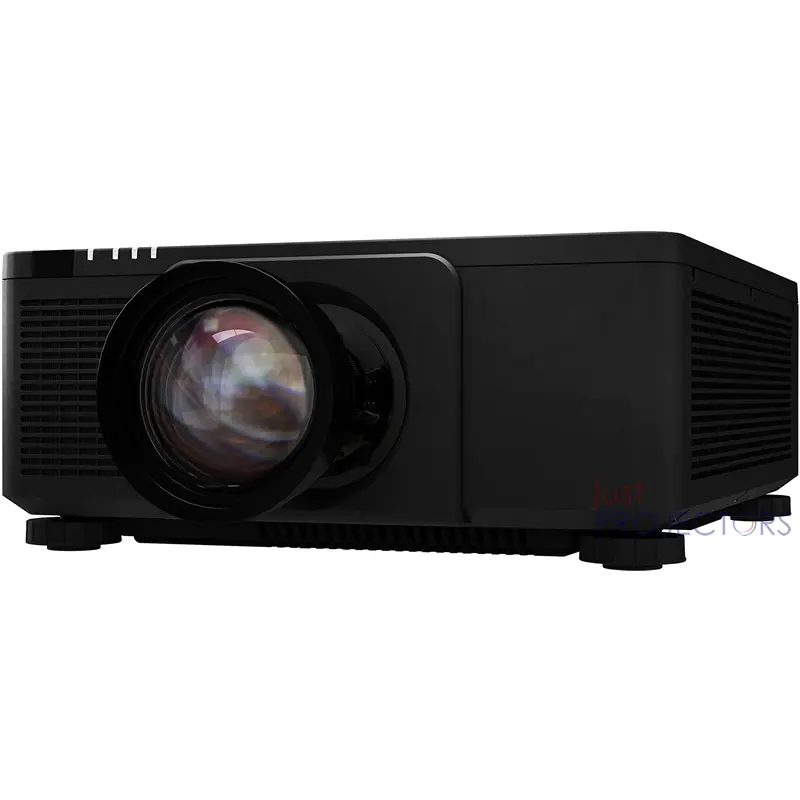

Sharp X141Q-B 13,500lm 1 Chip DLP 4K+ Large Venue Dual Laser Projector
(With Black Chassis)
Specifications
- 4K+ 3840 x 2400 16:10
- 13,500 Lumens (15,000 at Centre)
- 3,000,000:1 Contrast
- 28kg Weight
- 37 / 35db(eco) Fan Noise
- 5 Year/ 20,000hr Warranty
- 5 Year/ 20,000hr laser Warranty
- Est. Laser Life up to 20,000hrs
Key Features
- HDMI, 12G-SDI, & Display Port Inputs
- HDMI and 12G-SDI Outputs
- 24/7 Certified Operation
- RB Laser LightSource
- Geometric Correction
- Lens Shift *Lens Dependant
- Portrait Setting
- Edge Blending
- Built-In MultiDisplay
- HDBaseT Compatible
- Lens Options
Lens Options & Throw Distances
Measurements provided may vary slightly between batches.| Expand | Lens | Throw Ratio | Price | |
|---|---|---|---|---|
| XP-57UL | 0.31-0.33:1 | $12,999 | ||
| XP-58ZL | 0.55-0.75:1 | $6,999 | ||
| XP-59ZL | 0.74-1.08:1 | $6,499 | ||
| XP-60ZL | 1.05-1.41:1 | $6,499 | ||
| XP-61ZL | 1.4-2.11:1 | $4,399 | ||
| XP-62ZL | 2.1-4.0:1 | $5,099 |
Optional Accessories
Sharp X141Q-B 1DLP 4K+ Dual Laser Projector
Powerful installation projectors equipped to take on the most demanding integration projects
Projecting the sharpest detail and most life-like colours, the 4K+ X141Q-B laser phosphor projector features new HEP DMD technology for enhanced contrast and remarkably efficient performance.
RB Dual Laser Technology is highly efficient in producing the most intensely natural tones, minimising power consumption whilst delivering brilliant colours at high brightness levels. Long lasting imaging performance is safeguarded against dust contamination with an IP6X rated sealed light engine, also minimising maintenance requirements.
Compact and light weight, yet this impressive projector delivers all the professional functionality for easy installation and precision setup. For higher education, museums and conferencing, the X141Q-B offers reliable long-life performance at an impressively low total cost of ownership.
Benefits
- Ultra Bright - The X141Q-B features a whopping 15,000 Lumens at centre and 13,500 lumens average brightness.
- Finest detail – crisp 4K+ resolution achieves perfect image clarity for easy viewing of very detailed content
- Superb image quality – producing vivid reds, the RB laser light source delivers excellent colour performance, projecting images that are remarkably lifelike
- IP6X rated optical engine – protects against dust ingress for long lasting picture quality
- Designed for efficiency – the small footprint defies the high brightness delivery at low energy consumption
RB Laser Light Technology
RB laser technology combines the advantages of brilliant colour reproduction with cost efficiency. In RB laser projection a blue laser is used to create the blue colour and a red laser is used to create the red colour in the final image. The green colour is generated by a green phosphor wheel emitting green light. This technique allows very efficient light reproduction by avoiding optical filters resulting in more intense and more natural colours especially in the red colour segment plus a higher brightness output.
Integrated and Powerful
- Project uncompressed FHD video with integrated HDBaseT
- High performance video processing/scaling creates life-like images
- Integrated software applications such as Crestron Roomview, AMX Beacon and PJ Link allow for complete interactivity and control
Flexible
- Enjoy greater installation flexibility with a complete line of optional bayonet style lenses for quick and easy exchange.
- Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
- Motorised lens adjustments make alignment easy (lens dependant)
Multi-Projector Splitter
The Sharp X141Q-B includes a built-in multiscreen splitter, allowing the input signal to be seamlessly split across multiple projectors. This processing is all done internally and therefore eliminates the additional hardware typically required.
Stacking Correction
Sharp's projector stacking ability can significantly improve image brightness and is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector
Edge Blending
Need an even larger image? Not a problem with Sharp's inbuilt Edge-Blending function. Several X141Q-B projectors can be 'blended' together to create 1 huge image without the need for expensive external edge-blending hardware.
Built-In HDBaseT Support
Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed Full HD digital video, audio, ethernet, power and various control signals. With only a single cable (up to 100m) to run, infrastructure and labourcosts are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What’s more, control signals are contained in the same cable.
Get Connected with a wide selection of Inputs
Featuring 2 HDMI, 2 DisplayPort, HDBaseT, and a 12G-SDI, there are more high quality digital connections included than ever before.
Wall Colour Correction
Get amazing colour reproduction even on non-white surfaces with Shar's innovative Wall Colour Correction function.
Geometric Correction
Projecting an image isn’t confined to a standard flat screen or wall with the Sharp X141Q-B. Geometric correction allows you to project an image on spheres, cylinders, corner angles and many more non-standard surfaces.
Tilt-free
The projector can be rotated freely (360°) to orient the image depending on the installation requirements
Portrait mode
Allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used
| Projection Technology | 1-chip DLP™ Technology |
|---|---|
| Panel Resolution | 1920 x 1200 (WUXGA) |
| Resolution | 3840 x 2400 (4K+) |
| Aspect Ratio | 16:10 |
| Contrast Ratio (typ.) | 3,000,000:1 (Dynamic) |
| Brightness (Lumen) | 13500 Lumen, with std. optional lense |
| Light Source | Laser |
| Light Source Life | 20,000 hrs |
| Lens | 6 motorized lens options |
| Lens Adjustment | Motorized |
| Lens shift | H:-0.2,+0.2, V:-0.5,+0.5 |
| Keystone correction | +/- 36° manual horizontal / +/- 36° manual vertical |
| Projection Factor | depending on lens selection (std. option NP54ZL at 1.25-2.01:1) |
| Projection Distance (m) | 0.86 – 43.2m |
| Screen Size (diagonal) | Maximum: 1,270 / 500"; Minimum: 100 / 40" |
| Zoom | Motorized |
| Focus Adjustment | Motorized |
| Supported Resolutions | 1080i/50/60; 1080p/24/25/30/50/60; 1920x1200 (WUXGA) - 640x480 (VGA); 2048 x 1080 (2k); 3840 x 2160 (4KUHD); 3840 x 2400 (4K+); 480i/50; 480p/60; 576i/50; 576p/50; 720p/50; 720p/60 |
| Digital Input | 1 x 12G-SDI; 1 x HDBaseT; 2 x DisplayPort supporting HDCP; 2 x HDMI™ supporting HDCP |
| Digital Output | 1 x 12G-SDI; 1 x HDMI supporting HDCP |
| Input Control | 1 x D-Sub 9 pin (RS-232) (male); 1 x Screen Trigger |
| LAN | 1 x RJ45 |
| USB | 1 x Type A (USB 2.0 high speed) |
| Video Signals | NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM |
| Input | 1 x 3.5 mm Stereo Mini Jack |
| Remote Control | Auto Adjust; AV Mute; Direct Source Select; Eco Mode Control; Freeze-function; Full Lense control; Geometric Correction; ID Select; Input Control; Magnify-function; On Screen On/Off Selection; Picture Adjust; Power (On-OFF); Select (up, down, left, right) |
| Power Supply | 100-240 V AC; 50 - 60 Hz |
| Power Consumption | 1,000 (Normal) / 900 (Eco) / 3 (Network Stand-by) / 0.5 (Stand-by) |
| Operating Temperature | 5ºC to 40ºC |
| Operating Humidity | 0% to 80% |
| Storage Temperature | -10ºC to 60ºC |
| Storage Humidity | 0% to 90% |
| Dimensions (W x H x D) [mm] | 500 x 211 x 577 (without lens and feet) |
| Weight [kg] | 28 |
| Fan Noise [dB (A)] | 35 / 37 (Eco / Normal) |
| Colour Versions | Black |
| Lenses (Motorized) | XP-57UL (0.31-0.33:1); XP-58ZL (0.55-0.75:1); XP-59ZL (0.74-1.08:1); XP-60ZL (1.05-1.41:1); XP-61ZL (1.4-2.11:1); XP-62ZL (2.1-4:1) |
| Safety and Ergonomics | CE; ErP; RoHS; RCM; TUEV Type Approved |
| Special Characteristics | 4K/60Hz interfaces; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Constant Brightness Mode; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Edge Blending Function (Build In); Free Tilt; Geometric Correction; HDBaseT; IP5X/IP6X rated; LAN; Lens Memory; Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; RS-232 Control; Sealed engine; Stacking Function; Timer-Function; Virtual Remote for direct PC control |
| Energy Efficiency | Laser light source |
| Ecological Standards | ErP compliant |
| Ecological Materials | 100% recyclable packaging; Downloadable manuals |
| Shipping Content (Accessories) | IR Remote Control (RD - 480E); Power Cord; Projector; Quick Setup Guide |

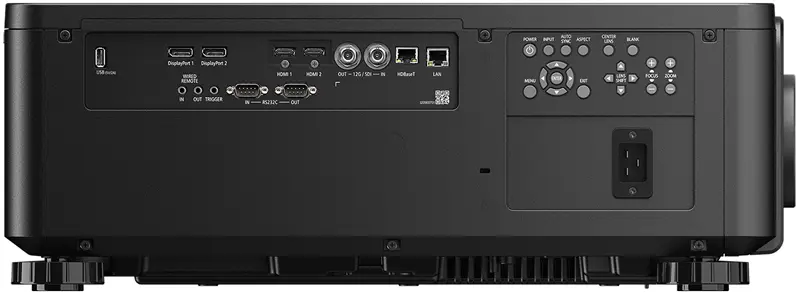

Rear Panel
