NEC SHARP Logo

Sharp X201U-B 20,000lm LCD Large Venue RB Laser Projector

(With Black Chassis)

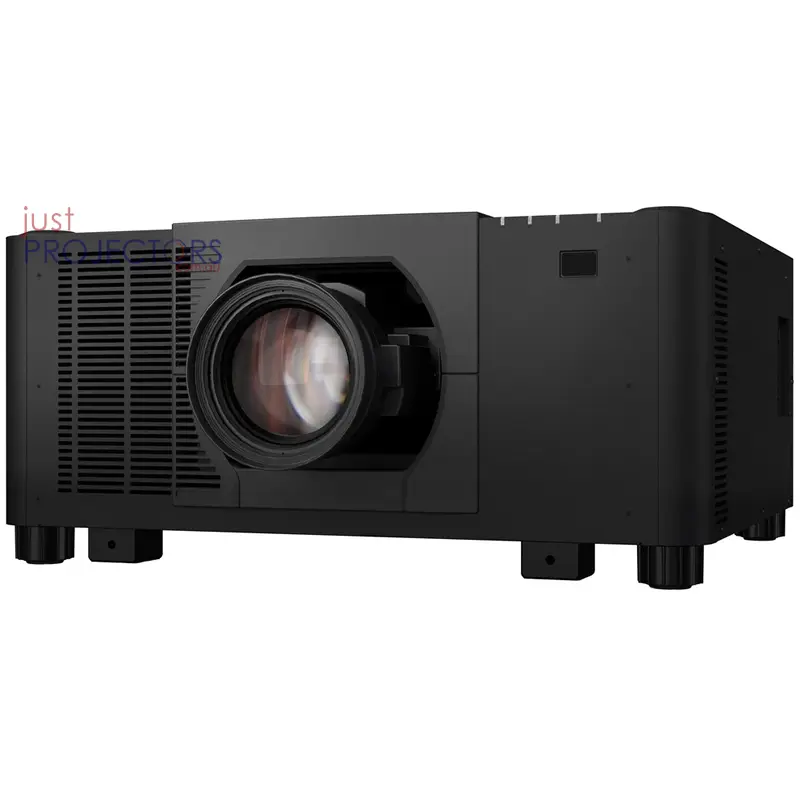

Sharp X201U-B projector
Delivery

$36,929 $31,999



Found a better deal? Request a price match here!


5yr warranty
australian stock
RB Dual Laser Light
Full HD

Specifications

  • WUXGA 1920 x 1200 16:10
  • 20,000 Lumens
  • 3,000,000:1 Contrast
  • 28.7kg Weight
  • 42 / 34db(eco) Fan Noise
  • 5 Year/ 20,000hr Warranty
  • 5 Year/ 20,000hr laser Warranty
  • Est. Laser Life up to 20,000hrs

Key Features

  • RB Dual Laser Technology
  • 2x HDMI & 3G-SDI Input
  • Horizontal + Vertical Keystone
  • Horizontal + Vertical Lens Shift
  • 360 Degree Installation
  • Portrait Installation
  • Edge Blending Inbuilt
  • Stacking Function
  • HDBaseT Input and Output
  • Large Range of Lens Options

Lens Options & Throw Distances

Measurements provided may vary slightly between batches.
Expand Lens Throw Ratio Price

Type: Motorised
Min Image: 60"
Max Image: 500"

Throw Distance Guide
120" 16:10 : 1.37-1.68m
150" 16:10 : 1.71-2.09m
200" 16:10 : 2.28-6.62m

Type: Motorised
Min Image: 60"
Max Image: 500"

Throw Distance Guide
120" 16:10 : 1.68-2.24m
150" 16:10 : 2.09-2.81m
200" 16:10 : 2.8-3.74m

Type: Motorised
Min Image: 60"
Max Image: 500"

Throw Distance Guide
120" 16:10 : 2.22-3.23m
150" 16:10 : 2.77-4.0m
200" 16:10 : 3.70-5.38m

Type: Motorised
Min Image: 60"
Max Image: 500"

Throw Distance Guide
120" 16:10 : 3.2-5.19m
150" 16:10 : 4.0-6.49m
200" 16:10 : 5.34-8.65m

Type: Motorised
Min Image: 60"
Max Image: 500"

Throw Distance Guide
120" 16:10 : 5.11-10.21m
150" 16:10 : 6.39-12.75m
200" 16:10 : 8.52-17.01m

Type: Motorised
Min Image: 60"
Max Image: 500"

Throw Distance Guide
120" 16:10 : 10.28-19.41m
150" 16:10 : 12.85-24.25m
200" 16:10 : 17.14-32.35m

Optional Accessories


Sharp A201U-B LCD WUXGA Dual Laser Projector

High brightness with extreme efficiency

Unleash breathtaking, cinema-quality visuals in any large venue with the Sharp A201U-B projector, featuring an incredible 20,000 lumens of brightness and a groundbreaking Red and Blue (RB) laser system that achieves stunning colour reproduction, covering 92% of the DCI range for truly vibrant and lifelike images, even in high ambient light. This 4K-ready, professional-grade LCD laser projector is designed for advanced installations in corporate and higher education settings, offering exceptional flexibility with optional motoriSed lenses, full 360-degree roll-free orientation, and minimal maintenance thanks to its IP5X certified, filter-free sealed optical engine with a 20,000-hour laser life. Equipped with HDBaseT, stacking, and edge-blending capabilities, the A201U-B is the high-performance, low-maintenance solution for delivering immersive and impactful presentations.

Benefits

  • Ultra Bright - The A201U-B features a whopping 21,000 Lumens at centre and 20,000 lumens average brightness.
  • No lamp replacement - up to 25,000 h maintenance free operation possible due to Laser Light Source.
  • No filter service required - the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget
  • Compact design - a large venue projector with a comparatively small footprint and light weight design.
  • Impress with vivid colour & contrast - brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
  • Incredible visualisation capabilities - impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending.
  • Flexible installation - a wide range of optional lenses, motorised lens shift, zoom and focus.
  • Get connected - 2x HDMI, HDBaseT and 3G-SDI inputs.
  • Multi projector support - built-in edge blending and stacking correction.
  • Control and manage - Crestron RoomView, AMX Beacon, PJ Link and HDBaseT support.
  • 4K Ready - future proof your investment with support for 4K input signals

RB Laser Light Technology

RB laser technology combines the advantages of brilliant colour reproduction with cost efficiency. In RB laser projection a blue laser is used to create the blue colour and a red laser is used to create the red colour in the final image. The green colour is generated by a green phosphor wheel emitting green light. This technique allows very efficient light reproduction by avoiding optical filters resulting in more intense and more natural colours especially in the red colour segment plus a higher brightness output.

Flexible

  • Enjoy greater installation flexibility with motorized bayonet style lenses providing quick and easy exchanges. Lens throw distances range from 4.25 to 141ft.
  • Roll-free installation capabilities make this projector ideal for almost any install environment, including portrait orientation.

Filter Free

  • Filter free LCD laser projector that is virtually maintenance free!
  • IP5X certified Sealed LCD cooling system prevents dust from reaching the optics and eliminates the need for a filter.
  • External air never enters the optical path. • Dust artifacts cannot influence picture quality or decrease image brightness.

Multi-Projector Splitter

The Sharp A201U-B includes a built-in multiscreen splitter, allowing the input signal to be seamlessly split across multiple projectors. This processing is all done internally and therefore eliminates the additional hardware typically required.

Sharp A201U-B screen splitter

Stacking Correction

Sharp's projector stacking ability can significantly improve image brightness and is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector

Sharp A201U-B stacking correction

Edge Blending

Need an even larger image? Not a problem with Sharp's inbuilt Edge-Blending function. Several A201U-B projectors can be 'blended' together to create 1 huge image without the need for expensive external edge-blending hardware.

Sharp A201U-B edge blending

Built-In HDBaseT Support

Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed Full HD digital video, audio, ethernet, power and various control signals. With only a single cable (up to 100m) to run, infrastructure and labourcosts are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What’s more, control signals are contained in the same cable.

Sharp X141Q-B hdbaset support

Get Connected with a wide selection of Inputs

Featuring 2 HDMI, HDBaseT, and a 3G-SDI, there are more high quality digital connections included than ever before.

Wall Colour Correction

Get amazing colour reproduction even on non-white surfaces with Sharp's innovative Wall Colour Correction function.

Sharp A201U-B wall colour correction

Geometric Correction

Projecting an image isn’t confined to a standard flat screen or wall with the Sharp X141Q-B. Geometric correction allows you to project an image on spheres, cylinders, corner angles and many more non-standard surfaces.

Sharp A201U-B geometric

Tilt-free

The projector can be rotated freely (360°) to orient the image depending on the installation requirements

Sharp A201U-B 360 rotation

Portrait mode

Allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used

Sharp A201U-B portrait

Specifications
Display Technology 1.0" LCD w/ MLA
Aspect Ratio 16X10
Screen Resolution WUXGA 1920x1200
Maximum Resolution 4K 4096 x 2160
Brightness (typical) 20000 Lumens
Brightness (maximum) 21000 Center Lumens
Contrast Ratio (typical) 3,000,000:1 (with Dynamic Contrast)
Light Source Life 20,000 hours
Optional Lenses
  • Motorized Zoom Lens 0.53-0.65 (NP51ZL/XP-51ZL)
  • Motorized Zoom Lens 0.65-0.87 (NP52ZL/XP-52ZL)
  • Motorized Zoom Lens 0.86-1.25 (NP53ZL/XP-53ZL)
  • Motorized Zoom Lens 1.24-2.01 (NP54ZL/XP-54ZL)
  • Motorized Zoom Lens 1.98-3.95 (NP55ZL/XP-55ZL)
  • Motorized Zoom Lens 3.95-7.51 (NP56ZL/XP-56ZL)
Lens Adjustment Functions Motorized focus, zoom, horizontal/vertical shift, light shutter (dowser) / Range of shift is dependent on lens
Throw Ratio
  • 0.53 to 0.65:1 Motorized Zoom Lens
  • 0.65 to 0.87:1 Motorized Zoom Lens
  • 0.86 to 1.25:1 Motorized Zoom Lens
  • 1.24 to 2.01:1 Motorized Zoom Lens
  • 1.98 to 3.95:1 Motorized Zoom Lens
  • 3.95 to 7.51:1 Motorized Zoom Lens
Projection Distance 3.58 to 141 ft. / 1.09 to 43m
Projector Angle 5.8 to 18.1° tele / 11.4 to 25.8° wide
Lens (Zoom) Motorized
Lens (Focus) Motorized
Lens (F number, fnumber) (NP51ZL/XP-51ZL) F=1.94 to 2.2, f= 12.0 to 14.8mm, (NP52ZL/XP-52ZL) F=1.84 to 2.25, f= 14.4 to 19.1mm, (NP53ZL/XP-53ZL) F=1.8 to 2.24, f= 19.0 to 27.6mm, (NP54ZL/XP-54ZL) F=1.8 to 2.24, f= 27.7 to 44.3mm, (NP55ZL/XP-55ZL) F=1.84 to 2.58, f= 43.8 to 86.0mm, (NP56ZL/XP-56ZL) F=1.85 to 2.41, f= 86.2 to 164.8mm
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Keystone Correction +/- 40° horizontal, +/- 30° vertical
Fan Noise 42 dB normal / 34 dB slient mode
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
External Control RS-232, IR, Wired Remote, HDBaseT, DDC/CI, RJ-45, USB (USB 2.0)
Input Terminals - RGB1(digital) HDMI (V2.0) w/HDCP (V2.2/1.4)
Input Terminals - RGB2(digital) HDMI (V2.0) w/HDCP (V2.2/1.4)
Input Terminals - RGB3(digital) HDBaseT w/HDCP (V2.2/1.4)
Input Terminals - RGB4(digital) 3G / HD/ SD SDI (SMPTE ST 424M / SMPTE 292M / SMPTE 259M)
Output Terminals - Audio Stereo Mini Jack
Output Terminals - Monitor Out HDBaseT w/HDCP (V2.2/1.4)
Power Consumption (typical) 1530W / 1400W / 0.9W / 0.32W
Input Current 11.9A - 7.8A
Power Requirements 100-240V AC, 50/60 Hz
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD
Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G
Horizontal (Analog/Digital) 15kHz, 24-153kHz
Vertical 50-85Hz, 100Hz, 120Hz
Dimensions (product) (WxHxD) 25.6 x 12.2 x 26.0 in. / 650 x 311 x 661 mm
Dimensions (shipping) (WxHxD) 20.6 x 11.0 x 18.7 in. / 810 x 435 x 735 mm
Net Weight 85.3 lbs. / 38.7 kg
Weight (shipping) 102.5 lbs. / 46.5 kg
Operating Temperature 32-113°F / 0-45°C
Operating Humidity 20 to 85% Humidity (Non-Condensing)
Operating Altitude 0 to 3650 m (11,975 ft)
Storage Temperature 14-122°F / -10 50°C
Storage Humidity 20% - 80% (non-condensing)
Storage Altitude 0-12,000m / 0-39,370ft (above sea level)

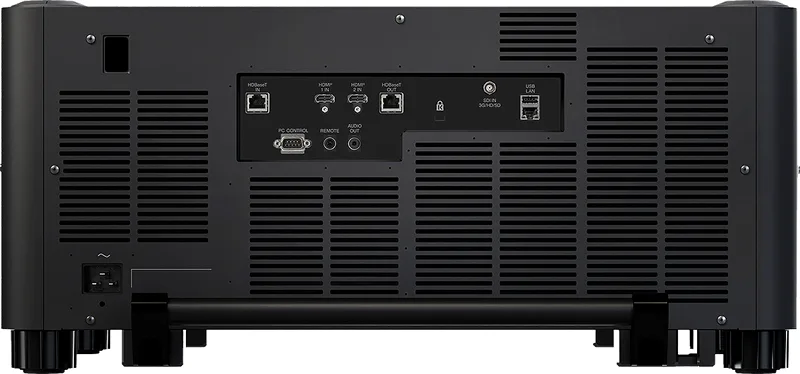

Rear Panel

Sharp A201U-B rear panel
