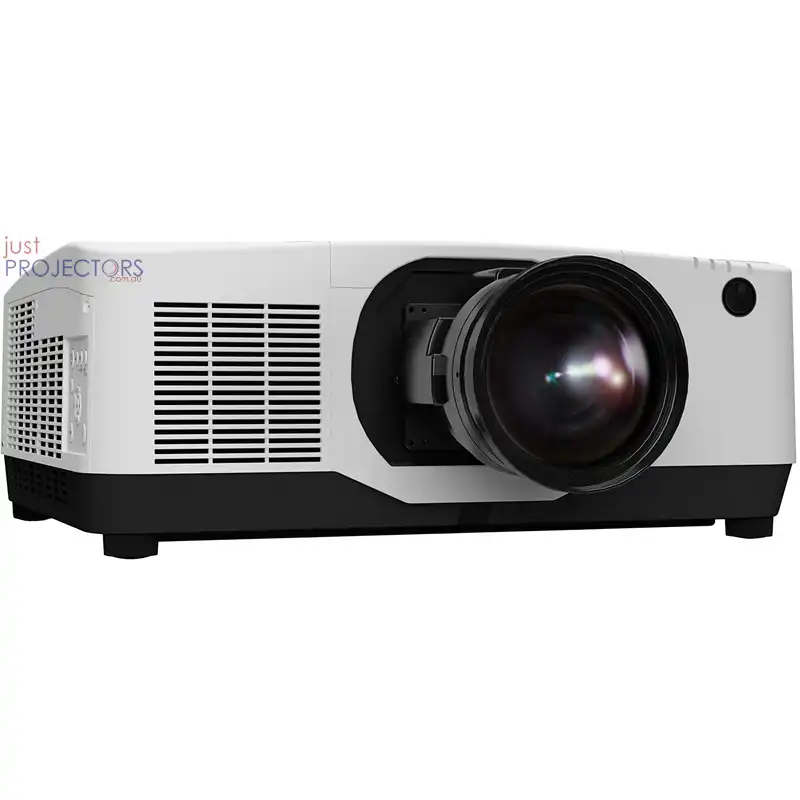

Sharp A155U-W 14,000lm 3LCD WUXGA Large Venue Laser Projector
(With White Chassis)
Specifications
- WUXGA 1920 x 1200 16:10
- 14,000 Lumens
- 3,000,000:1 Contrast
- 28.7kg Weight
- 38 / 35db(eco) Fan Noise
- 5 Year/ 20,000hr Warranty
- 5 Year/ 20,000hr laser Warranty
- Est. Laser Life up to 20,000hrs
Key Features
- 2x HDMI & 3G-SDI Input
- Horizontal + Vertical Keystone
- Horizontal + Vertical Lens Shift
- 360 Degree Installation
- Portrait Installation
- Edge Blending Inbuilt
- Stacking Function
- HDBaseT Input and Output
- Large Range of Lens Options
Lens Options & Throw Distances
Measurements provided may vary slightly between batches.| Expand | Lens | Throw Ratio | Price | |
|---|---|---|---|---|
| NP53ZL | 0.86-1.21:1 | $8999 | ||
| NP54ZL | 1.24-2.01:1 | $6099 | ||
| NP55ZL | 1.98-3.96:1 | $8099 |
Optional Accessories
Sharp A155U-W 14,000 lumen 3LCD Laser Installation Projector
A new class of ultra-quiet, ultra-bright, ultra-reliable projection
Bring the stunning clarity of a laser projector to even your largest spaces. The new A155U-W from Sharp delivers 15,000 center lumens and features silent technology, so the audience can focus completely on the brilliant, distraction-free image. With factory pre-calibrated White Point performance, 12-bit colour signal processing, and a wide color space, you'll experience extraordinarily vivid color and contrast, bringing every presentation to life.
Key Benefits
- No lamp replacement– up to 20,000 h maintenance free operation possible due to Laser Light Source.
- No filter service required– the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
- Compact Design – a large venue projector with a comparatively small footprint and light weight design
- Impress with vivid colour & contrast– brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
- Incredible visualisation capabilities– impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending.
Multiple Digital Inputs
Thanks to two HDMI connections and a 3G-SDI port, you can effortlessly connect to both computers and professional video equipment.
Wall colour correction presets
Presets provide for adaptive colour tone correction to display properly on non-white surfaces.
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Geometric Correction
Allows you to project on spheres, cylinders, corner angles and more.
Roll-Free Installation
The projector can be rotated freely (360°) to orient the image depending on the installation requirements
Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.
Edge Blending
Blend multiple projectors together to create not standard images
Multi-Screen Compensation
Allows for the seamless integration of multiple projected images.
Stacking Capabilities
Stack multiple projectors to boost your image brightness significantly, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
4K Ready
Display stunning 4K content using Sharp’s proprietary high performance video processing/scaling chip without the loss of critical details.
PIP/Side-by-Side
Picture-in-picture (PIP) allows for a second frame within the screen area. Side-by-side places two sources adjacent to one another.
HDBaseT Input & Output
The HDBaseT input and seperate HDBaseT repeater provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.
| Image | |
| Projection Technology | 3LCD Technology |
| Native Resolution | 1920x1200 |
| Aspect Ratio | 16:10 |
| Contrast Ratio (typ.) | 3,000,000:1 |
| Brightness [Lumen] | 14000 |
| Light Source | Laser |
| Light Source Life [hrs] | 20000 |
| Lens | 6 motorized lens options |
| Lense Adjustment | Motorized |
| Lens shift | Up to H:±25, V:+65,-65 |
| Keystone correction | +/- 40° manual horizontal / +/- 30° manual vertical |
| Projection Factor | depending on lens selection (std. option NP54ZL at 1.25-2.01:1) |
| Projection Distance [m] | 0.68 – 80.77 |
| Screen Size (diagonal) [cm] / [inch] | Maximum: 1,270 / 500"; Minimum: 152 / 60" |
| Zoom | Motorized |
| Focus Adjustment | Motorized |
| Supported Resolution | 1920x1080 1920x1200 4096x2160 640x480 1280x720 2048x1080 720×576 2560x1600 720x480 |
| Frequency | Horizontal: analog: digital: 15/24-153 kHz; Vertical: 24 – 120 Hz |
| Connectivity | |
| Digital Input | 1 x 3G-SDI; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2 |
| Digital Output | 1 x HDBaseT supporting HDCP 2.2 |
| Audio Input | 1 x HDBaseT audio support; 2 x HDMI audio support |
| Audio Output | 1 x 3.5 mm Stereo Mini Jack (variable) |
| Control Input | 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet |
| LAN | 1 x RJ45 |
| USB | 1 x Type A (USB 2.0 high speed) |
| Remote Control | |
| Remote Control | Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control |
| Electrical | |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption [W] | 0.5 Network Stand-by / 2.0 Stand-by 925 Normal / 920 Silent Mode |
| Mechanical | |
| Dimensions (W) [mm] | 599 |
| Dimensions (H) [mm] | 238 |
| Dimensions (D) [mm] | 490 |
| Weight [kg] | 25-30 |
| Fan Noise [dB (A)] | 38 / 35 (Eco / Normal) |
| Colour Versions | White Black |
| Environmental Conditions | |
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Temperature [°C] | -10 to 50 |
| Storage Humidity [%] | 20 to 80 |
| Ergonomics | |
| Safety and Ergonomics | RCM CE EAC ErP RoHS TUEV Type Approved |
| Additional Features | |
| Special Characteristics | 4K/60Hz interfaces; AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical 0.65 max/-0.65 max, horizontal ± +0.25 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control |
| Green Features | |
| Energy Efficiency | ECO scheduler Intelligent Power Management Longer Light Source Life Software scheduling Timer-Function Less than 0.5W Stand-By power |
| Ecological Materials | Downloadable manuals 100% recyclable packaging |
| Ecological Standards | ErP compliant |
| Warranty | |
| Projector Warranty | 5 years Warranty |
| Light Source Warranty | 5 years or 10000h (whatever comes first) |
| Shipping Content | |
| Shipping Content | Power Cable Projector Quick Setup Guide IR Remote Control Users Manual on CD-ROM |
| Optional Accessories | |
| Optional Accessories | 6 optional bayonet lenses |
| Lenses - motorised | NP51ZL (0.53-0.65:1) NP52ZL (0.65-0.86:1) NP53ZL (0.86-1.25:1) NP54ZL (1.24-2.01:1) NP55ZL (1.98-3.95:1) NP56ZL (3.92-7.5:1) |

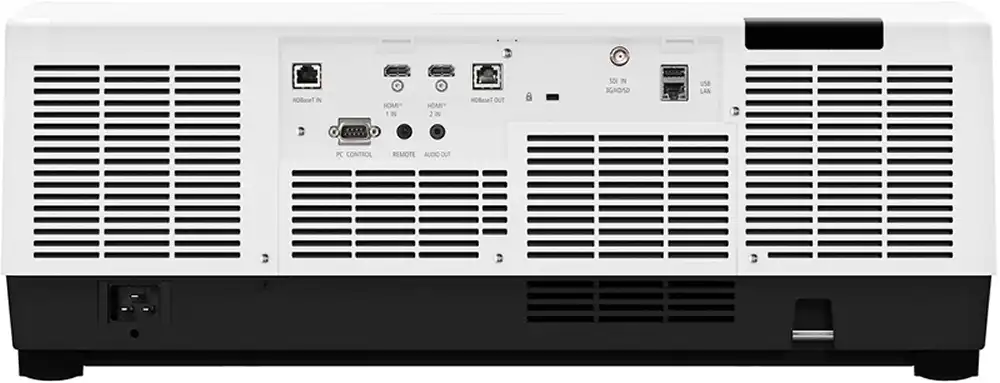

Rear Panel
