Elite Screens VMAX2 Series Motorised Projector Screen

Elite Screens VMAX2 Motorised Projector Screen
Elite logo

  • MaxWhite FB 1.1 Gain Material
  • Fibreglass Backing for added stiffness
  • Stylish White or Black Casing
  • Fixed Integrated Wall/Ceiling Bracket
  • IR and RF Remotes Provided
  • Detachable 3-way wall switch
  • 12v Trigger Port
  • Black Bordered
  • GreenGuard Certified
  • Works with short & long throw projectors
  • Not compatible with Ultra Short Throw
2 year warranty
australian stock
insured delivery

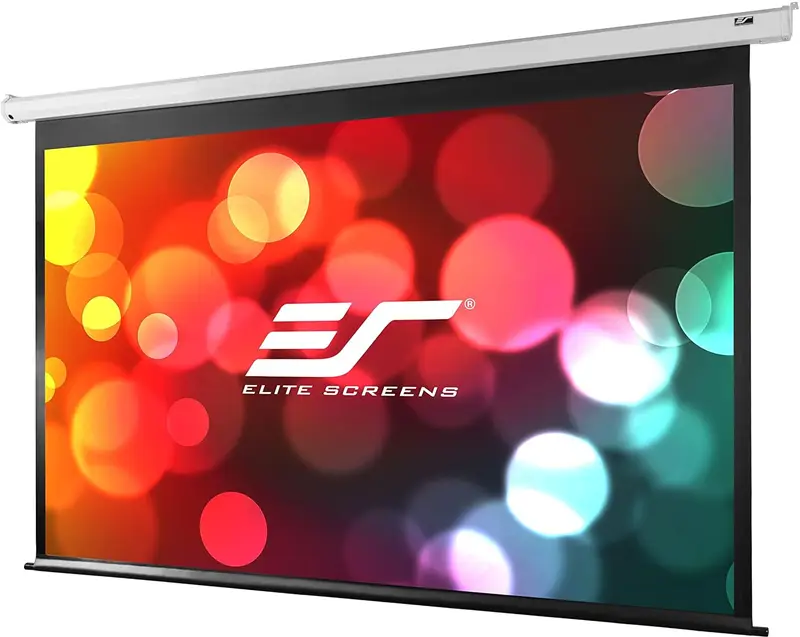

Elite Screens VMAX2 Motorised Projector Screen with Fibreglass backing

The Elite Screens VMAX2 motorised projector screen with enhanced MaxWhite Fibreglass material is a popular choice for both commercial and home theatre applications, offering a blend of convenience, great image quality, and durability. Unlike the Spectrum series, the VMAX2 series feature Fibreglass backing, significantly improving the rigidity, stiffness, and “flatness” of the material. The Elite Screens VMAX2 series is compatible with modern Full HD and 4K projectors and is perfectly suited for use in home theatres and offices.

Expand Model Size Price White Case Black Case
Image Area:
2037x1146mm
Case Length:
2366mm
Top Border/Leader:
152mm
Warranty:
2 Years
Image Area:
2214x1245mm
Case Length:
2544mm
Top Border/Leader:
152mm
Warranty:
2 Years
Image Area:
2435x1370mm
Case Length:
2773mm
Top Border/Leader:
203mm
Warranty:
2 Years
Image Area:
2657x1494mm
Case Length:
2991mm
Top Border/Leader:
152mm
Warranty:
2 Years
Image Area:
2989x1681mm
Case Length:
3289mm
Top Border/Leader:
203mm
Warranty:
2 Years
Image Area:
3321x1868mm
Case Length:
3622mm
Top Border/Leader:
102mm
Warranty:
2 Years
*Dimensions may vary slightly between batches.
Optional Accessories
Expand Model Description Price
Current Sensing Trigger
Transmits wirelessly to screen
Up to 80 feet range
Does not require trigger port on projector
*International model shown in video, minor variations are possible in Australian models.

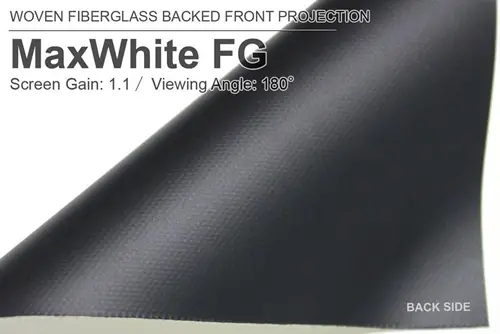

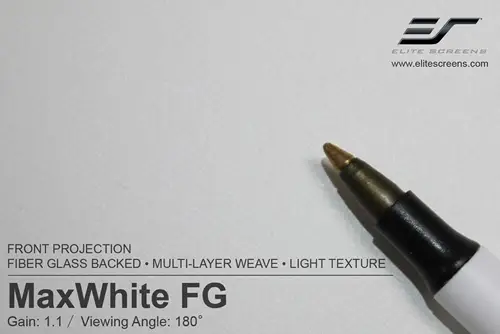

Screen Material

  • MaxWhite FG 1.1 Gain Material
  • Fibreglass backed for improved stay-flat qualities
  • 180 degree wide viewing angle
  • Active 3D and 4K Ultra HD Ready
  • Standard black masking borders
  • Available in various diagonal sizes and aspect ratios
  • Not compatible with Ultra/Short-throw Projectors

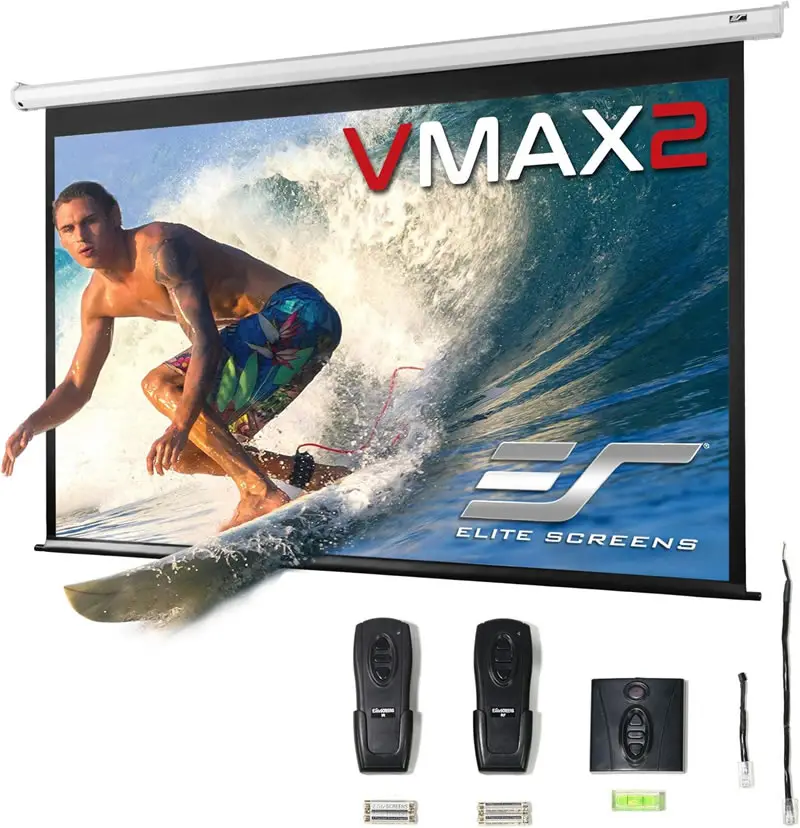

Total Control

  • Infrared (IR) and Radio Frequency (RF) remote controls provided
  • Detachable 3-way wall UP/STOP/DOWN switch provided
  • Built-in 5-12 volt trigger port enables Drop/Rise operation to synchronize with the projector's power cycle
  • Low-voltage internal IR/RF Receiver
  • Optional ZR800D IR Universal Remote Control, wireless 5-12 volt trigger, Universal 5-12 volt trigger (for projectors that don't have a trigger output port) and In-wall switch

Design and Installation

  • Durable casing for wall/ceiling installations
  • Includes wood screws and drywall anchors
  • Bubble leveler included
  • Ships fully assembled with 3-prong power connection ready to plug & play
  • Optional in-ceiling trim kit and 6" and 12" L brackets

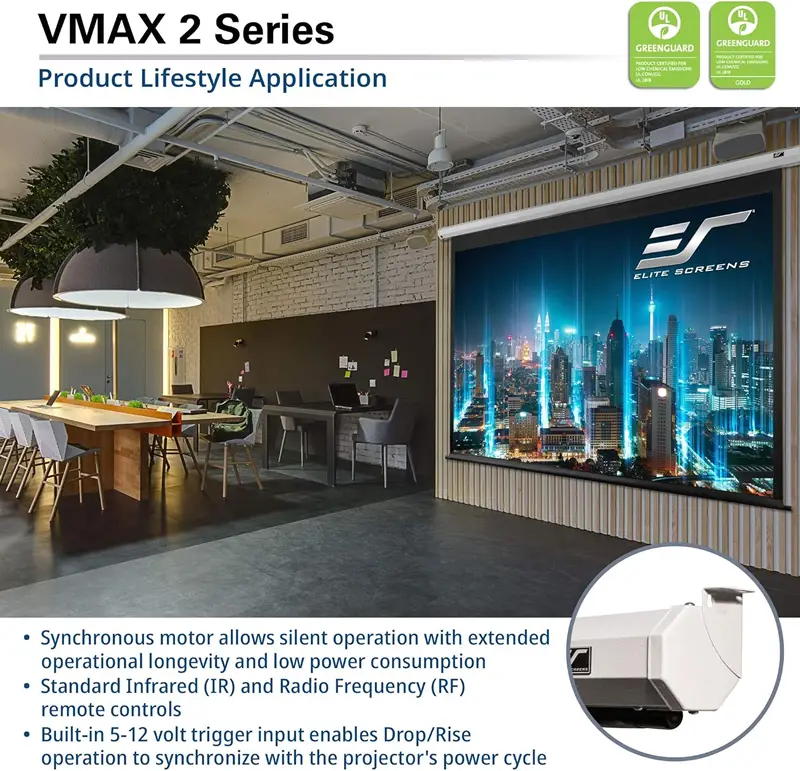

Quality and Reliability

  • Synchronous motor allows silent operation with extended operational longevity and low power consumption
  • Certified by AMX and CRESTRON
  • GREENGUARD and GREENGUARD Gold Certified
  • 2-year warranty
Elite Vmax2 series motorised screen
Elite Vmax2 series motorised screen
Elite Vmax2 series MaxWhite FG Material
Elite Vmax2 series MaxWhite FG Material
