Grandview Deluxe Manual Pull Down Projector Screen

Grandview Deluxe pull down screen
Grandview logo

  • 1.0 Gain Screen Material
  • White Designer Casing
  • Black Backed
  • Slow Retract Decelerator
  • Auto Locking Mechanism
  • Easy Floating Bracket mounting
  • Black Bordered
  • Up to 500mm leader *select models
  • Works with short & long throw projectors
  • Not compatible with Ultra Short Throw
    •
delivery
3 year warranty
australian stock
insured delivery

Grandview Deluxe Pull Down Screen

GV Grandview Deluxe Manual Roller Screens are easy to use and install, elegantly designed, and offer an economical solution to your projection screen needs.

Expand Model Size Price
Image Area:
2340x1755mm
Case Length:
2510mm
Warranty:
3 Years
Image Area:
1830x1030mm
Case Length:
1990mm
Warranty:
3 Years
Image Area:
2030x1140mm
Case Length:
2205mm
Warranty:
3 Years
Image Area:
2260x1270mm
Case Length:
2435mm
Warranty:
3 Years
Image Area:
2656x1494mm
Case Length:
2830mm
Warranty:
3 Years
Image Area:
2030x1270mm
Case Length:
2205mm
Warranty:
3 Years
Image Area:
2210X1380mm
Case Length:
2395mm
Warranty:
3 Years
Image Area:
2585x1615mm
Case Length:
2760mm
Warranty:
3 Years

Fabric Features

  • Last-long Flatness
    With four layer structure including Fiberglass, Stretchness less than 1% which ensures the long-lasting flatness
  • Sophisticated Images
    The screen material is engraved with optical microgrooves on the surface, with a resolution of more than 125 line pairs per mm. This ensures the sharpness of the projected images.
  • Color Accuracy
    The reflected light is evenly distributed with less than 60K colour temperature difference between projection angle and reflection angle for accurate colour at any viewing angle.
  • Wide Color Range
    With a high contrast, while maintaining the color accuracy and color range the Grandview provides a more vivid image
Grandview material layers

Weaved Fiberglass of the matte white fabric

The weaved Fiberglass layer of the fabric is used as a backing or backbone of the entire screen structure. With this layer Grandview screens have a stretching rate of less than 1% and a much longer life span than ordinary meterials. The fiberglass backing prevents wringling or waves due to changes in temperature, humidity or drag foces.

Grandview layer features

Intelligent Design

Limitless Positioning

With Limitness Positioning Structure, the screen can be stopped by holding the handle for 3 seconds at any position.

Grandview Deluxe positioning
Slow Retraction

With Slow Retraction System to allow the screen retracting back slowly within 8 seconds, which can prevent the safety issue cause by lower bar hitting casing.

Grandview Deluxe slow retract
Wrinkle Free

When the screen is fully retracted the positioning system is lock off and the fabric is not stretched by the spring system, which can prevent the wrinkle cause by long time stretchness from the spring system.

Grandview Deluxe flatness
Grandview Deluxe decelerator
Universal Bracket

Suitable for either wall mount, ceiling mount or ceiling hang. The bracket can slide horizontally at the back of the casing to match different installation positions.

Grandview Deluxe mounting
*Sizes may vary slightly between batches.
Replacement & Spare Parts

Brackets are included with new GV screen purchases. Below items are available for purchase as spares or replacement parts only.

Expand Model Description Price
Compatible With:
GRPC084V, GRPC100V, GRPC120V,
GRPD082H, GRPD092H, GRPD102H,
GRPG094C, GRPG103C, GRPG120C

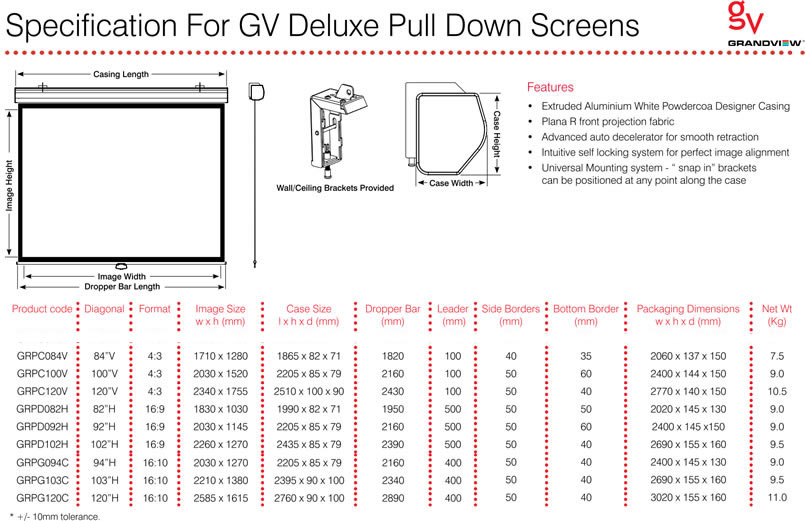

Specifications

+ or - 10mm

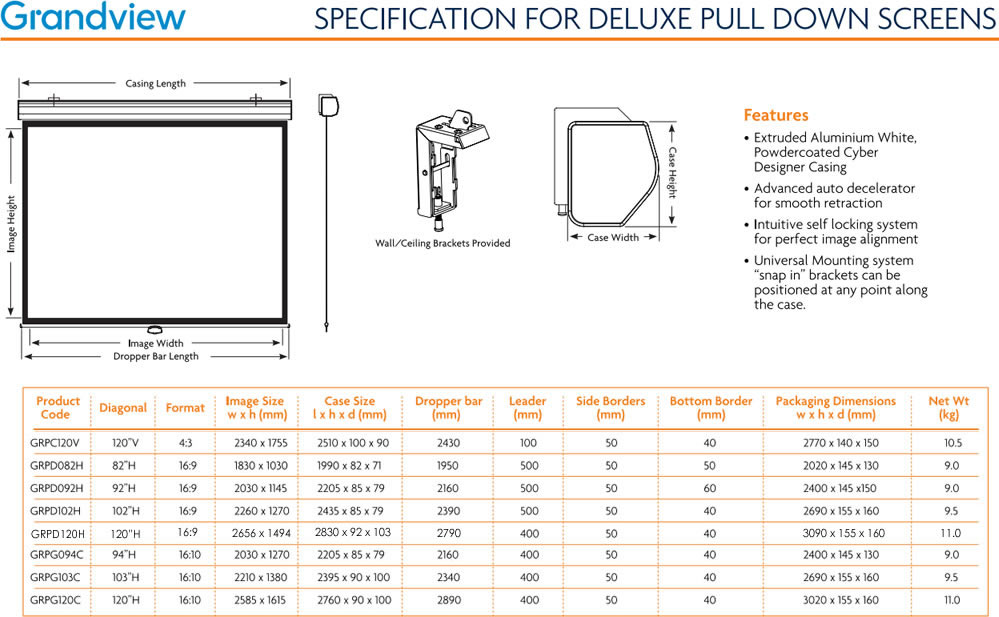

Grandview Deluxe specifications
