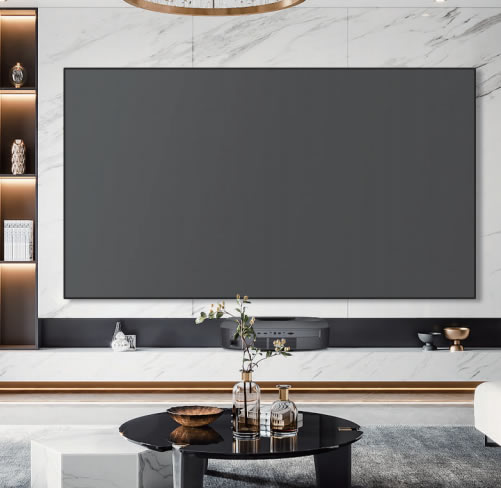

Grandview Edge 4K Fixed Frame Ambient Light Rejecting Screen

Grandview Screens ALR Fixed Frame Projector Screen
Grandview Screens logo

  • Black Grid ALR Material
  • 1.2cm Velvet Finished Frame
  • 99% Colour Reproduction
  • Premium Quality ALR Screen
  • Simple Installation
  • Designed exlusively for UST Projectors
  • Works with Ultra Short Throw (only)
  • Not compatible with standard/long Throw
3 year warranty
australian stock
insured delivery

Grandview ALR Fixed Frame Screen Range

A premium Ambient Light Rejecting Fixed Frame Screen with velvet coated frame, Black Grid ALR Material, and a long warranty; The Grandview ALR range is the perfect fit with your new Ultra Short Throw Projector.

Grandview ALR vs white screen

Grandview ALR Screen vs Other Brands

The Grandview black grid ALR screen can reduce the influence of ambient light and effectively improve brightness and contrast. The picture perfomance is clearer and brighter. Other brands of ALR screens can have poor light resistance, and colour saturation can be greatly reduced as a result.

Grandview ALR Comparison

Black Grid Ambient Light Rejecting System

The surface has a finely engraved toothed grid that only provides targeted reflection of the projected beam at a specific angle. Non-imaged ambient light is absorbed by the light absorbing coating on the other side of the toothed grid and no diffraction occurs. Because the colour reproduction of the black grid is as high as 99%, even during the day, you don't need to close curtains, you don't need to turn off lights, you can still have a saturated, richly-lit projection room.

Grandview Screen viewing angle

Black grid screen and Matt white screen comparison

The special micron-scale grid structure on the surface of the black grid screen blocks the upper light sources. The light source of the ultra short throw projector below is reflected in parallel coming back to the audience. This enhances the image quality making it clearer and brighter. The ordinary Matt White screen is made of ordinary PVC material, only creating a white surface to reflect from.

Grandview vs matt white screen

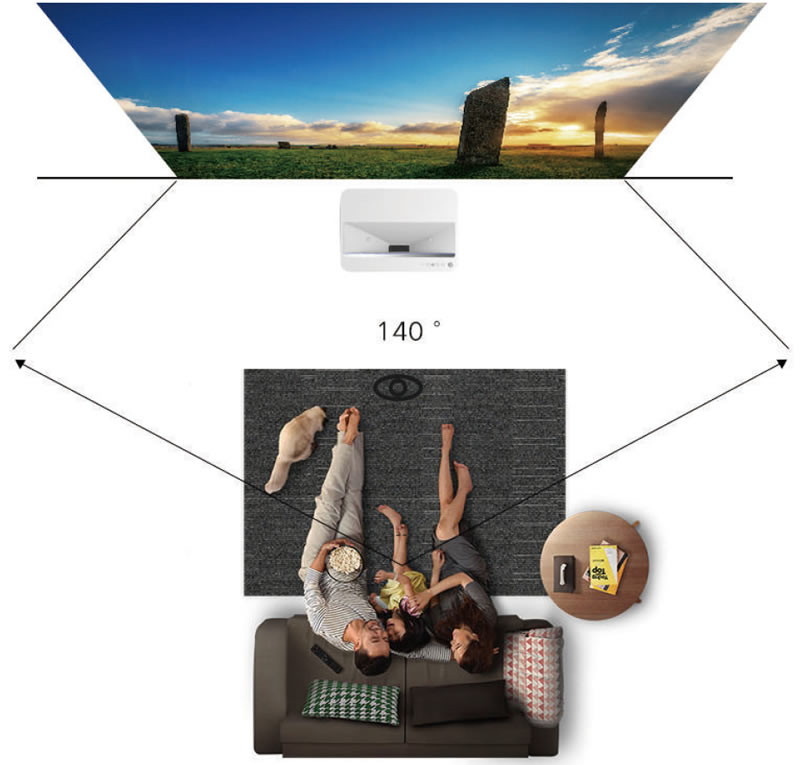

140 degree wide Viewing Angle

The 120 inch large screen has a wide viewing angle of 140 degrees for complete coverage of the home theatre viewing area. It features a 12mm ultra narrow bezel design for a sleek modern finish. Combined with a laser ultra short throw projector it achieves a giant laser TV effect.

Grandview ultra short throw
Note: Grandview ALR Screens are designed exlusively for UST Projectors positioned under the screen. This screen is not compatible with standard throw or ceiling mounted projectors.
Expand Model Size Price
Image Area:
Border Thickness:
3 Years
Image Area:
Border Thickness:
3 Years
*Sizes may vary slightly between batches.

Real World Demonstration:

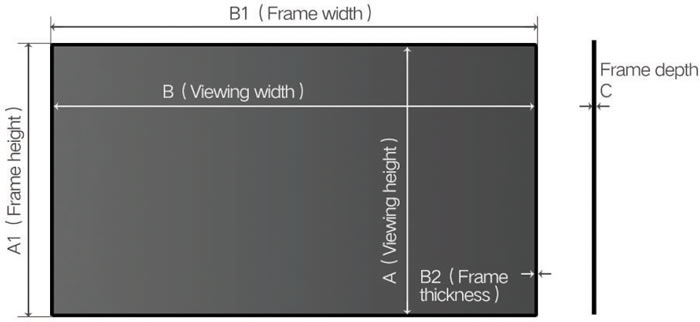

Grandview ALR specifications

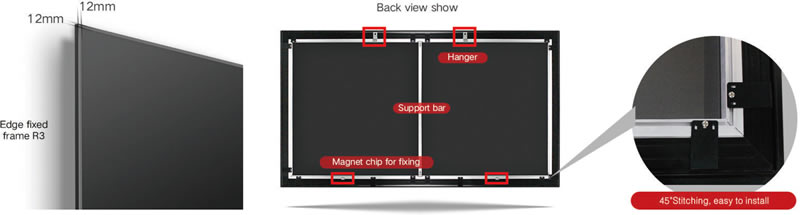

Grandview ALR mounting
Size 100 Inch 120 Inch
Aspect Ratio 16:9 16:9
Viewing Height 1245mm 1494mm
Viewing Width 2215mm 2657mm
Frame Height 1269mm 1516mm
Frame Width 2239mm 2679mm
Frame Thickness 12mm 12mm
Frame Depth 20.2mm 20.2mm
