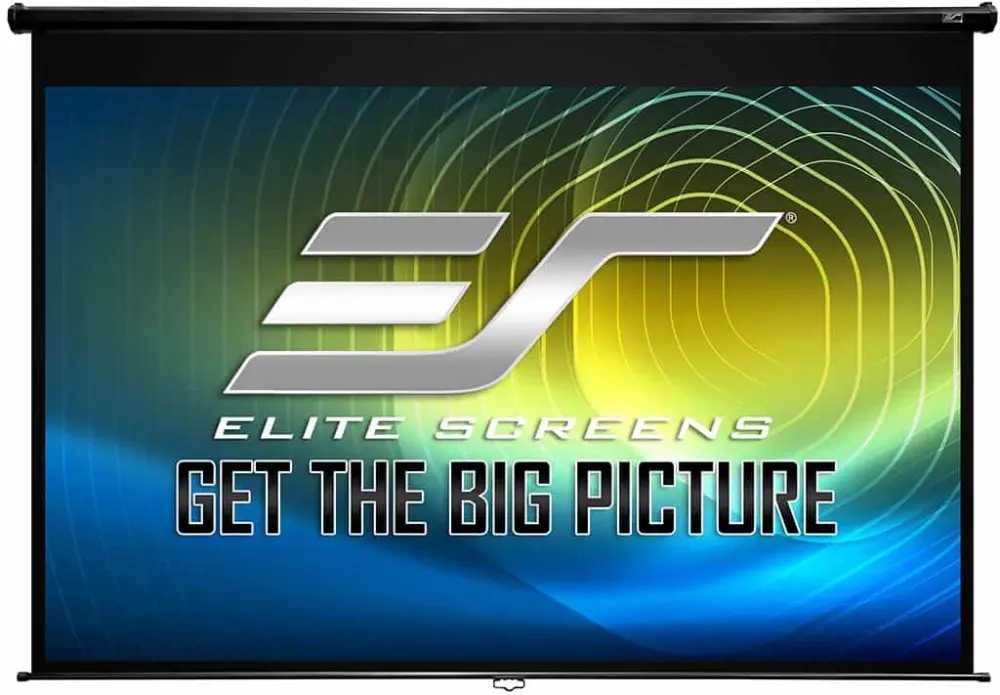

Elite Screens Manual Pull Down Projector Screen

Elite pull down screen
Elite logo

  • MaxWhite 1.1 Gain Screen Material
  • Black or White Casing Available
  • Black Backed
  • Auto Locking Mechanism
  • Greenguard Certified
  • Black Bordered
  • Works with short & long throw projectors
  • Not compatible with Ultra Short Throw
delivery
2 year warranty
australian stock
insured delivery

Elite Screens Pull Down Screen

Elite's Manual Series projection screens are the picture perfect solution to a professional projection system for your home, business, or classroom.

Our Manual series provides an exceptional projection surface without spending beyond what is necessary. Special features include its auto locking mechanism for variable height settings, black masking borders, wide diffusion uniformity, lanyard for convenient operation and a revolutionary end cap design that accommodates both wall or ceiling installations. Sizes are available from 71" up to 170" with your choice of over head projector (1:1), commercial PC (4:3),WXGA (16:10), or home theater aspect ratios (16:9). White or black metal casings are available to suit the look of your training facility or home media room. Enjoy the professional quality and peace of mind with our industry best 2-year manufacturer's warranty.

Inform, Educate, or Entertain.

  • Mount your screen on either the wall or ceiling and retract it to save space.
  • Equipped with Elite's 1.1 gain MaxWhite tensioned screen material gives wide viewing angles, so no one needs to miss out on the action.
  • Eliminates unwanted light penetration with Elite's standard black backing.
  • Surrounded by 4 sides of black masking to functionally absorb excess light overspray given off by many projectors.
  • Watch the game on the big screen within minutes. The Manual series is a cinch to install.
  • Auto-Locking mechanism provides its user with variable height settings.
  • Screen lanyard helps in situations where the screen is situated in elevated locations.
  • Impress your friends and family with sizes from 71" to 170" in 1:1, 4:3, 16:9 and 16:10 aspect ratios.
  • 2-year parts and labor premium warranty

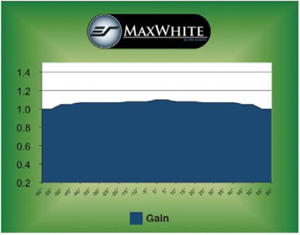

MaxWhite screen material is the most versatile screen surface for front projection presentations. This material provides the widest possible viewer angles with perfect diffusion uniformity while giving precise definition, image color reproduction and black & white contrast. Screen surface has black-backing to avoid light penetration and can be cleaned safely with mild soap and water. Woven screen material is a multi-layer, cross-array coated with a matte white reflective compound.

  • 1.1 gain with 160 degree wide viewing angle
  • Surface can be easily cleaned with mild soap and water
  • GREENGUARD® Indoor Air Quality and GREENGUARD® Children & Schools Certified
  • Constructed of a multi-layer weave and textured surface coating
  • Black masking on all sides to absorb unwanted overspray
Elite pull down screen material
Elite pull down screen colour
Elite pull down screen
Elite pull down screen endcap
Expand Model Size Price White Case Black Case
Image Area:
1275x1275mm
Case Length:
1432mm
Warranty:
2 Years
Image Area:
1527x1527mm
Case Length:
1686mm
Warranty:
2 Years
Image Area:
1778x1778mm
Case Length:
1938mm
Warranty:
2 Years
Image Area:
2030x2030mm
Case Length:
2192mm
Warranty:
2 Years
Image Area:
2137x2137mm
Case Length:
2294mm
Warranty:
2 Years
Image Area:
3053x3053mm
Case Length:
3212mm
Warranty:
2 Years
Image Area:
1707x1280mm
Case Length:
1867mm
Warranty:
2 Years
Image Area:
2032x1524mm
Case Length:
2166mm
Warranty:
2 Years
Image Area:
2438x1829mm
Case Length:
2598mm
Warranty:
2 Years
Image Area:
2743x2057mm
Case Length:
2953mm
Warranty:
2 Years
Image Area:
3048x2286mm
Case Length:
3248mm
Warranty:
2 Years
Image Area:
1860x1046mm
Case Length:
2014mm
Warranty:
2 Years
Image Area:
2037x1146mm
Case Length:
2166mm
Warranty:
2 Years
Image Area:
2221x1245mm
Case Length:
2374mm
Warranty:
2 Years
Image Area:
2657x1494mm
Case Length:
2816mm
Warranty:
2 Years
Image Area:
2990x1681mm
Case Length:
3148mm
Warranty:
2 Years
Image Area:
3321x1868mm
Case Length:
3484mm
Warranty:
2 Years
Image Area:
1852x1158mm
Case Length:
2014mm
Warranty:
2 Years
Image Area:
2025x1265mm
Case Length:
2185mm
Warranty:
2 Years
Image Area:
2348x1467mm
Case Length:
2506mm
Warranty:
2 Years
Image Area:
2757x1723mm
Case Length:
2917mm
Warranty:
2 Years
Image Area:
2994x1871mm
Case Length:
3148mm
Warranty:
2 Years

Optional Parts
Expand Model Description Price
Compatible with:
Elite Manual, Spectrum, and VMAX2 series Screens
Compatible with:
Elite Manual, Spectrum, and VMAX2 series Screens
Compatible with:
Elite Manual, Spectrum, and VMAX2 series Screens
Compatible with:
Elite Manual, Spectrum, and VMAX2 series Screens
*Sizes may vary slightly between batches.

Specifications

(mm) + or - 1%

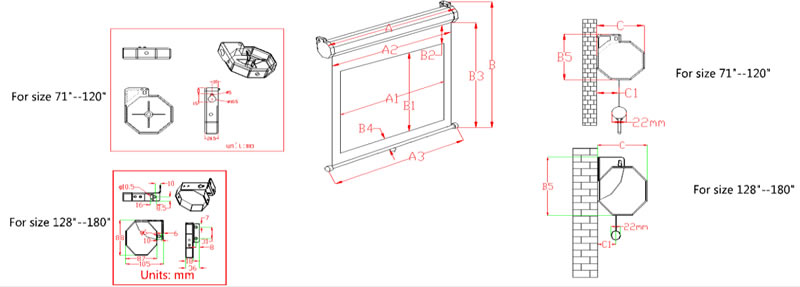

Elite pull down specifications
Model Image W (A1) Image H (B1) Screen Width (A2) Leader (B2) Case Width (A) Total Height (B) Case Height (B5) Case Depth (C)
M71XWS1 1275 1275 1351 114 1432 1533 82 69
M85XWS1 1527 1527 1603 114 1686 1785 82 69
M99NWS1 1778 1778 1854 76 1938 2008 92 80
M113NWS1 2030 2030 2106 114 2192 2298 92 80
M119XWS1 2137 2137 2213 101 2294 2392 92 80
M170XWS1 3053 3053 3129 114 3212 3334 105 88

M84NWV 1707 1280 1783 76 1867 1490 82 69
M100NWV1 2032 1524 2088 114 2166 1782 82 69
M120XWV2 2438 1829 2514 114 2598 2097 92 80
M135XWV2 2743 2057 2819 114 2953 2338 105 88
M150XWV2 3048 2286 3124 114 3248 2567 105 88

M84UWH 1860 1046 1936 114 2014 1304 82 69
M92XWH 2037 1146 2093 114 2166 1404 82 69
M100XWH 2214 1245 2290 114 2374 1513 92 80
M120XWH2 2657 1494 2733 114 2816 1762 92 80
M135XWH2 2989 1681 3065 114 3148 1962 105 88
M150XWH2 3321 1868 3397 114 3484 2149 105 88

M86NWX 1852 1158 1928 114 2014 1416 82 69
M94NWX 2025 1265 2101 114 2185 1523 82 69
M109NWX 2348 1467 2424 101 2506 1735 92 80
M128NWX 2757 1723 2833 114 2917 1991 92 80
M139NWX 2994 1871 3070 114 3148 2139 92 80
