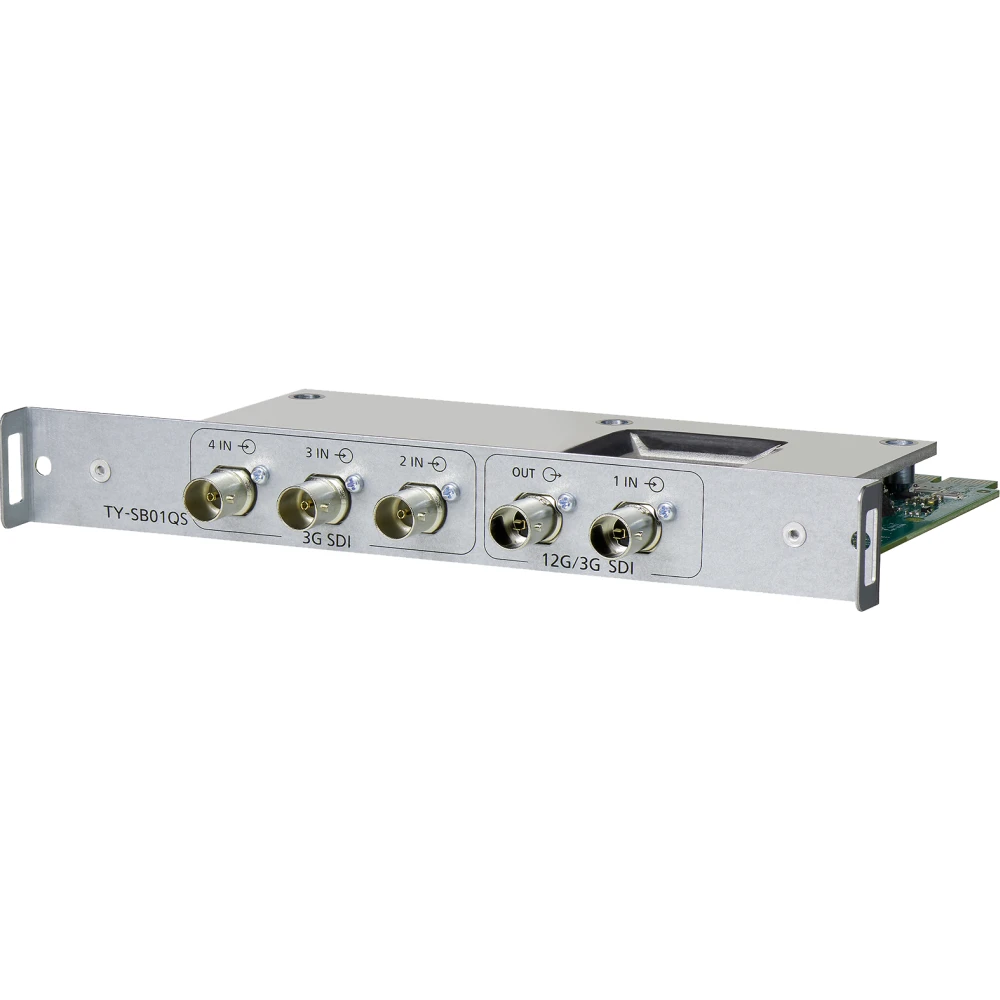

Panasonic TY-SB01QS 12G-SDI Terminal Board

Panasonic TY-SB01QS 12G-SDI Terminal Board

The TY-SB01QS 12G-SDI Terminal Board for Panasonic displays is an SDI input signal module for select Panasonic displays/projectors. Compatible with Intel SDM slots, the board provides 12G-SDI and quad-link 3G-SDI inputs and 12G-SDI and 3G-SDI outputs.

Features

• Intel SDM Slot Compatible
• 1 x 12G/3G-SDI, 3 x 3G-SDI Inputs
• 1 x 12G/3G-SDI Output
• Quad Link 3G-SDI Input
• 12G-SDI In to 328', 12G-SDI Out to 164'
• Requires Display Software v2.30 or Later
• Requires Sub Software v02.20 or Later

Compatible with select Panasonic Projectors

Compatible with PT-RQ45K/RZ45K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-HTQ20, PT-RZ14K, PT-REQ15/REQ15L, PT-REQ12/REQ12L, PT-REQ10/REQ10L, PT-REQ80/REQ80L, PT-REZ15/REZ15L, PT-REZ12/REZ12L, PT-REZ10/REZ10L, PT-REZ80/REZ80L, PT-RQ7L, PT-RQ6L,PT-RZ7L, PT-RZ6L
