NEC P605ULG High Brightness Large Venue Laser Projector
DISCONTINUED
For current model Click Here:
NEC P627ULG
Specifications
- WUXGA 1920 x 1200 16:10
- 6,000 ANSI Lumens
- 500,000:1 Contrast
- 9.7kg Weight
- 28 / 19db(eco) Fan Noise
- 5 Year/ 20,000hr Warranty
- 5 Year/ 20,000hr laser Warranty
- Est. Laser Life up to 20,000hrs
Key Features
- 2x HDMI Input
- Horizontal & Vertical Keystone
- Vertical Lens Shift
- Horizontal Lens Shift
- Powerful 20w Speaker
- 1.6x zoom
- 360 Degree Installation
- Portrait Installation
- HDBaseT Compatible
NEC P605ULG Throw Distance Chart
Throw Ratio: 1.23-2.0:1
Examples of installation distance for some popular screen sizes.
Image Size |
Installation Distance |
94" (16:10) 2025x1265mm |
From 2.5m to 4.0m |
110" (16:10) 2370x1480mm |
From 3.0m to 4.7m |
120" (16:10) 2585x1615mm |
From 3.2m to 5.1m |
130" (16:10) 2800x1750mm |
From 3.5m to 5.6m |
140" (16:10) 3015x1885mm |
From 3.8m to 6.0m |
150" (16:10) 3230x2020mm |
From 4.0m to 6.4m |
NEC P605ULG WUXGA Laser Projector
Powerful installation projectors equipped to take on the most demanding integration projects
The NEC P605UL Entry Installation Series, LCD, laser projector combines advanced features at a budget conscious price making it ideal for higher education classrooms and corporate conference rooms. With 6000 lumens, WUXGA resolution and improved color fidelity the P Series delivers impressive images in demanding applications. Installation flexibility is achieved with lens shift, HDBaseT, a broad 1.6x zoom lens and tilt free capability. The 20,000 hour laser life and NEC's sealed optical engine creates a maintenance free projection solution.
- Sealed optics provide a maintenance free projection solution while LCD technology delivers an impressive and accurate image
- Horizontal & Vertical lens shift enables flexible projector placement
- Built-in HDBaseT provides simplified installations with a single cable for video, audio, and control signals
- Extremely quiet operation for minimal distraction
- Powerful 20W speakers provide volume needed for most large classrooms and conference rooms
- 4K Ready - Display stunning 4K 30Hz content using NEC’s proprietary high performance video processing/scaling chip
- Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in higher education and corporate
- MultiPresenter for audio and video transmission from up to 16 sources simultaneously to the projector over the network
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

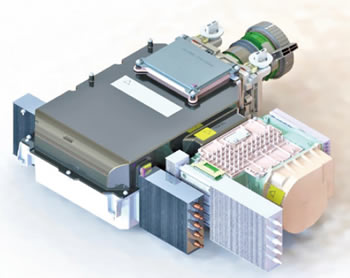

Filter-free Structure with NEC's Original Cooling System
High dustproof performance is achieved by NEC's proprietary sealed jet impingement cooling structure. Due to its excellent dustproof performance, this projector does not have the cumbersome filters that ordinary LCD projectors require. the new laser-based LCD projector offers better TCO (total Cost of Ownership) with less maintenance.
Lens Shift
Lens Shift provides greater flexibility when determining the installation location.
Tilt-free
The projector can be freely (360) to orient the image depending on the installation requirements.
Portrait mode
Allows the projector to be rotated (and screen is necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
Remote Diagnostics
Enables the user to monitor and make adjustments to the projector from a remote location.
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Advanced AccuBlend™
Ensures detailed images when non-native resolution sources are connected to the projector.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
Simultaneous Dual Image Display (PIP)
With this projector, it is possible to project two images with a single projector by displaying a small sub-display within the main display. Furthermore, the sub-display display position can be changed and the main display and sub-display images can be swapped.
Auto Power On
Powers on the projector as soon as it is plugged into a power outlet.
20W Audio
Powerful 20-watt speaker provides volume needed for large rooms
Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
Dust-Resistant Design
Sealed optical block minimizes the effects of dust, helping to ensure the delivery of crisp, distortion-free images.
ECO Mode™
Extends lamp life, lowers audible noise and reduces total cost of ownership.
Wireless LAN (Optional)
Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
MultiPresenter
This projector is compatible with the NEC MultiPresenter application, so multi-screen projection is possible via the network (wired LAN / wireless LAN).
Multi-screen Projection Function *1
The multi-screen projection function allows for the sharing of screens of multiple devices on various split-screen displays via a wireless or wired LAN. Display information from up to 50*2 PCs, tablet PCs, smart phones, and other network connected devices on a multi-screen display of up to 16 screens. Easily share screens and information regardless of device or operating system.
Specifications
Display Technology 0.64" LCD w/ MLA
Light Output(Lumens) 6000 lumens
Lamp Type Laser/Phosphor Light Source Life 20,000 hours
Screen Size (diagonal) 25 - 300 in. / 0.6 - 7.6m
Throw Ratio 1.23-2.0:1
Projection Distance 2.6 - 44.3 ft. / 0.8 - 13.5m
Projector Angle 0 - 10.8° tele / 0 - 17.0° wide
Lens
Zoom: 1.6x
Focus: Manual
F number, fnumber: F=1.5~2.1 / f=17.2~27.6mm
Keystone Correction +/- 30° horizontal, +/- 30° vertical
Lens Shift Manual (H = +/-29% / V = 0% to +60%)
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise 28dB (HIGH BRIGHT) / 25dB (OTHERS) / 19dB (ECO)
Power Consumption (typical) On 367W / 261W / 1.4W / 0.13W Input Current 5.5A - 2.3A
Power Requirements 100-240V AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD) Product: 18.9 x 16.0 x 5.6 in. (480 x 407 x 142.5 mm)
Shipping: 23.3 x 19.3 x 10.2 in. (591 x 491 x 259 mm)
Weight Net Weight: 21.4 lbs. (9.7 kg)
Shipping: 28.2 lbs. (12.8 kg)
Display
Aspect Ratio 16x10 Native Resolution WUXGA 1920x1200
Maximum Resolution Up to 4K@30Hz (3840x2160) with Advanced AccuBlend
Contrast Ratio (typical) 600,000:1 with Light Adjust
Synchronization Range Horizontal (Analog/Digital) 15 to 100KHz (RGB: 24kHz or over) Vertical 50-120 Hz
Signal Compatibility/Connectivity Supported Video Standards NTSC3.58/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM SD/HD Video Signal Compatibility 4K, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
PC Signal Compatibility VGA, SVGA, XGA, WXGA, Quad-VGA, SXGA, SXGA+, WXGA+, WXGA++, WSXGA+, WUXGA
Macintosh Signal Compatibility Yes
External Control RS-232 (D-Sub 9pin), IR, RJ45 Input Terminals
RGB1(analog): VGA 15-pin D-sub
RGB2(digital): HDMI w/ HDCP (v1.4)
RGB3(digital): HDMI w/ HDCP (v1.4)
RGB4(digital): HDBaseT
Audio 1: Stereo Mini Jack
What's in the Box
Remote Control
Power Cord
Rear Panel
