NEC P525ULG High Brightness Large Venue Laser Projector
DISCONTINUED
For the current range please click below
NEC Projectors
Specifications
- WUXGA 1920 x 1200 16:10
- 5,000 ANSI Lumens
- 500,000:1 Contrast
- 9.7kg Weight
- 27 / 22db(eco) Fan Noise
- 5 Year/ 20,000hr Warranty
- 5 Year/ 20,000hr laser Warranty
- Est. Laser Life up to 20,000hrs
Key Features
- 2x HDMI Input
- Horizontal & Vertical Keystone
- Vertical Lens Shift
- Horizontal Lens Shift
- Powerful 20w Speaker
- 1.6x zoom
- 360 Degree Installation
- Portrait Installation
- HDBaseT Compatible
NEC P525ULG Throw Distance Chart
Throw Ratio: 1.23-2.0:1
Examples of installation distance for some popular screen sizes.
Image Size |
Installation Distance |
94" (16:10) 2025x1265mm |
From 2.5m to 4.0m |
110" (16:10) 2370x1480mm |
From 3.0m to 4.7m |
120" (16:10) 2585x1615mm |
From 3.2m to 5.1m |
130" (16:10) 2800x1750mm |
From 3.5m to 5.6m |
140" (16:10) 3015x1885mm |
From 3.8m to 6.0m |
150" (16:10) 3230x2020mm |
From 4.0m to 6.4m |
NEC P525ULG WUXGA Laser Projector
Powerful installation projectors equipped to take on the most demanding integration projects
The NEC P525ULG uses a new laser technology perfect for high usage environments where reliability is paramount. The P525ULG last up to 20,000 hours even running 5 hours per day for 5 days a week you would be accruing 1300 hours a year. This works out to a life of over 15 years; no need for lamp replacements, no downtime, or technicians. With a 5,000 lumen brightness the P525ULG is perfect for a lit environment and with a contrast level of 500,000:1 it can produce deep black levels and faithful colours. A 1.6x optical zoom and lens shift make the P525ULG perfect for off centre installations and a good candidate for a projector upgrade without the need to rewire a new position.
- Sealed optics provide a maintenance free projection solution while LCD technology delivers an impressive and accurate image
- Horizontal & Vertical lens shift enables flexible projector placement
- Built-in HDBaseT provides simplified installations with a single cable for video, audio, and control signals
- Extremely quiet operation for minimal distraction
- Powerful 20W speakers provide volume needed for most large classrooms and conference rooms
- 4K Ready - Display stunning 4K 30Hz content using NEC’s proprietary high performance video processing/scaling chip
- Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in higher education and corporate
- MultiPresenter for audio and video transmission from up to 16 sources simultaneously to the projector over the network
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

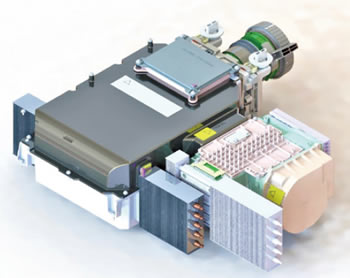

Filter-free Structure with NEC's Original Cooling System
High dustproof performance is achieved by NEC's proprietary sealed jet impingement cooling structure. Due to its excellent dustproof performance, this projector does not have the cumbersome filters that ordinary LCD projectors require. the new laser-based LCD projector offers better TCO (total Cost of Ownership) with less maintenance.
Lens Shift
Lens Shift provides greater flexibility when determining the installation location.
Tilt-free
The projector can be freely (360) to orient the image depending on the installation requirements.
Portrait mode
Allows the projector to be rotated (and screen is necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
Remote Diagnostics
Enables the user to monitor and make adjustments to the projector from a remote location.
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Advanced AccuBlend™
Ensures detailed images when non-native resolution sources are connected to the projector.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
Simultaneous Dual Image Display (PIP)
With this projector, it is possible to project two images with a single projector by displaying a small sub-display within the main display. Furthermore, the sub-display display position can be changed and the main display and sub-display images can be swapped.
Auto Power On
Powers on the projector as soon as it is plugged into a power outlet.
20W Audio
Powerful 20-watt speaker provides volume needed for large rooms
Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
Dust-Resistant Design
Sealed optical block minimizes the effects of dust, helping to ensure the delivery of crisp, distortion-free images.
ECO Mode™
Extends lamp life, lowers audible noise and reduces total cost of ownership.
Wireless LAN (Optional)
Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
MultiPresenter
This projector is compatible with the NEC MultiPresenter application, so multi-screen projection is possible via the network (wired LAN / wireless LAN).
Multi-screen Projection Function *1
The multi-screen projection function allows for the sharing of screens of multiple devices on various split-screen displays via a wireless or wired LAN. Display information from up to 50*2 PCs, tablet PCs, smart phones, and other network connected devices on a multi-screen display of up to 16 screens. Easily share screens and information regardless of device or operating system.
Specifications
Method: Three primary colour liquid crystal shutter projection
Specifications of main parts
Liquid crystal panel
Size : 0.64 inch LCD with MLA× 3 (aspect ratio: 16:10)
Pixels *1
2,304,000 (1,920 dots× 1,200 lines)
Projection lenses
Zoom: Manual
Focus: Manual
Zoom ratio: 1.6
Throw ratio 1.23 to 2.0
F-number/ focal length: F= 1.5 to 2.1 f= 17.2 mm to 27.6 mm
Lens shifting: Manual ( H = +/ −29% / V= 0% to +60%)
Light source: Blue Laser diode
Light source (laser diode) life *2 20,000H
Optical unit: Integrator, dichroic mirror, XDP
Light output *3 *4
ECO MODE [OFF]
5,000 lm (5,200 centre lm) *5
ECO MODE [ECO]
Approx. 60%
ECO MODE [LONG LIFE]
Approx. 50%
Contrast ratio *4 (all white/all black): 500,000 : 1 with Light Adjust
Image size : 30 to 300 inches
Colour reproduction
10-bit signal processing, 1.07 billion colours (Viewer, Network, 16.7 milion colours)
Quietness
(ECO MODE [ECO] / ECO MODE [OFF])
22 dB / 24 dB to 27 dB (high bright)
Synchronisation range
Horizontal: 15 to 100 kHz (RGB: 24 kHz or over)
Vertical: 50 to 120 Hz
Max. display resolution
(horizontal× vertical)
Up to 4K@30 Hz (3,840 x 2,160) with Advanced AccuBlend,
Pixel clock frequency: less than 300 MHz (HDBaseT: 300 MHz)
Keystone correction
Horizontal
Manual, approx. ± 30 max degrees
Vertical
Manual, approx. ± 30 max degrees
Input/output connectors
Computer/ component
Video input
Mini D-Sub 15-pin× 1
Audio input: Stereo mini jack× 1
Audio output: Stereo mini jack× 1 (Selected from: Computer / HDMI)
HDMI: Video input
Type A HDMI connector× 2
Audio input
Yes
HDBaseT/ Ethernet Port
Video input
RJ45 × 1, 100BASE-TX / HDBaseT, Lip Sync Deep Colour,
Colourimetry Support: RGB, YCbCr444, YCbCr422
Audio input: Yes
PC control connector
D-Sub 9-pin× 1 (4800 / 9600 / 19200 / 38400 bps)
USB port
USB type A× 1 for USB (5.0 V/ 2.0 A power supply)
Ethernet/LAN: RJ-45 × 1
Wireless LAN Port (Optional): USB× 1
Built-in speaker: 20 W × 1
Usage environment
Operating temperature: 5 to 40°C *6,
Operating humidity: 20 to 80% (with no condensation)
Storage temperature: −10 to 50°C, Storage humidity: 20 to 80% (with no condensation)
Operating altitude: 0 to 2,600 m
(1,600 to 2,600 m: Set [FAN MODE] to [HIGH ALUTITUDE])
Power supply
100 − 240 V AC, 50/60 Hz
Power consumption
ECO MODE [OFF]
330 W (100 to 130 V)
320 W (200 to 240 V)
ECO MODE [ECO]
240 W (100 to 130 V)
238 W (200 to 240 V)
ECO MODE [LONG LIFE]
242 W (100 to 130 V)
240 W (200 to 240 V)
NETWORK STANDBY
1.4 W (100 to 130 V) / 1.6 W (200 to 240 V)
STANDBY *7
0.13 W (100 to 130 V) / 0.19 W (200 to 240 V)
Rated input current
5.1 A to 2.1 A
Dimensions (W× H× D)
480 ×122 ×407 mm (Net dimensions, not including protruding parts),
591 ×259 ×491 mm (Gross dimensions)
Weight 9.7 kg (Net weight), 12.8 kg (Gross weight, with box)
What's in the Box
Remote Control
Power Cord
Rear Panel
