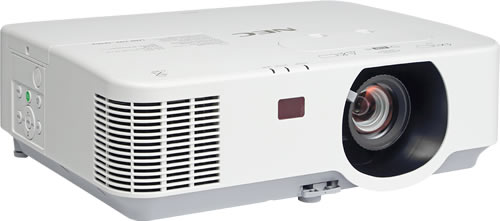

NEC P474WG High Brightness Large Venue Projector
$2,199 $1,999
Save $200. Ends 31st May
Specifications
- WXGA 1280 x 800 16:10
- 4,700 ANSI Lumens
- 18,000:1 Contrast
- 4.7kg Weight
- 37 / 34db(eco) Fan Noise
- 3 Year Warranty
- 6 Months/ 1,000hr Lamp Warranty
- Est. Laser Life up to 8,000hrs
Key Features
- 2x HDMI Input
- HDBaseT Compatible
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-0%, +55%)
- Horizontal Lens Shift (+/- 15%)
- Powerful 20w Speaker
- 1.6x zoom
NEC P474WG Throw Distance Chart
Throw Ratio: 1.2-2.1:1| Image Size | Installation Distance | |
|---|---|---|
| 94" (16:10) 2025x1265mm | From 2.5m to 4.2m | |
| 110" (16:10) 2370x1480mm | From 2.9m to 4.9m | |
| 120" (16:10) 2585x1615mm | From 3.1m to 5.4m | |
| 130" (16:10) 2800x1750mm | From 3.4m to 5.8m | |
| 140" (16:10) 3015x1885mm | From 3.7m to 6.3m | |
| 150" (16:10) 3230x2020mm | From 3.9m to 6.7m | |

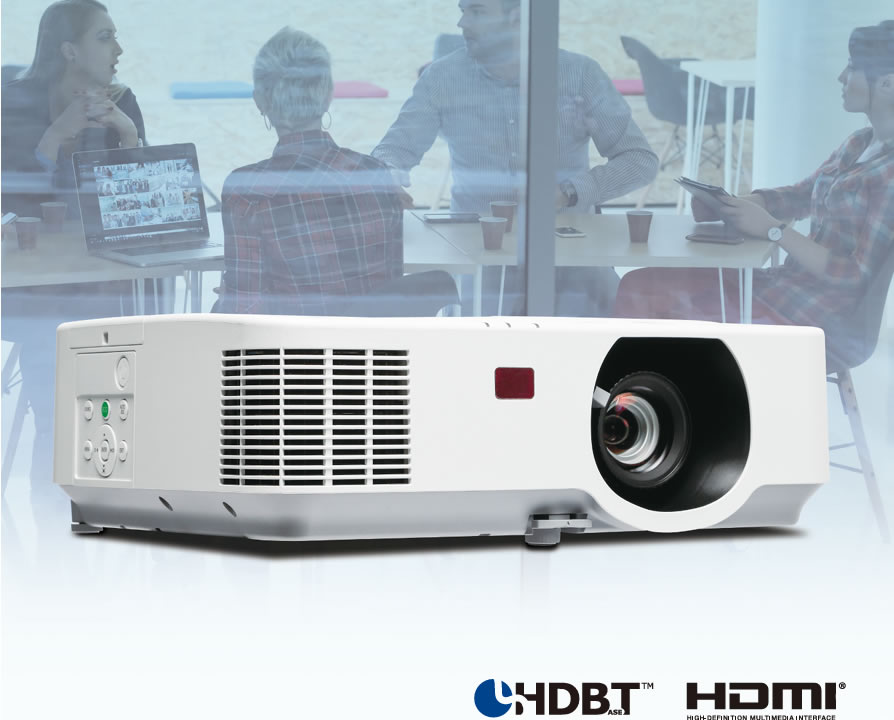

NEC P474WG WUXGA High Brightness Projector
Powerful installation projector equipped to take on the most demanding integration projects
The Sharp / NEC P474WG is a WXGA resolution LCD projector offering a brightness of 4700 ANSI lumens, making it great for bright meeting and learning spaces. The projector features a strong contrast ratio of 18,000:1 for detailed images and boasts a long lamp life of up to 8,000 hours in Eco mode, reducing maintenance. The P474WG also includes flexible installation options with horizontal and vertical lens shift, keystone correction, and HDBaseT connectivity.
Optional Accessories
Versatile installation projectors with features that allow for challenging projection applications on a budget.
Integrated and Powerful
- Project uncompressed FHD video with integrated HDBaseT
- High performance video processing/scaling creates life-like images
- Integrated software applications such as Crestron Roomview, AMX Beacon and PJ Link allow for complete interactivity and control
Flexible
- Horizontal & vertical keystone adjustment along with cornerstone and pincushion provides the ability to square the image to the screen
- Lens shift capabilities make alignment easy: (0-55% vertical / +/-15% horizontal)
Built-In HDBaseT Support
Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed full HD digital video, and audio. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning.

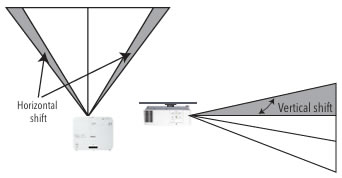

Lens Shift
Lens shift provides greater flexibility when determining install location
Digital inputs
Among the P Series’ wide selection of inputs are HDBaseT and 2 HDMI w/ HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers and personal computers.
Variable audio-out
This input enables the remote control to be used to adjust volume of self powered external speakers that are connected to the projector. In stand-by mode, the audio-out stays active, allowing the last input used to pass to the selfpowered external speakers.
Top cover lamp change
This feature provides for easy lamp changes without removal of the projector from the mount.

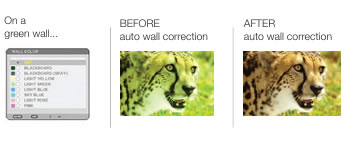

Wall color correction presets
These provide for adaptive color tone correction to display properly on non-white surfaces.
Input panel cover
This optional accessory creates a clean look for your installation, while hiding signal cables and the power cord.

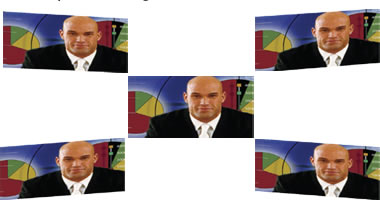

CornerstoneTM
Enhanced keystone correction allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.

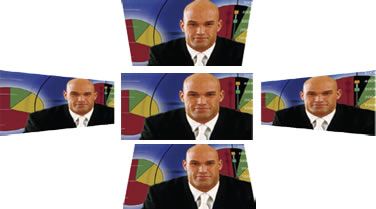

Keystone
Horizontal and vertical adjustments to square images to the screen when tilting the projector.
Pincushion
Removes the barreling effect at the edge of the image produced by the screen.
UNIQUE FEATURES
Advanced AccuBlend™ ensures detailed images when nonnative resolution sources are connected to the projector
AutoSense™ automatically syncs with any computer signal and features one-touch image optimization
64-step image magnification with location control
Discreet source keys for source selection
Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
Built-in HTTP page for control and monitoring over a LAN network. Email notification of error messages or lamp end-oflife can be sent to remote locations.
| IMAGE | ||
|---|---|---|
| Projection Technology | 3LCD Technology | |
| Native Resolution | 1280 x 800 (WXGA) | |
| Contrast Ratio | 18,000:1 | |
| Brightness | 4700 Normal; 5200 Centre Lumen | |
| Lamp Life | 4000 hours (Eco Off) / 6000 hours (Normal Eco) / 8000 hours (Eco) | |
| Lens | F= 1.7 to 2.2 f= 17.4 to 29.0 mm | |
| Lens shift Manual | Manual (V=0-55% / H=±15%) | |
| Keystone correction | +/- 20° horizontal, +/- 30° vertical (manual) | |
| Throw Ratio | 1.2 - 2.1:1 | |
| Projection Distance [m] | 2.6 to 47.6 ft. / 0.8 to 14.5m | |
| Screen Size (diagonal) [cm] / [inch] | 30 to 300 in. / 0.8 to 12.9m | |
| Zoom | 1.6x; Manual | |
| Focus Adjustment | Manual | |
| Supported Resolutions | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA | |
| CONNECTIVITY | ||
| RGB (analog) | VGA 15 pin D-sub, Component video using adapter | |
| Digital | 2x HDMI w/HDCP | |
| Audio | Input: 1 x 3.5 mm Stereo Mini Jack Output: 1 x 3.5 mm Stereo Mini Jack |
|
| Control | Input: 1 x RS-232 (D-Sub 9pin), IR | |
| LAN | 1 x RJ45 | |
| USB | 1 x Type A (Optional Wireless LAN, Memory, 2.0A); 1 x Type B (Service) | |
| ELECTRICAL | ||
| Power Supply | 100-240 V AC; 50 - 60 Hz | |
| Power Consumption [W] | (ECO off/ECO Mode/Standby/Standyby-Power Saving) 418W / 280W / 2.0W / 0.16W | |
| MECHANICAL | ||
| Dimensions (W x H x D) [mm] | 16.5 x 13.0 x 5.6 in. / 420 x 329 x 141 mm | |
| Weight [kg] | 16.5 x 13.0 x 5.6 in. / 420 x 329 x 141 mm | |
| Fan Noise [dB (A)] | 37 / 34 (Eco / Normal) | |
| ENVIRONMENTAL CONDICTIONS | ||
| Operating Temperature | 41° – 104°F / 5° – 40°C | |
| Storage Temperature | -14° – 122°F / -10° – 50°C | |
| Humidity | 20 to 80 non-condensing | |
| ERGONOMICS | ||
| Safety and Ergonomics | CE; ErP; RoHS; TüV GS; RCM | |
| Speakers [W] | 1 x 20W | |
| ADDITIONAL FEATURES | ||
| Special Characteristics | AMX; Crestron; | |
| SHIPPING CONTENT | ||
| Shipping Content | 2x AAA Batteries; IR Remote Control | |
Remote Control
Power Cord

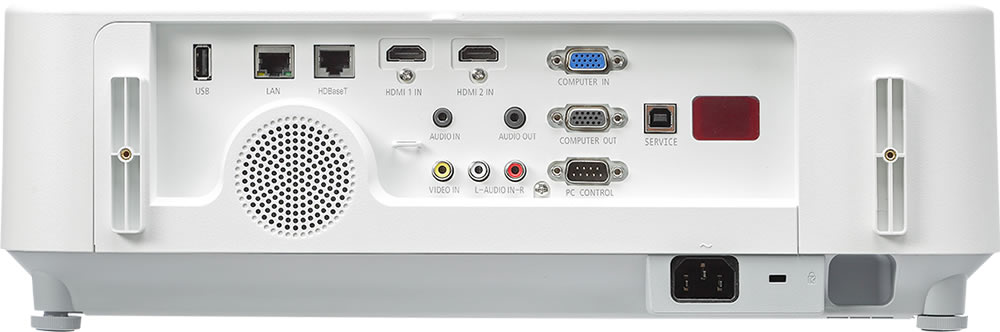

Rear Panel
