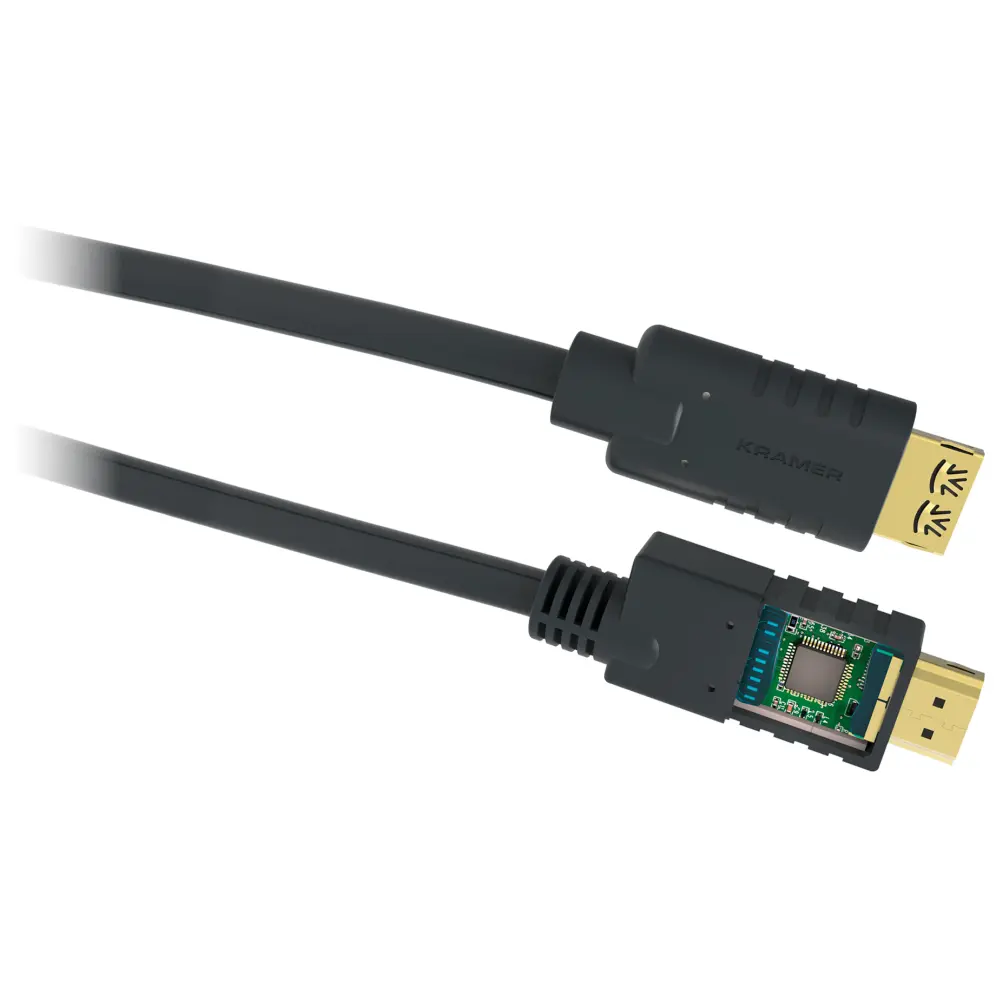

Kramer Active 4K HDMI Cable

Kramer's Premium Active 4K HDMI Cable for 4K gaming at up to 60hz & 4:4:4 colour*

A highly recommended HDMI Cable for 4K resolutions, especially at long distances.

CA−HM active HDMI copper cable provides a perfect cable solution for delivering HDMI signals over long distances: 18Gbps up to 20m (66ft) and 10.2 Gbps up to 30m (98ft). The innovative technology utilized in the cable’s connector features superior equalizing and signal compensation to meet the most demanding challenges in Pro AV installations. This unique solution simplifies long distance installations by using a true plug & play cable that draws power from the HDMI source. There is no need for an external power source. CA−HM features the Kramer exclusive K−Lock HDMI connector, that prevents cables in your installation from unintentionally disconnecting, eliminating cable−related service calls. Additionally, an LED on the connector indicates when the signal is transmitted successfully.

What is an Active HDMI Cable?

An Active HDMI Cable features built-in signal boosters to amplify the signal, allowing it to travel further without losing quality. This makes them ideal for installations where a longer cable run is required. Using an Active HDMI Cable can reduce the chance of signal drop out or degradation, and maximise colour depth, particularly when transmitting high resolutions such as 4K.

• High Speed HDMI CAT2 cable
• Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
• Designed to support the features of HDMI V2.0 and previous versions
• Video Resolution of up to 4K@60Hz (4:4:4)
• High Data Transfer Rate of up to 18Gbps
• High Speed HDMI performance with a dedicated Ethernet channel.
• Shieled cable construction for optimum RF & EMI Protection
• 24K Gold Plated terminals
• 12 Month Warranty

SPECIFICATIONS

• Max Resolution for 15−66ft (4.6−20m) lengths: 4K@60Hz (4:4:4)
• Max Resolution for 82ft (25m) length: 4K@60Hz (4:2:0)
• Max Resolution for 98ft (30m) length: 1080p@60hz
• Max Data Rate for 15−66ft (4.6−20m) lengths: 18 Gbps (6Gbps per channel)
• Max Data Rate for 82−98ft (25−30m) length: 10.2 Gbps (3.4Gbps per channel)
• HDMI Compliance: HDCP 2.2, HDR, EDID and CEC

• Supported Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD

• HDMI Source: On a male type A, 24K gold–plated K–Lock connector
• HDMI Display: On a male Type A, 24K gold–plated K–Lock connector (optional external power input via micro USB connector)

• 15ft (4.6m) length: 32AWG
• 25-35ft (7.6-10.7m) lengths: 28AWG
• 50ft (15.2m) length: 26AWG
• 66-98ft (20-30m) lengths: 24AWG

• TMDS pairs: Aluminum/mylar
• Overall: Aluminum/mylar + aluminum braid

• Material: PVC
• Color: Black
• Diameter - 15ft (4.6m) length: 5.5±0.15mm
• Diameter - 25-35ft (7.6-10.7m) lengths: 7.10±0.15mm
• Diameter - 50ft (15.2m) length: 8.5±0.20mm
• Diameter - 66-98ft (20-30m) lengths: 9.5±0.25mm

• Cable Bending radius - 15ft (4.6m) length: 27.5mm
• Cable Bending radius - 25-35ft (7.6-10.7m) lengths: 35.5mm
• Cable Bending radius - 50ft (15.2m) length: 42.5mm
• Cable Bending radius - 66-98ft (20-30m) lengths: 47.5mm
• Connector Max. Pulling Strength: 15lbs/6.8kg

• Power Consumption: Up to 90mA / 1mA (standby mode)
• Temperature Rating: 80°C
• Voltage Rating: 30V
• Conductor Resistance - 32AWG: 588 Ω/km
• Conductor Resistance - 28AWG: 237.25588 Ω/km
• Conductor Resistance - 26AWG: 148.94 Ω/km
• Conductor Resistance - 24AWG: 381 Ω/km

• Electrical: UL listed, CL3/FT4
• Environmental: RoHS 2011/65/EU
