Epson EB-L200SW LCD Short Throw Laser Projector
(Wall Mount not included)

Epson EB-L200SW
Delivery

DISCONTINUED

For the new model click below:
EB-L210SF

3 year warranty
australian stock
insured delivery
WXGA Resolution

Specifications

  • WXGA 1280x800 16:10
  • 3800 ANSI Lumens
  • 2,500,000:1 Contrast
  • 4.5kg Weight
  • 36 / 26db(eco) Fan Noise
  • 3 Years / 20,000 hours Warranty
  • 3 Years / 20,000 hr Laser Warranty
  • Laser Life up to 20,000hrs

Key Features

  • Vertical Keystone
  • Powerful 16W Speaker
  • 360° Installation
  • Portrait Installation
  • 2x HDMI Connections
  • LAN, RS-232, Audio Out, Mic In
  • USB to laptop Connection
  • Instant Off
  • Presentation Wireless - Included
  • Miracast Compatible

Epson EB-L200F Throw Distance Chart

Throw Ratio: 0.48-0.65:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
94" (16:10) 2025x1265mm From 1.0m to 1.3m
110" (16:10) 2370x1480mm From 1.2m to 1.5m
120" (16:10) 2657x1494mm From 1.3m to 1.7m

Epson EB-L200SW Short Throw Laser Projector

The New Epson EB-L200SW laser projector offers an amazing set of features especially suited to a no maintenance solution for education and business. With a laser light source the EB-L200SW can run up to 20,000 hours even under heavy use of 5 hours a day 5 days a week that works out to over 15 years! No lamps, no down time, no technicians for lamp replacements. The EB-LS200SW is short throw making it perfect for smaller meeting rooms and classrooms where you want the projector closer to the wall or screen. This avoids the presenter casting a shadow if they walk near the projection and is easier to cable in. It also fits the same wall mounts as previous EB-520 EB-525 and EB-535W projectors making it an easy upgrade to laser.

Key Features

  • 3x Brighter colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Break through laser technology – provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
  • Amazing Colour Brightness – up to 3,800 Lumens colour brightness and 3,800 Lumens white brightness
  • WXGA display up to 120" – for an optimal viewing experience and clear readability — up to 4 x bigger than a 60" flat panel
  • Auto keystone – easily set up the projection with intuitive adjustment feature
  • Built-in wireless and Miracast – collaborate with various devices to display documents, files and photos from your iPad, iPhone, Chromebook and Android mobile devices with the Epson iProjection App
  • Versatile connectivity – easily integrate with any system using HDMI and the optional Epson Control box (ELPCB03)
*Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.
EB-L200SW Laser

Laser Light Source

Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum. Additionally, the laser light source is highly reliable, eliminating worry of the interruptions during important presentations.

EB-L200SW Brightness

High Visibility 3,800 Lumens WXGA

Powered by 3LCD technology and laser light source, the EB-L200SW is capable of producing white light and colour light output of 3,800 lumens in WXGA resolution, delivering captivating images up to 120" (16:10) in meeting rooms or classrooms even during bright daylight.

EB-L200SW Laser Life

Zero Lamp Replacement

Powered by laser light source, the EB-L200SW doesn’t require any lamp replacement. Requiring virtually no maintenance for up to 20,000 hours*, the EB-L200SW helps save money and time. *No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

Big Screen from Short Distance

Project a large image up to 120" from just 1.2m away. Maximize the visibility for everyone by enlarging the display size up to 4 times bigger than traditional panel size*. The EB-L200SW enables presenters to stand close to the board without glare in their eyes and shadows covering the screen. *A 120” projection image is 4 times bigger than a 60" flat panel

EB-L200SW Size

Large and Engaging Presentations, Even in Small Spaces

Enjoy flexible placement options with the EB-L200SW. The short throw projector allows you to maximize your office or classroom space by delivering large images with a short throw distance.

EB-L200SW Large events

Quick Start Up

No need to wait longer for setting up a projector. The EB-L200SW displays an image in a few seconds the moment the projector is powered on unlike traditional lamp projectors. By saving time, you can quickly engage and spend more time collaborating with people.

EB-L200SW Quick Startup

Detail Enhancement

Get a crisper and sharper image with EB-L200SW by turning on detail enhancement. With advanced digital processing, visibility of image display such as small letters and patterns improves.

EB-L200SW Image Enhancement
EB-L200F Laser Life

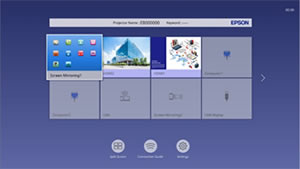

New Home Screen

Get up and running in a snap with an intuitive, user-friendly home screen. Select the content source and easily access frequently used functions such as screen sharing and more.

Auto Set-up

Simply place the projector on a table and the projector will automatically adjust its vertical keystone. Automatic display alignment makes set-up much easier and faster especially when you are on the go.

EB-L200SW Auto setup

Intuitive Keystone

With horizontal keystone slider, the image can be adjusted quickly even when the projector is placed on the end of table.

EB-L200SW Keystone
EB-L200SW Wireless

EASY WIRELESS CONNECTION

Epson iProjection

Wirelessly display content from your iOS or Android mobile devices as well as PCs, including Chromebook with the free Epson iProjection App*. *To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection.

EB-L200SW Moderator

Moderator Function

Use the moderator function in the Epson iProjection App** to select a single moderator. Only the moderator can control the projected content. **All the devices need to be wirelessly connected to the projector with Epson iProjection App. Moderator control is only available on Windows, macOS, iOS and Android devices.

EB-L200SW Multi PC Projection

Collaborate with Multi-PC Projection

Epson’s Multi-PC utility with Moderator device management software allows you to simultaneously display up to four devices on the screen over a network (wired or wireless). The moderator can drag and drop participants into or out of the four quadrants and control which device screens to display. Encourage and control collaboration; it’s perfect for comparing ideas and content side by side.

EB-L200SW Miracast

Miracast

Sharing information in the classroom has been made easier with Miracast*. Teachers can project their laptop or tablet screens without a cable connection and ensure high-resolution content can be viewed effortlessly.
*Laptops or mobile devices must support Miracast.

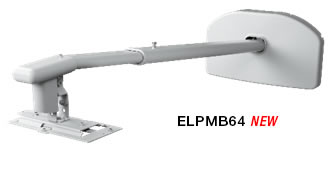

EB-L200SW Wall Mount

SIMPLE MANAGEMENT


Choose Wall Mount, Ceiling Mount or Desktop (Optional)

Versatile mounting options enable the EB-L200SW to be used in any environment. Mount your projector with the NEW short throw wall mount ELPMB64, ceiling mount with the ELPMB23, or simply place it on the table to comfortably accommodate a modern classroom environment or office presentation.

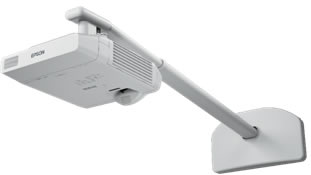

EB-L200SW Easy Upgrade

Simple replacement

For the previous owners of EB-500 series, the EB-L200SW can be attached on the previous mount ELPMB45. You can upgrade old projectors to the latest laser projector with minimum cost and installation effort by simply replacing the projector on an existing mount*. * The position of the projected image must be aligned by adjusting the ceiling or wall mount

EB-L200SW Case

Optional ELPKS71 Carry Case

Bring the EB-L200SW anywhere with the portable carry case ELPKS71. The EB-L200SW is compact and powerful yet weighs only 4.5kg, making it easy and light to be carried around.

Optional Control box – ELPCB03

Pair up the EB-200SW with the ELPCB03 t4o easily turn power on/off, freely control AV mute and speaker volume and select a device you want to project to a screen.

EB-L200SW Control

Epson Projector Management software

Manage multiple projectors with one device from a remote site. Epson Projector Management software allows you to check the status of multiple projectors through the network. You can also turn projectors on/off or set them to A/V mute simply by pressing the icon on this software. You can also schedule and execute firmware updates to connected projectors.

EB-L200SW Management
EB-L200SW Application

EASY MANAGEMENT

Epson Creative Projection App

With Epson Creative Projection app, you can create original, dazzling content to enliven rooms, product displays and spaces around you, anytime and anywhere. Available on iOS devices, such as iPhone and iPad, content can be projected on the wall with the ability to edit and preview content at the same time. With extensive preloaded templates, freely arrange and combine materials in the app any way you like. From simply uploading photos and movies from mobile device to making animated visual effects, instantly make your display content come to life without requiring a PC.

EB-L200SW Content App
EB-L200SW Content Management

Epson Creative Projection App

Epson Content Management Software With Epson Content Management software, you can easily create playlists for signage content from a PC or a laptop. The ability to set schedule and register the shape filter settings gives you advanced control such as synchronised playback.

Specifications
PRODUCT NAME EB-L200SW
PRODUCT CODE V11H993053
WHAT'S IN THE BOX
  EB-L200SW, 1.8m HDMI cable, 5m power cable, Remote control, AA battery x 2
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.59-inch
OPTICAL
Zoom 1 - 1.35 (Digital Zoom)
Screen Size 53" to 120"
Projection Distance 87" screen 0.91m
Throw Ratio 0.48 (Zoom: Wide), 0.65 (Zoom: Tele)
Projection Lens F Number 1.6
Projection Lens Focal Length 6.4mm
Focus Method Manual Focus
Offset 9.51:-1
Colour Light Output 3,800 Lumens
White Light Output 3,800 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
Hours 20,000 hours
Keystone Correction Vertical: -15 to +15 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow)
Input: Computer 2 x Monitor in (D-sub 15pin), 1 x USB-B
Input: USB Memory Device 1 x USB-A
Input: Digital 2 x HDMI
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x RS232C
Input: Epson USB Document Camera 1 x USB-A
Network I/O: RJ45 x 1 (100Mbps)
Wireless Connectivity Included1
Output: Video D-sub 15 pin (black molding)
Output: Audio Stereo mini jack x 1
Speaker Output 16W
ADVANCED FEATURES
Projector Management Software Yes
iProjection Yes
Content Playback Yes
Content Creative Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington®-style lock provision
Colour Modes Dynamic, Presentation, Cinema, sRGB, BlackBoard, Multi-Projection
GENERAL
Dimensions D x W x H (excluding feet) 337 x 325 x 90 mm
Weight 4.5kg
Projector Warranty 3 years or 20,000 hours (whichever comes first)
Power Consumption Normal/Eco 254W/193W
Power Consumption: Standby 2.0W
Noise Level 36dB/26dB

What's in the Box
EB-L200SW remote control
Remote Control
power cord
Power Cord

Rear Panel

EB-L200F rear panel
