Epson EB-525W LCD Short Throw Multimedia Widescreen Projector

EB-525W






DISCONTINUED
REPLACED BY THE EB-L200SW CLICK HERE


Quick Facts:
Epson EB-525W Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 0.9m to 1.1m
98" (16:10) 2110x1320mm From 1.1m to 1.4m
SPECIFICATIONS
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 2800 ANSI Lumens
Maximum Contrast: 16,000:1
Weight: 3.7kg
Fan Noise: 35 / 28db (eco)
Warranty: 3 Years (+1 Year $100)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 10,000hrs
FEATURES
- MHL Compatible
- Powerful 16W Speaker

- Vertical Horizontal Keystone
- Instant Off
- Presentation Wireless - Optional
- Network Projection

Epson EB-525W short throw projectors provide ultra-bright image quality up to 2,800 lumens both in high colour brightness and in white brightness with 3LCD, 3-chip technology. The EB-525W short throw projectors are ideal for delivering large and engaging presentation content in the classroom or office without having the restriction of space. The EB-525W also features a newly developed high precision short throw lens with greater sharpness and improved focus levels. The long lasting lamp, projecting up to 10,000 lamp hours in ECO mode gives an extended period of reliable performance. Suitable for desktop use with convenient table top placement or using the optional wall mount (ELP-MB45), the EB-525W short throw offers flexible installation in any environment.

KEY FEATURES & BENEFITS

3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
Crisp Clear Resolution – Featuring WXGA image resolution (16:10).
Large and engaging presentations, even in small spaces – Project large images from short distances with minimal shadows and glare.
Long Lasting lamp, low-cost lamp maintenance – Up to 10,000 hours in ECO mode.
Versatile Connectivity – Easily integrate with any system using HDMI and the optional Epson Control box (ELP-CB03).
Convenient collaboration for BYOD classrooms – Wirelessly share and compare students’ work from multiple devices, simultaneously, with EasyMP® software / Multi-PC Projection function.

3LCD Technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

3x Brighter Colours with Epson Projectors
Up to 3x Brighter Colours with Epson Projectors*

Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.

All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

Large and Engaging presentations, even in small spaces

Enjoy flexible placement options with the EB-525W. These short throw projectors allow you to maximize your office or classroom space by delivering large images with a short throw distance.

Project a large 100” image from just 1.2m away. The EB-525W enables presenters to stand close to the board without glare in their eyes and shadows covering the screen.

Short Throw Projector

Choose Wall Mount, Ceiling Mount or Desktop

Versatile mounting options enable the EB-525W to be used in any environment. Mount your projector with the NEW short throw wall mount ELP-MB45, ceiling mount with the ELP-MB23, or simply place it on the table to comfortably accommodate a modern classroom environment or office presentation.

For the previous owners of EB-400 Series, the existing ELP-MB27 wall mount can be used with new line up of short throw projectors.

ELP-MB45
Epson Short Throw Wall Mount

Long Lasting lamp, low-cost maintenance

Enjoy up to 10,000 hours lamp life in ECO mode. The new lamps will offer lowered maintenance cost while delivering bright vivid images. The Lamp Regulator Function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.

Epson iProjection App

Display and control content from your iPhone, iPad or iPod touch and Android devices with the Epson iProjection App and any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content — larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen (Optional ELPAP07 Wireless LAN Unit is required).

iPad iPhone projection

Conveniently collaborate with Multi PC Projection

The Multi-PC Projection feature allows a network of up to 50 PCs to be connected to a single projector. The newest version of this feature allows a host PC to act as a Moderator who can then select up to 4 of the connected devices to be projected on the screen. The Moderator function allows the user to control what image is projected on the screen and prevent tampering.

Advanced Networking

With the EB-525W, it’s possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (RJ45) and wirelessly (via optional wireless LAN unit ELPAP07).

Versatile Connectivity

Not only does the wide-ranging interface correspond with conventional analogue sources, it boasts a HDMI input which also acts as a MHL (Mobile High Definition Link) terminal when it is connected to control box (via optional Epson control box ELPCB03). MHL allows you to mirror high definition content from an Android mobile device.

Connectivity Panel

EB-525W Inputs




Specifications
PRODUCT NAME Epson EB-525W
PRODUCT CODE V11H672053
WHAT'S IN THE BOX
  Epson EB-525W1.8m Computer Cable, 4.5m power cable Remote Control, Batteries x 2, Projector Software Ver. 1.02b (CD ROM), Password Protect Sticker, Manual
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.55-inch with MLA (D8)
OPTICAL
Zoom 1 - 1.35 (Digital Zoom)
Screen Size 39" to 116"
Projection Distance 87" screen 0.91m
Throw Ratio 0.48 (Zoom: Wide), 0.65 (Zoom: Tele)
Projection Lens F Number 1.60
Projection Lens Focal Length 6.4mm
Focus Method Manual Focus
Offset 9.51:-1
Colour Light Output 2,800 Lumens
White Light Output 2,800 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 16,000:1
Lamp Hours Normal/Eco: 5,000/10,000 Hours
Lamp Type 200 W UHE
Keystone Correction Vertical: -15 to +15 degrees
Horizontal: -15 to +15 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device USB Type A Ver.2.0
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 1 x HDMI
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera 1 x USB 2.0 type B
Network I/O: RJ45 x 1 (100Mbps)
Wireless Connectivity Optional Accessory (ELP-AP07)
Output: Video D-sub 15 pin (black molding)
Output: Audio Stereo mini jack x 1
Speaker Output 16W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations Photo / Motion JPEG
USB Plug 'n Play Yes
AV Mute Slide Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington®-style lock provision
Padlock
Security cable hole
Password protect function
Colour Modes Dynamic, Theatre,
GENERAL
Dimensions D x W x H (excluding feet) 314.5 x 344 x 94 mm
Weight 3.7kg
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal: 278W / Eco: 219W
Power Consumption: Standby 0.28W (communication off)
Noise Level Normal/Eco 35/28dB
Supplied Accessories
Remote

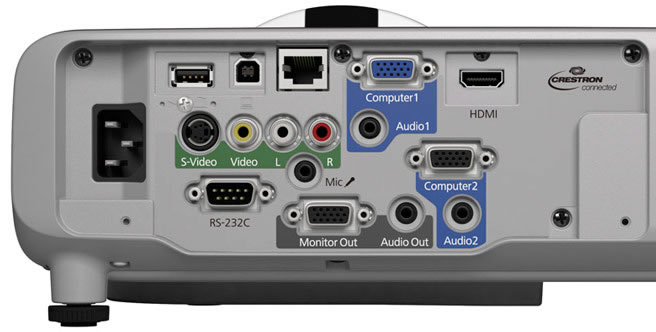

Rear Panel

EB-525W Rear Connections



Optional Accessories

Projector Warranty Upgrades

Extended Warranty For Projectors
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes
[More Information]
1 Year Warranty

$85

Kensington 2.4Ghz Wireless Presentation Remote - With Brighter Green Laser Pointer
Your Price:
$99.95
Special
Normally $119.95


Flat Rate Freight!
$16 Insured Australia Wide.
Pick up Available

Presentation remote

FEATURES

  • Wireless range up to 50 meters
  • Green laser pointer is 10X brighter than standard red
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149

Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


Epson Projector Wall Mount ELP-MB45
Your Price:
$199



ELP-MB45 Projector Mount

SPECIFICATIONS
Flexible installation — wall mounting plate allows for easy installation using one or two wall studs
Easily adjustable — telescopic arm supports a throw distance from 69 to 120cm
Ideal for virtually any image size — for projecting 16:10 content from 68 to 113" (EB-525W or 535W), or 4:3 content from 63 to 106" (EB- 520 or 530)
Easy image alignment — vertical and horizontal shift adjustments, plus pitch, roll and swivel adjustments
Protective covers included — conceals cables for a clean finish


Epson ELPSP02 Projector Speakers
Your Price:
$219



Audio Cable
The Epson ELP-SP02 active speakers are a great addition to the modern classroom. Boasting 30W of crisp, clear sound, the ELP-SP02 active speakers enable every student to clearly hear the lesson, no matter where they are sitting in the room. Easily mounted to the wall, this powerful pair is the perfect partner the ELPCB03 Cable Management and Projector Control box.
[More Information]

Epson Wireless Adapter ELPAP10
Your Price:
$159



SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC or via a network
• With 802.11b/g/n Wireless Connectivity

Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video


Epson ELPCB03 Projector Control Box
Your Price:
$349



Audio Cable
The Epson ELP-CB03 Connection and Control Box, is a solution that offers extensive control of multimedia sources connected to Epson's wall-mounted short-throw and ultra-short-throw classroom projectors.
[More Information]

HDMI Logo

HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
$19.95
2 Metres
$29.95
3 Metres
$39.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
    *We recommend keeping the length short for 4K under 10m - especially for 60hz
HDMI Features




VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
