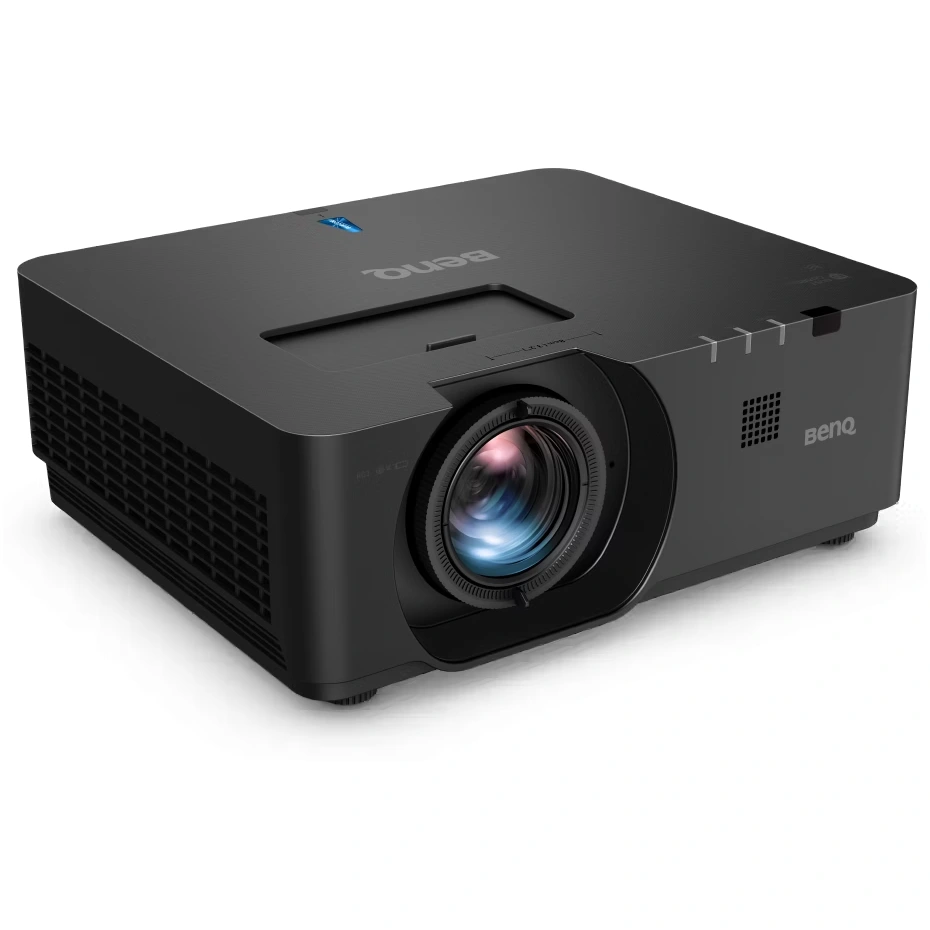

BenQ LU960ST2 DLP High Brightness Short Throw Laser Projector
$4,999
COMING SOON
Specifications
- WUXGA 1920 x 1200 16:10
- 5200 ANSI Lumens
- 3,000,000:1 Contrast
- 12kg Weight
- 40 / 33db(eco) Fan Noise
- 3 Year Warranty
- 3 Year / 10,000hrs Laser Warranty
- Est. Laser Life up to 70,000hrs
Key Features
- 2x HDMI Connection
- DisplayPort Connection
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-/+55%)
- Horizontal Lens Shift (+/- 23%)
- 360 degree tilt Horizontal & Vert.
- HDBaseT Compatible
- Powerful 10W Speaker
- 360° Installation
BenQ LU960ST2 Throw Distance Chart
Throw Ratio: 0.5:1| Image Size | Installation Distance |
|---|---|
| 94" (16:10) 2025x1265mm | Approx. 1.0m |
| 110" (16:10) 2370x1480mm | Approx. 1.2m |
| 120" (16:10) 2585x1615mm | Approx. 1.3m |
| 130" (16:10) 2800x1750mm | Approx. 1.4m |
| 140" (16:10) 3015x1885mm | Approx. 1.5m |
| 150" (16:10) 3230x2020mm | Approx. 1.6m |
BenQ LU960ST2 Laser Short Throw Projector
The BenQ LU960ST2 combines a powerful laser light source with a super short fixed zoom lens for maximum image size at a very short distance. Whether for a golf simulator or a massive edge blended projection in a museum the LU960ST2 is the machine for the job. Extremely rare on a short throw projector is the optical lens shift making the LU960ST2 unique in making installation positioning much easier. The Long life laser is the perfect choice for heavy usage environments able to run up to 70,000 hours on dimming mode. Especially handy in a art gallery or museum where it would be run heavily.
LU960ST2 Laser Projector with 5500 Lumens & Short Throw Lens
Reproduce True-to-life Images for Totally Immersive Experiences
- HASSLE-FREE INSTALLATION - With V/ H lens shift, 2D keystone and corner fit
- AMAZING COLOR ACCURACY - 92% Rec 709 color accuracy to see every detail
- FAST <17ms response enables realistic simulation and gaming
- 5500 ANSI LUMENS FOR Big screens - Will effortlessly fill large screens up to 20 feet wide
- MAINTENANCE FREE DESIGN - Sealed IP5X laser engine means no dirty projector filters and 20,000 hour laser life
DLP Laser Projectors for Long-Lasting Vibrant Color
As the world’s No. 1 DLP projector brand, BenQ brings the new whole series of high brightness laser projectors with superior image quality, flexible installation, and easy-to-maintain/manage features. Experience the next-generation public displays and brand-new visual effects for the most immersive visual experience.
Superior Laser Brightness
Zero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 5200 ANSI, offering superior image quality in bright environments with high brightness.
Designed with IP5X Protection
LU960ST2’s design of sealed laser modules and enclosed light engines protects the DMD chip, color wheel sensor, laser package, and other optical components, prolonging the projector’s lifespan up to 20,000 hrs.
Superior DLP Durability
Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 200,000 hours without degradation.
Superior Contrast in Dark Scenes
The DLP technology performs at superior contrast level in dark scenes compared to 3LCD projectors, which contain too much brightness on the screen from internal light panel. This is important for training simulation applications because the dark scene of the night time need to be real to life for pilots to read the information and react correctly.
Exclusive Fast Mode with 17ms low latency
Based on expertise gained from BenQ experience with near-zero latency gaming, LU960ST2 employs a Fast Mode that provides latency as low as to 16.67ms (@WUXGA 60Hz) to achieve low-latency interactivity.
Superior Installation Flexibility in Limited Spaces
Highly installation-flexible for front and floor applications, LU960ST2 short throw DLP projector is the best choice for indoor simulation training and commercial space exhibitions.
Unobstructed Viewing with 0.5 Throw Ratio
The LU960ST2 is equipped with a TR 0.5 short-throw lens to create up to 200-inch sharp and clear images within only 2 meters away. This enables the audience to stand closer to the screen without casting a shadow.
H/V Lens Shift for mounting flexibility
The LU960ST2 features a vertical/horizontal lens shift to move the image up and down up to 55% of the screen height – and adjust the horizontal position by 23% for an off-axis mounting location. This feature allows you to adjust the location of the image precisely to where you want without moving the projector.
Large 2D keystone + Corner Fit
LU960ST2’s digital trapezoid correction function allows users to correct images easily. Use the remote control, and you can correct the images in a few clicks. Besides, Corner Fit allows users for final fine-tuning.
White Balance Calibration for Seamless Edge Blending
BenQ’s exclusive out-of-the-box white balance adjustments can reduce white balance variables between projection images to a level of Delta E<2. This allows for seamless and accurate picture quality without disruptive discrepancies and saves time for blending.
One-click Professional Simulator Settings
BenQ LU960ST2 DLP laser projector is equipped with Simulator Mode, allowing users to activate an array of paired presets optimized for high-accuracy professional training at the touch of a button, ideal for multi-projector setup.
Remote Control Projector ID Setting for Independent Control
LU960ST2’s remote controller ID pairing avoids signal interference with multi-projector setup on one location. The wired remote control feature also improves the installation stability when adjusting projector placement.
Reliable Lens Lock & Metal Lens Barrel
BenQ LU960ST2 DLP laser projector is designed with the Lens Lock that can fix the final position, and focus of the lens, avoiding the readjustment effort if any mistouching. In addition, the metal barrel lens helps the zoom and focus adjustment to be more stable and accurate compared to a plastic lens.
High Resolution and Accurate Color Transmission
HDMI In/ out
HDMI 2.0 cable can handle 18Gbps bandwidth, allowing for 4K 60Hz plus HDR metadata at low latency and faster refresh rates.
DisplayPort
The high bandwidth of DisplayPort 1.2a allows increased resolutions, higher refresh rates, and greater color depth. In addition, the dual barbs on the connector provide a friction lock, and an option for a mechanical latch.
3D Sync In /3D Sync out
Connect up to 4 projectors and project 3D content together via a single PC.
HDBaseT
HDBaseT connectivity combines Video, Audio, RS-232 and LAN control signals from multiple sources into a single RJ-45 cable, ensuring seamless transmission at up to 100 meters.
| Projection System | |
| Projection System | DLP |
| Display | |
| Brightness (ANSI lumens) | 5200 |
| Native Resolution | WUXGA (1920x1200) |
| Native Aspect Ratio | 16:10 |
| Contrast Ratio (FOFO) | 3,000,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | Laser |
| Light Source Life | a. Normal 20000 hrs, b. ECO 38000 hrs, d. Dimming 70000 hrs |
| Optical | |
| Throw Ratio | 0.5 |
| Zoom Ratio | Fixed |
| Focus | Manual |
| Projection Offset (Full-Height) | 0% |
| Keystone Adjustment | 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees |
| Lens Shift Vertical | -55%~ +55% |
| Lens Shift Horizontal | -23%~ +23% |
| Picture | |
| Rec. 709 Coverage | 92% |
| Picture Modes | 3D, Bright, HDR10, HLG, Presentation, Simulator, sRGB, User 1, User 2, Video |
| Compatibility | |
| Input Lag | 8.3 ms (1080P 120Hz) |
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Horizontal Frequency | 15K~135KHz |
| Vertical Scan Rate | 23~120Hz |
| I/O Interface | |
| PC in (D-sub 15pin) | (x1),PC in-1 |
| Monitor out (D-sub 15pin) | (x1) |
| HDMI in | (x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2) |
| Monitor out (HDMI) | (x1) |
| Display Port | (x1) |
| LAN (RJ45) | (x1) |
| HDBaseT (RJ45) | (x1),Control/Video/Audio |
| 3D Sync in | (x1) |
| 3D Sync out | (x1) |
| USB Type A | (x1), USB Type A-1 (2.0/Power Supply1.5A) |
| USB Type B | (x1), USB Type Mini B-1(service) |
| RS232 in (DB-9pin) | (x1) |
| Wired Remote in (3.5mm Mini Jack) | (x1) |
| DC 12V Trigger (3.5mm Jack) | (x1) |
| Audio | |
| Speaker | (x2),10W |
| Audio in (3.5mm Mini Jack) | (x1) |
| Audio out (3.5mm Mini Jack) | (x1) |
| Environment | |
| Operating Temperature | 0~40℃ |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption (110V) | 450W |
| Stand-by Power Consumption | <0.5W |
| Network Stand-by Power Consumption | <2W |
| Dimension & Weight | |
| Dimensions (WxHxD) (mm) | 479.6 x 182.8 x 402 |
| Net Weight (kg) | 12 |
Remote Control
Power Cord
Rear Panel
