BENQ EW800ST DLP HD Smart Short Throw Projector
Specifications
- WXGA 1280 x 800 16:10
- 3300 ANSI Lumens
- 20,000:1 Contrast
- 2.6kg Weight
- 33 / 29db(eco) Fan Noise
- 2 Year Warranty
- 6months/750hrs Lamp Warranty
- Est. Lamp Life up to 15,000hrs
Key Features
- HDMI Connection
- Vertical Keystone Correction
- Powerful 10W Speaker
- USB media Player with smart apps
- Smart Android 6.0 OS
- Firefox website browser
- All Glass Lens
- Wireless Included
- Bluetooth Audio
BenQ EW800ST Throw Distance Chart
Throw Ratio: (fixed) 0.49:1| Image Size | Installation Distance |
|---|---|
| 94" (16:10) 2025x1265mm | 0.99m |
| 110" (16:10) 2370x1480mm | 1.16m |
| 120" (16:10) 2585x1615mm | 1.26m |
BenQ 3300lm HD Smart Short Throw Projector | EW800ST
The EW800ST combines the amazing new android smart projection technology with a super convenient short throw. With the Android smart projector hardware and software you can run apps, access the internet, present wirelessly and even from a memory stick making this a perfect projector for PC-less all in one presentations. On top of that the EW800ST can produce a large image at a very short distance making it perfect for small room presentations to maximise the impact of your content.
Optional Accessories
Key Features
- Wireless projection for instant mirroring
- Internet connectivity offers app enablement
- USB supported – completely PC free
- Convenient adjustment feet including a retractable foot
- Vertical keystone for perfect alignment
- Wall color correction for projection onto any color surface
Smart Solutions to Elevate Your Agile Team
Smart Space for Your Meeting Room
With a 0.49 short-throw ratio, it's easy to project an 80-inch image from less than 1 meter away. Save more space for your audience in the meeting room. Talk with your hands without fear of blocking your presentation.

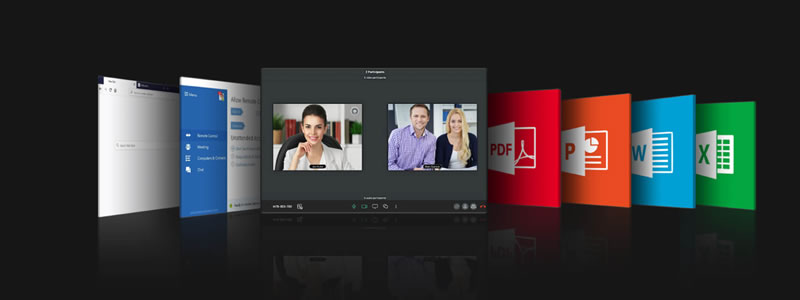

Lead a Seamless Meeting with Apps
Blizz allows you to start video conferences anywhere. With TeamViewer, you can remotely access another computer to view files or troubleshoot a problem. The WPS Office includes Writer, Presentation, and Spreadsheets, allowing you to create documents collaboratively with your team members in the meeting. Moreover, FireFox browser offers Internet connectivity to search for anything.
Take Control in Your Hand
BenQ Smart Control quickly turns your smartphone into a smart remote control, allowing you to lead a smooth meeting and finish your tasks on the spot.

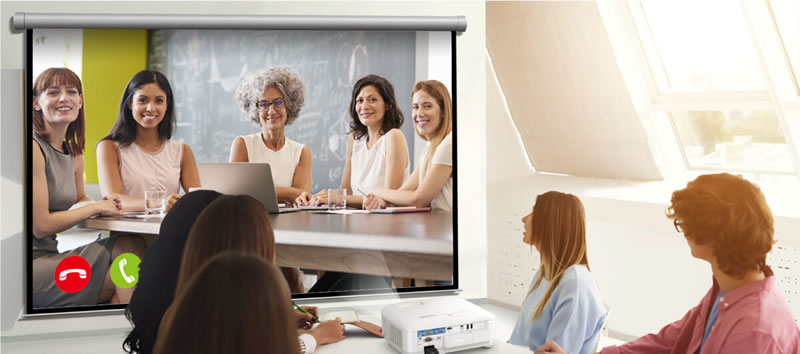

Start a video conference anytime. Get connected with just one click.
* A webcam and a microphone are required.

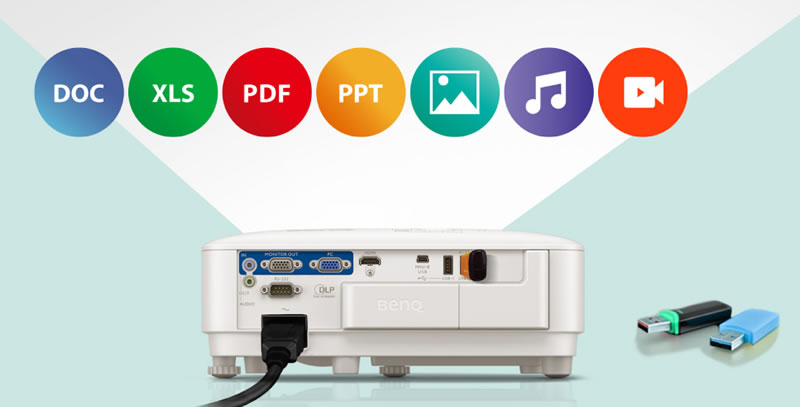

Be Organized, Nimble with Just a USB
USB Supported-Completely PC free
Supporting a wide range of file formats including JPEG, PDF, Microsoft Word, Excel, PowerPoint files, and more, EW600’s USB Type-A port allows you to easily project images or documents directly onto the screen without the need for a PC.
Instant Sharing,Never Miss Any Idea

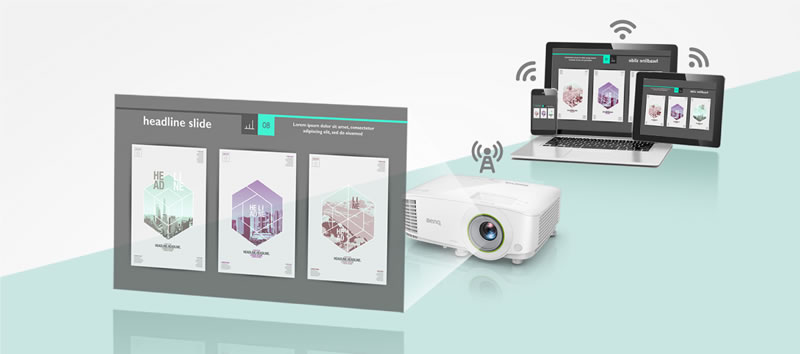

Wireless Projection
Just bring your own smart phone, tablet, or laptop PC to instantly mirror what is shown on your device to the projection screen. This wireless solution eliminates cable clutter, facilitating immediate and convenient collaboration for improved teamwork and meeting productivity.
* Inserting the bundled wireless dongle is required to use the wireless projection feature.

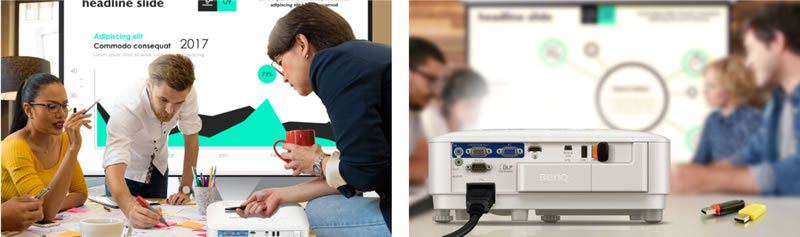

Maximize Your Highly Responsive Team
Show What You Got Instantly
The wireless projection feature allows for seamless collaboration to stimulate innovation.
Hold Meetings without a Computer
Stay agile and professional with all big files stored in a compact USB flash drive.

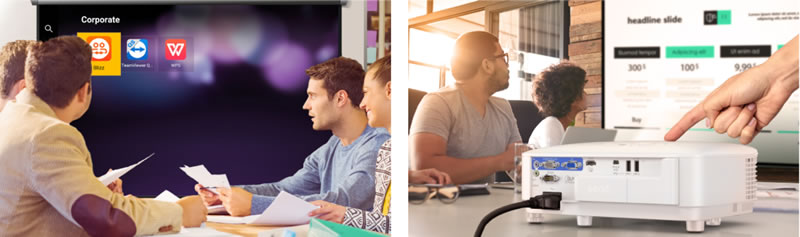

Business Apps to Complete Your Tasks in the Meeting
Boost meeting efficiency by completing tasks right away on the spot.
Start Meetings without Wait
Fast and easy setup to start meetings in a blink whenever ready.
Grasp Ideas Instantly with Crystal Clear Image Quality
All Glass Lens Array
BenQ only uses high-quality glass lenses to minimize chromatic aberration, ensuring long-term image quality in brilliant clarity.
Exclusive Infographic Mode
Great showcasing the text and graphics of infographic in detail thanks to the high brightness and better color gradation.
DLP Projection for Zero Color Decay
BenQ DLP projectors maintain the most vivid, crisp images by eliminating color decay, preserving absolute picture quality for many years to come.
High Brightness and HD Resolution
With 3500lm high brightness and WXGA native resolution. EW800ST offers subtle details, ultra-sharp readability.

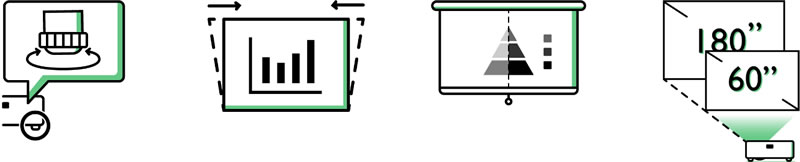

Start Meeting in a Blink Whenever Ready
Adjustment Feet for Convenient Setup
Two adjustment feet, including a retractable adjustment foot, significantly enhance flexibility for projector setup and mobility in various types of meeting rooms
Vertical Keystone for Perfect Alignment
Vertical keystone function adjusts the image for a professionally squared image. Keystone correction makes it easy to project ideally aligned images from a variety of locations.
Wall Color Correction
Corrects the projected picture's color when the projection surface is not white to prevent the possible color difference between the source and projected pictures.
Flexible Projection Sizes
EW800ST offers a flexible projection size from 60 to 180 inches, perfect for space-restrained huddle rooms or meeting rooms.

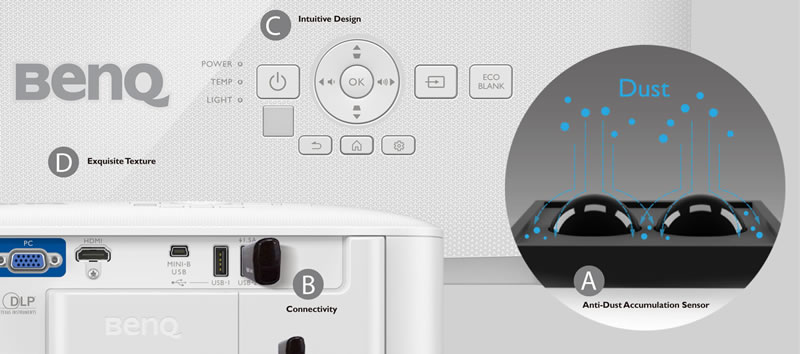

Details that Make a Difference
A. Anti-Dust Accumulation Sensor
Rejects large amount of dust accumulation, enhancing device durability and hence reducing maintenance costs.
B. Connectivity
Featuring 2 USB Type-A ports, Mini USB Type-B port, and 1HDMI 2.0 port, the EW800ST offers great connectivity and compatibility.
C. Intuitive Design
The direction buttons feature an ergonomic design for intuitive navigation.
D. Exquisite Texture
EW800ST features an exquisite, fingerprint-proof texture on the cover as an added delicacy.
| Projection System | DLP Single 0.65" WXGA |
| DMD type | DC3 DMD chip |
| Native Resolution | 1280x800 pixels, 16:10 |
| Brightness | 3,300 Lumens |
| Contrast Ratio* | 20,000:1 |
| Display Color | 1.07 Billion Colors |
| Aspect Ratio | Native 16:10 (5 aspect ratio selectable) |
| Light Source | Lamp 200W |
| Light Source life* | Normal 5000 hrs;Economic 10000 hrs;SmartEco 10000 hrs;LampSave 15000 hrs |
| Throw Ratio | 0.49 |
| Zoom Ratio | Fixed |
| Lens Control | Manual Focus |
| Lens shift | N/A |
| Keystone Correction | 1D, Vertical ± 30 degrees |
| Projection Offset | 105±2.5%( (Full-Height) |
| Projection Size | 70"~120" |
| Built-in Speaker | 2W x1 |
| Security | Security Bar, Kensington anti-tdeft lock slot | Feature | Built-In smart system, BenQ Launcher, Hidden Wireless dingle, Bluetooth Audio out, HID Devices supported (e.g. Mouse, keyboard) Digital zoom(2x), Digital Shrink(0.8x) and Shift, LAN Control, AMX/ PJ Link/Crestron/MDA,DMS Local Compatibility, FW upgrade via LAN |
| OS System | Android 6.0 |
| ROM/RAM | 16GB/2GB |
| Wireless | Dual Band 802.11ac/b/g/n, 2.4G/5G |
| Bluetooth | 4.0 |
| Resolution Support | VGA(640 x 480) to WUXGA_RB(1920 x 1200) |
| Horizontal Frequency | 15~102 KHz |
| Vertical Scan Rate | 23 ~ 120 Hz |
| HDTV Compatibility | 480i, 480p, 576i, 567p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Power Consumption(Max/Normal/Eco) | Max 320W. Normal 280 W. Eco 235 W. |
| Standby Power Consumption | Normal < 0.5Watts. Network < 2W. |
| Power Supply | 100 ~ 240V AC |
| Product Dimensions (WxHxD) | 296x 120x 250 mm |
| Product Weight | 2.6 Kg+/- 200g |
| Noise Level(Normal/Eco) | 33/29 dBA |
| Operating Temperature | 0 ~ 40oC |
| Accessories (Standard) | Wireless Dongle: WDR02U Power Cord (by region) Remote Control w/ Battery (RCI023) VGA cable Warranty Card (by region) QSG |
| Accessories (Optional) | Spare Lamp Kit (5J.JLT05.001) 3D Glasses (5J.J9H25.002) Wall mount (WM06G3) |
| On Screen Display /Launcher Language | Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/tdai/TraditionalChinese/Vietnamese /Farsi (30 Languages) |
| HDMI | x 1 |
| PC (D-sub 15pin) | x 1 |
| Monitor out (D-sub 15pin,Female) | x 1 |
| Audio in(mini jack) | x 1 |
| Audio out (mini jack) | x 1 |
| RS232 In (D-sub 9pin, male) | x 1 |
| LAN Port(RJ45 for Network ) | x 1 |
| USB TypeA-1 | x 1 |
| USB TypeA-2 (5V,1.5A) | x 1 |
| USB Type mini B | x 1 |
| IR Receiver(Front+Top) | x 2 |
