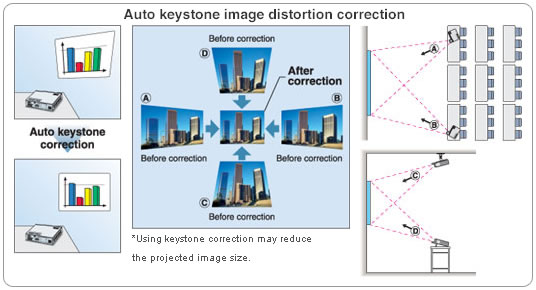

Vertical/Horizontal Keystone Correction & Auto Focus
Ensuring Quicker Setup
The XJ-560 and XJ-460 are equipped with a vertical/horizontal keystone correction function to correct projector display distortions automatically and an auto focus function to fine-tune the focus for you. These features provide one-touch correction of display distortions resulting from projector installation at angles up to ±30°, vertically or horizontally, and make appropriate focusing adjustments simultaneously. This eliminates installation hassles and ensures that your meetings go smoothly, even in small rooms with limited choices of installation positions.

Direct Power off providing quicker post-use cool-down
The cooling fan continues to operate for a certain time, even after the power is turned off and the power cord unplugged — freeing you to pack up your materials and take the projector to your next presentation without delay.
*Be sure not to replace the projector in the carrying bag until the main unit has cooled down fully after use.

High brightness output The XJ-560 achieves remarkably high luminosity of 3000 ANSI lumens despite its compact size. This means everyone can see the projected images clearly without dimming the lights, even in brightly lit meeting rooms. The addition of an aspherical Acornic Reflector (ACR) maximises the lamp? capabilities, ensuring projection of even clearer, more luminous images. *2500 ANSI lumens with XJ-460
Picture In Picture Permitting layered display of images and movies Picture in Picture lets you display images and movies from the VIDEO or S-VIDEO input terminal as small screens over a projected background image. And the ability to reposition these small screens or adjust their size in three steps opens up new possibilities for enriched information communication.
Custom Logo Projection The custom logo projection function enables you to begin presentations by projecting your organisation? logo or mark on the opening screen. This makes a strong impact on your audience and gets your presentations off to an impressive start.

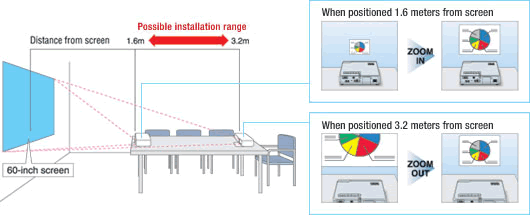

Wide-angle 2x zoom permitting a versatile installation range
Despite its compact body, the projector is equipped with a wide-angle 2X zoom lens, the maximum magnification available in a data projector.* It handles either short-range projection from as close as 0.8m when used with a 30-inch screen or long-range projection from 1.6m to 3.2m with a 60-inch screen. The ability to project images clearly on a large screen, even when installed a short distance from the screen, makes CASSIOPEIA® PRO ideal for use in rooms of all sizes, from small meeting rooms to large classrooms.
*As of October 2004 (according to CASIO survey information)

Colour Modes Adjust Image to suit Varied conditions Five built-in colour modes enable you to select the optimal luminosity depending on the image or content. This ability to adjust the colour mode setting to the situation enables you to present the images you want to project more effectively. Characters are clear, vivid and easy-to-read in the Presentation mode. Presentation —A setting suited to making general presentations in bright venues Standard —A setting for making effective use of colour in presentations Graphics —A setting suited to presenting photos, etc., naturally Theatre —A setting for showing dark areas in movies clearly Blackboard —A setting offering easy-view blackboard projection

Projection Distances: Screen size WIDE TELE 40-inch 1.1 m 2.1 m 60-inch 1.6 m 3.2 m 80-inch 2.2 m 4.3 m 100-inch 2.7 m 5.3 m 150-inch 4.1 m 8.0 m 200-inch 5.5 m 10.6 m 300-inch 8.3 m 16.1 m
