REPLACED BY THE VPLHW20

BRAVIA™ Full HD SXRD™ Home Theatre Projector

Experience the atmosphere of being at the cinemas from the comfort of your own home. Offering Sony’s
original SXRD panel technology and BRAVIA Engine 2, the VPLHW15 offers up to 300 inches of Full HD
1080p large screen viewing. Projected images are crisp, clear, and accurate.

Full HD 1080p SXRD™ Panels The VPLHW15 features three separate SXRD panels, one for each primary colour (Red, Green, and Blue). Each panel delivers 1920 x 1080 resolution, high contrast, fast response time and film-like reproduction. Images are dotfree eliminating the “screen door” effect.

Advanced Digital Signal Processing with BRAVIA Engine 2™ Incorporating Sony’s own BRAVIA Engine 2, the HW15 has a fully integrated digital picture enhancement engine. Incoming signals, be it analogue or digital, are carefully enhanced for best viewing. This results in vibrant colours and excellent image sharpness.

All Range Crisp Focus (ARC-F) Lens A specially developed lens complimenting the projector’s Full HD SXRD panels. The 1.6x zoom lens delivers superior resolution and focus to all corners of the screen.

Real Colour Processing (RCP) Function
Allows you to adjust the hue of a specific colour without changing the whole image.

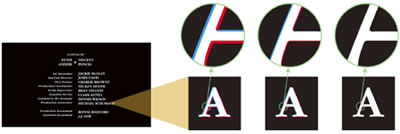

Panel Alignment Function
Allows the precise alignment of RGB images with to deliver a sharper, crisper picture.

Noise Reduction (NR) Function
Reduces the roughness or noise of the picture. It helps get rid of artefacts often found on MPEG video signals.

Superb Contrast Ratio up to 60,000:1 with Advanced Iris 3™
Advanced Iris 3, the latest version of Sony’s own Advanced Iris function, optimises the projector’s contrast levels to suit the brightness of each movie scene. It uses algorithms to analyse the histogram of each scene and automatically adjusts the size of the iris aperture. The results are crisp and clear images in bright scenes. Black levels in dark scenes are deep and detailed while still maintaining peak brightness.

BRAVIA Sync
BRAVIA Sync allows you to link the projector with other BRAVIA Sync or HDMI CEC compatible devices and control them using the HW15’s remote.

Other Features
⇒ x.v Colour (xvYCC colour space)
⇒ Deep Colour
⇒ 24p True Cinema
⇒ Optimised Gamma Correction modes
⇒ Adjustable Lens Shift
⇒ Whisper-quiet 22dB
⇒ 2 x HDMI inputs

Specifications

OPTICAL
Panel Resolution 1080p Full HD, 1920 x 1080
Pixels 6,220,800 (2,073,600 x 3)
Pixel Size / Inter-pixel Spacing 7μm / 0.35μm
Technology Sony SXRD
Panel Size 0.61 inch
Lens Type All Range Crisp Focus Lens (ARC-F)
Zoom Ratio 1.6x
F-number / Focal Lenth 2.50-3.40 / 18.5-29.6mm
Zoom and Focus Manual
Lens Shift Manual (Vertical 65%, Horizontal 25%)
Contrast Ratio 60,000:1
Brightness 1000 ANSI Lumens
Lamp Type 200W Ultra High Pressure (UHP)
Screen Size 40 to 300 inches / 1 to 7.6m (16:9 diagonal)
Throw Distance 1.2 to 14.1m (16:9 screen)

FEATURES
Picture Enhancement BRAVIA Engine 2
Colour Enhancement x.v Colour
Deep Colour
Real Colour Processing (RCP)
Contrast Enhancement Advanced Iris 3
Connectivity Enhancement 24p True Cinema
BRAVIA Sync (HDMI CEC)
Panel Alignment Function Full Screen (±2.0 pixel in 0.1 pixel steps)
Picture Mode Settings Dynamic / Standard / Cinema / User 1 / User 2 / User 3
Wide Mode Settings Wide / Normal / Full / Zoom (Video Signals)
Full 1 / Full 2 / Zoom (Computer Signals)
Blanking / Overscan Yes / Yes
Noise Reduction Function High / Middle / Low / Off (Normal NR)
Mosquito NR / Block NR (MPEG Digital Signals)
INPUT / OUTPUT
HDMI 2 (CEC 19pin)
Component Video 1 (3 x RCA)
S-Video 1 (Mini DIN 4pin)
Composite Video 1 (1 x RCA)
Computer Signal (Input A) 1 (Analogue RGB, Component HD D-sub 15pin)
Control Terminal 1 (AMX Protocol Supported RS-232C D-sub 9pin)
Acceptable Video Signals 720p (720/60p, 720/50p)
1080i (1080/60i, 1080/50i, 1080/24PsF 48i)
1080p via HDMI (1080/60p, 1080/50p, 1080/24p)
Acceptable Computer Signals Max Resolution 1920 x 1080 (fH: 19072kHz, fV: 48-92Hz)

GENERAL
Body Colour Cosmic Black
Fan Noise 22dB
Power Consumption 300W (Max), 8W (Standby Mode), 0.5W (Low)
Dimensions (W x H x D) 407.4 x 179.2 x 463.9mm
Weight 10kg

ACCESSORIES
Supplied Illuminated Remote Control (RMPJAW70), 2 x AA Batteries, Lens Cap, Operating Instructions, AC Power Cord

REAR PANEL
